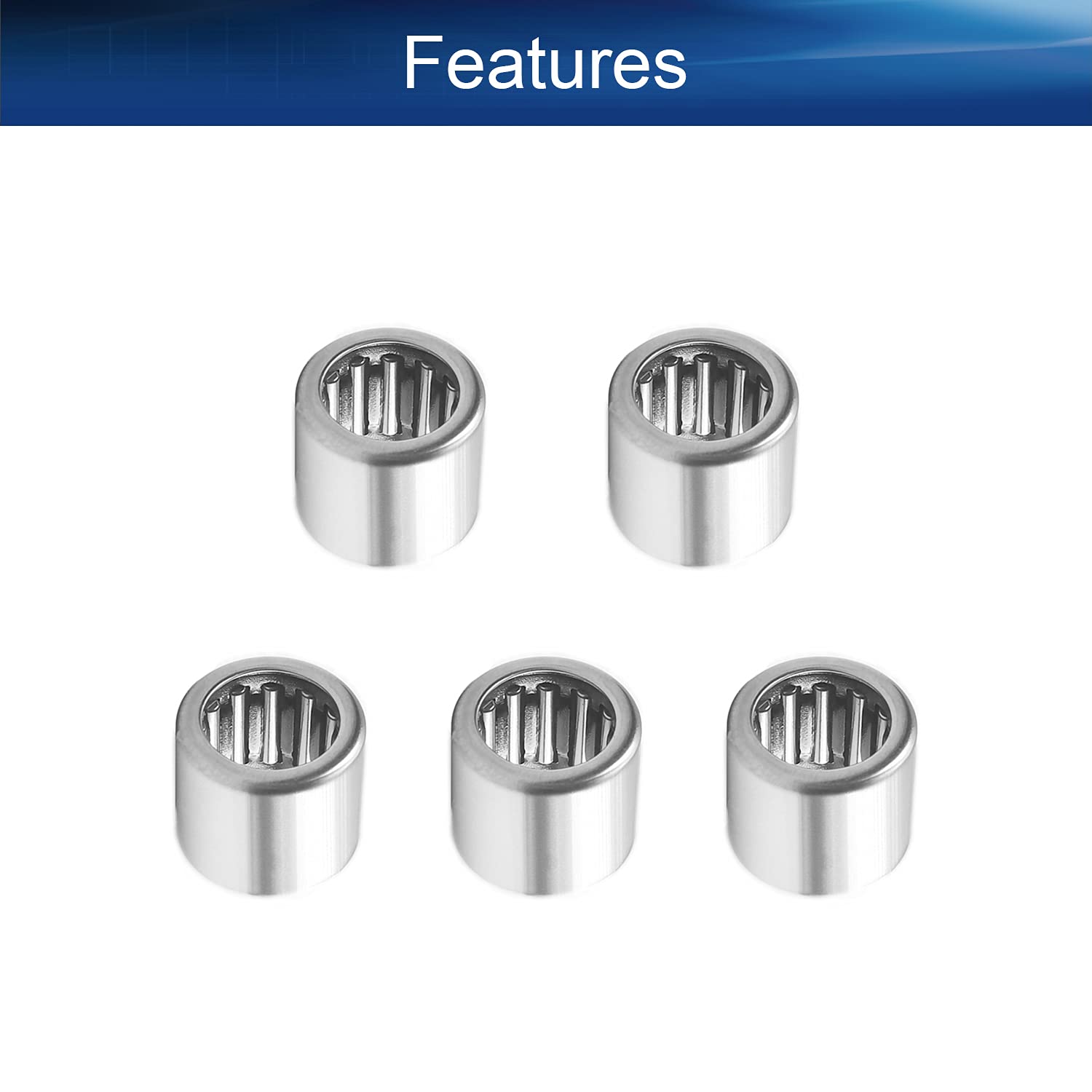

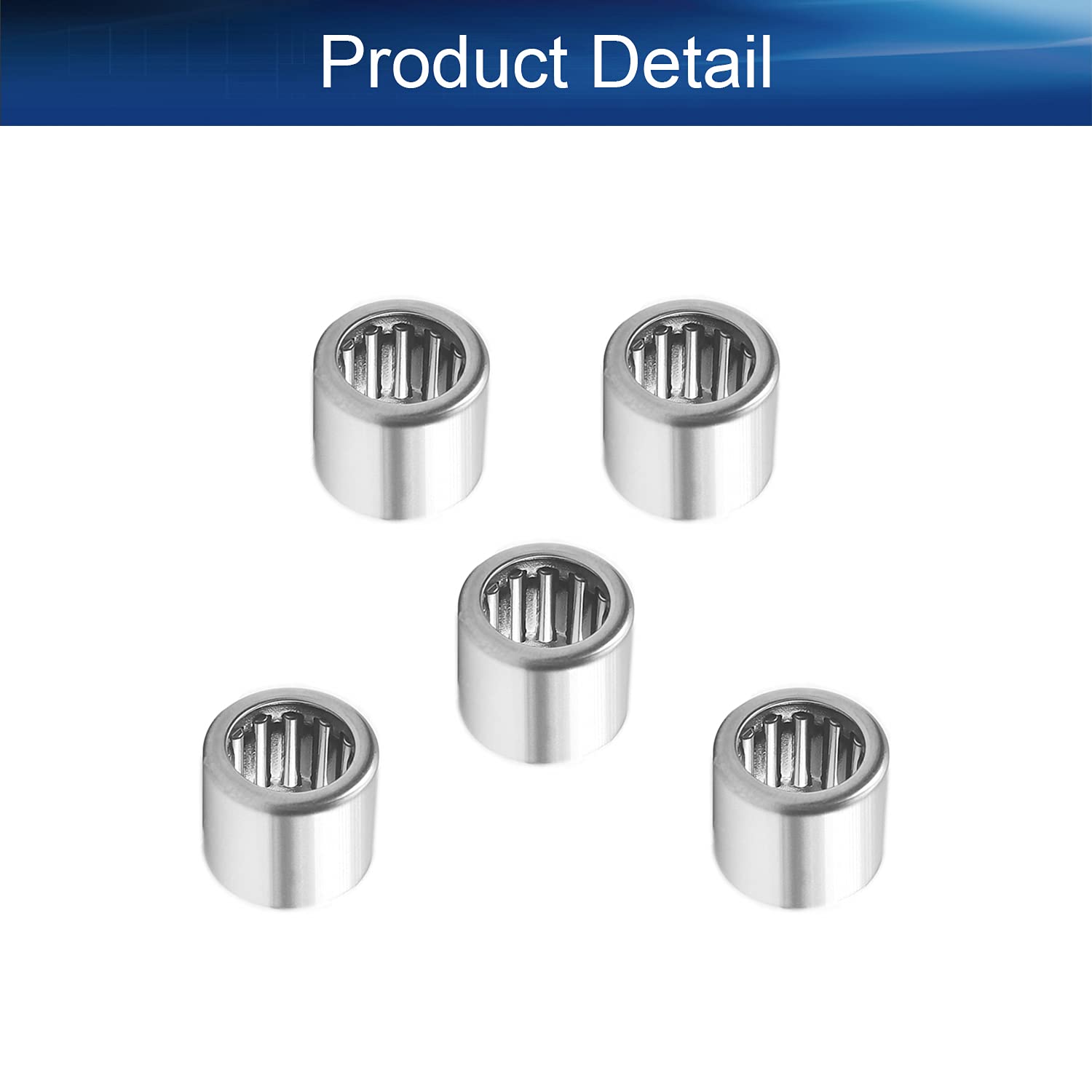

HK0912 Drawn Cup Needle Roller Bearings, Bidirectional Bearings 9mm Bore Dia, 13mm OD, 12mm Width 5pcs

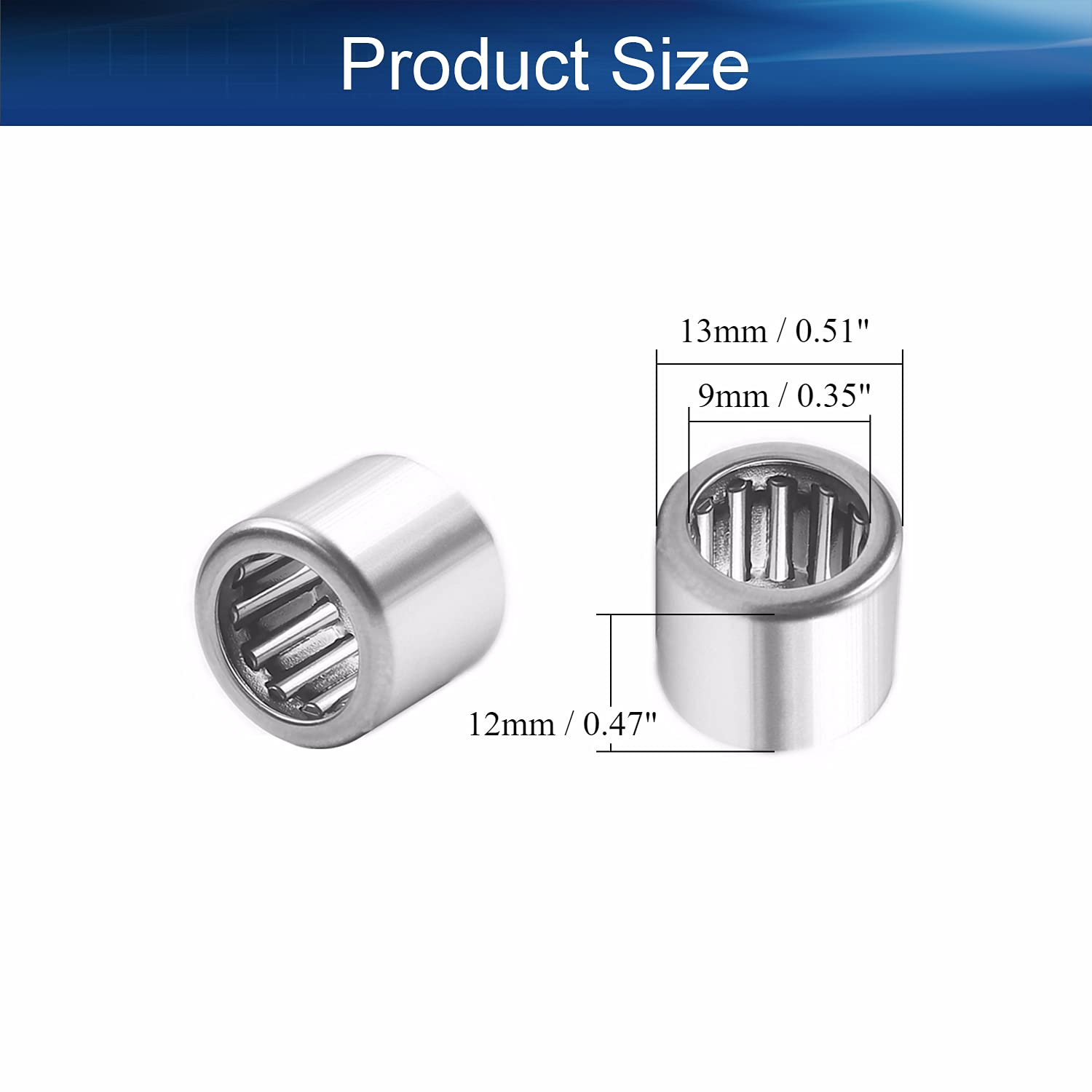

• 【 Size 】 Model: HK0912, inner diameter=9mm, outer diameter=13mm, width=12mm
• 【 Material 】 The needle roller bearing adopts steel drawn cup and steel cage, with strong load-bearing capacity.
• 【 Capacity 】dynamic load rating(KN): 5 static load rating(kN):6, grease lubrication speed (r/min):41667, oil lubrication speed (r/min): 25000
• 【 Features 】 Needle roller bearings have good heat resistance, high load-bearing capacity and stiffness, and good operational ability
• 【 Application 】Needle roller bearings are suitable for applications with limited installation space and housing holes that can be used as raceways

1.Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness. 2.These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing. 3.Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore. 4.For various applications such as automotive and truck transmissions, agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others. 5.NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation or brittle fracture. Specification: Model: HK0912 Drawn Cup Meterial: ST14 Steel Cage Meterial: ST13 Steel Needle Roller Meterial: Chromium Steel (GCr15) Bore Diameter (Fw): 9mm Outside Diameter (D): 13mm Width: 12mm Static Load Capacity (Cor): 6kN Dynamic Load Capacity (Cr): 5kN Maximum Rotational Speed (Oil): 25000rpm Number of Pack: 5 Pcs
