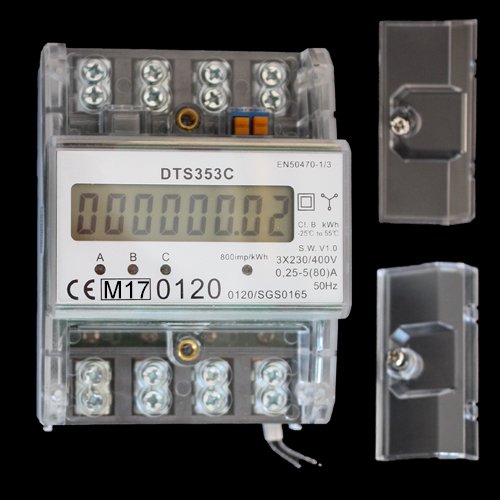

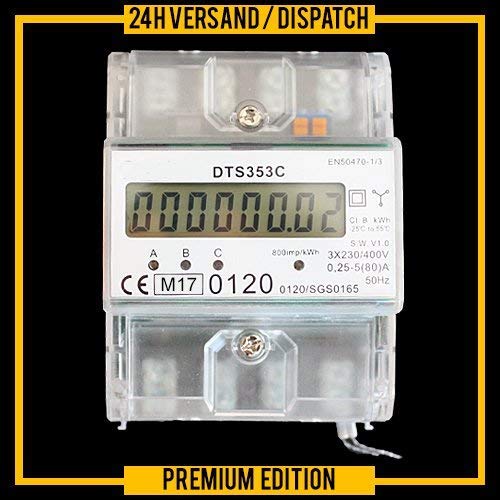

OCS.tec MID-WATTMETER THREEPHASE ENERGY METER 230/400V S0-INTERFACE DIN-RAIL ZS5

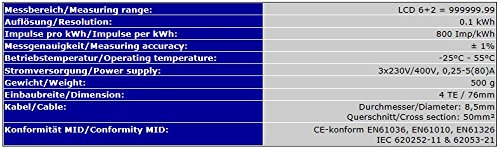

Our DTS-HD 353 °C case with mid is one of the few Mid Geeichten a/3 Phase electricity meter 400 V 0.25 (80) a with digital display for DIN rail. It is designed for the quick snap DIN rail mounting and is suitable for installation in almost all security distribution systems and power boxes. Ideal to check the Mietshäuser, Power Section kWh used or individual areas. The main unit has an S0 interface.The kWh meter has been certified in accordance with CE EN61036, and meets the CE requirements and EN61010 EN61326. It is part of the ultimate accuracy class 1 thanks to its 6 Digital points and a decimal point points is at a glance the current power consumption need to take. Electronic Energy Meter for 3-phase twist power according to EN 61036, for 4 conductor twist power grid. The licensed Operating this Zählers is 1% of the rated stream at 0.25 – 5 (80) a: I (Nominal) = 8 A, 1% of I (Nominal) = 0,08 A, Maximum load 80 A. The permitted operating as well from 0,08 A... 80 A.Calibrated design based on the mid for billing purposes to third. Technical Specification: Geeic hter counter for billing purposes (Mid) Connection: 3X230 V/400 V, 0.25 – 5 (80) aBackstop Accuracy class: 1 Mounting: DIN top-hat rail (DIN EN50022) Mode/Pulse Width/: 90ms Zählim pulse: 800IMP/kWh Display: LCD 6 + 2 = 999999.99 kWh (backlit) Fitting Depth – Front to Back: 4 TE/76 mm Box Contents:Digital A/3 Phase DIN top-hat rail kWh meter
