NUZAMAS 4 to 1 Branch Y Type Solar Panel Wire Cable, Connectors Male Female Connector, Extension Cable, DIY Cable Accessories Tool

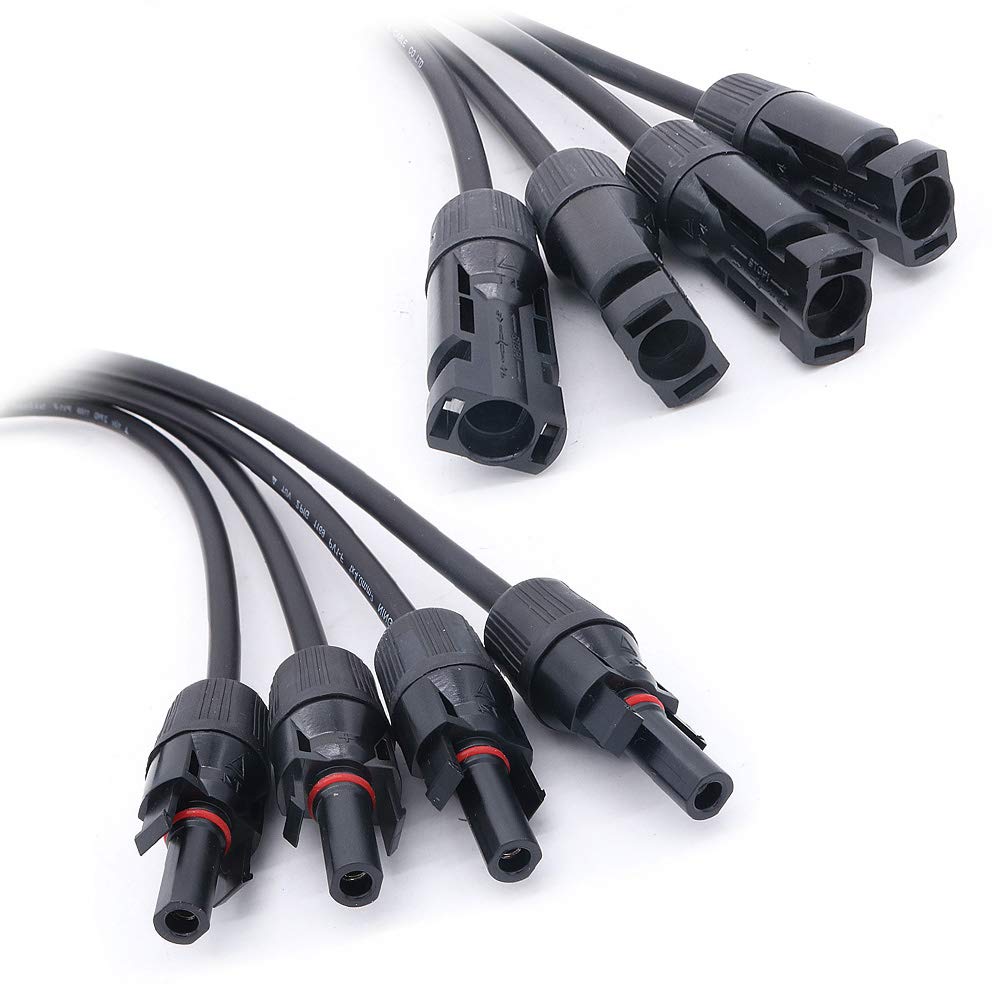

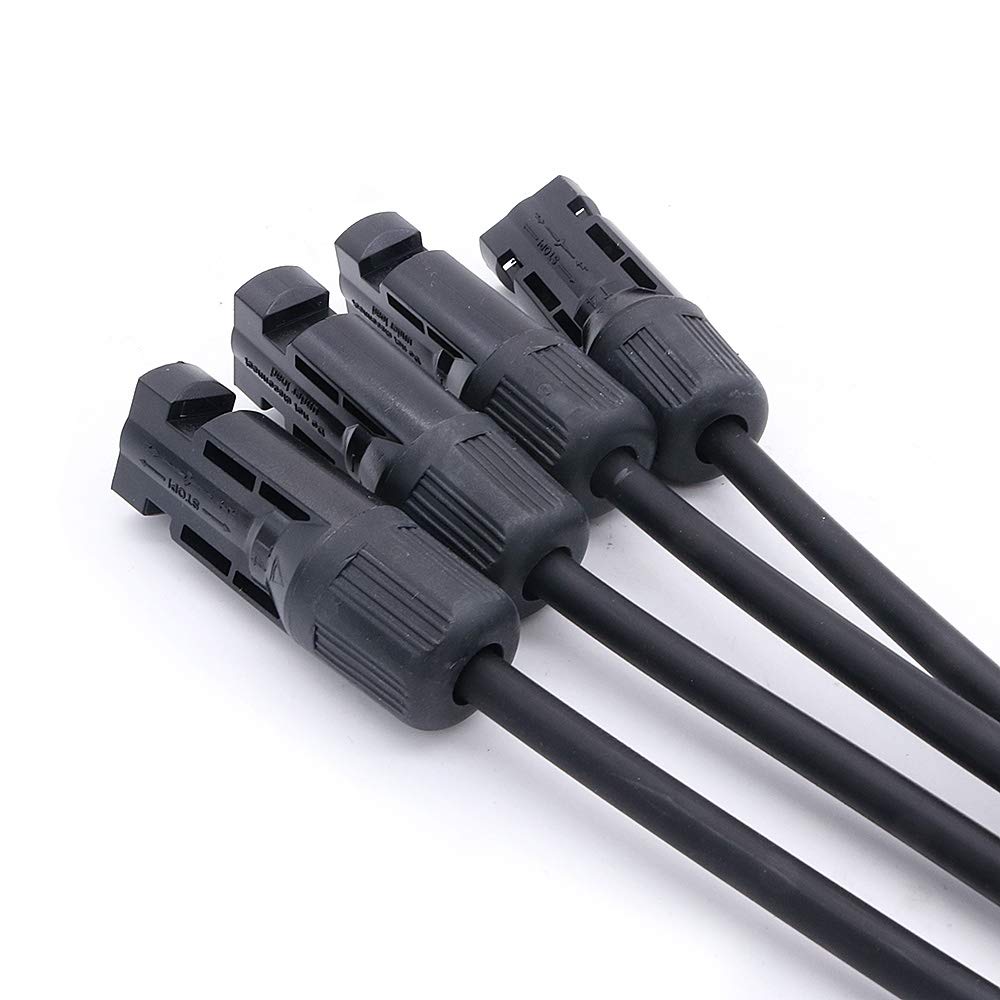

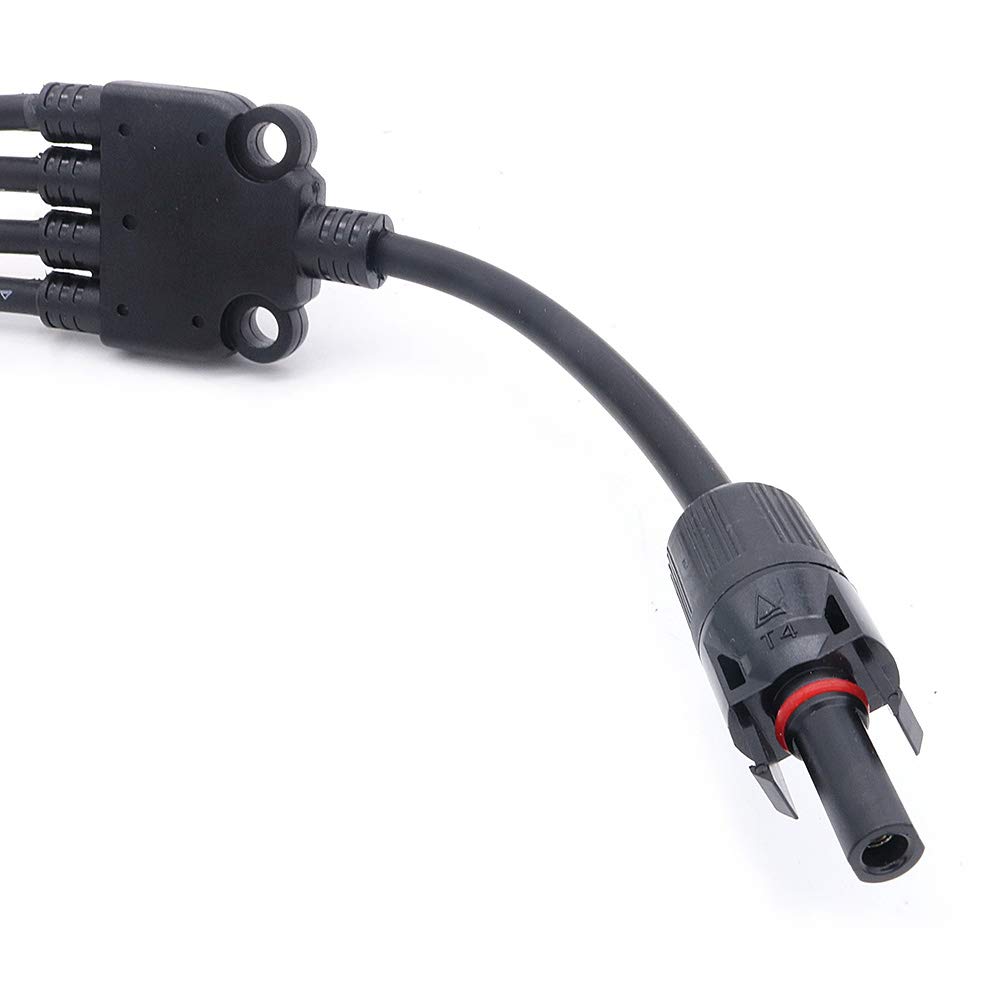

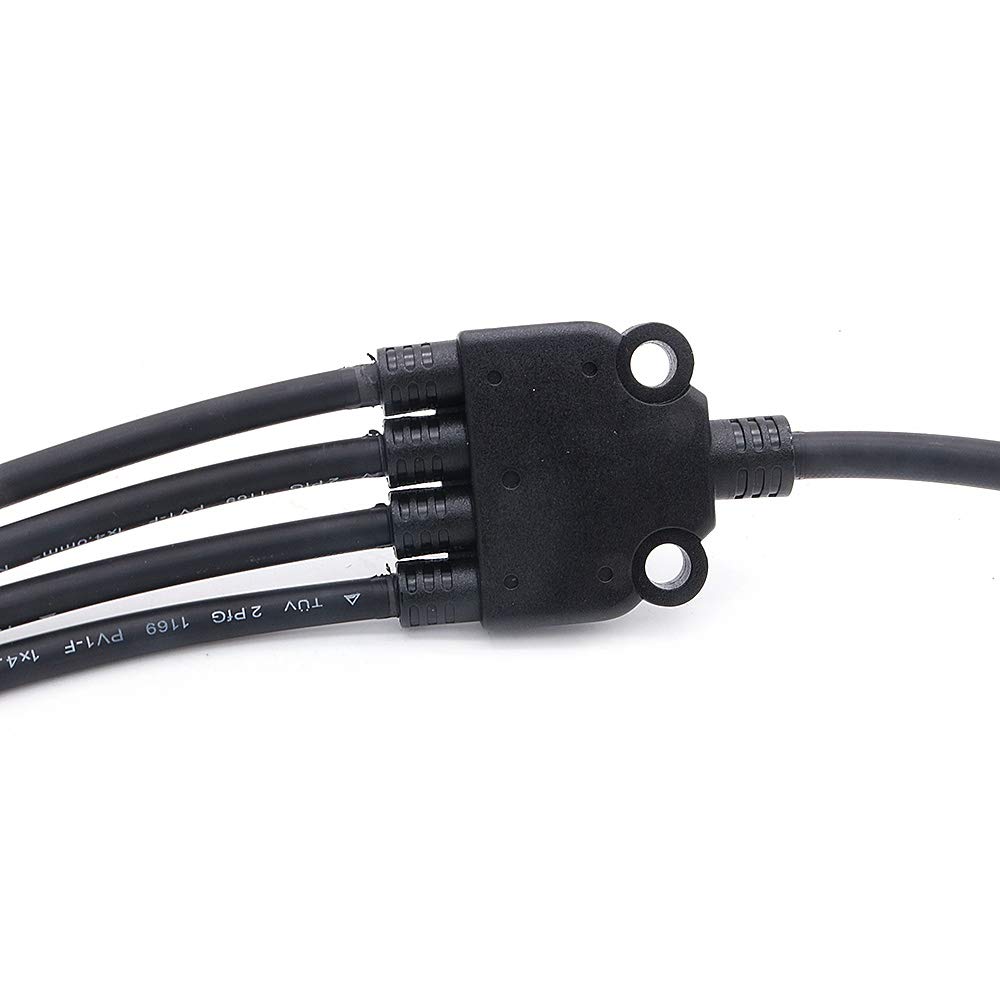

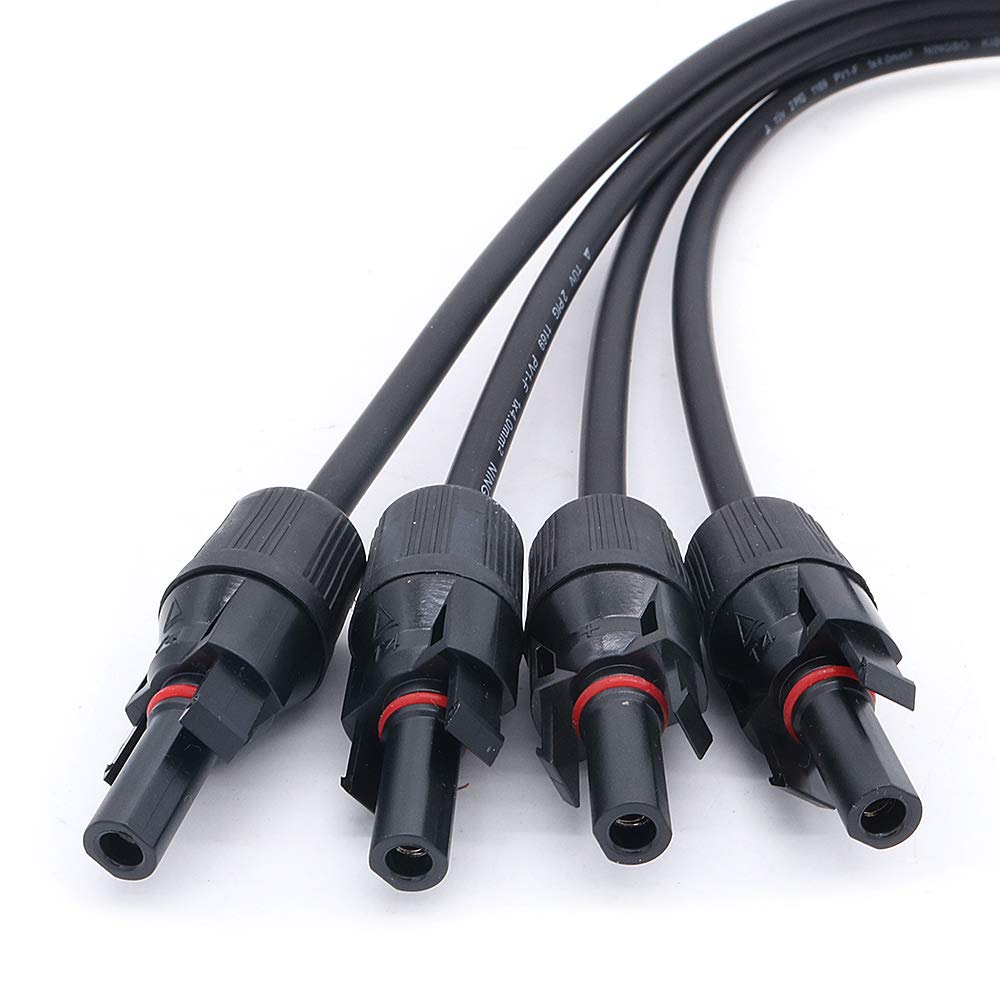

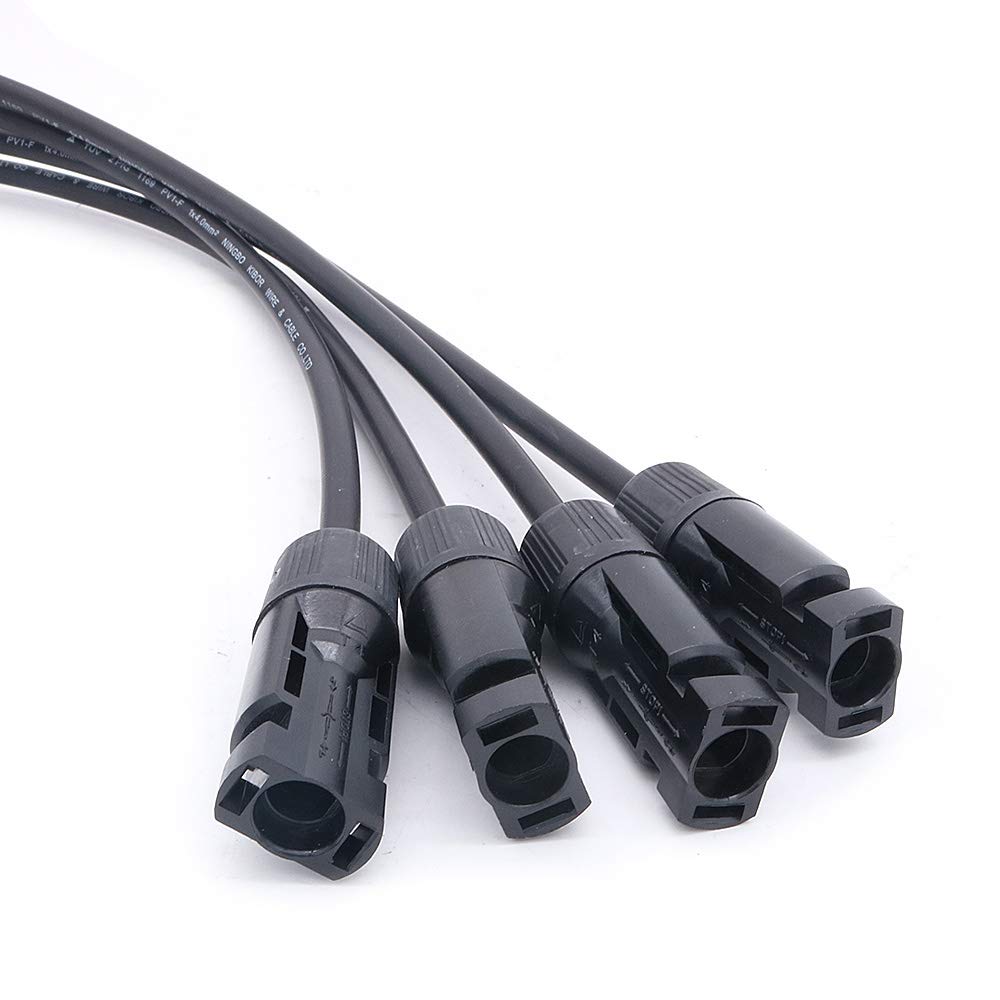

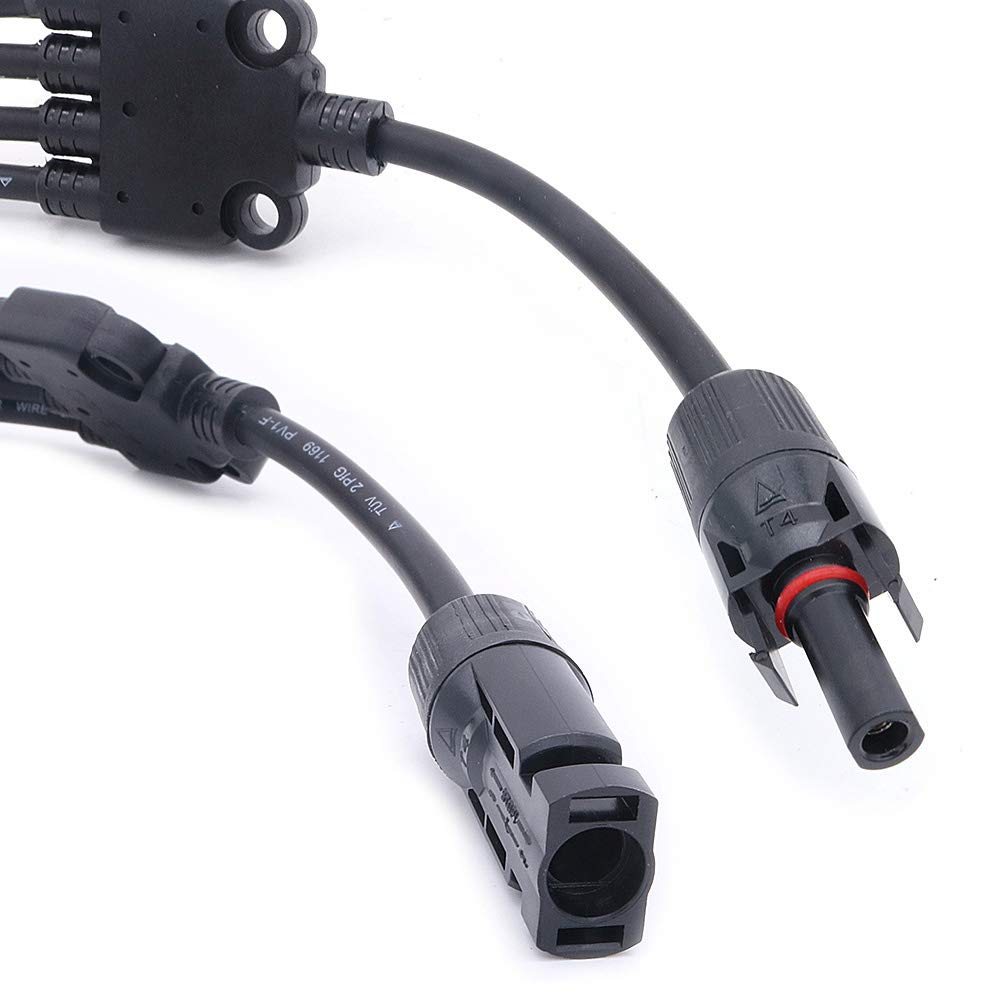

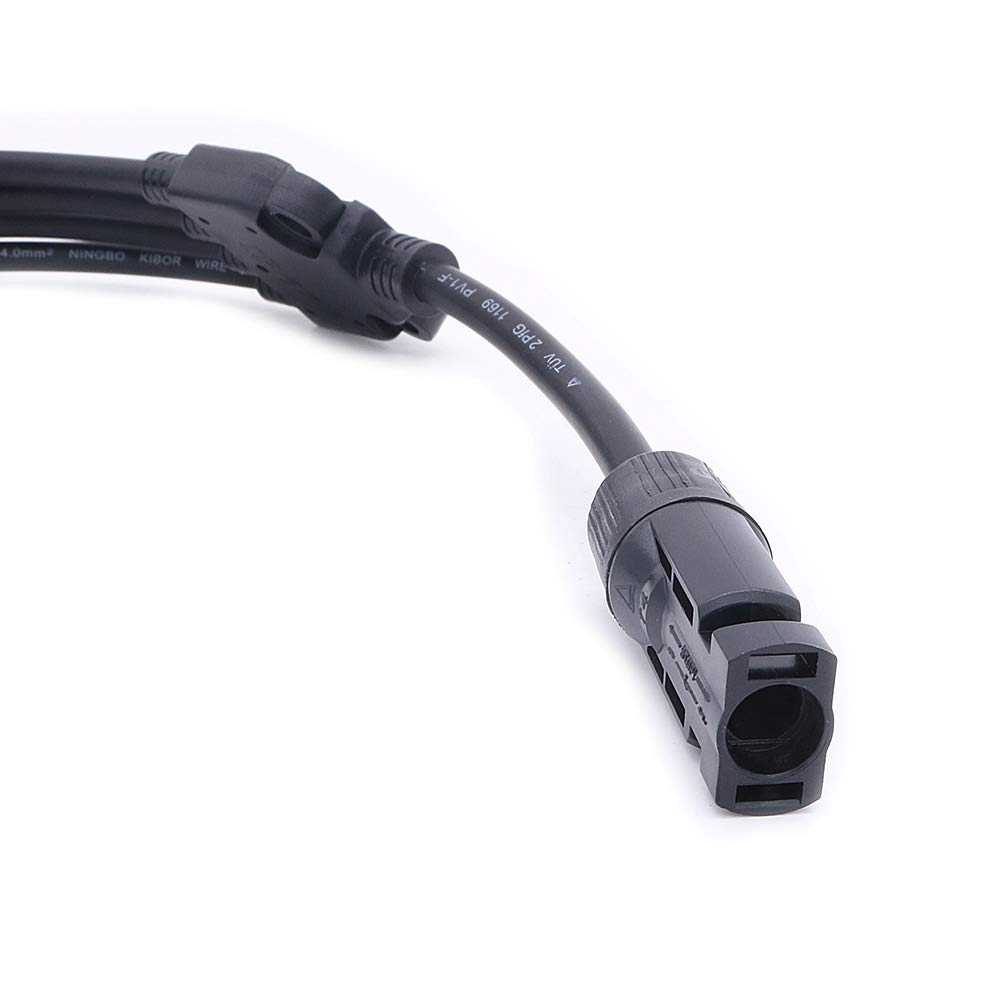

• 1 Pair of Y Type (1 to 4) Solar Panel Cable Connectors：1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)
• IP67 Waterproof Level, Easy plug in connection, this cable can be used in harsh environment
• Tin Plated Copper connector - heavy load capacity;
• Made to last- cable is made with excellent aging resistance and UV endurance material
• Made to last- cable is made with excellent aging resistance and UV endurance material

Feature: 1. Simple assembly, easy to use 2. Suitable for different sizes of PV cable 3. Waterproof grade: IP67 4. Housing made of PPO material, anti-UV 5. High current carrying capacity 6. Contact material: Copper Tin Plated 7. High heat resistance, wear-resisting. Compatible Double seal rings for better waterproof effect Compatible with PV cables with different insulation diameters It can be used in harsh environment With excellent aging resistance and UV endurance Rated Current: 30A Rated voltage: 1000VDC Contact resistance: ≤1MΩ Waterproof degree：IP67 Safety Class: Ⅱ Withdrawal force: ≥50N Insertion force: ≤50N Insulation material: PPO Contact material: copper, tin plated Temperature range: -40 ℃ ~ +110 ℃ Package include: 2 x NUZAMAS Solar Y (1 to 4) Branch Connector Cables
