Network Cable Length Tester Cable Line Locator RJ11 RJ45 BNC Cable Line Tracker Cable Tester NF-858C

• CAT 5 CAT6 and Coaxial cable length continuity test;
• Trace network cable & coaxial cable;

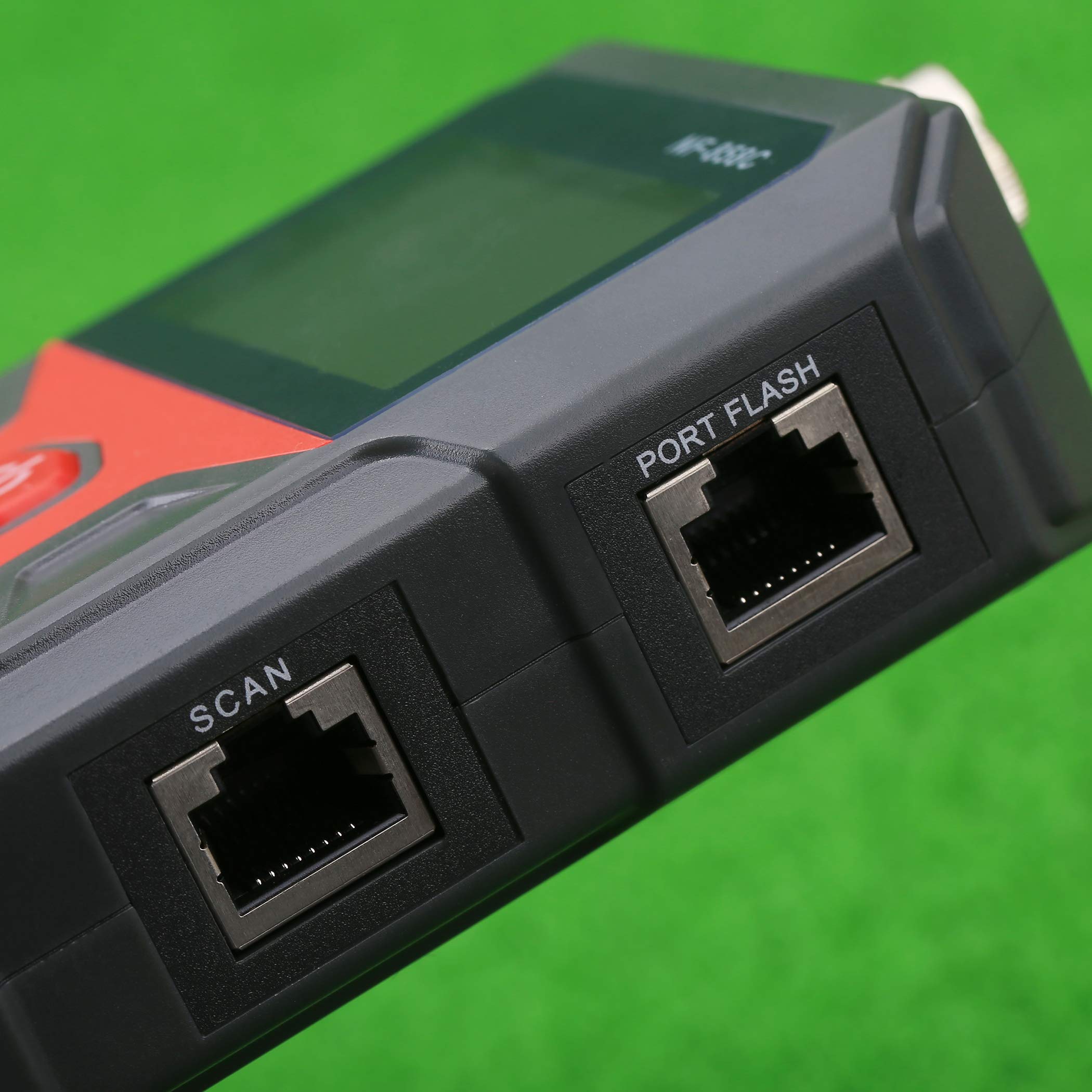

• Port flash directly locate target cable connected to switch;
• Build in a VFL to check the fiber cable faults;
• Detect the voltage on POE switch;

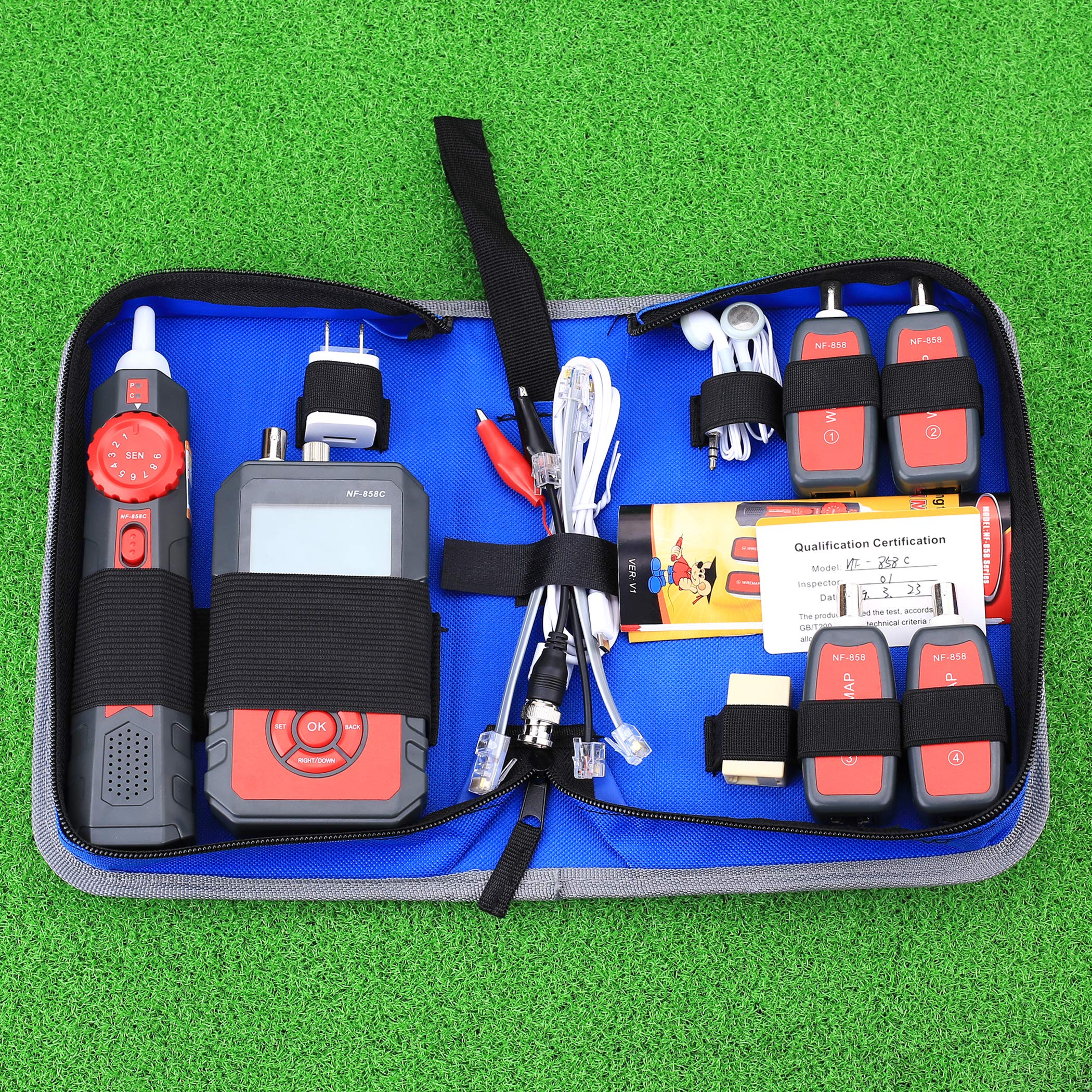

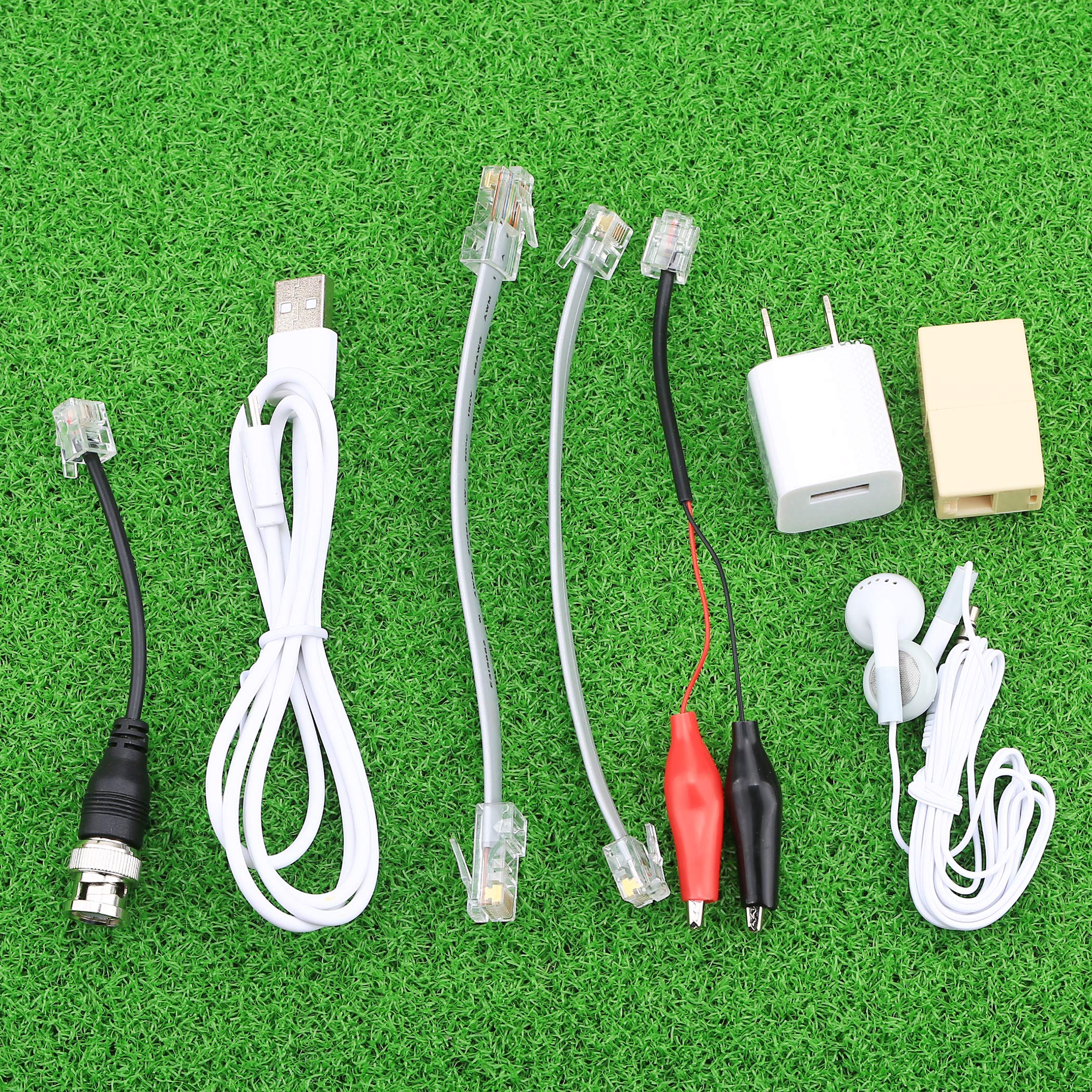

Features: 1.PoE function: identify which pins are providing power and detect how much voltage. 2.Identify telephone cable condition ( Tip or Ring) / polarity (anode or cathode). 3.Easily trace and locate cables without AC Current noise 4.Hub blink for locating network port by the flashing port light on Hub / Switch. 5.Measure cable length for Lan cable and Coax cable 6.Check open, short, cross for Lan cable and Coax cable 7.Different scan modes, easily help locate target cable. 8.With memory and storage function and LCD Screen shows test result clearly. Descriptions: Model Number: NF-858C Tone frequency: 130kHz Max testing range: 2000m Trace cable connected to switch: anti-jamming Compatible with connectors: RJ45, BNC, VFL , Mic USB Low battery display: 3.4 ± 0.2V Storage: data 6 sets Battery type: 3.7V 1000mAh Lithium battery(included) Led illumination: 2 Big LCD screen: 58 x 40mm (128*64) Compatible with connectors: RJ45,BNC Remote units: 4 sets Specifications: Material: plastic Transmitter: 135x78x35 mm Receiver: 203x45x33mm Remote unit: 107x30x24mm Color: red & black Package included: 1 x Transmitter 1 x Receiver 4 x Remote Units 1 x BNC-RJ11 Cable adapter 1 x 8P network Cable adapter 1 x 8P extender adapter 1 x Cable clip 1 x Charging adapter 1 x Earphone 1 x Cloth pouch 1 x instruction manual
