NanoPi Fire3-LTS Open Source S5P6818 1.4GHz DDR3 1GB RAM Single Board Computer Onboard Gigabit Ethernet USB 2.0 HDMI Debug 40pinGPIO Port for AI Development Support Android Debian UbuntuCore+Qt

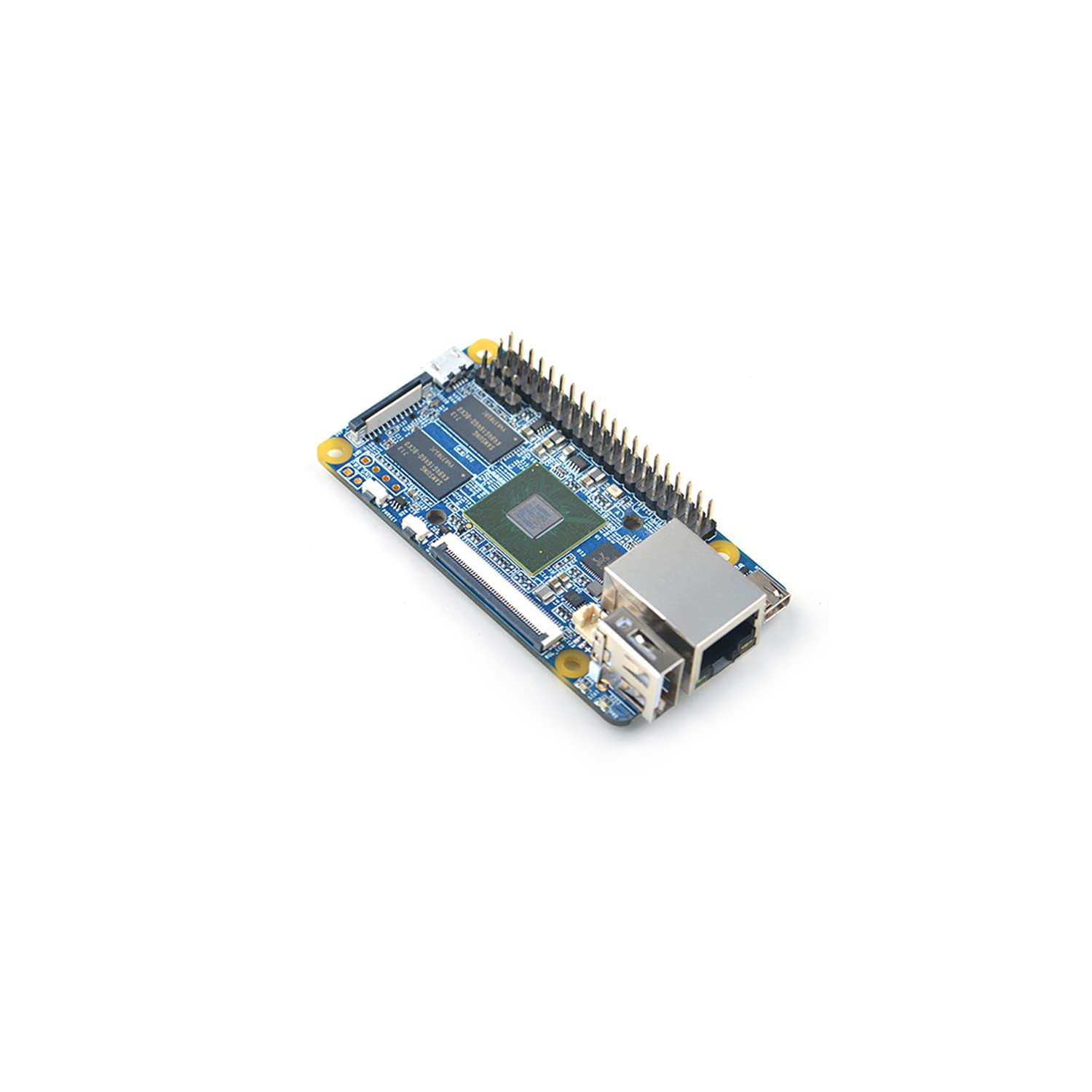

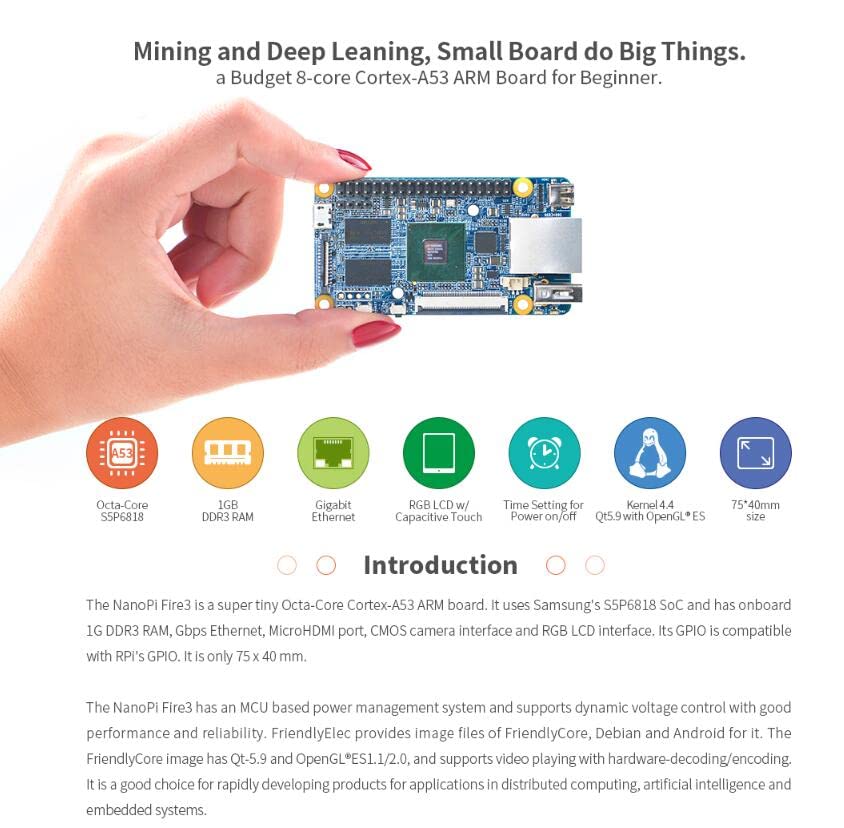

• [S5PV6818 CPU] NanoPi Fire 3 is an ultra-small Cortex-A53 open source eight core development board that uses the S5PV6818 main control processor equipped with 1GB DDR3 memory, with Gigabit Ethernet interface, MicroHDMI, CMOS camera and RGB LCD etc. Rich interfaces and compatible with Raspberry Pi The size Only 75 x 40 mm
• MCU power control: The NanoPi Fire 3 single-board computer uses a unique MCU power control system, supports dynamic voltage control and frequency control, and has high stability.

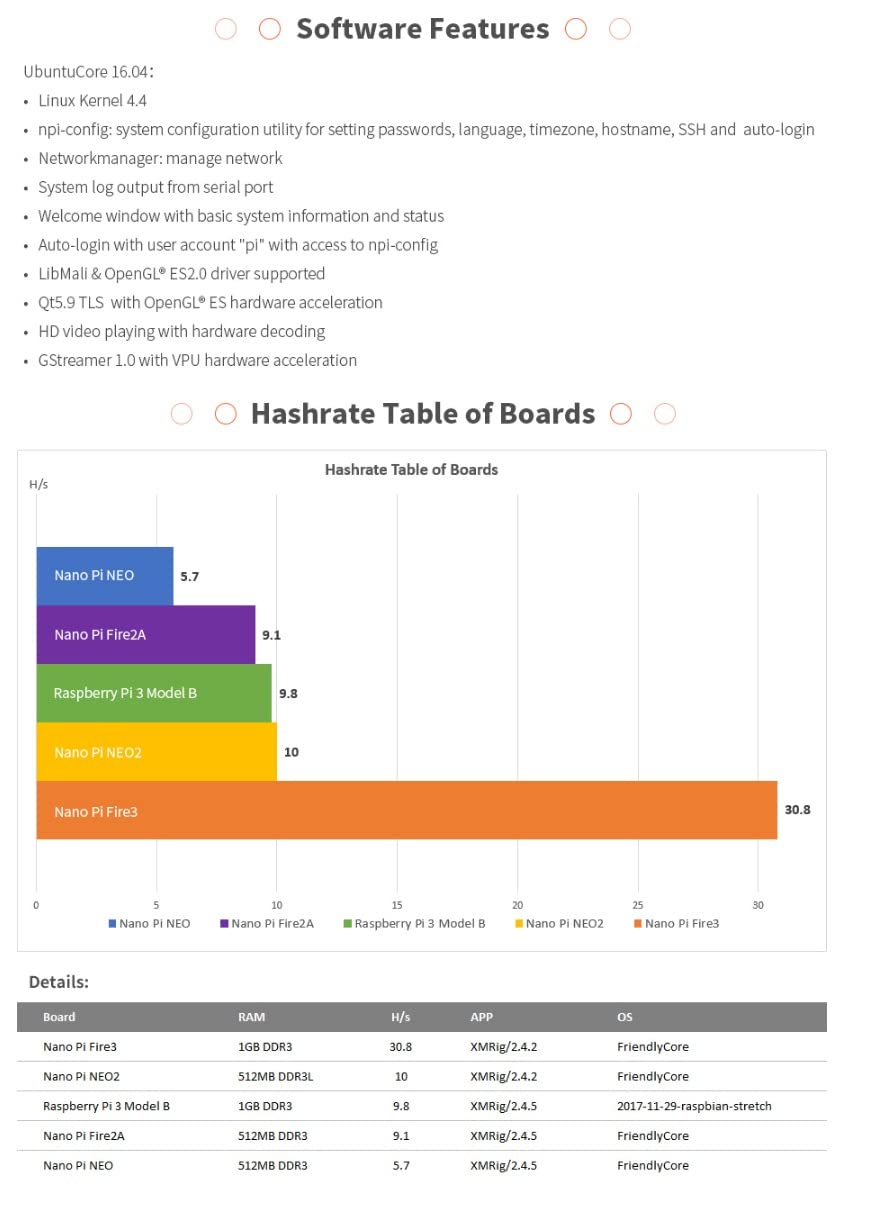

• [Operating System Support] NanoPi Fire 3 can run FriendlyCore, Debian, Android and other systems and can support Qt-5.9 and OpenGL ES1.1/2.0, video hardware codec and other graphics processing libraries

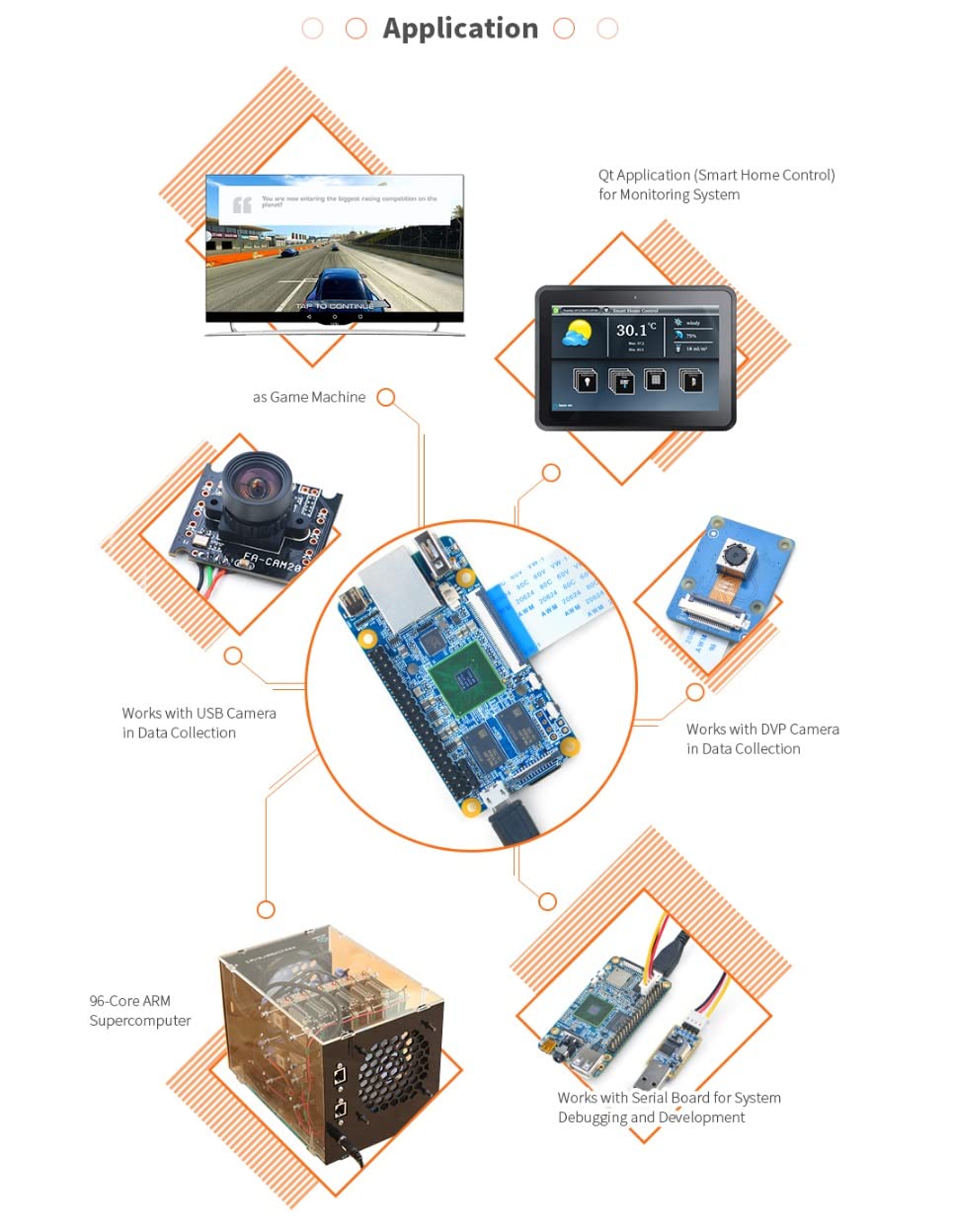

• [Application Development] NanoPi Fire 3 Open Source is very suitable for fast product development, industrial applications such as project integration as well as application development in distributed computing and artificial intelligence.

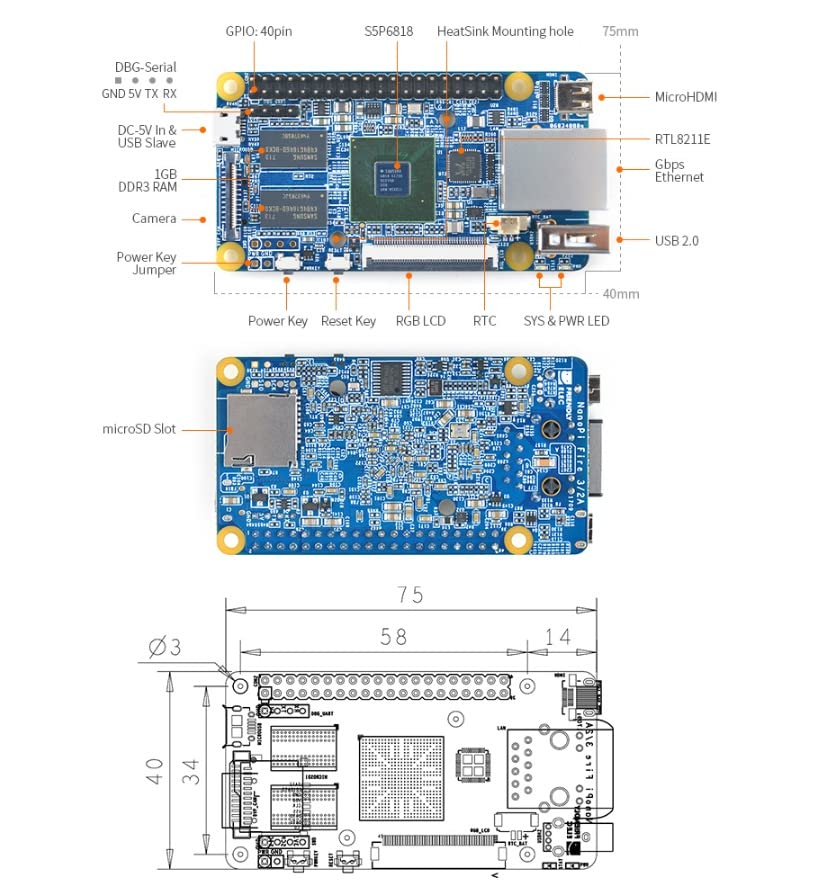

• [Rich interfaces] microUSB x1: supports power supply and data transmission; LCD interface: supports full-color LCD (RGB:8-8-8); HDMI: conforms to 1.4a specification; mciroHDMI (Type-D) port, 1080P60 output; DVP camera interface: including ITU-R BT 601/656 8-bit, I2C, PW. M and IO; GPIO1:2.54mm pitch 40 pin GPIO compatible with RPi, including UART, SPI, I2C, PWM, IO and other pin resources
• [Wiki] https://wiki.friendlyelec.com/wiki/index.php/NanoPi_Fire3; Any after-sales problems, please contact us by email: monica#smartfire.cn (#----->@).Also can click WayPonDEV store and ask a question or leave the message in our forum by "forum.youyeetoo .com/".

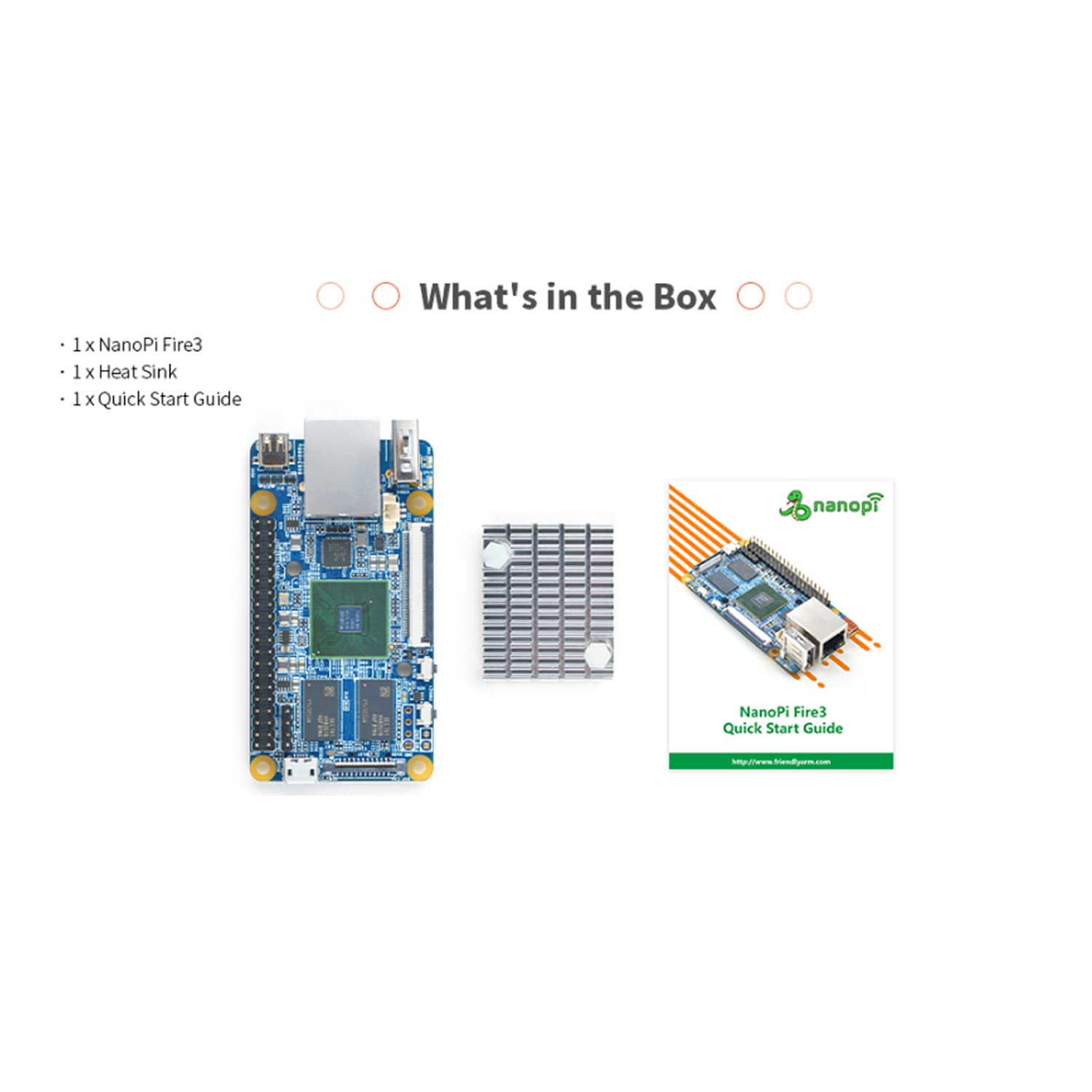

-Specification- Processor: S5P6818, 1.4GHz Memory: 1GB MB DDR3 Connectivity: Gbps Ethernet port PMU Power Management Implemented by a Cortex-M0 MCU, supports software power off and RTC alarm on functions USB 2.0 Type A x 1 Serial port/UART0 x 1 debugging 1 x microSD slot. Micro USB x 1: for data transfer and power consumption. LCD interface: SMT FPC seat with 0.5mm pitch for full color LCD (RGB:8-8-8) HDMI: HDMI 1.4A, microHDMI (Type-D), 1080P60. DVP Camera Interface: FPC Female 0.5mm Pitch It contains ITU-R BT 601/656 8-bit, I2C and IO GPIO: 2.54mm pitch 40 pin compatible with Raspberry Pi GPIO It includes UART, SPI, I2C, PWM, IO etc Button: power button x 1, reset button x 1. LED: LED for power indicator x 1, system LED x 1. RTC: RTC Battery Seat PCB dimensions: 75 x 40 mm. Power: DC 5V/2A Temperature measurement range: -20°C to 80°C. Operating system: Android, Debian and FriendlyCore (Linux Kernel 4.4 + Qt 5.10.0 + OpenGL2.0) - Package contents: 1 x NanoPi Fire3-LTS single board computer. 1 x heat sink. 1 x quick start guide. - Technical support Wiki: "wiki.friendlyelec.com/wiki/index.php/NanoPi_Duo2" Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122 Please leave the message on our forum at forum.youyeetoo.com/
