NanoPi Duo2 Allwinner H3 Open Source Quad-Core Cortex-A7 1.2GHz Linux Single Board Computer with DDR3 512MB RAM Onboard WiFi Bluetooth Module Supports WiringNP Python for IOT Development

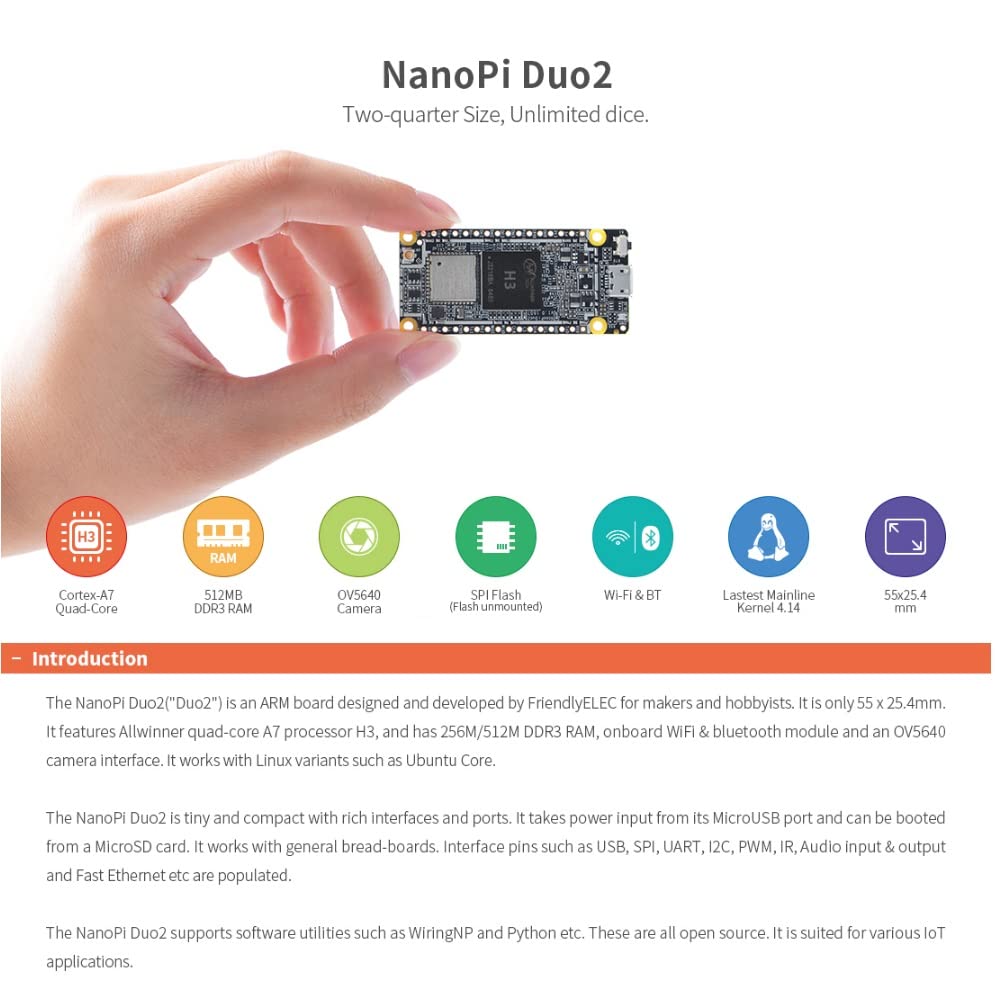

• [Dual-in-line] NanoPi Duo2 is an ultra-small dual-in-line maker artifact measuring only 55 x 25.4 mm. It uses Allwinner quad-core A7 processor H3, equipped with 256MB/512MB DDR3 memory, built-in WiFi Bluetooth module, and provides an OV5640 camera interface that can run a full embedded Linux system such as Ubuntu Core.
• [Small and Exquisite] NanoPi Duo2 can be powered directly via MicroUSB, supports Micro SD cards to start the operating system directly, and can be inserted directly into a breadboard for use.

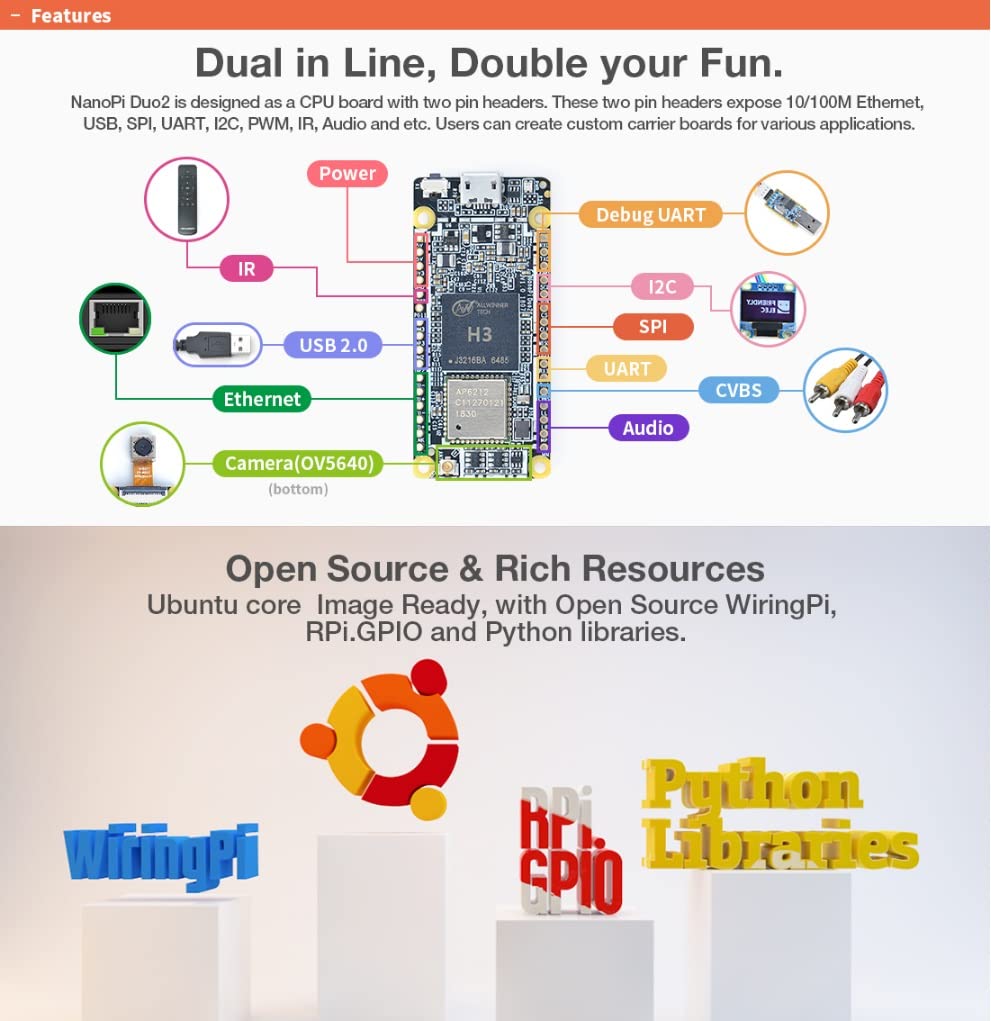

• Rich interfaces: It leads out USB, SPI, UART, I2C, PWM, IR, audio input and output, 100M Ethernet and other interface pins, which is very convenient for debugging and development.
• [Open Source & Rich Resources] NanoPi Duo2 can support the use of RPi.GPIO, WiringNP, Python and other programming libraries. It is fully open source and very suitable for developing lightweight IoT applications.
• [Operating System/Software] Submarine, Linux-4.14 / Linux-3.4, Ubuntu 16.04.2 LTS (Xenial)
• [Wiki] https://wiki.friendlyelec.com/wiki/index.php/NanoPi_Duo2; Any after-sales problems, please contact us by email: monica#smartfire.cn (#----->@).Also can click WayPonDEV store and ask a question or leave the message in our forum by "forum.youyeetoo .com/".

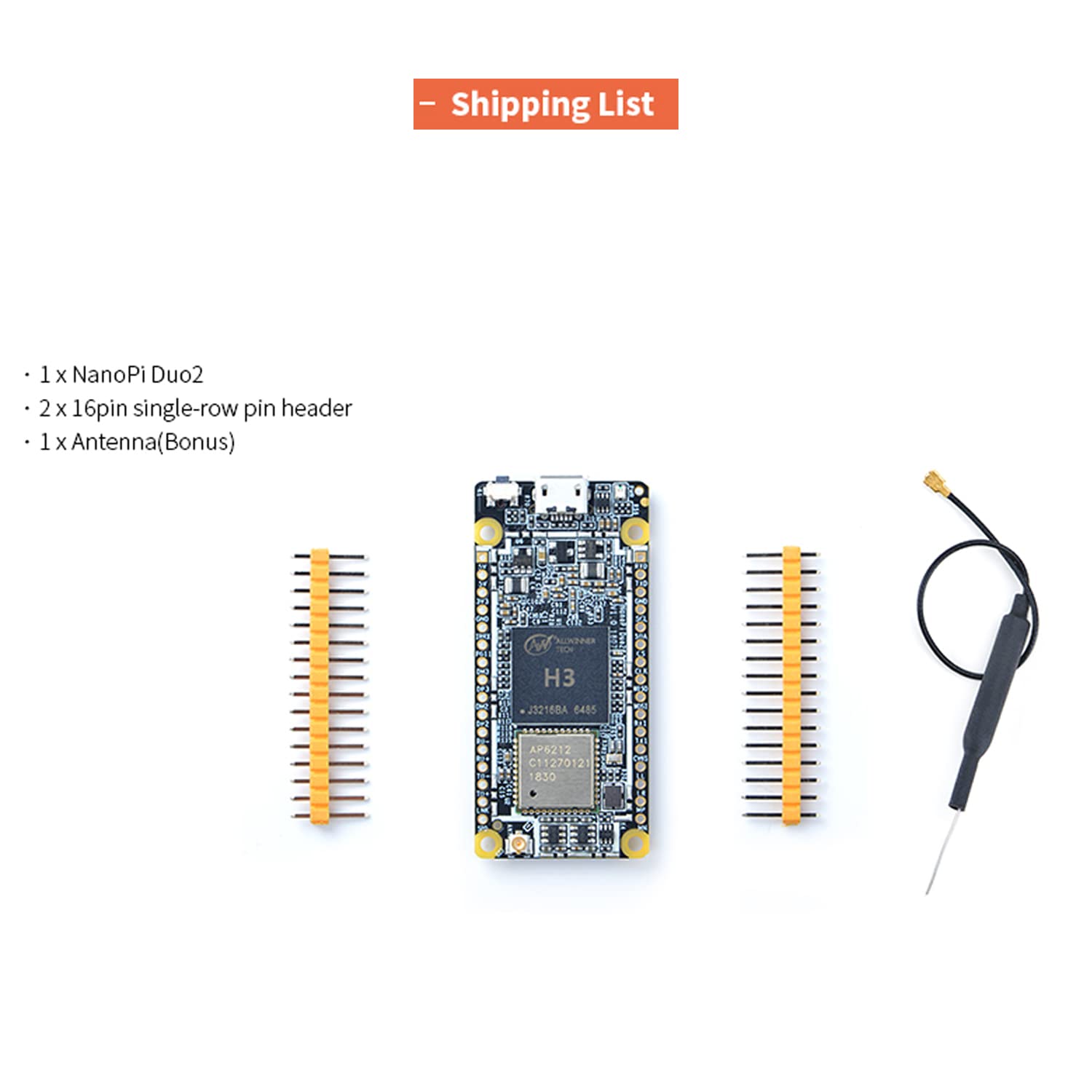

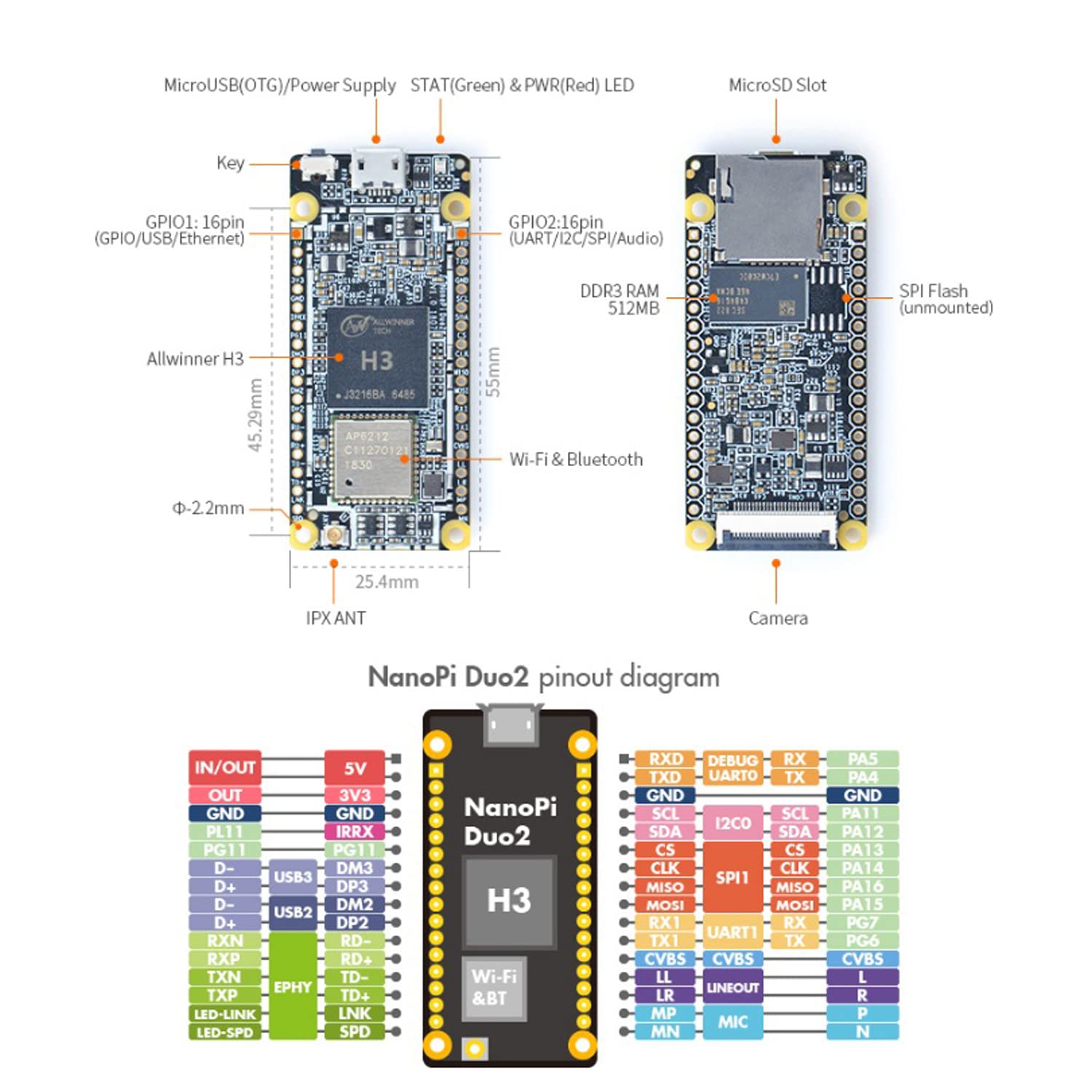

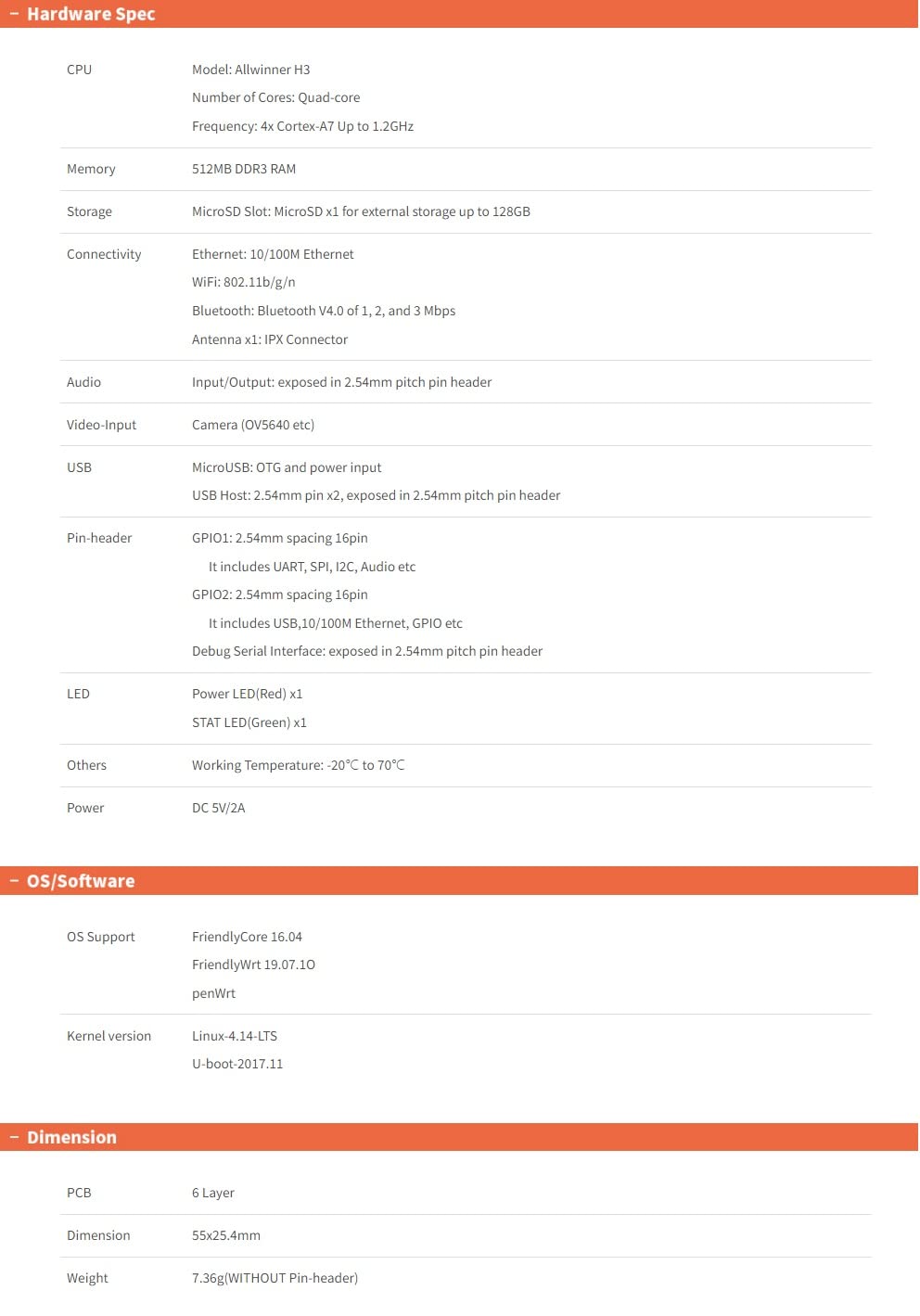

-Specification- CPU: Allwinner H3, Quad-Core Cortex-A7 up to 1.2 GHz. DDR3-RAM: 512MBConnectivity: 10/100M EthernetWLAN: 802.11b/g/n Bluetooth: Bluetooth V4.0 with 1, 2 and 3 Mbps Camera: OV5640 Key: GPIO key. USB Host: 2.54mm pin x2, exposed in pin header with 2.54mm gridMicroSD slot x 1 MicroUSB: OTG and power input. Serial debug interface: exposed in 2.54mm pin header Audio input/output interface: exposed in 2.54mm pin header GPIO1: 2.54mm Pitch 16 Pin It includes UART, SPI, I2C, audio etc. GPIO2: 2.54mm Pitch 16 Pin It includes USB, 10/100M Ethernet, IO etc PCB dimensions: 25.4 x 55 mm. Power supply: DC 5V/2A. Temperature measurement range: -20°C to 70°C. Operating system/software: submarine, Linux-4.14 / Linux-3.4, Ubuntu 16.04.2 LTS (Xenial) Weight: 7.5g (with pin headers) - Package contents: 1 x Nanopi Duo2 512 MB RAM single board computer - with metal housing. 2 x 16 pin single row pin header1 x antenna - Technical support Wiki: "wiki.friendlyelec.com/wiki/index.php/NanoPi_Duo2" Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122. Please leave the message on our forum at "forum.youyeetoo.com/".
