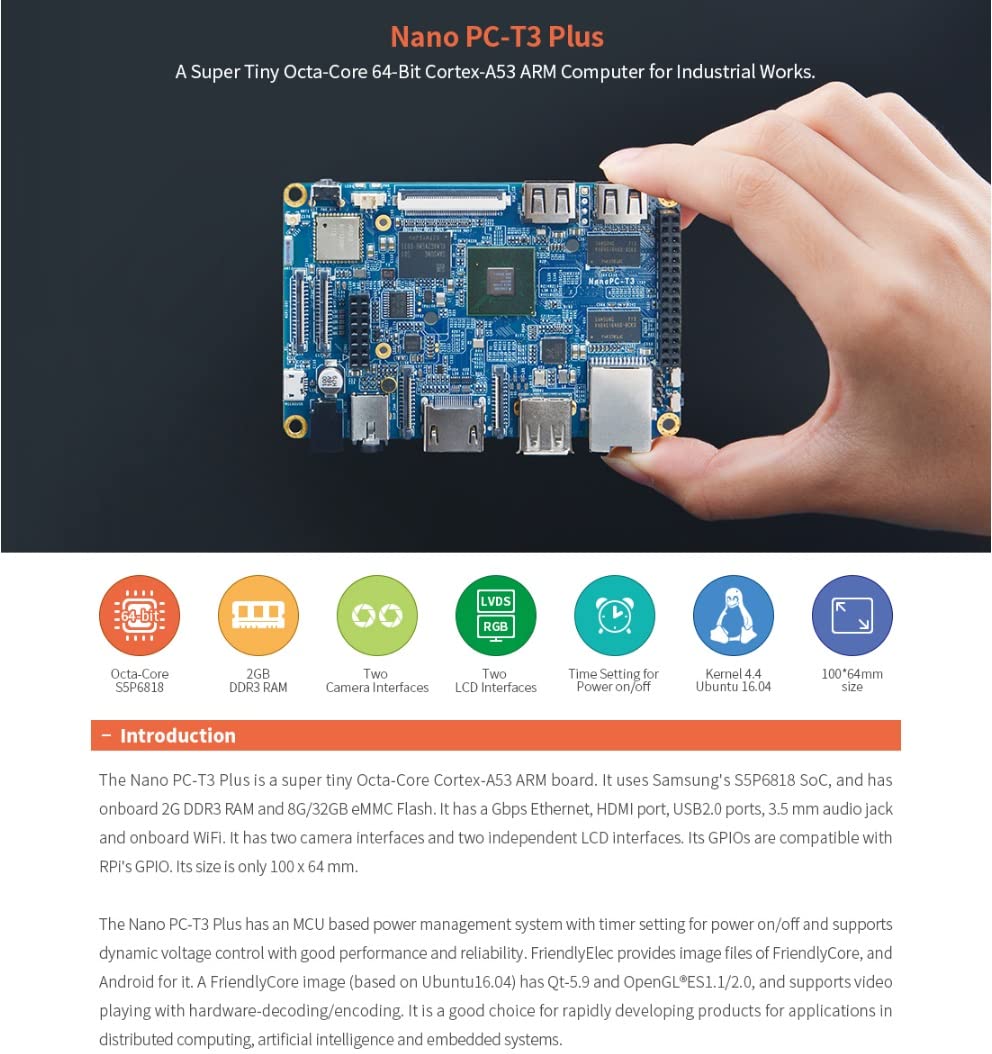

NanoPC-T3 Plus Open Source Single Board Computer with Gbit Ethernet Ports 2GB 32bit DDR3 RAM 16GB eMMC Based on S5P6818 Soc Support Android 5.1 UbuntuCore + Qt (with Heatsink and Android) antenna)

• [S5P6818-CPU] The NanoPC-T3 Plus S5P6818 processor uses a Cortex-A53 architecture with eight cores and the main frequency is 400M-1.4GHz. NanoPC-T3 Plus is equipped with 2GB 32-bit DDR3 RAM, 16GB eMMC and built-in temperature sensor.
• [Onboard WiFi/Bluetooth] NanoPC-T3 Plus single board computer. Built-in WiFi (802.11 b/g/n) and Bluetooth (4.0 dual mode), with Gigabit Ethernet (RTL8211E) network connection and power management function, onboard ceramic antenna, with serial port debugging function.
• [Power Management] An ARM Cortex M0 single chip microcomputer is used for power management and supports functions such as dynamic voltage control, software shutdown and scheduled boot.
• [Audio and Video Interface] NanoPC-T3 Plus has an audio interface, a video input/output interface etc. with two video inputs, supports a DVP camera and a MIPI-CSI camera and has four video outputs, one HDMI 1.4A interface and one LVDS interface, parallel RGB LCD interface, MIPI-DSI interface. It also supports RTC, built-in backup battery interface, leads to four USB interfaces, etc.
• [OS/Software] NanoPC-T3 Plus Open Source can run Android 5.1, Debian, UbuntuCore+Qt and other systems smoothly. The source code of kernel driver is fully open source, with rich interfaces and perfect system integration. It is the main control board of choice for business users.
• [Wiki]"wiki.friendlyelec.com/wiki/index.php/NanoPC-T3_Plus"; Pls feel free to contact us to get the Datasheet or any questions of this module after you purchased it. How to contact us? Click "WayPonDEV" and ask a question.

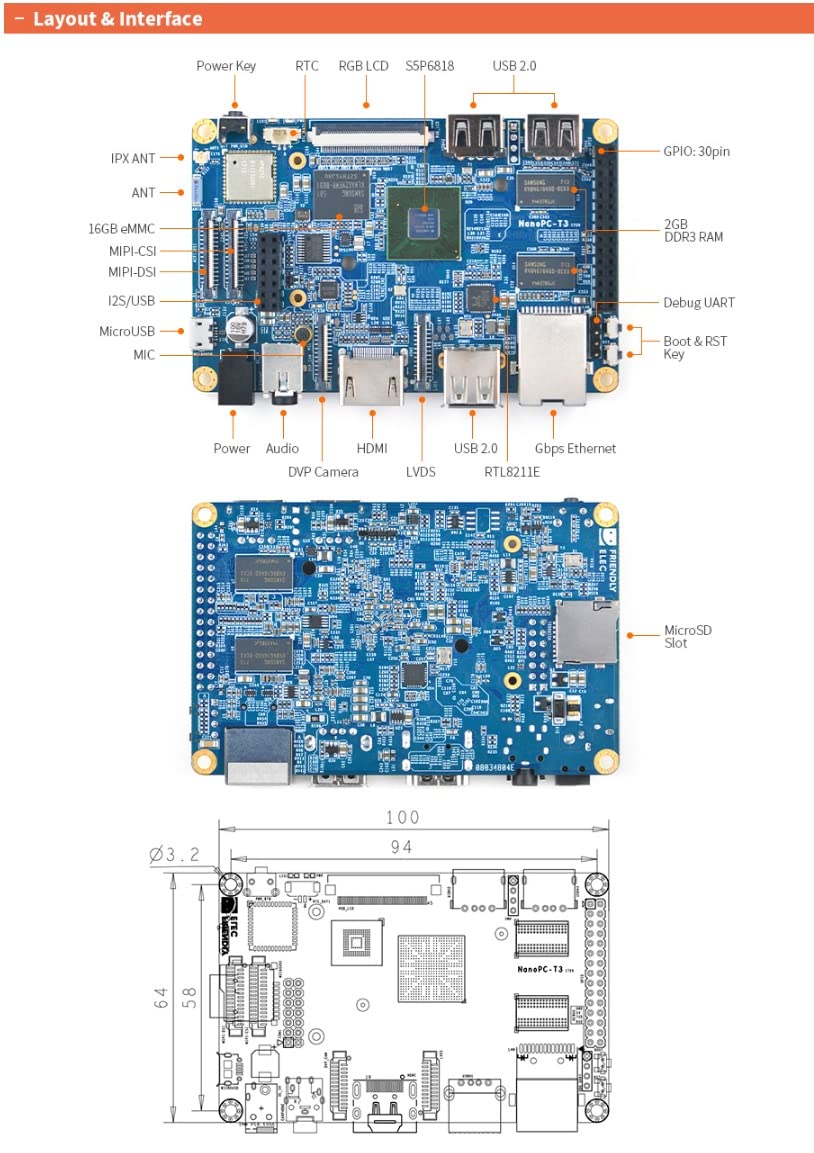

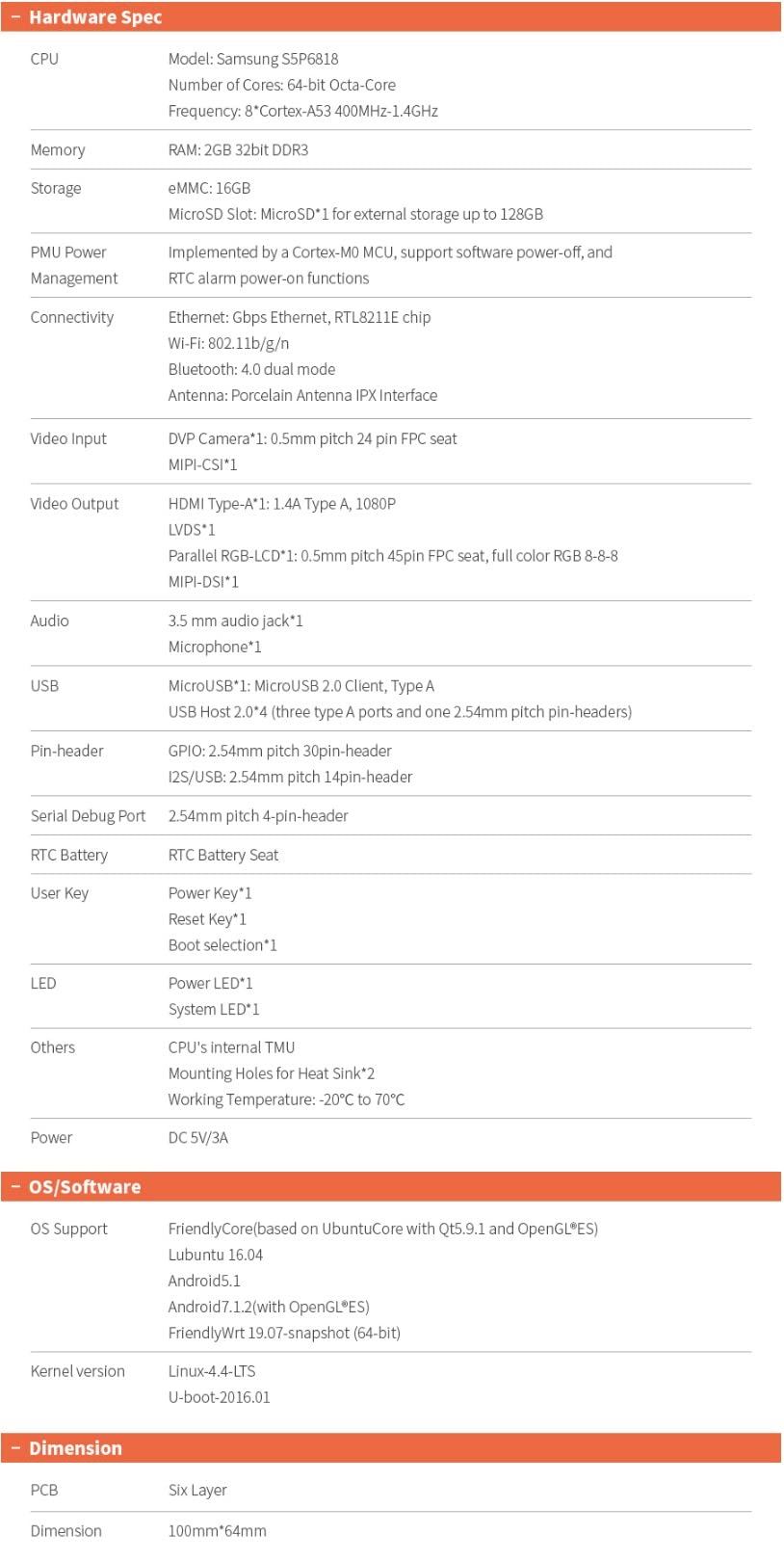

- Specification: SoC: Samsung S5P6818 Octa-Core Cortex-A53, 400M Hz - 1.4G Hz. PMU Power Management: Implemented by an MCU, support software power-off, and RTC alarm power-on functions System memory: 2GB 32bit DDR3 RAM. SD storage: 1 x microSD card socket. Ethernet: Gbit Ethernet (RTL8211E). WiFi: 802.11b/g/n Bluetooth: 4.0 dual mode. Antenna: porcelain antenna IPX interface. eMMC: 16GB. Video input: DVP camera/MIPI-CSI (two camera interfaces). Video output: HDMI Type-A / LVDS / Parallel RGB LCD / MIPI-DSI (four video output interfaces). Audio: 3.5 mm audio jack / via HDMI. Microphone: onboard microphone. USB host: 4 x USB 2.0 host, three type A ports and one 2.54 mm pitch pin-headers. MicroUSB: 1 x MicroUSB 2.0 Client, Type A. LCD interface: 0.5 mm pitch 45 pin FPC seat, full colour RGB 8-8-8. HDMI: 1.4A Type A, 1080P DVP camera: 0.5 mm pitch 24 pin FPC seat. GPIO: 2.54 mm pitch 30 pin header I2S/USB: 2.54 mm pitch 14 pin header Serial debug port: 2.54 mm pitch 4-pin header User key: power, reset, boot selection LED: 1 x power LED and 1 x system LED. Other resources: CPU's internal TMU RTC battery: RTC battery seat. Heat sink: 1 x heat sink with mounting holes. Power: DC 5V/3A. PCB: six layer. Dimensions: 100mm x 64mm Working temperature: -40°C to 80°C. OS/software: uboot, Android and Debian. - Package contents: 1 x Nano PC-T3 Plus 2 GB single board computer. 1 x heat sink. 1 x USB2DC cable. 1 x antenna. - Technical support. Wiki:"wiki.friendlyelec.com/wiki/index.php/NanoPC-T3_Plus" Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122 Please leave the message in our forum by forum.youyeetoo.com/
