Mr. Gadget's Solutions® Mini 24 Hour Segment Timer Switch Programmable On Off Function UK Mains Plug

• 24 Hour Plug In Timer Switch

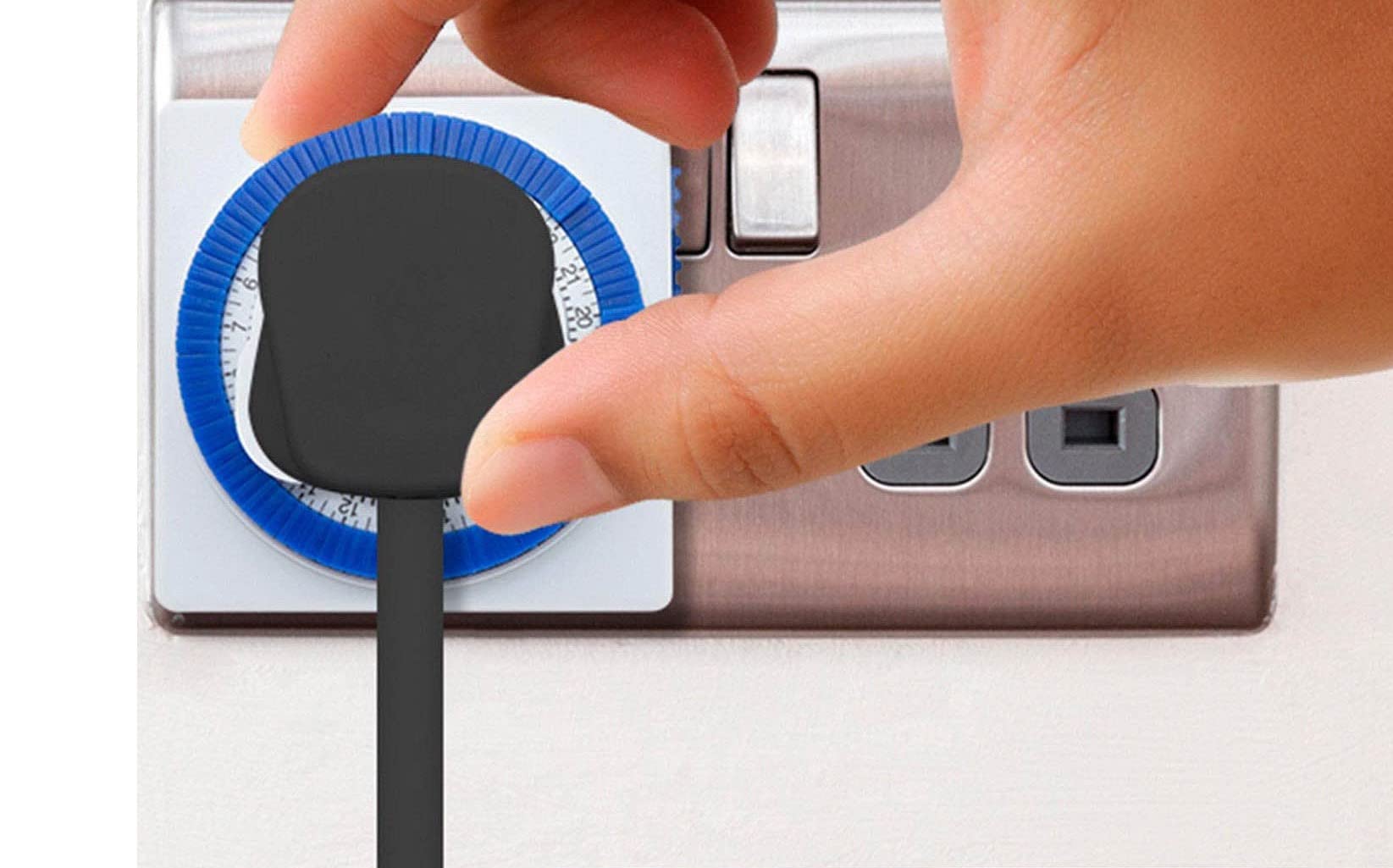

• Plug the appliance into the timer, suitable for UK power sockets.
• Voltage 240/250v 50Hz
• DO NOT Exceed Maximum Load
• Manufactured to BS5733, CE certified.

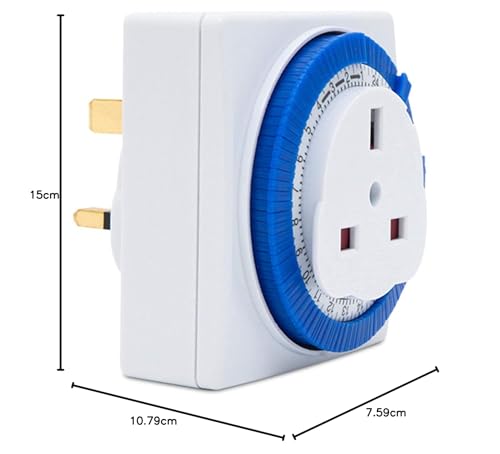

24 Hour Segment Square Timer Switch – White Square shape 24-hour compact segment timer switch simply plug into a socket. Programme the timer with the push down segments for start and finish times. Plug the appliance into the timer, suitable for UK power sockets. Built in manual override button. Recyclable materials. Supplied in a clam shell pack. Note: Ensuring that the manual switches on the ‘tumbler’ are aligned correctly, that the unit is set to the correct time prior to plugging in and that the switch is turned to timer function Safety Warning DO NOT Exceed Maximum Load Not Recommended for use on Immersion Heaters. Application (resistive) Load: Radiators, Heater, Radio's and Lamps etc. Applications (inductive) Load: (Electric Motors) Washing Machines, Dish Washers, Fan Heaters etc. Do not exceed the maximum load required for this product. If in doubt consult a qualified electrician. Maximum Wattage 3200w Resistive Load Maximum Wattage 480w Inductive Load Maximum Current 13(2)amp Voltage 240/250v 50Hz Manufactured to BS5733 Other Information Preparation and Usage To set the 'Current Time, using the outer ring, turn clockwise until the 'Current Time' hour/minutes corresponds with the marker. e.g. The picture above shows setting for 'Current Time' at 2pm, 'Start Time' 12 Midday and 4pm Note the pressed in segments between 12 Midday and 4pm (each segments is equal to 15 minutes). Numerous settings can be made by depressing segments, which will be repeated automatically in every subsequent 24 hour cycle. On the side is a 2 position switch: Up - Permanently On Down - Timer Operation Packaging: 1x 24 Hour Segment Square Timer Switch
