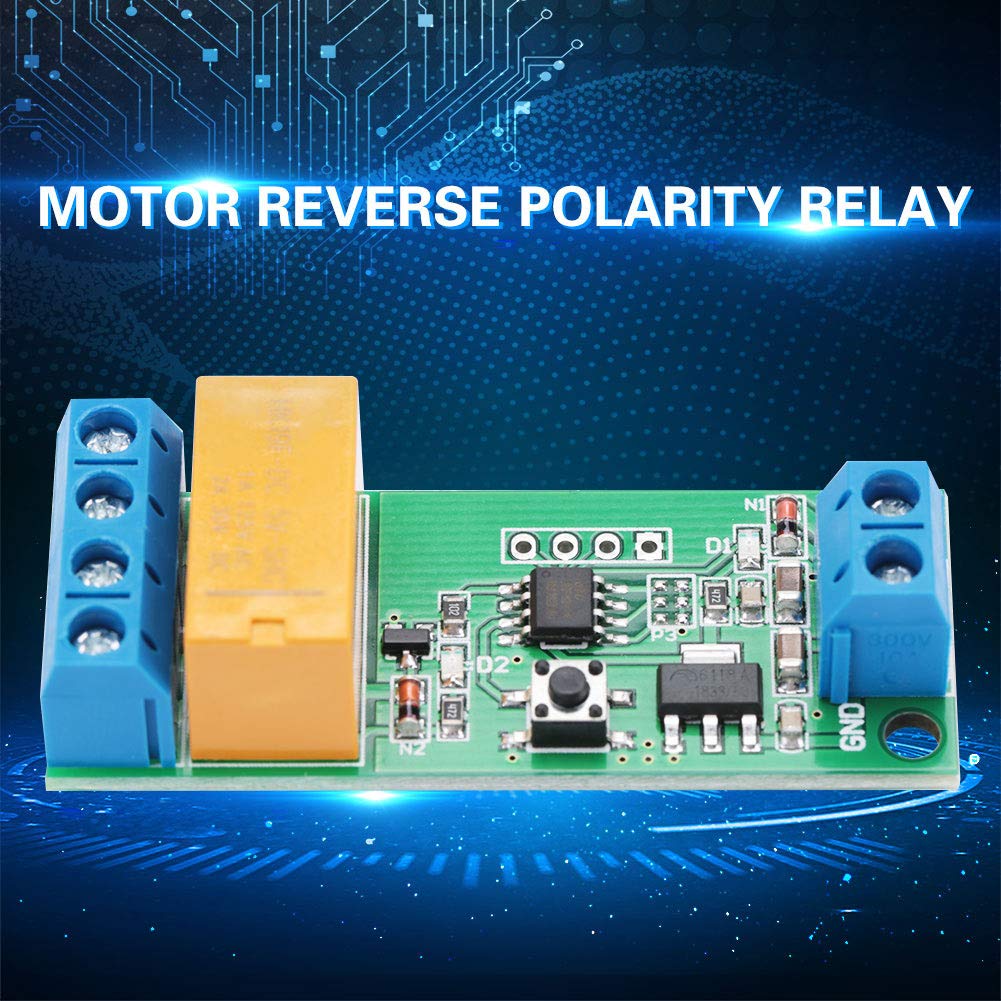

Polarity e, Motor Reverse Polarity Timer, Motor Reverse Polarity Relay DC 5/6/9/12V Motor Reverse Polarity e Time Adjustable Delay Relay 2A Drive Current Motor Reverse Polarity Cyclic Timer

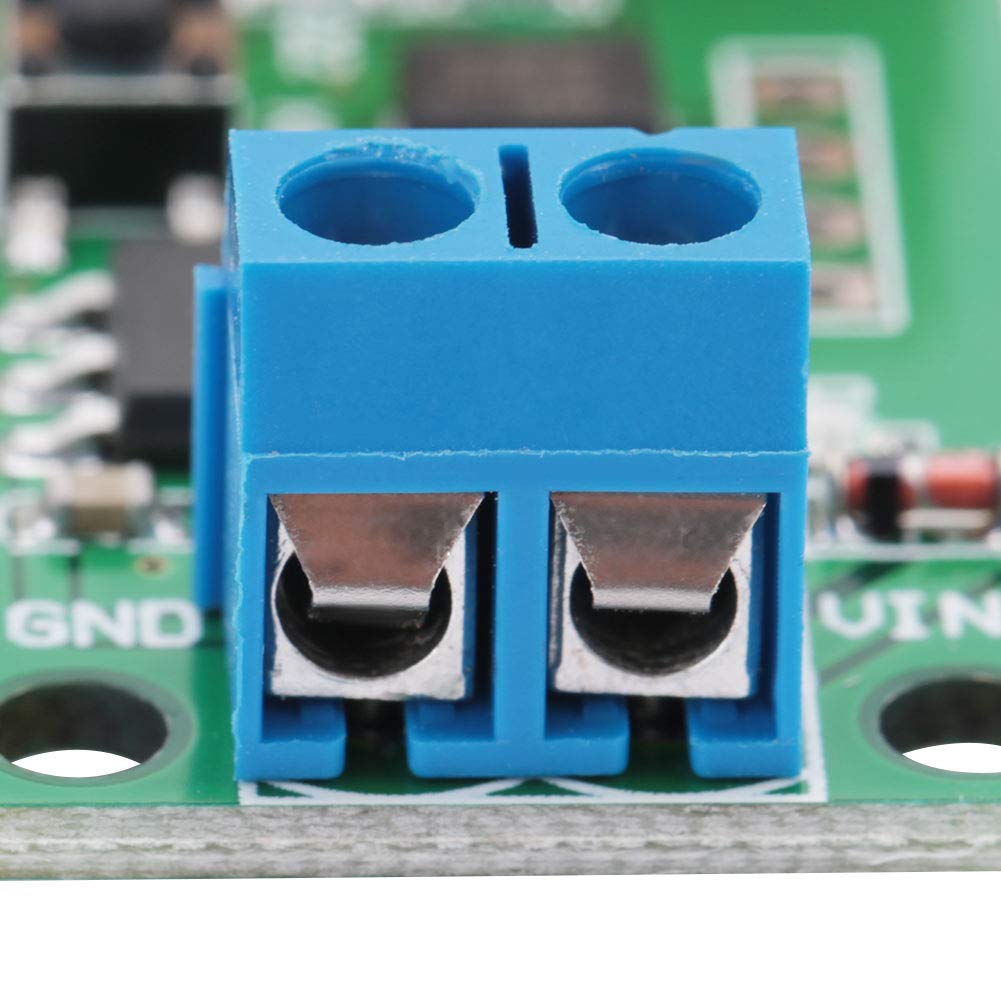

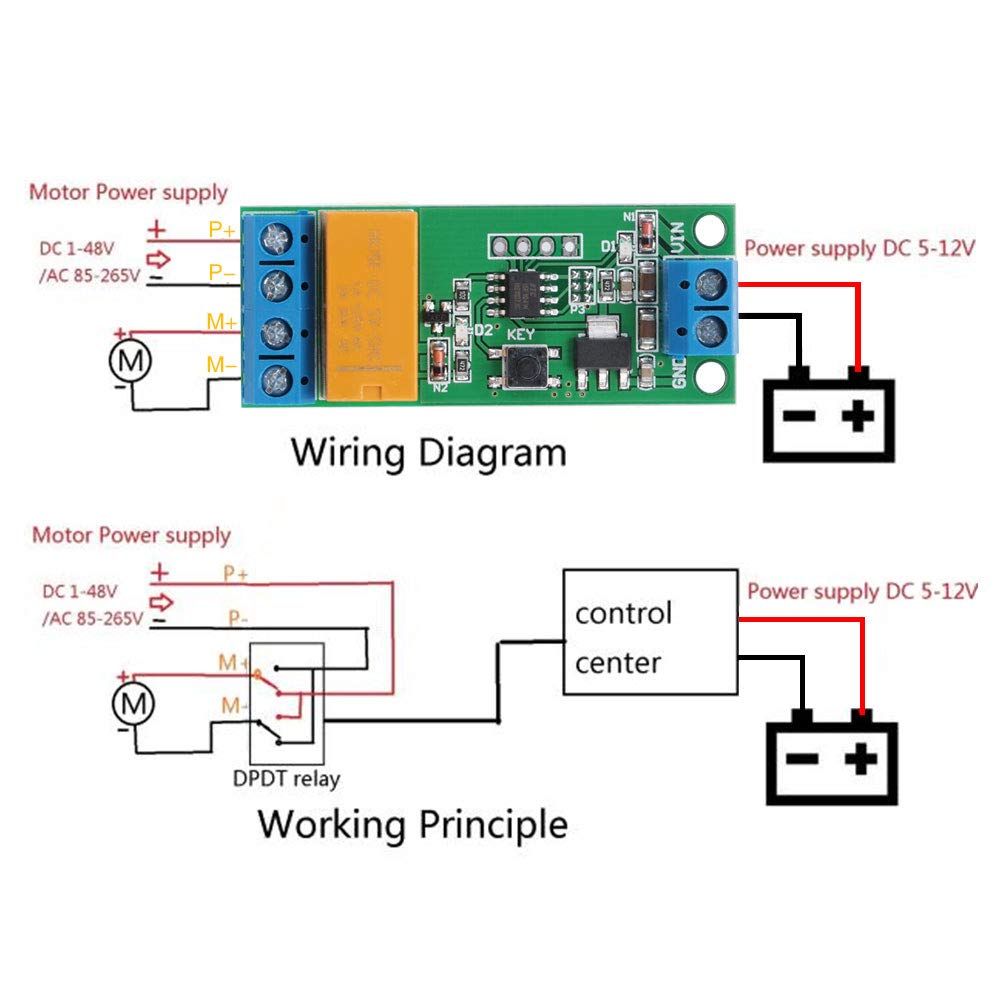

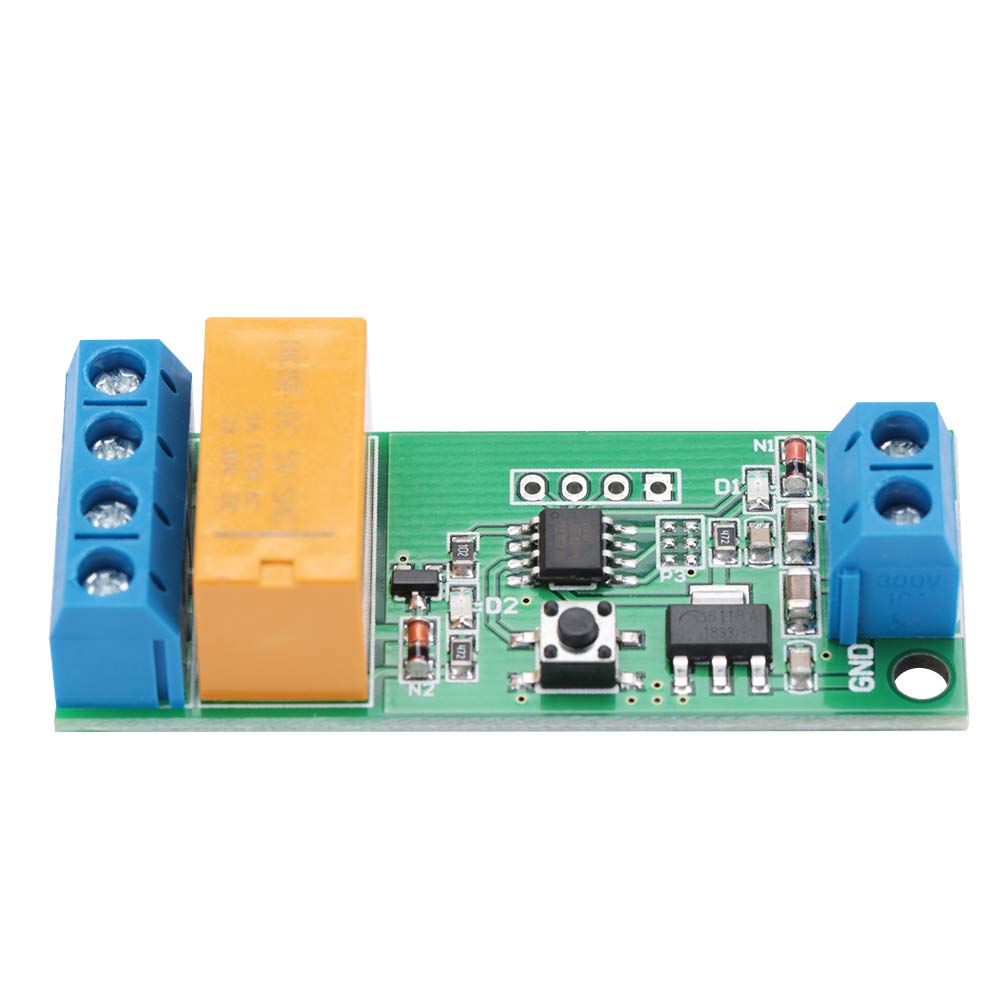

• ✅【How to Use】: VIN is connected to the positive pole of the power supply, GND is connected to the negative pole of the power supply; P+ is connected to the positive pole of the motor power supply, P- is connected to the negative pole of the motor power supply; M+&M- are connected to both ends of the motor.
• ✅【Working Mode】: After the motor reverse polarity relay is powered on, D1 flashes 3 times, D2 is off, M+ outputs positive, M- outputs negative, the motor rotates forward; after delay T1, D2 turns on, M+ outputs negative, M- When the output is positive, the motor rotates in reverse; after a delay of T2, D2 is turned off, M+ outputs positive, M- outputs negative, and the motor rotates forward; and so on.
• ✅【Setting Mode】: After the motor reverse polarity relay is powered on, D1 3 flashes, and it enters the "working mode". D2 turns on reverse, D2 turns off forward. Press and hold the button for 2 seconds, D1 lights up, enter the "setting mode". D2 is off, it is the forward "set mode". In the forward "setting mode", trigger the KEY twice in a row, D1 is turned off, and enter the "standby timer mode".
• ✅【Maximum Delay Time】: T1: Motor forward rotation delay time, default 0.1-5000 seconds adjustable (step 0.1 second) T2: Motor reverse delay time, default 0.1-5000 seconds adjustable (0.1 second step). With the Time Multiple Selection setting, the maximum delay is up to 40,000 seconds.
• ✅【Timer Mode】: In "Standby Timer Mode", trigger the KEY to start timing (enter "Timer Mode"). D1 flashes to indicate timing ("Timekeeping Mode"). Trigger the KEY again to stop the clock (exit Timekeeping Mode). The blinking time of D1 is the forward rotation time (T1).

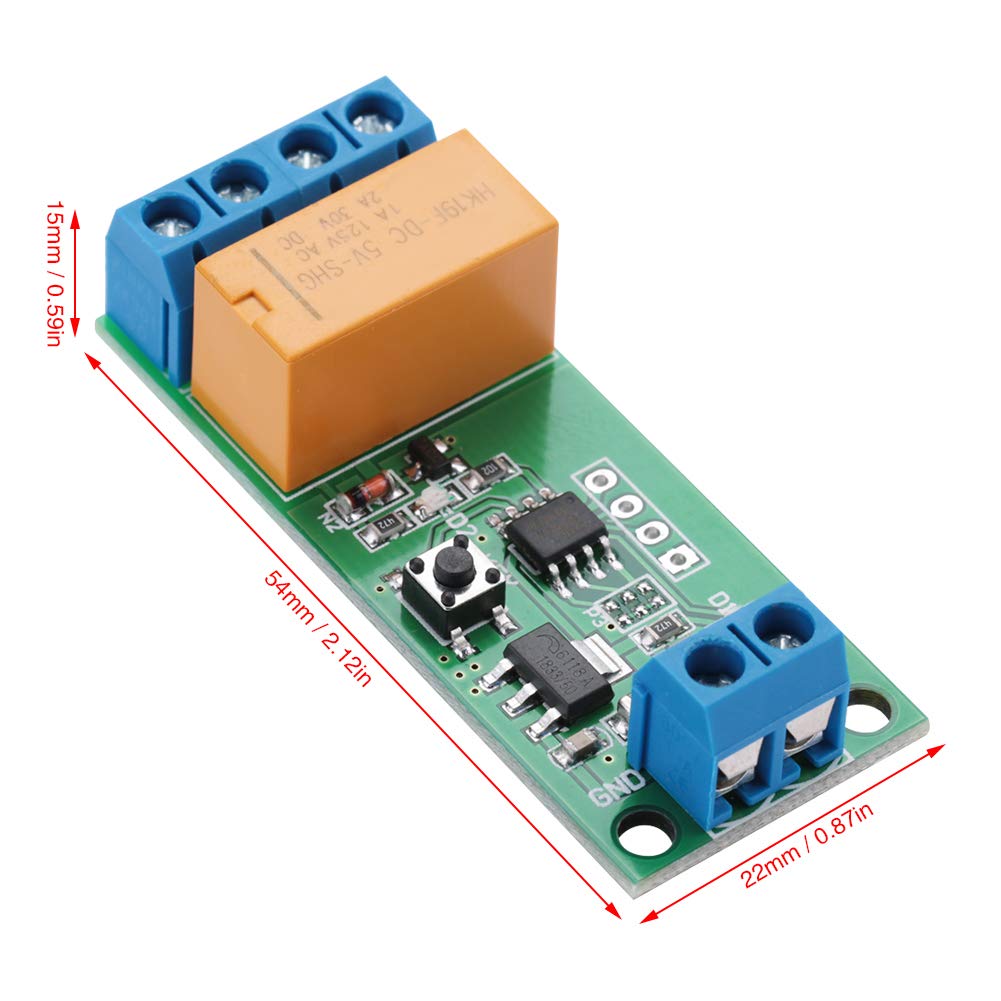

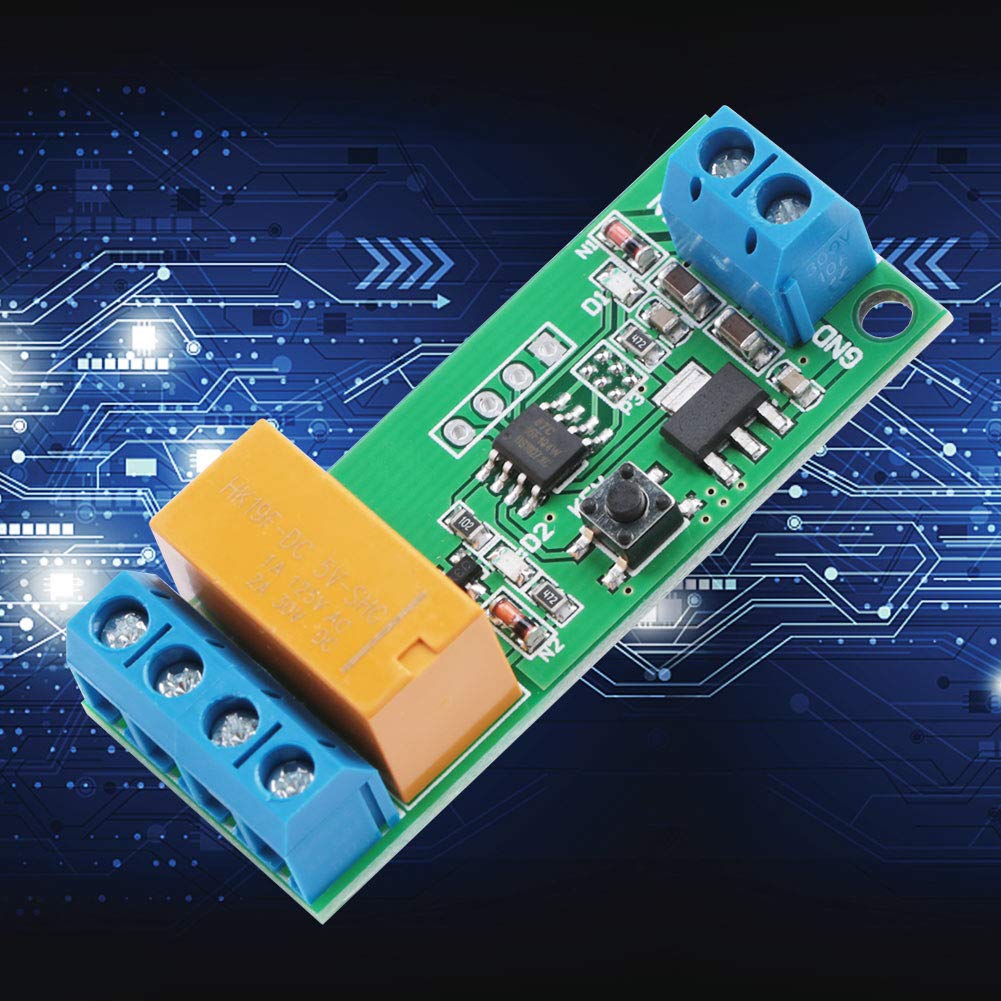

Specification: Item Type: Motor Reverse Polarity Relay Load Current: Maximum 2A Forward Maximum time: 5000 seconds, 0.1 seconds step Reverse Maximum time: 5000 seconds, 0.1 seconds step Size: Approx. 54 x 22 x 15mm / 2.13 x 0.87 x 0.59in Weight: 0.5 oz(approx.) How to use: VIN connected to the positive of power supply , GND connected to the negative of power supply; P+ connected to the positive of motor power supply, P- connected to the negative of motor power supply; M + & M- connected to both ends of the motor After power, D1 flashes for 3 times, D2 off, M+ output positive, M- output negative, motor forward; After a time delay T1, D2 on, M+ output negative, M- output positive, motor reversal; After a time delay T2, D2 off, M+ output positive, M- output negative, motor forward; And so on. T1: motor forward delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds) T2: motor reverse delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds) By "Time multiple selection" setting, the maximum delay is up to 40,000 seconds How to Set Up: After power on, D1 3 blinks, enter the "work mode" D2 on Reversal, D2 off Forward Press and hold the key for 2 seconds, D1 on, enter the "setup mode" D2 off, It's forward "setup mode" In forward "setup mode", continuously trigger KEY twice, D1 off, enter "Standby timer mode" In the "Standby timer mode" , trigger KEY to start timing(enter "Timing Mode") D1 flashing means it is timing("Timing Mode") Trigger KEY again to stop the clock(exit "Timing Mode") D1 flashing time is forward time(T1) Press and hold the Key for 2 seconds, D2 on, enter the Reverse "setup mode" In Reverse "setup mode", continuously trigger key twice, D1 off, enter "Standby timer mode" In the "Standby timer mode", trigger KEY start timing(enter "Timing Mode") D1 flashing means it is timing("Timing Mode") Trigger KEY again to stop the clock(exit "Timing Mode") D1 flashing time is Reverse time(T2) So far, forward time(T1) and reverse time(T2) is set up Re power in "work mode" Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. Voltage Parameter Operating Voltage: DC 5-12V(5V 6V 9V 12V) Operating Voltage Current: 5V, forward 4mA, reverse: 36mA; 12V, forward 6mA, reverse: 44mA Load Voltage: DC 1-48V or AC 85-265V Package List: 1 x Motor Reverse Polarity Relay
