WiFi-Enabled DIN Rail Circuit Breaker for Solar PV Systems — 1P DC 250V 16A Miniature Isolator with Real-Time Power Metering & 6000A Breaking Capacit

• Main Purpose: Our 1P circuit breaker is designed to protect distribution facilities from overload and short circuit damage, while also offering control and isolation capabilities.
• Tripping Function: Featuring an electromagnetic tripping system, this circuit breaker immediately trips when a short circuit occurs, ensuring optimal circuit safety.

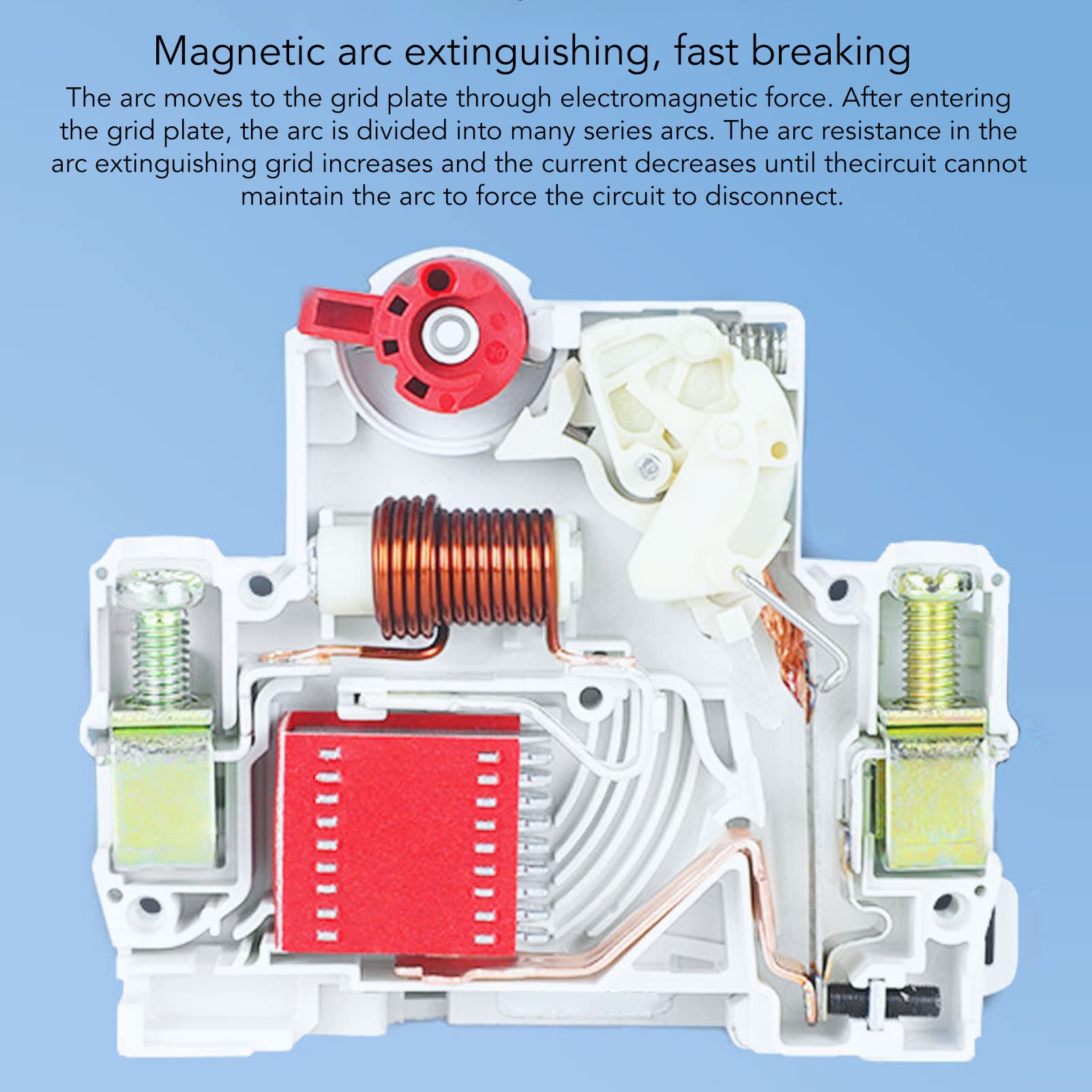

• Arc Extinguishing: With an auxiliary arc extinguishing magnetic system, our DC circuit breaker effectively extinguishes arcs, offering a high short circuit breaking capacity of 6000A.
• Wide Application: This circuit breaker is widely used in various applications, including DC power systems, ship power systems, solar photovoltaic systems, and other DC systems.
• Easy Installation: Designed with a modular structure, our circuit breaker allows for easy installation with standard 35mm DIN rail mounting and screw clamp connections.a

Specification Item Type: 1P Circuit Breaker Model: DZ47s 63Z Material: PA66 Rated Current: 16A Rated Voltage: DC 250V Rated Ultimate Short Circuit Breaking Capacity (household Icn): 6000A Purpose: Special for solar photovoltaic, electric motorcycle and electric vehicle Mechanical Life: 20000 times Applicable Temperature: -35-70℃ How to Use 1. Open the package and take out the product 2. Install the circuit breaker in the distribution box 3. The circuit breaker can be used after installing wires Package List 1 x Circuit Breaker
