Mini Pneumatic Chamfering Machine, Aluminum Aloy Handheld 45 Degree Arc Air Beveling Machine with Replace Blades for Metal Trimming Chamfer Deburring (6 R Inserts + 6 C Inserts + 6 Bearing)

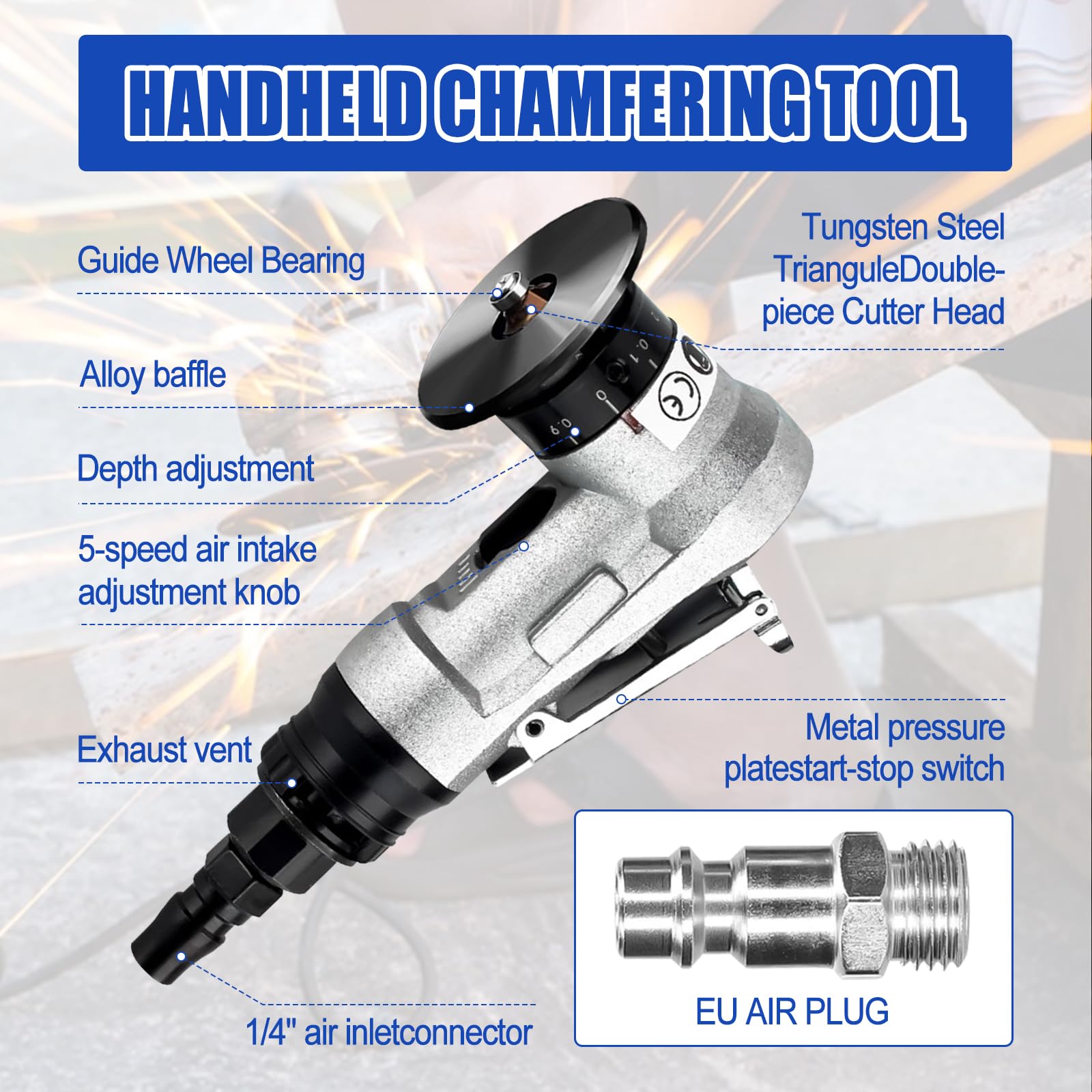

• Durable Material: The upgraded version of the metal beveling grinder, the new design adopts a new chrome-plated all-aluminum shell with high-quality bearings and blades for smoother deburring and chamfering.

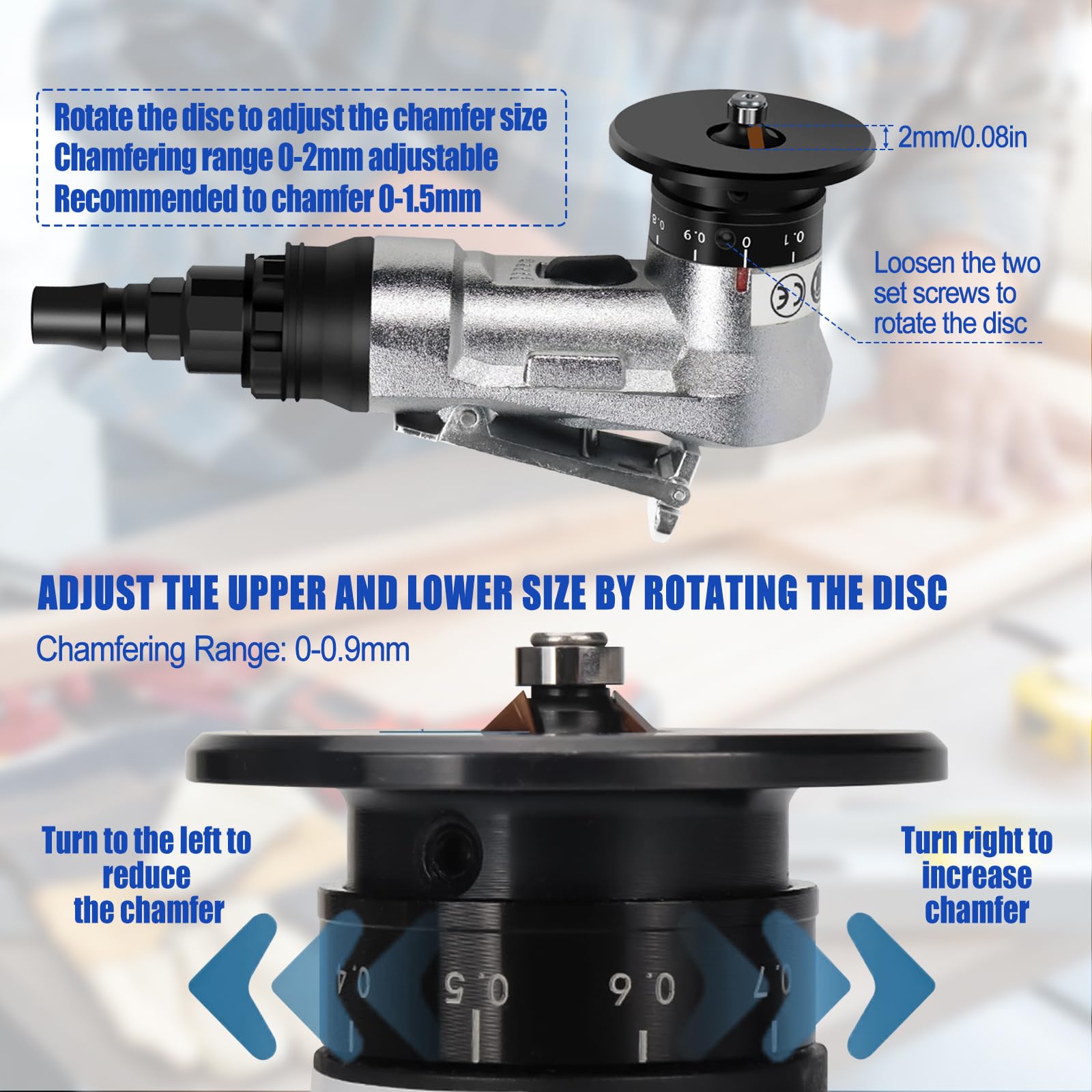

• Speed and Angle Adjustable: Rotational Speed: 30000rpm; Chamfering Capacity: C0.1-C1.5; ARC Cornor: R0.1-R1.5. Adjustable Depth:0.1mm-0.9mm; Air Consumption: 0.4/min. Equipped with 1-5 air intake adjustment, the chamfering machine can be freely adjusted to the appropriate intake speed for use. Use the matching wrench to easily adjust the chamfer size and replace the blade.

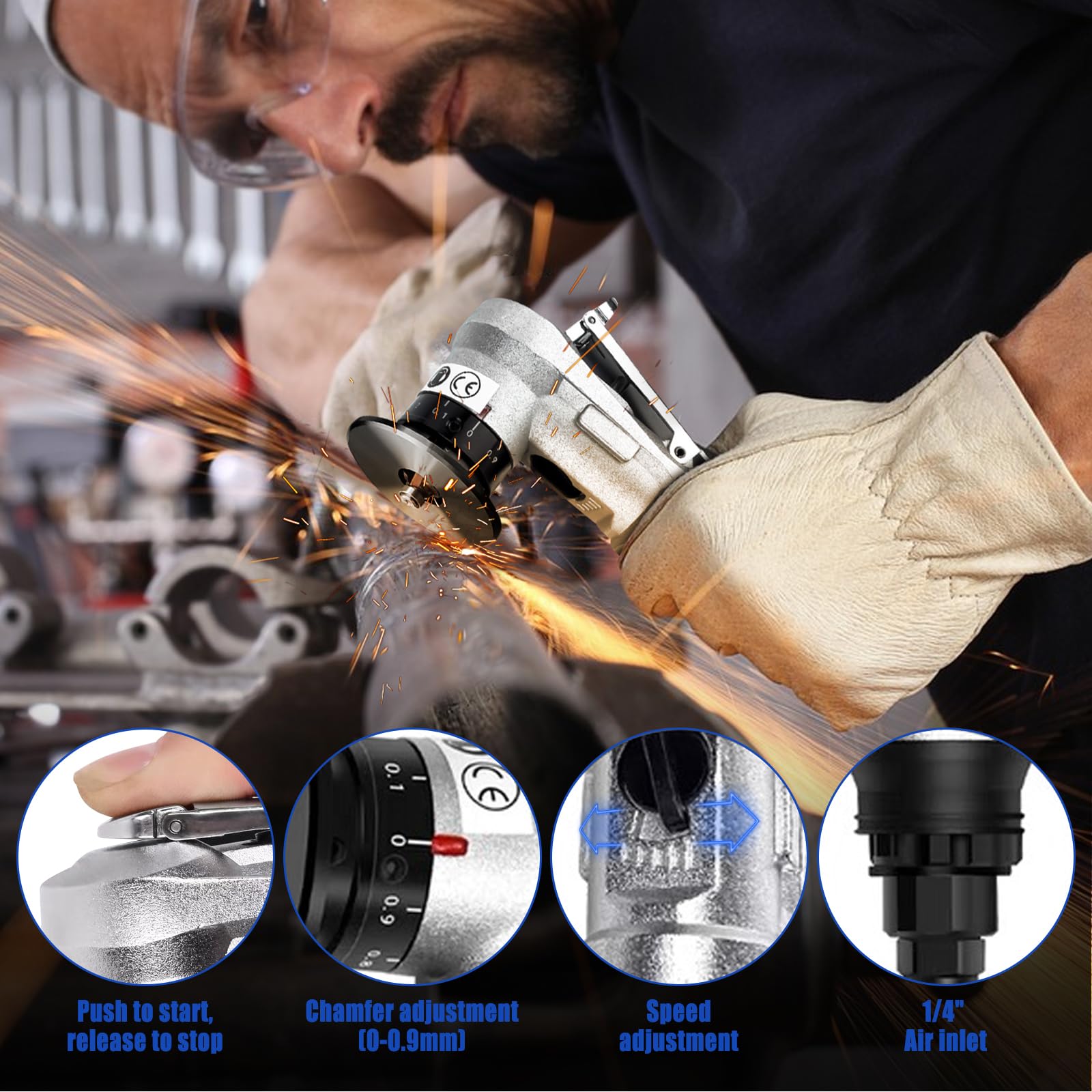

• Safety Assurance: The safety switch is used to prevent accidental touch to protect the user's safety at all times. Alloy steel baffle, safety buckle and metal button switch ensure safe use.

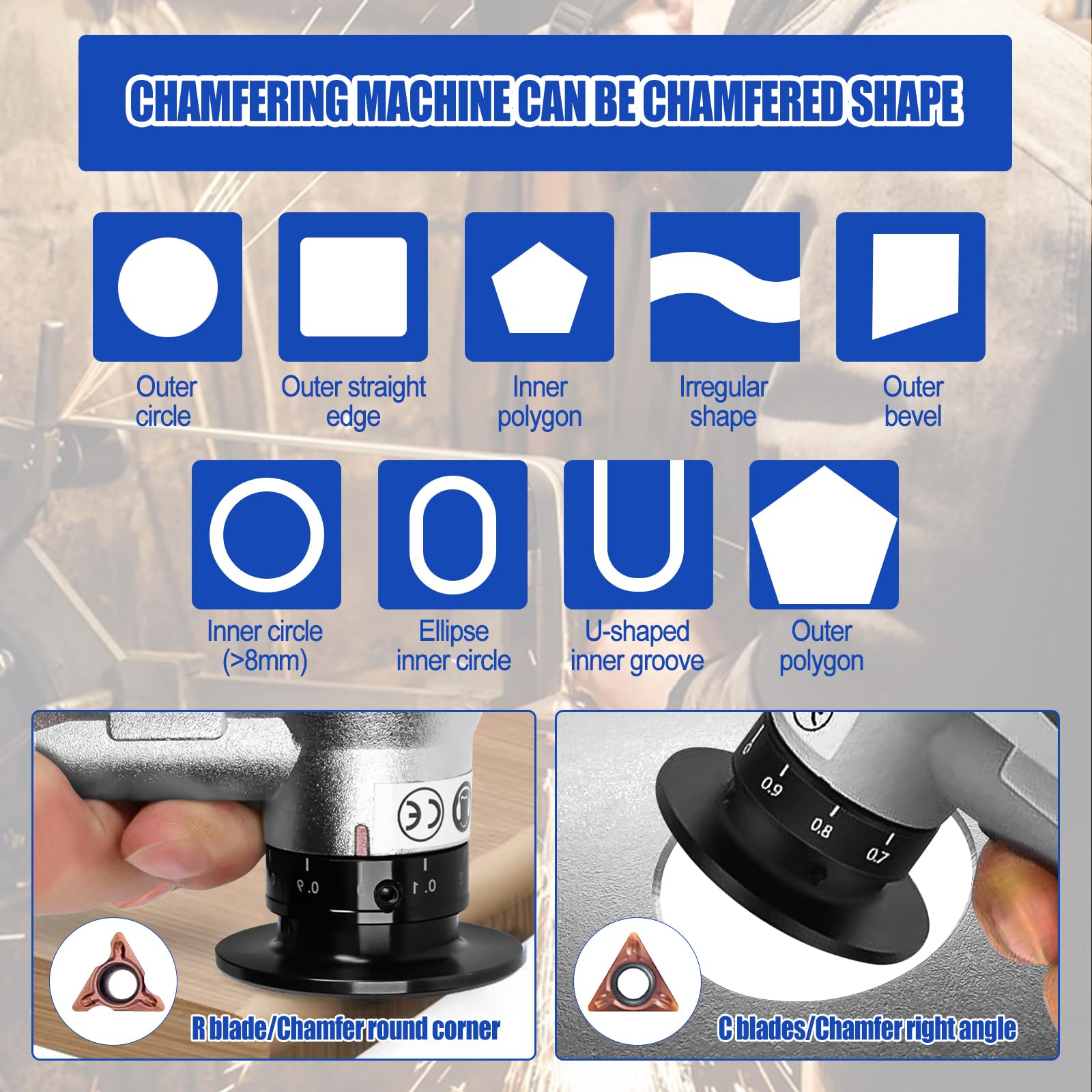

• Chamfer and ARC Cornor: Rounding and bevelling is possible by changing the inserts (2 type inserts are optional). Suitable for various angles, such as straight edge chamfering, inner and outer round hole chamfering, and irregular chamfering for metal trimming and round R side.
• Application: The pneumatic beveling machine can be chamfered in the narrowest and shallowest space, suitable for various angles, such as straight edge chamfering, inner and outer round hole chamfering.

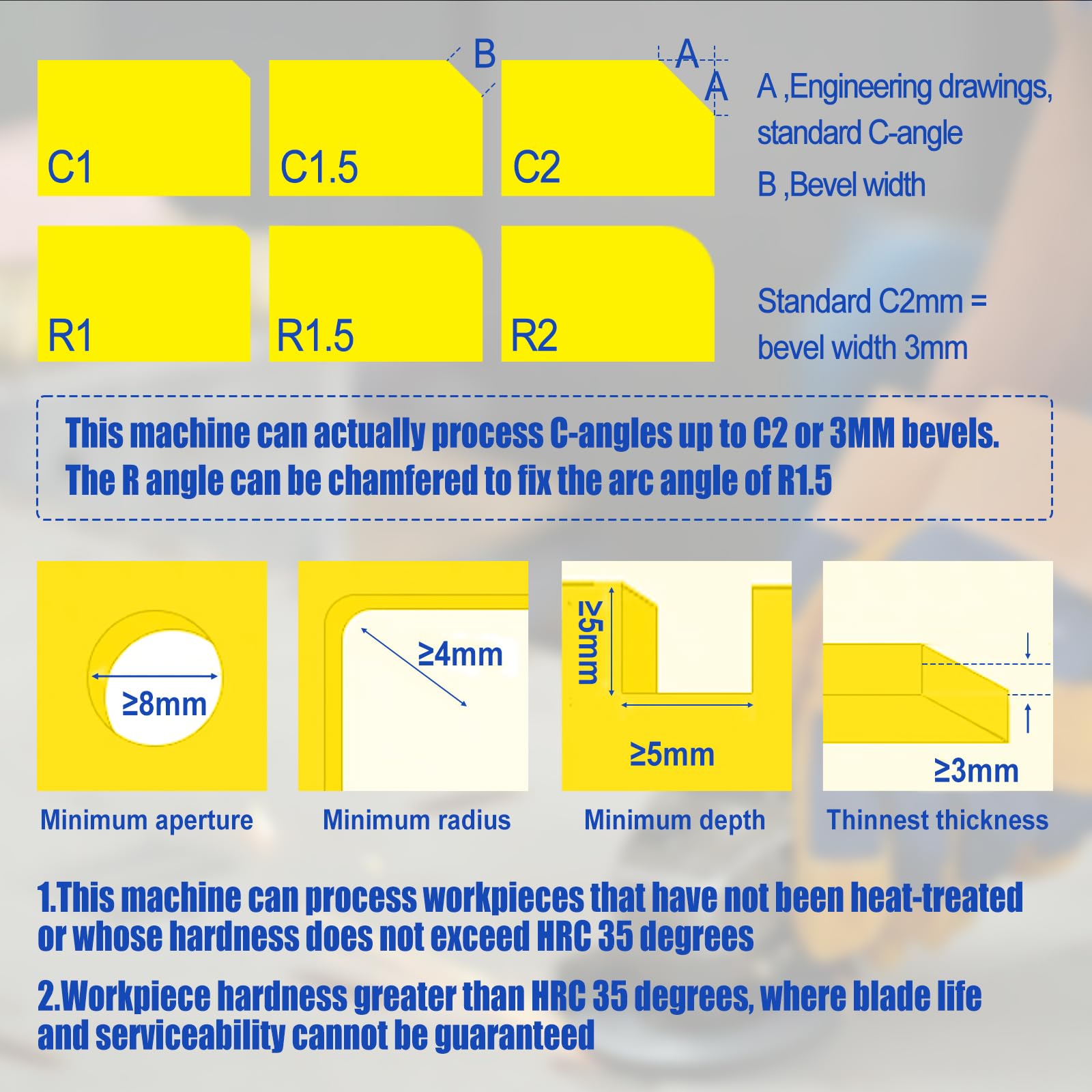

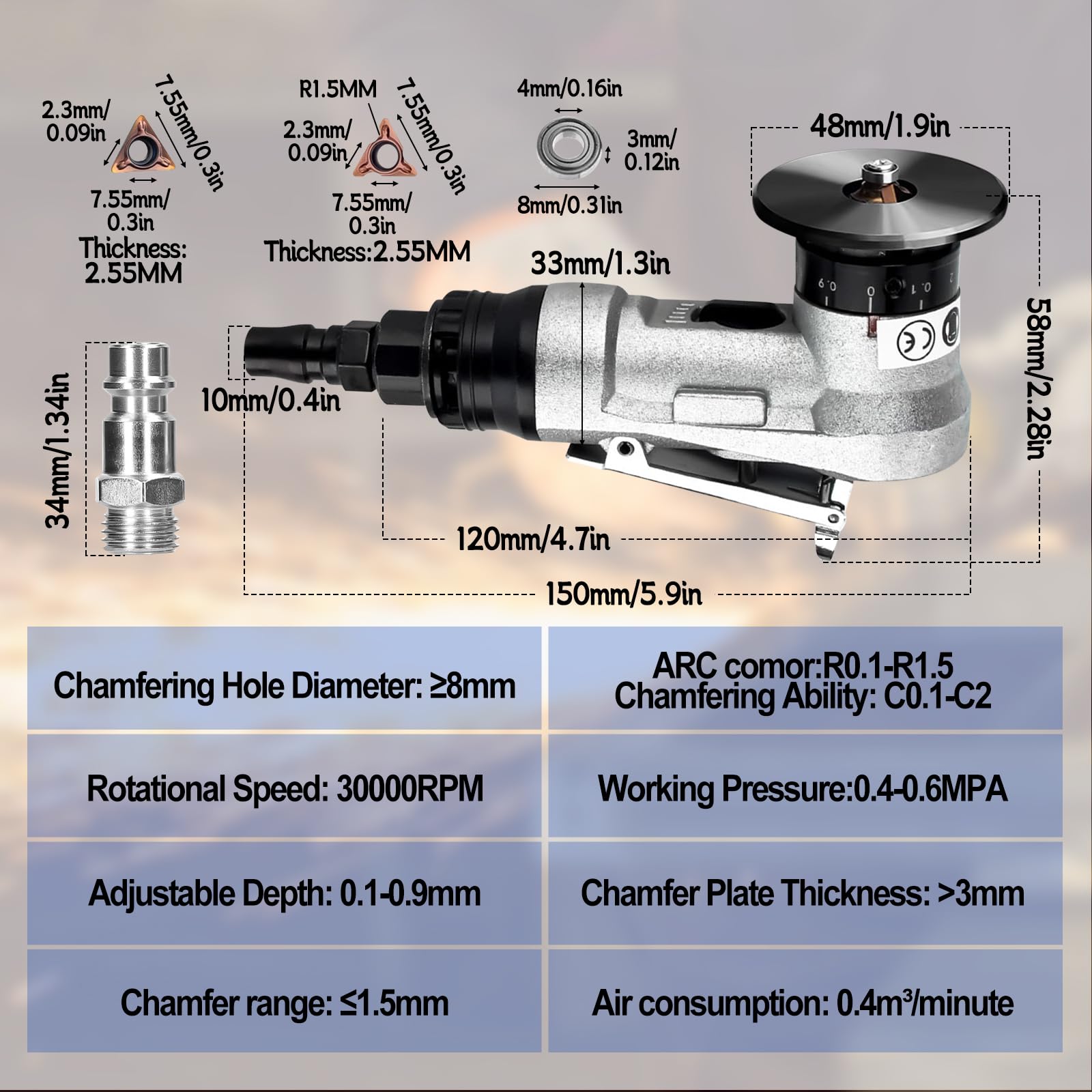

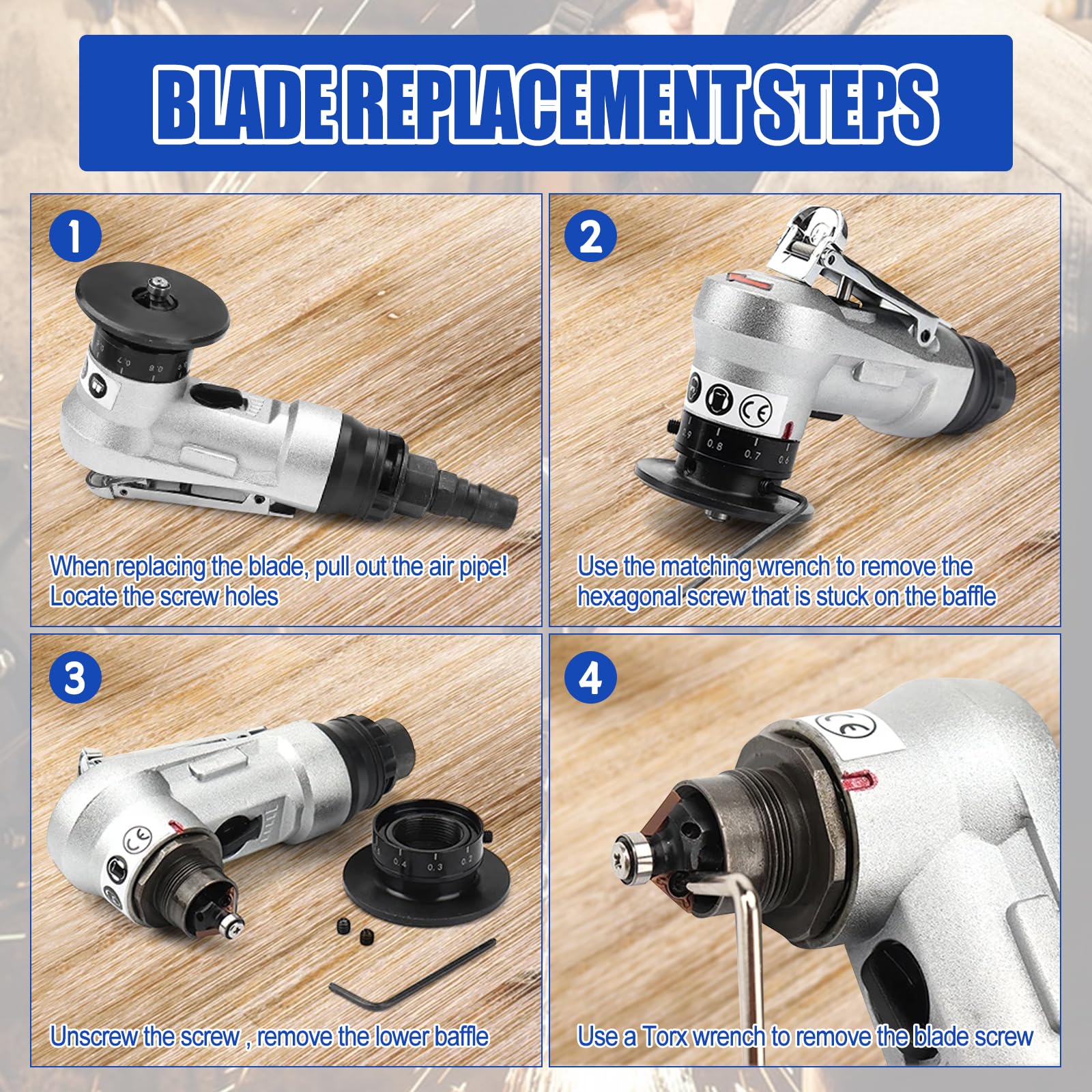

Specification: ARC Cornor: R0.1-R1.5 Chamfering Capacity: C0.1-C1.5 Rotational Speed: 30000rpm Reversible Depth: 0.1mm-0.9mm Chamfered Aperture: ≥ 8mm Intake Connection: 1/4 inch Minimum Plate Thickness: 3mm Air Intake Adjustment Switch: 5-speed Air Consumption: 0.4m³/minute 【How to Replace Blade】 Use a hexagon wrench to loosen the plum screw,remove the baffle plate, remove the blade screw with a ring wrench,remove the old blade,and replace it with a new one. 【Usage and maintenance tips】 1. Before using the new machine, please inject pneumatic tool oil and inject about 4C.C into the air inlet. After continuous use for about 3 hours, about 4C.C is also injected into the air inlet. 2. After injecting pneumatic tool oil, let the machine idling for about ten seconds (do not operate), and let the internal parts of the grinder be lubricated as a whole before proceeding. 3. It is an air compressor (air pump) for mechanical use. The output of the air compressor is about 6~8kg. Generally, most of the compressed gas of a traditional air compressor contains water, and the piston of the air compressor brings out a small part of the lubricating oil. If the oil-water separator is not used, water and oil and gas will enter the inside of the machine for a long time. The occurrence of adhesion slows down the rotation of the machine, resulting in insufficient speed and torque. In this way, the pneumatic tool oil needs to be input into the air inlet, and the machine can be used normally after idling for about ten seconds. Package Included(R+C): 1 x Chamfering Machine 6 x R Inserts 6 x C Inserts 6 x Auxiliary Bearing 1 x EU Connector 2 x Wrench
