Mini 4 Channel Vehicle Car Mobile DVR MDVR Video Recorder Support 1080P 720P AHD CVBS PAL/NTSC Camera for Truck Bus Van RV

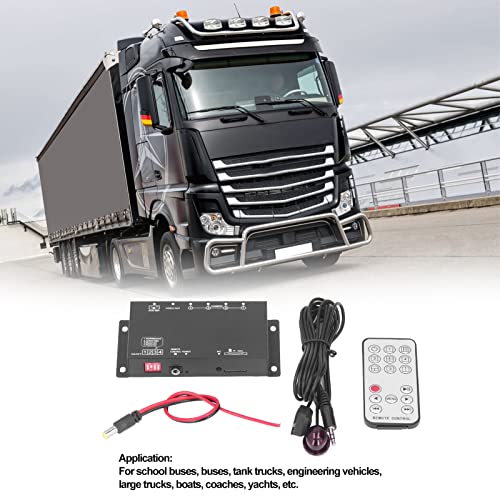

• [Versatile Application] Suitable for school buses, tank trucks, large trucks, and more. adaptable to various vehicles for comprehensive surveillance.

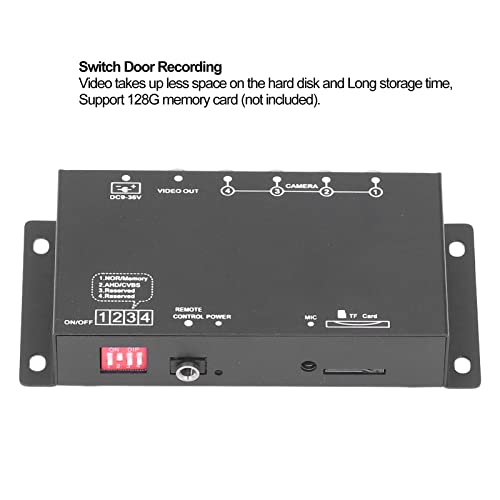

• [Efficient Recording] Features switch door recording function for organized video files. ideal for viewing and increasing productivity.

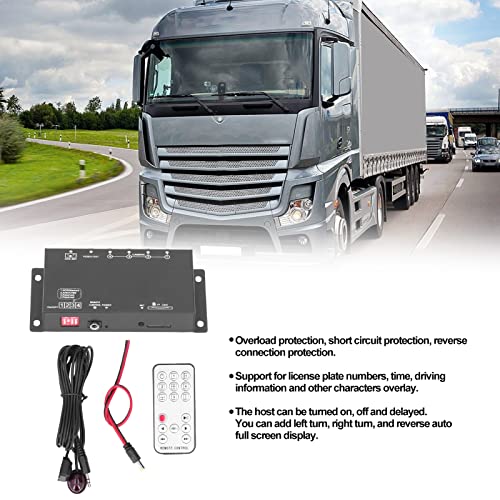

• [Enhanced Functionalities] Supports license plate overlay, time stamp, and driving information. offers left turn, right turn, and reverse auto full screen display for convenience.
• [Superior Video Quality] Utilizes h264 video compression for optimal storage space. supports up to 128g memory card for long-term recording capabilities.
• [Industrial Grade Design] Ensures durability and reliability, providing a secure recording environment for your vehicle.

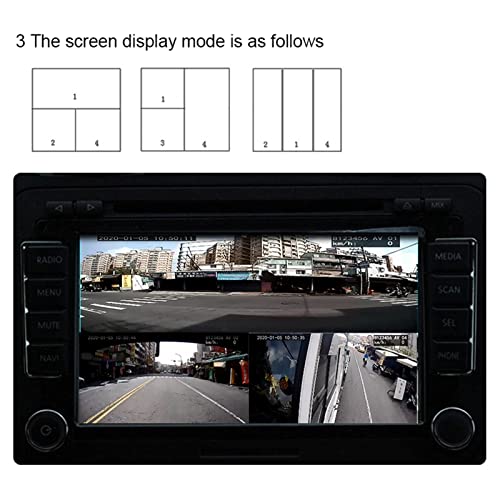

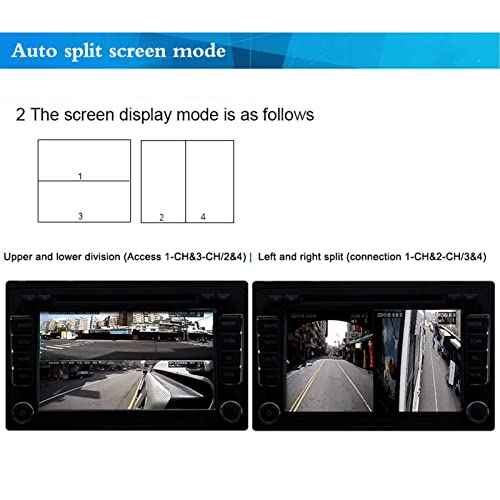

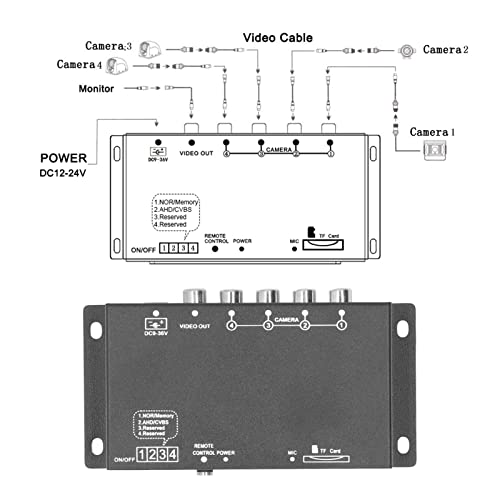

Spec: Item Type: Mobile Digital Video Recorder Material: ABS + Metal Remote Control Battery: 1pc CR2025 button battery 3V (not included) Video Format: PAL/NTSC (automatic identification, note: the camera (not included) needs to be connected before power on, the default is PAL format) Video Parameters of Each Channel: Resolution: Maximum Support Input 1080P, Output 720P Refresh Rate: 25 frames per second Peak Value: 1Vp-p Impedance: 75Ω Video Interface: 4 inputs ( interface, support CVBS and AHD720P, AHD1080P), 1 output ( interface, 720P AHD or CVBS) Video Recording: Memory card (less than or equal to 128G, not included), recording format is AVI, h.264 compression Audio: 1 in Operation Screen Mode: 2.4G remote control / infrared remote control / wire control: high level trigger Positive/Mirror Selection: OFF/ON Recording Mode: Independent recording for each channel Default Boot Screen: The default boot 田-shaped or H-shaped four-screen mode, selectable in the menu Picture mode: 田-shaped four-picture mode, H-type four-picture mode, picture-in-picture and single-picture full screen and other picture modes Host Power Consumption: 2W Output Power: None Rated Voltage: DC 12V/24V Maximum Voltage Range: DC 9-36V Working Temperature: -20℃ to +65℃ Camera Input: 4 Channels Storage Function: Not Supported Operation Method: Remote Control Power Loss : Yes Video Interface: interface Package List: 1 x Video Control Box 1 x Power Cord 1 x Line 1 x Remote Control 1 x Manual How To Use: 1. Connect the camera (not included) to the product. 2. Connect the product to the monitor (not included). 3. Connect to the power supply. 4. Start recording.
