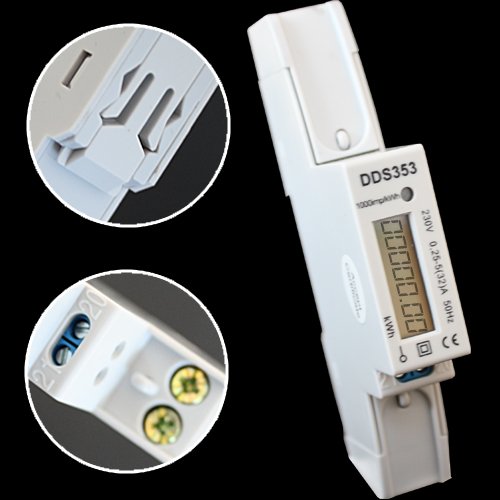

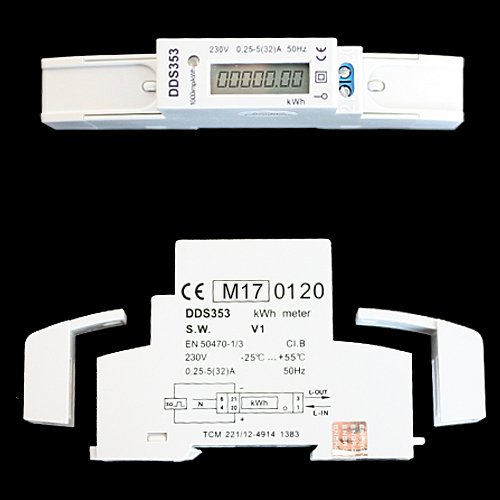

MID DIGITAL WATTMETER ENERGY METER DIN RAIL MOUNT kWh LCD DIGITAL DIN-RAIL ZW2

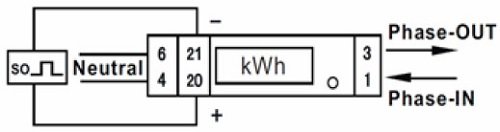

Our TMT reference: Mid is a mid Geeichter Digital Einphasen alternating current counter 5/32 A with digital display for DIN rail. It is designed for quick snap DIN rail mounting and is best suited for installation in almost all security distribution systems and power boxes. Ideal to check the Mietshäuser, Power Section kWh used or individual areas. The main unit has an S0 interface. The kWh meter has been certified in accordance with CE EN61036, and meets the CE requirements and EN61010 EN61326. It is part of the highest accuracy class 1 and authenticated. The licensed Operating this Zählers is 1% of the rated stream at 5 (32): I (Nominal): 5 A, 1% by I (Nominal) = 0.05 A, Maximum load 32 A. The permitted operating as well from 0,05 A... 32. Calibrated design based on the mid for billing purposes to third. The Ersteichung by staatlich recognised testing centres is replaced with the manufacturer's conformity assessment (Special, certified and constantly tested production drains). The devices can be operated without an additional Ersteichung produced so be used for billing purposes and equals Geeichten design. A special marking, for example due a calibration Mark is not necessary. General Data: Power consumption: <0.2 W Operating Range: 184 – 265 Vac; 0.02 ~ 32 A Start/Power cos phi = 1: typical 20mA Frequency Range: 50 Hz or 60 Hz +/-10% Temperature range: -20 °C to + 65 °C Relative humidity: up to 75% – Short up to 95%
