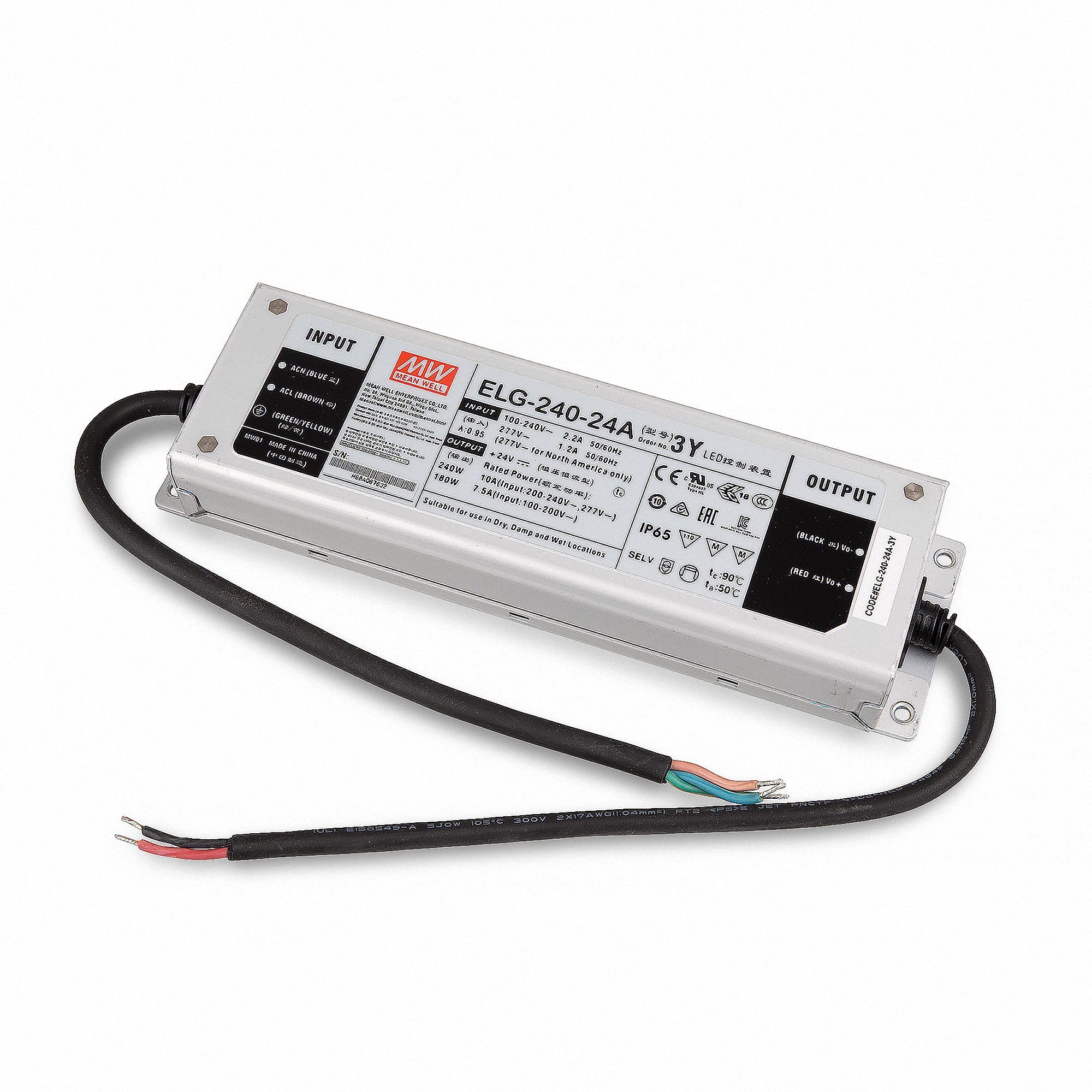

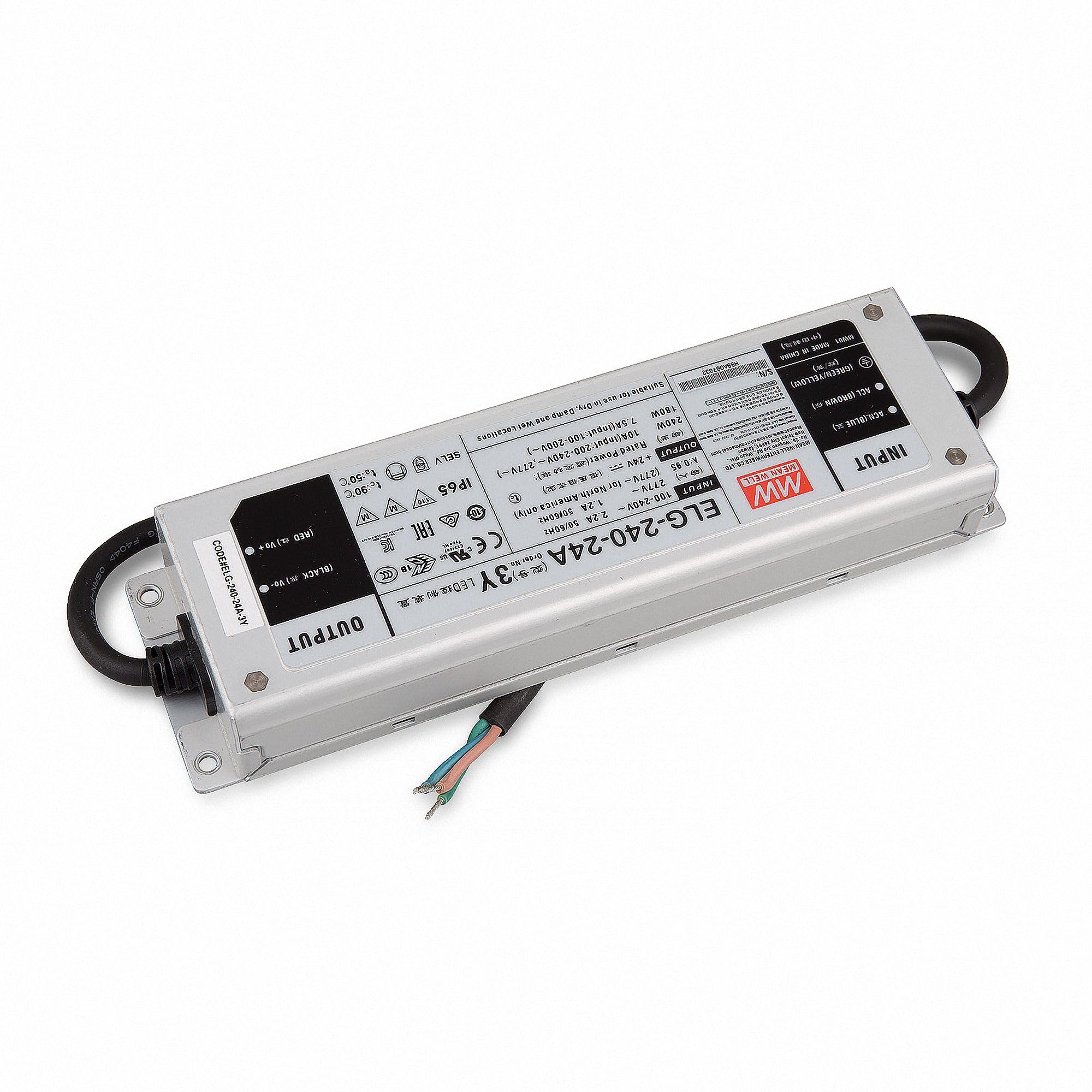

ELG-240-24A-3Y LED Power Supply Transformer Mean Well ELG-240-24A-3Y SNT 26.4 V/DC/0-10 A/ 240W IP65 LED Transformer for LED Lighting

• ELG-240-24A-3Y Mean Well output voltage max. 26.4 V/DC output voltage max. :10 A
• Dimensions (L x W x H): 244 x 71 x 37.5
• The LED power supplies in the IP65 aluminium housing meet the standards EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 and are therefore used for LED and lighting applications.
• ELG-240-24A-3Y SNT metal housing. Overload protection by switching off (Hiccup), auto recovery. Protected against short circuit, overload, overvoltage. For LED and lighting applications. Constant voltage and constant current can be dimmed via integrated potentiometers. EN61000-3-2, Class C, EN55015. EN6134 7-1, EN61347-2-13 · Conforms to 6kV Surge Immunity Level IEC 61000-4-5.
• Sales and shipping by LEDTECH-SHOP in Germany within 24 hours

Manufacturer: Mean Well. Item no. ELG-240-24A-3Y Types: LED switching power supply ELG-240-24A-3Y Description: The LED power supplies in IP65 aluminium housing meet the standards EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 and are therefore used for LED and lighting applications. Features: adjustable, mounting on flammable surfaces, overload protection, overvoltage, PFC circuit. Maximum power: : 240 W. Dimensions width: 71 mm. Dimensions height in mm: 37.5. Dimensions: length in mm: 244. Protection class: IP65. Protection class: I. Features: metal housing, overload protection by switching off (Hiccup), auto recovery, protected against short circuit, overload, overvoltage, for LED and lighting applications, constant voltage and constant current can be dimmed via integrated potentiometers, EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-1, EN. 6134766-2-13 · Complies with 6kV Surge Immunity Level IEC 61000-4-5. Connectors: cable, open end. Number of outputs: 1. Number of inputs: 1. Design: constant voltage||constant current. Output voltage max. : 26.4 V/DC. Output voltage min. : 21.6 V/DC. Output current: max. : 10 A. Output current: min. : 5 A. Operating voltage: 115 V/AC||230 V/AC. Input voltage max: 305 V/AC. Input voltage min: 100 V/AC. Product weight in grams: 1050.
