Meagkka Automotive Short Open Finder Cable Circuit Car Wire Tracker Repair Tester Tool

• This Automotive Short and Open Finder, car repair tool is designed to identify and trace wires or cables without damaging the insulation.

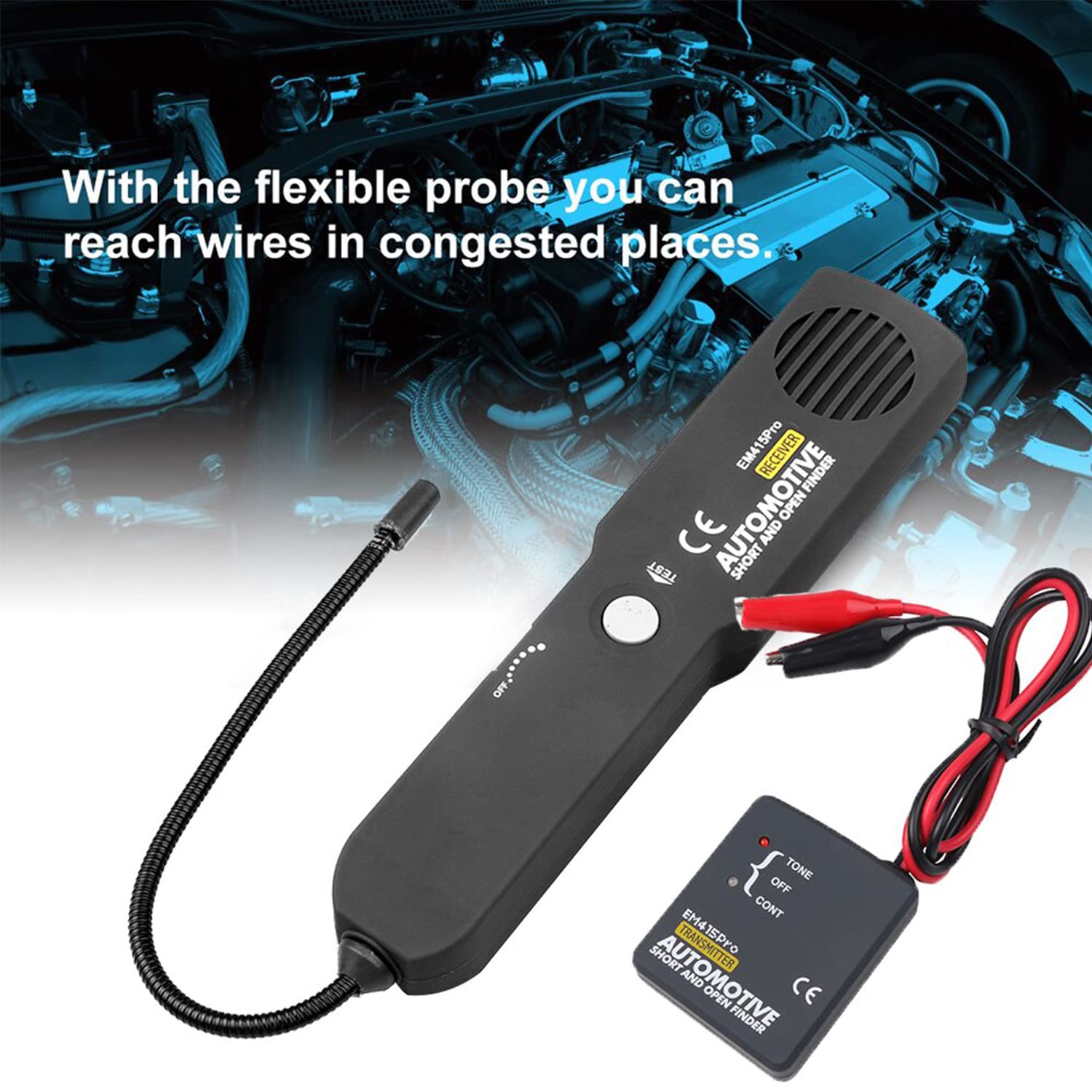

• 7" flexible probe allows reaching wires in congested places,No wire piercing required, non-contact technology.
• You can also use it in checking for short circuit and locating open circuit and so on.
• Operates on DC voltages from 6 to 42 volts.Internally protected against power surges and overloads.
• Included in the set are Sender and a Receiver with a flexible thus, tracing wires made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc.

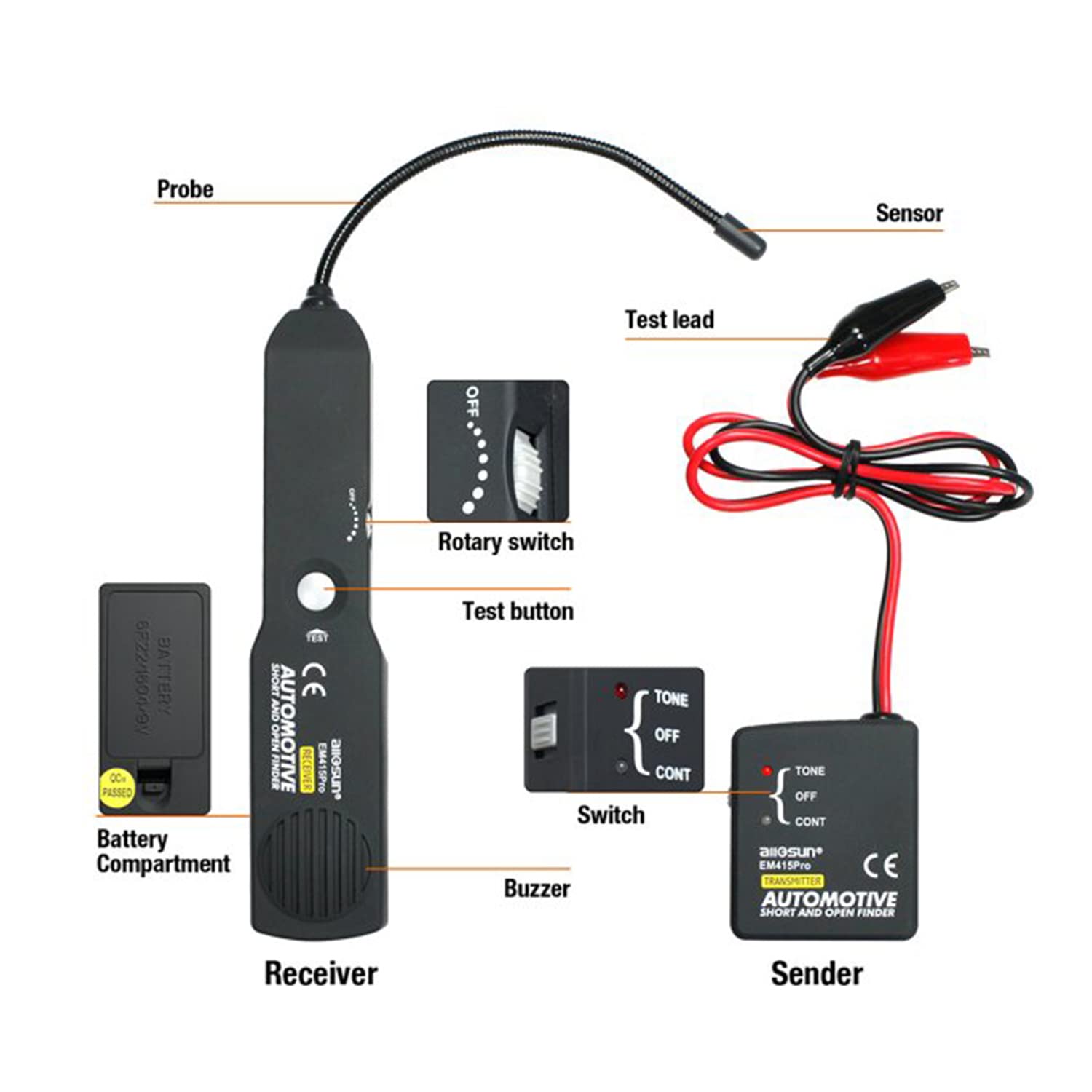

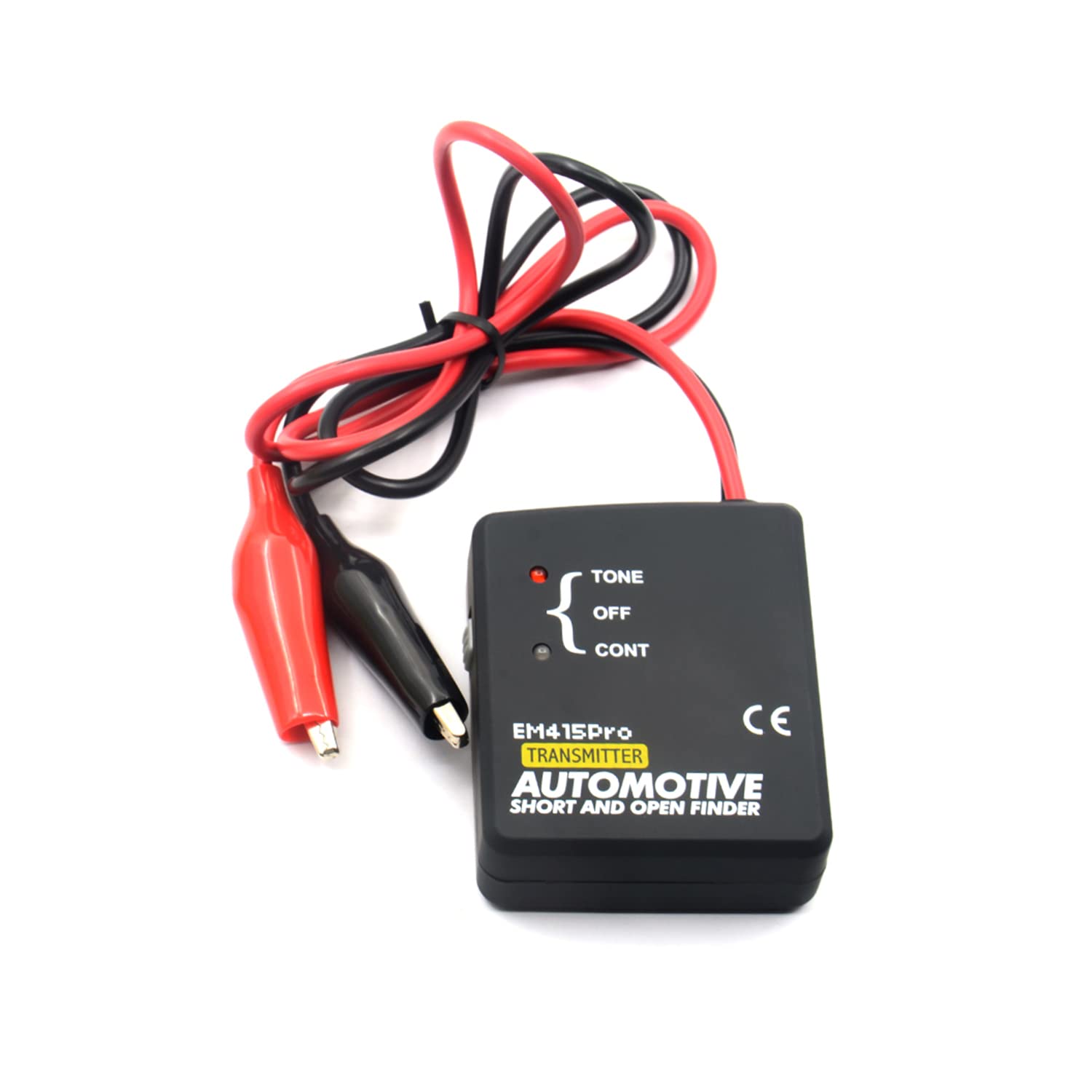

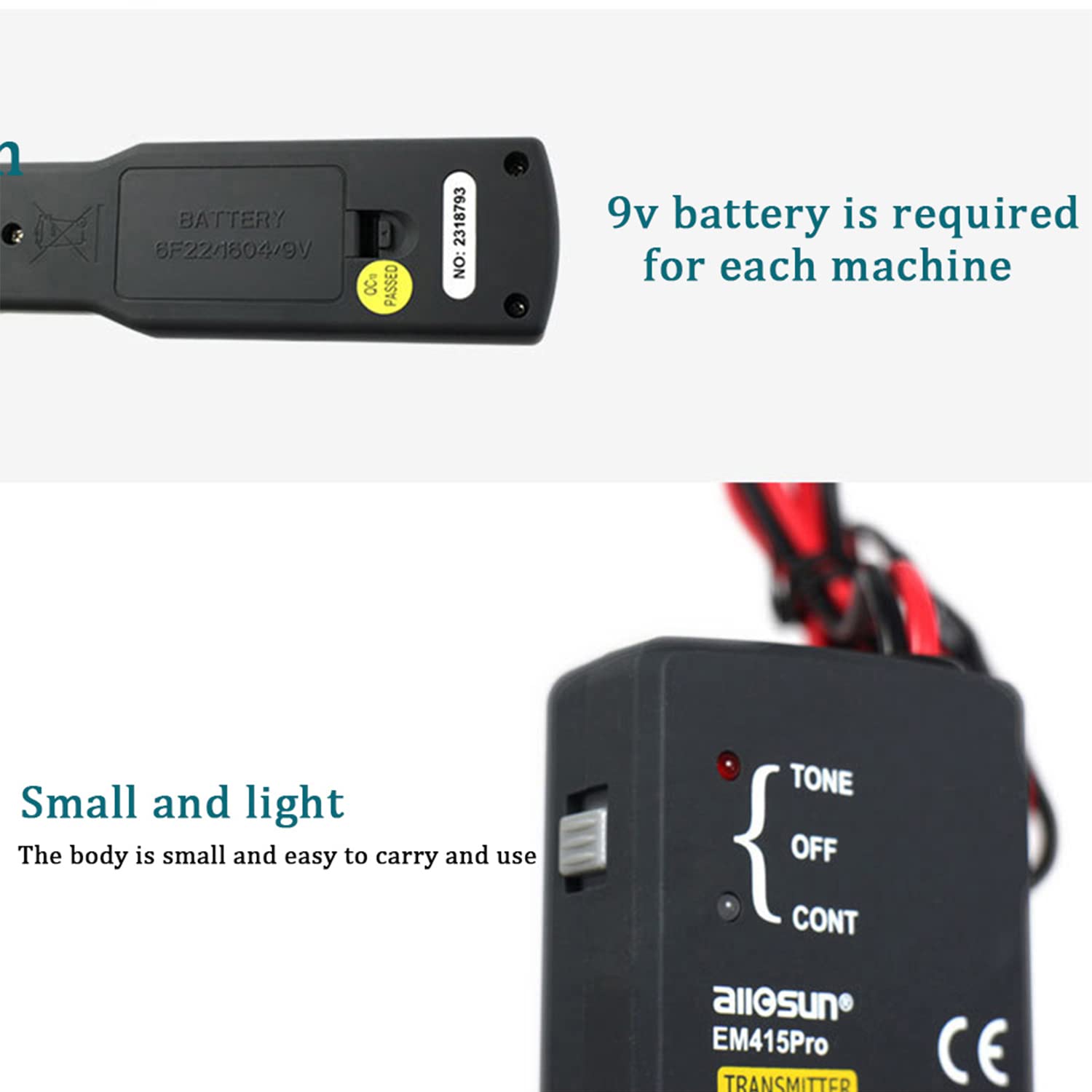

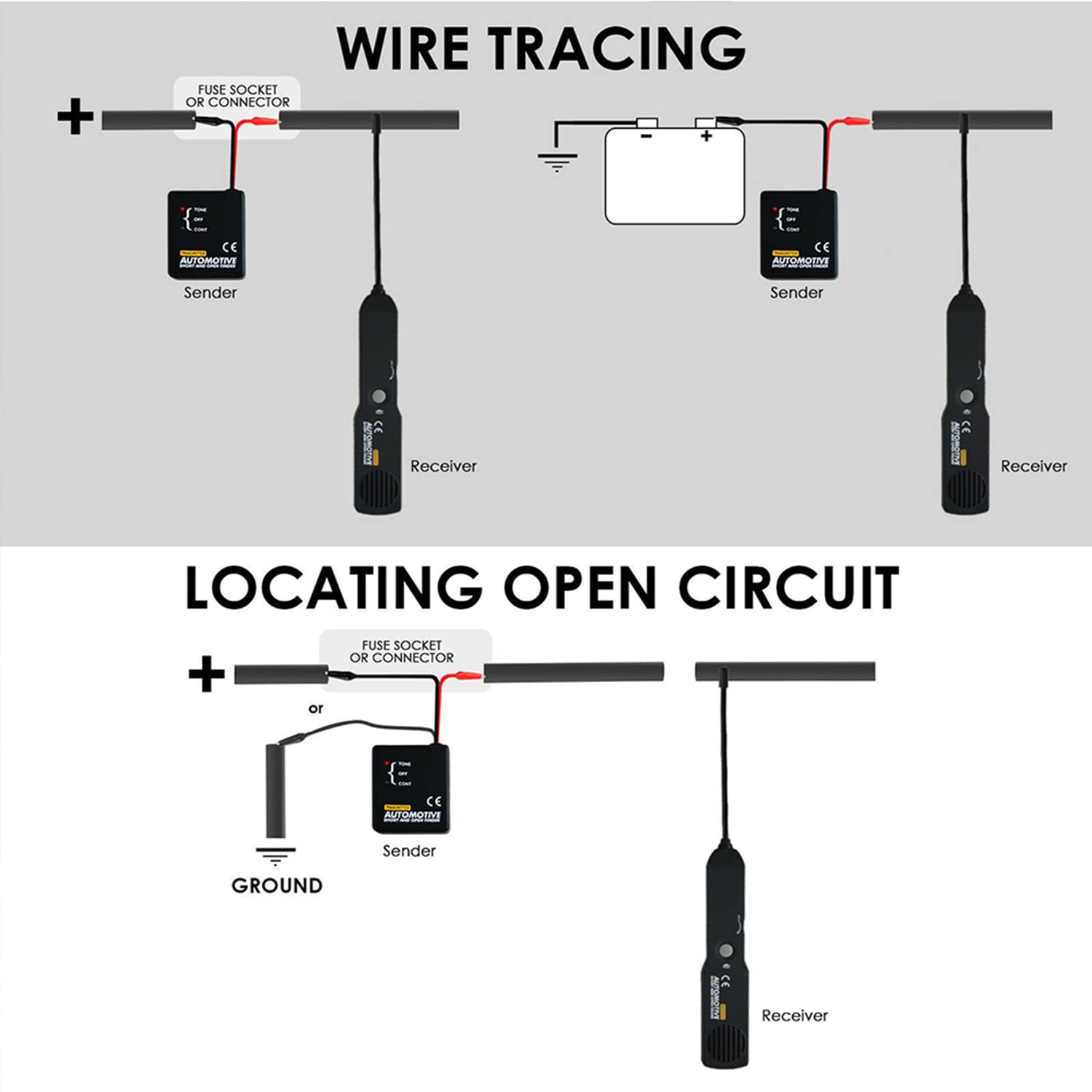

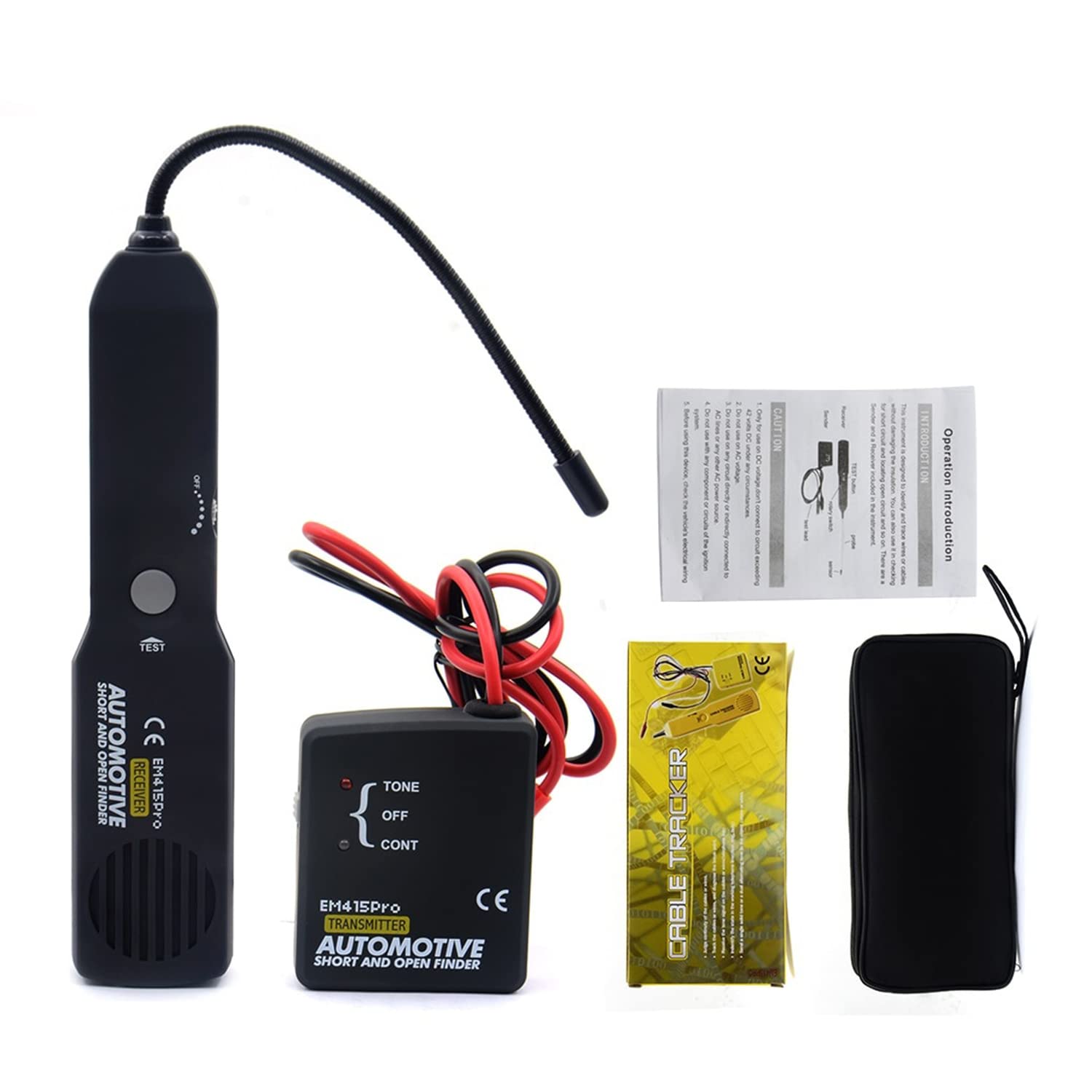

Easy to use by just simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot. Application: Checking for short circuit, Loating open circuit, Wire identification, Wire traceing,etc. Reciever probe is built of coiled steel, can be bent inorder to reach wires in congested areas. Operates on DC voltages from 6 to 42 volts Internally protected against power surges and overloads 7" flexible probe allows reaching wires in congested places Transmitter and Receiver LEDs show open or short circuit conditions Adjustable sensitivity for all tracing situations No wire piercing required, non-contact technology Receiver: On/Off button Test button Probe length: 7" flexible probe Sender: Tone/Off/Cont (Continuity) switch Tone/Cont (Continuity) LEDs Red and black test leads cable (61cm length, approximate) Power : 9V 6F22 battery(Note:The battery is not included!) DC Voltage: Operates from 6 to 42 volts Probe length: 7" flexible probe What's in the box? 1 x Automotive Short and Open Finder Sender 1 x Automotive Short and Open Finder Reciever 1 x Carrying Pouch 1 x English User Manual Note:The battery is not included.
