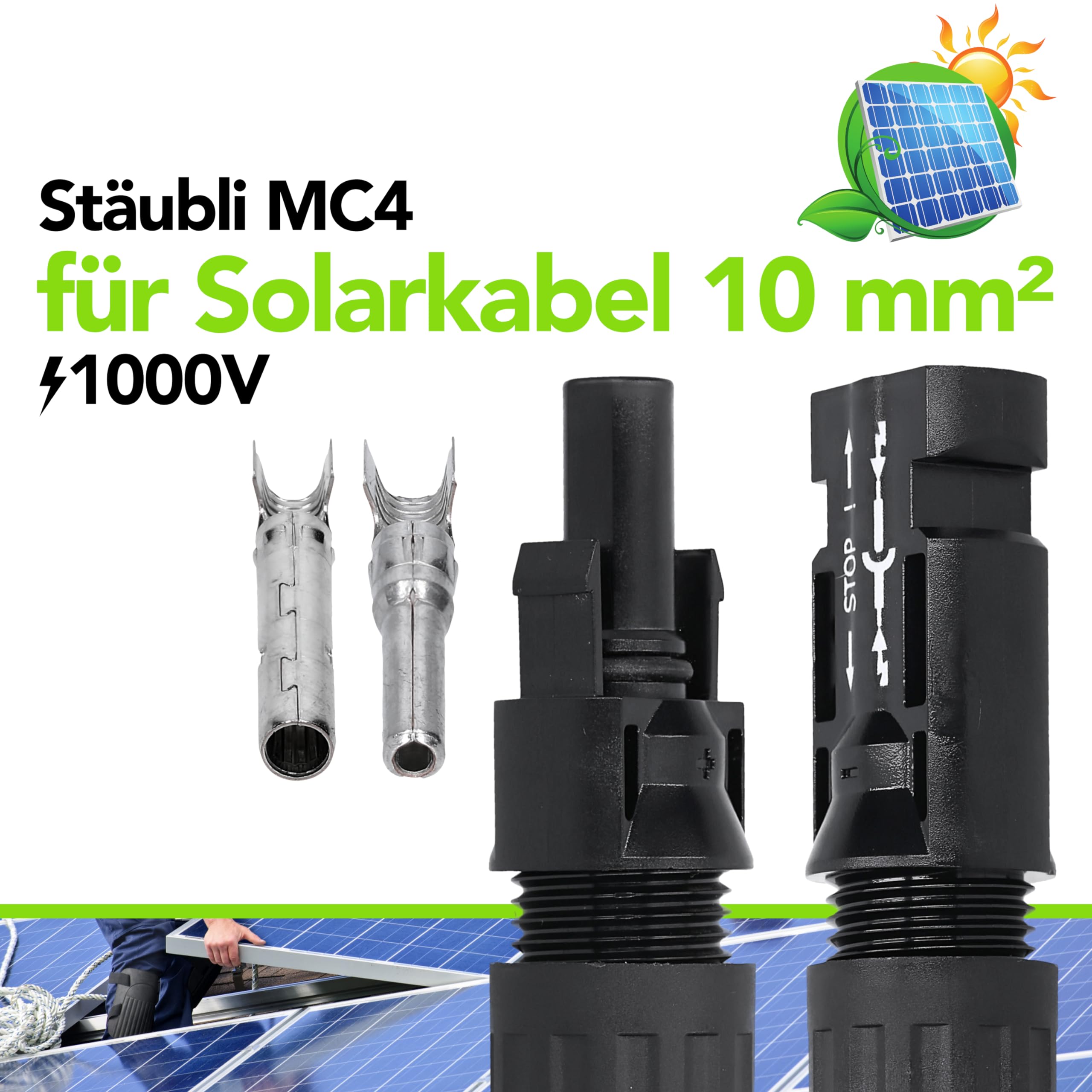

MC4 Male Coupling Connector 10 mm² PV-KST4/10II and PV-KBT4/10II

• Original MC4 plug of the brand Stäubli (formerly multicontact)
• for 10mm² cable cross-section --- Manufacturer Reference PV-KST4 / 10II & PV-KBT4 / 10II

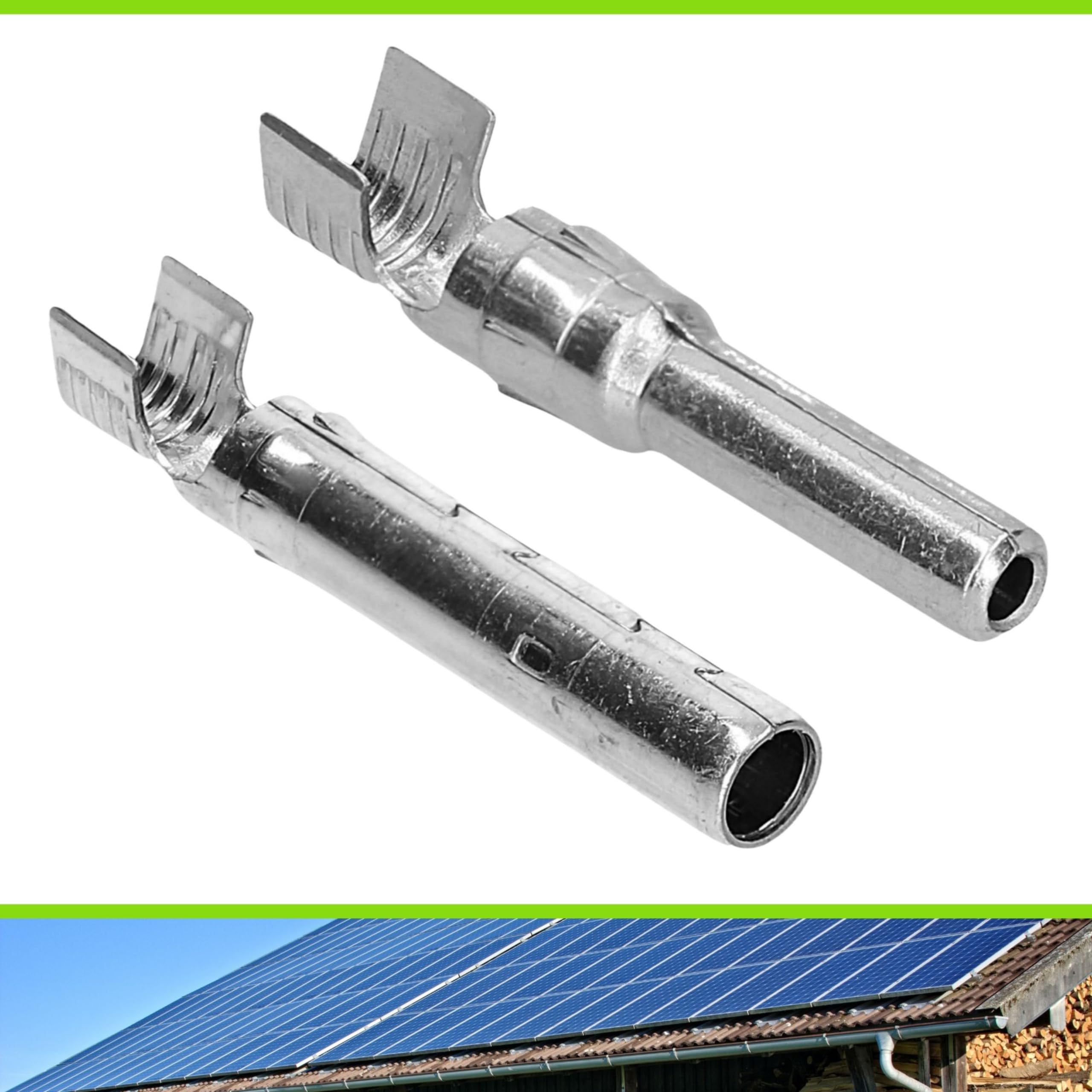

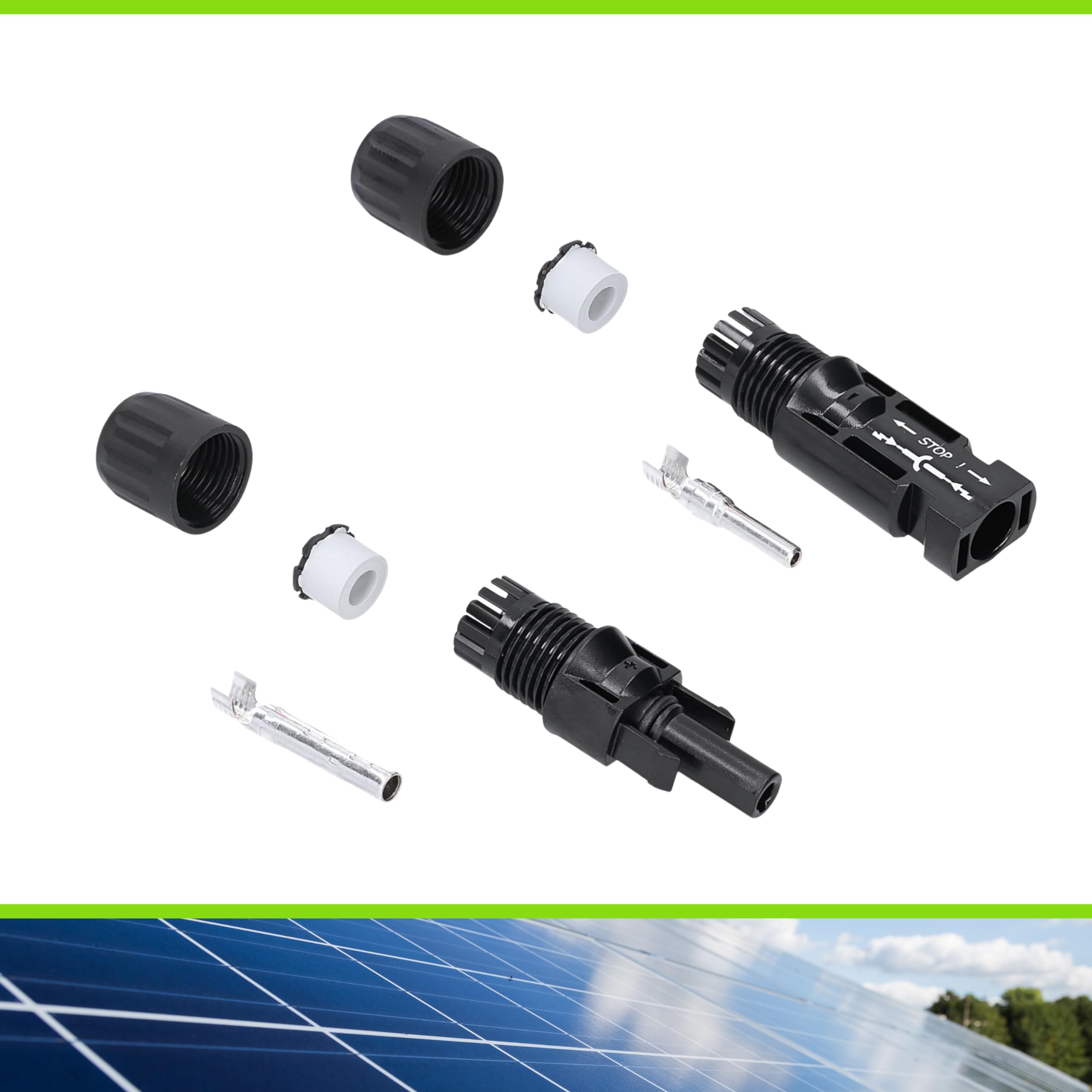

• consisting of MC4 plug, MC4 socket + crimp contacts
• Technical properties: Touch protection unskted: IP22 --- Degree of protection, inserted IP67 --- Temperature insert area -40 °. . . 90 ° C - Insulation material PA --- Locking system Snap-in --- Cable train relief according to IEC 61984 (06. 2001)
• contact system MC contact slat --- contact material copper, tinned --- Flame class UL94-V0 --- protection class II --- System voltage up to 1000V --- Rated current up to 30A

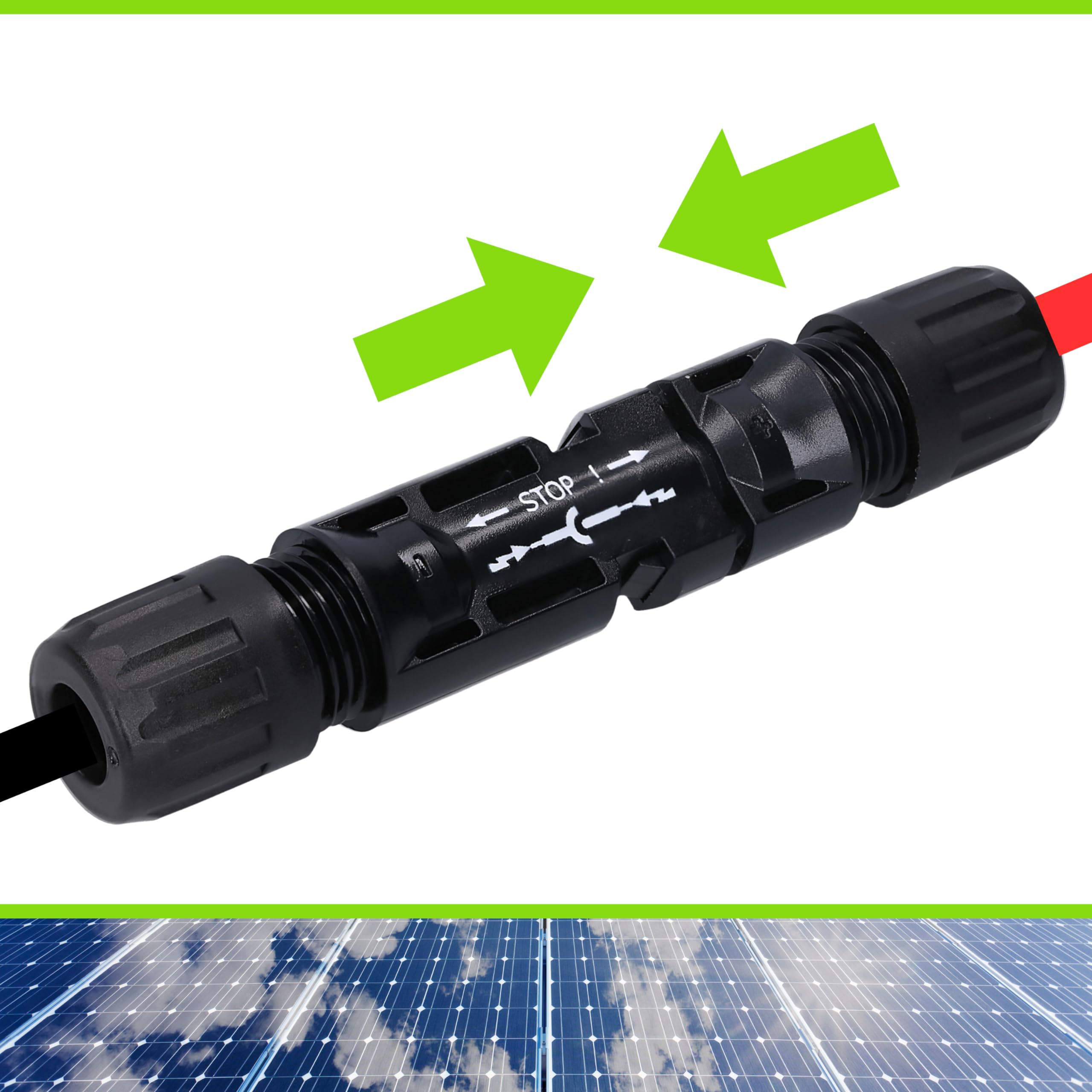

MC4 plug and bushes pair for solar cables with 10mm² cable cross-section and an outer diameter of 5, 5-9, 0mm. Especially in the range of 12V solar applications, it often leads to large cable losses due to small cable cross sections. That's why we offer the proven MC4 connector system for 10mm² cable. Important technical properties for solar cable with outer diameter 5, 5 - 9, 0mm Touch protection, unspecified IP2X protection class, inserted IP67 Temperature insert range -40 °. . . 90 ° C Max Current: 42A Cable train relief according to IEC 61984 (06. 2001) Contact system with MC contact slats Contact material Copper, tinned system voltage up to 1000V
