maxx.onLine Signal Tester (ST-1) for Cable TV DVB-C/DVB-T, 40-862 MHz, Battery Powered

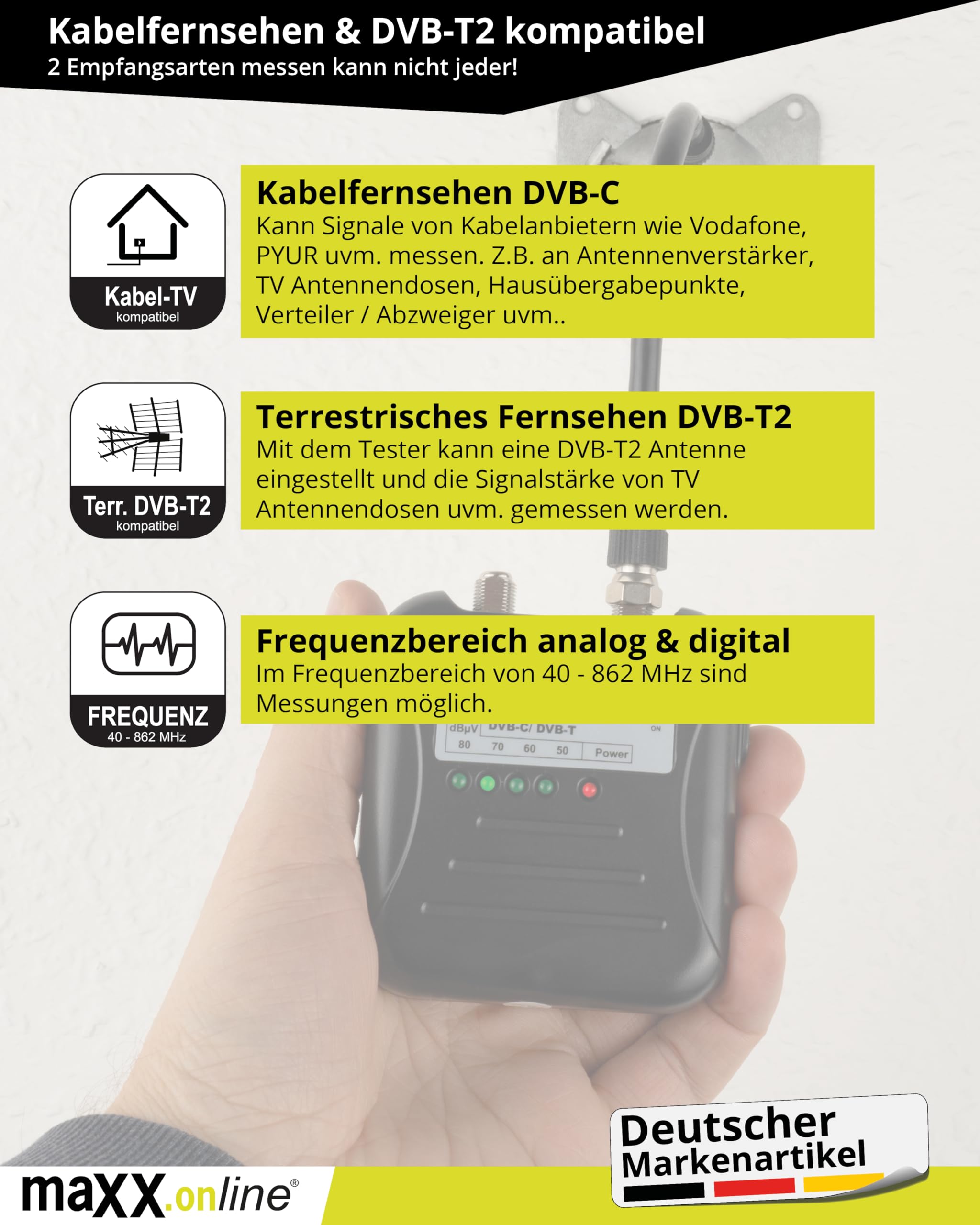

• Ideal for easy checking, signal control or quick troubleshooting of "analog" and "digital" signals in the range of 40-862 MHz (cable connection DVB-C, Unitymedia, Vodafone, Kabel Deutschland, PYUR; DVB-T).

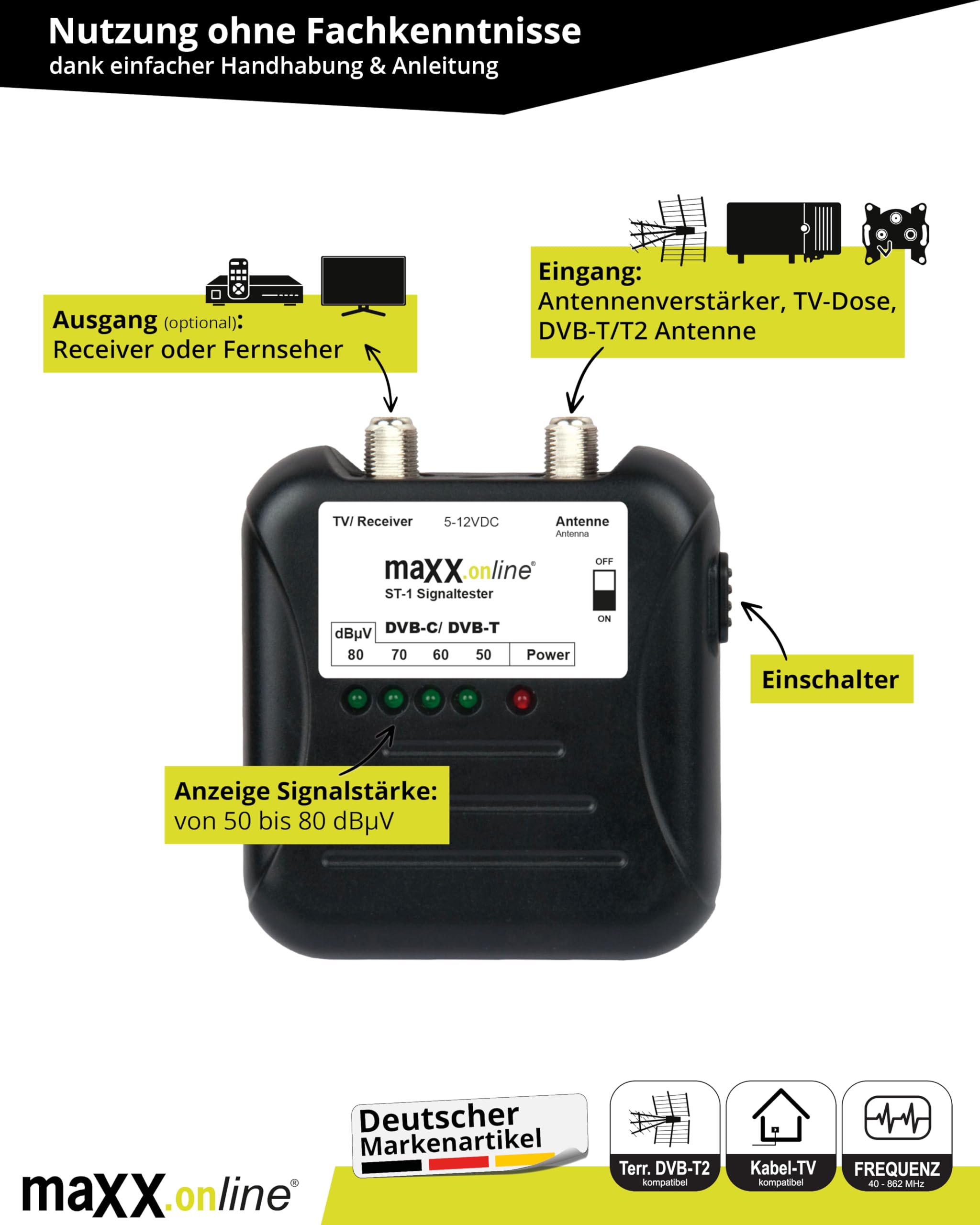

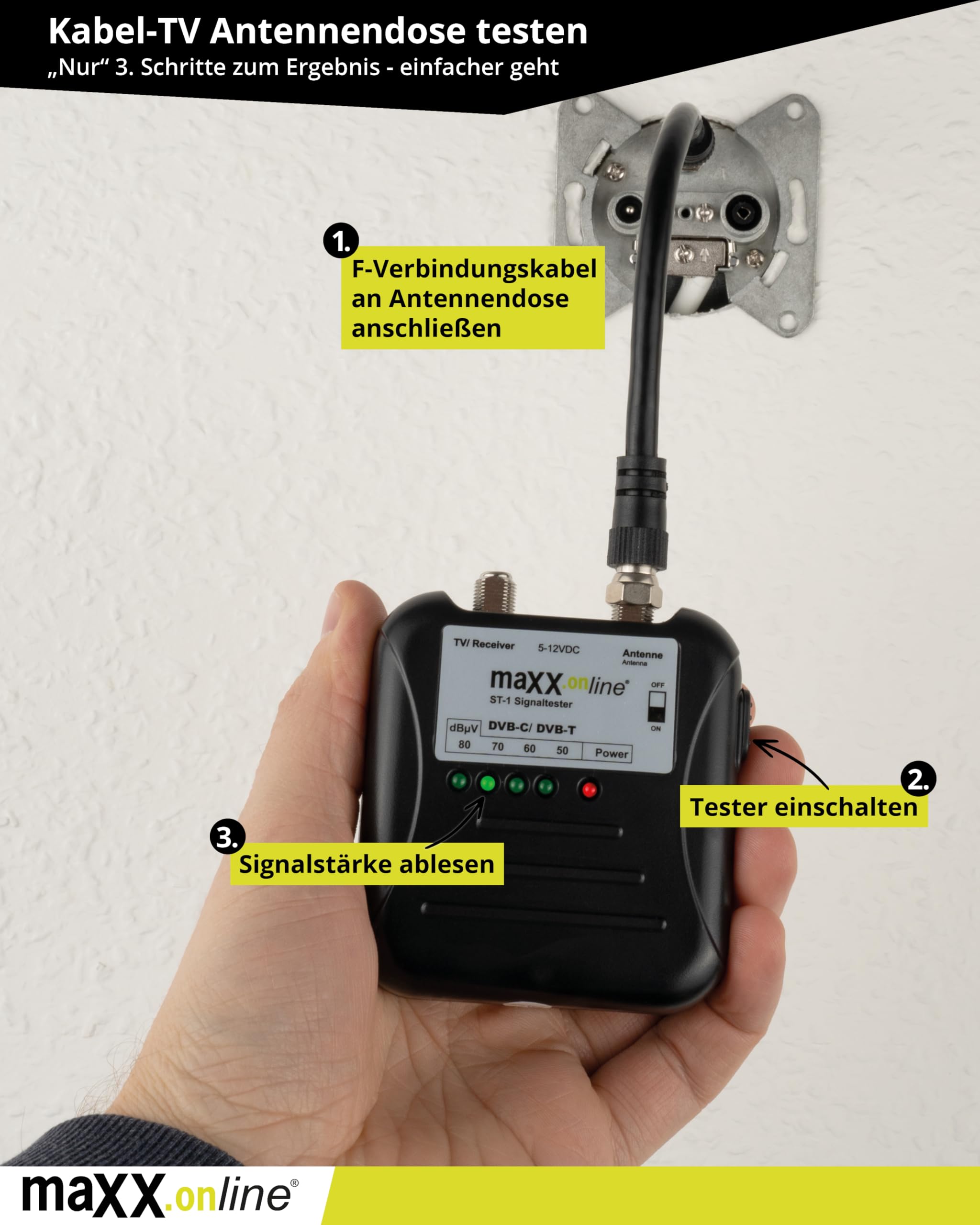

• Measuring points such as antenna sockets, HÜPs (house transfer point of the cable provider), house connection amplifier, coaxial cable connections or a DVB-T connection can be tested without specialist knowledge.
• Signal strength is indicated via a green LED indicator in the range of 50-80 dBµV.

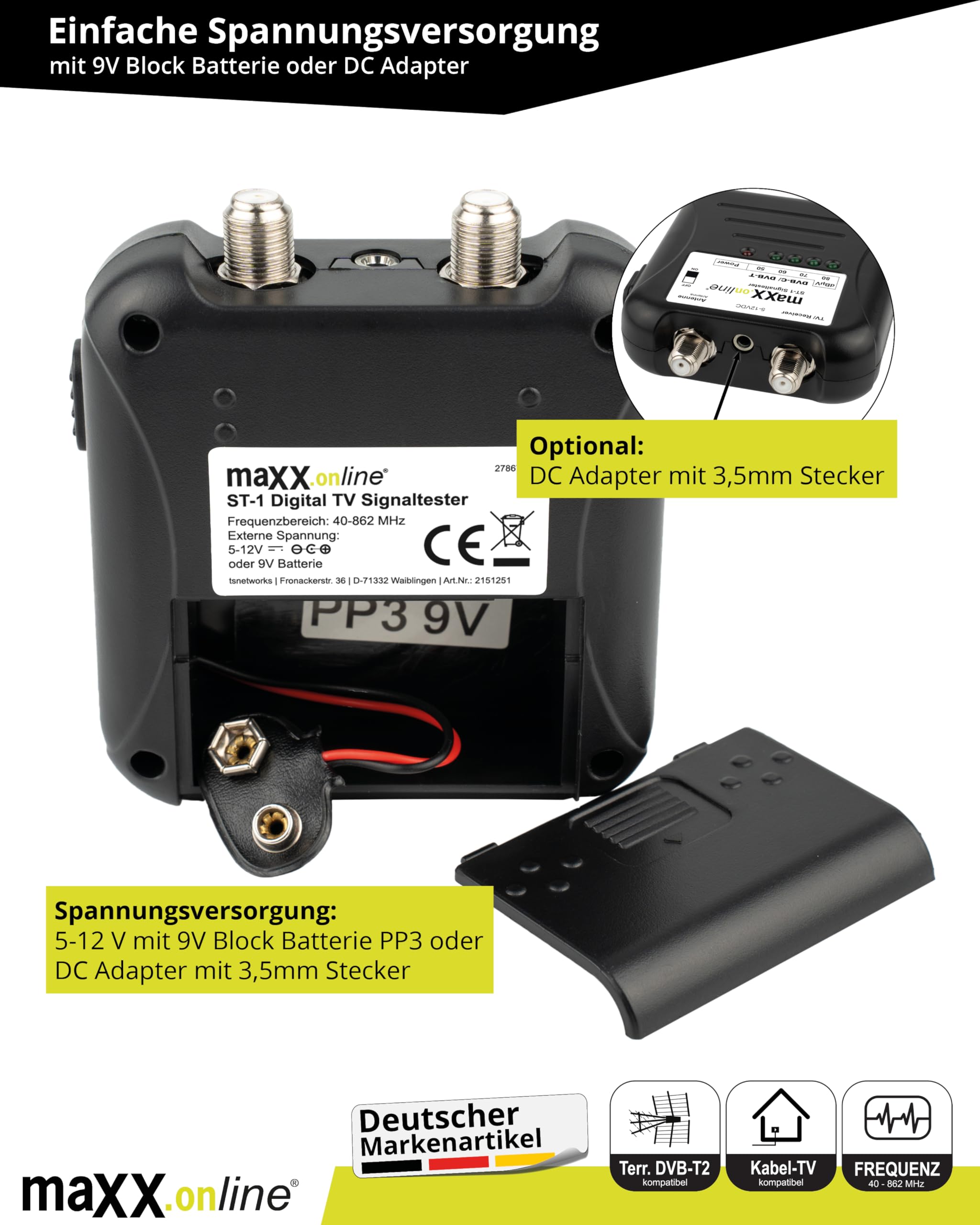

• Power supply via 9V block battery (PP3) (battery not included); Ext. Voltage 5-12 V with DC adapter 3.5 mm plug (DC adapter not included) or TV/receiver voltage; connection F-socket.

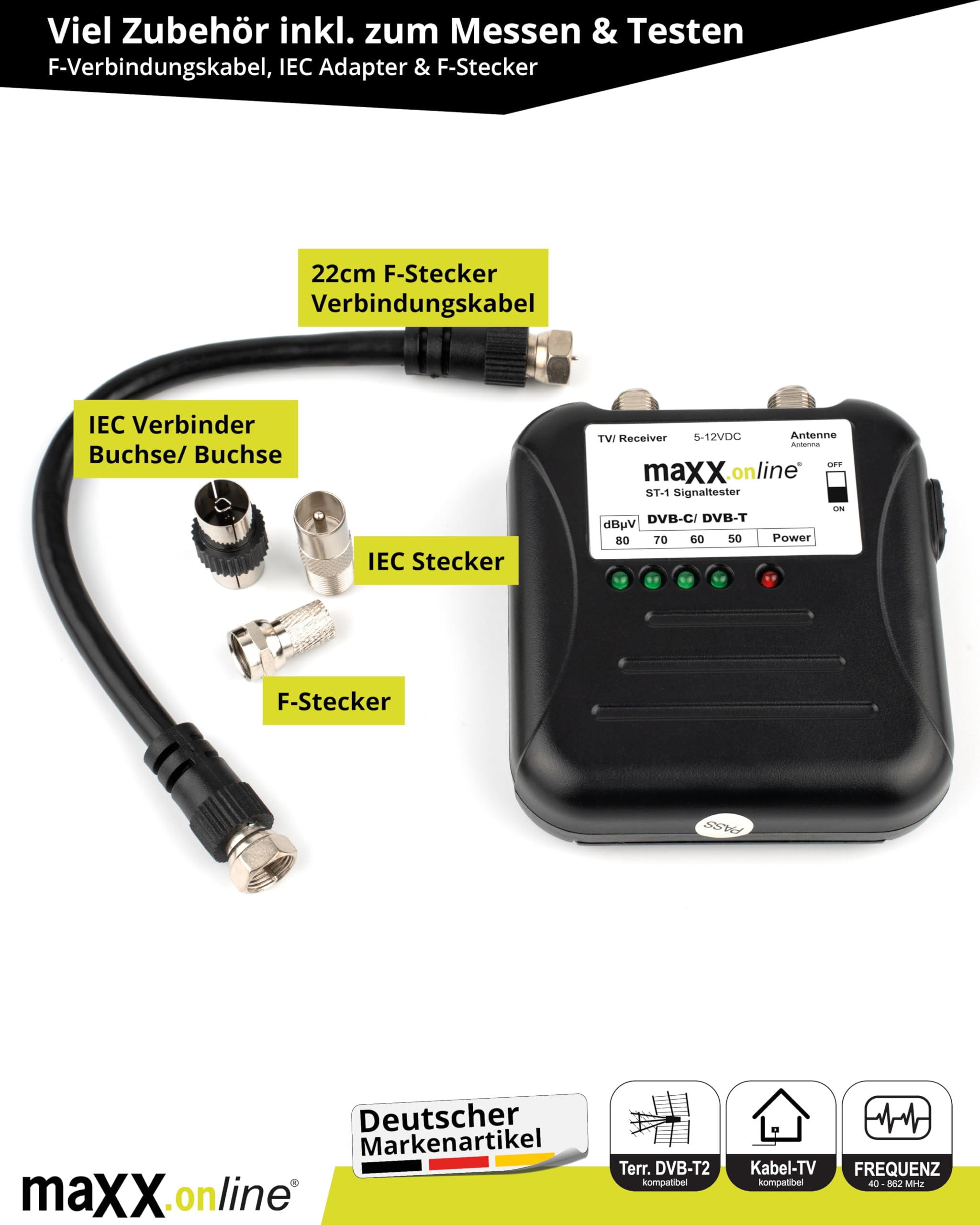

• Box contents: 1x ST-1 signal tester, 1x F-connection cable 22cm, 1x IEC plug, 1x IEC connector female/female, 1x F-plug. Includes detailed instruction manual: https://tsnetworks.de/docs/BDA_ST-1.pdf

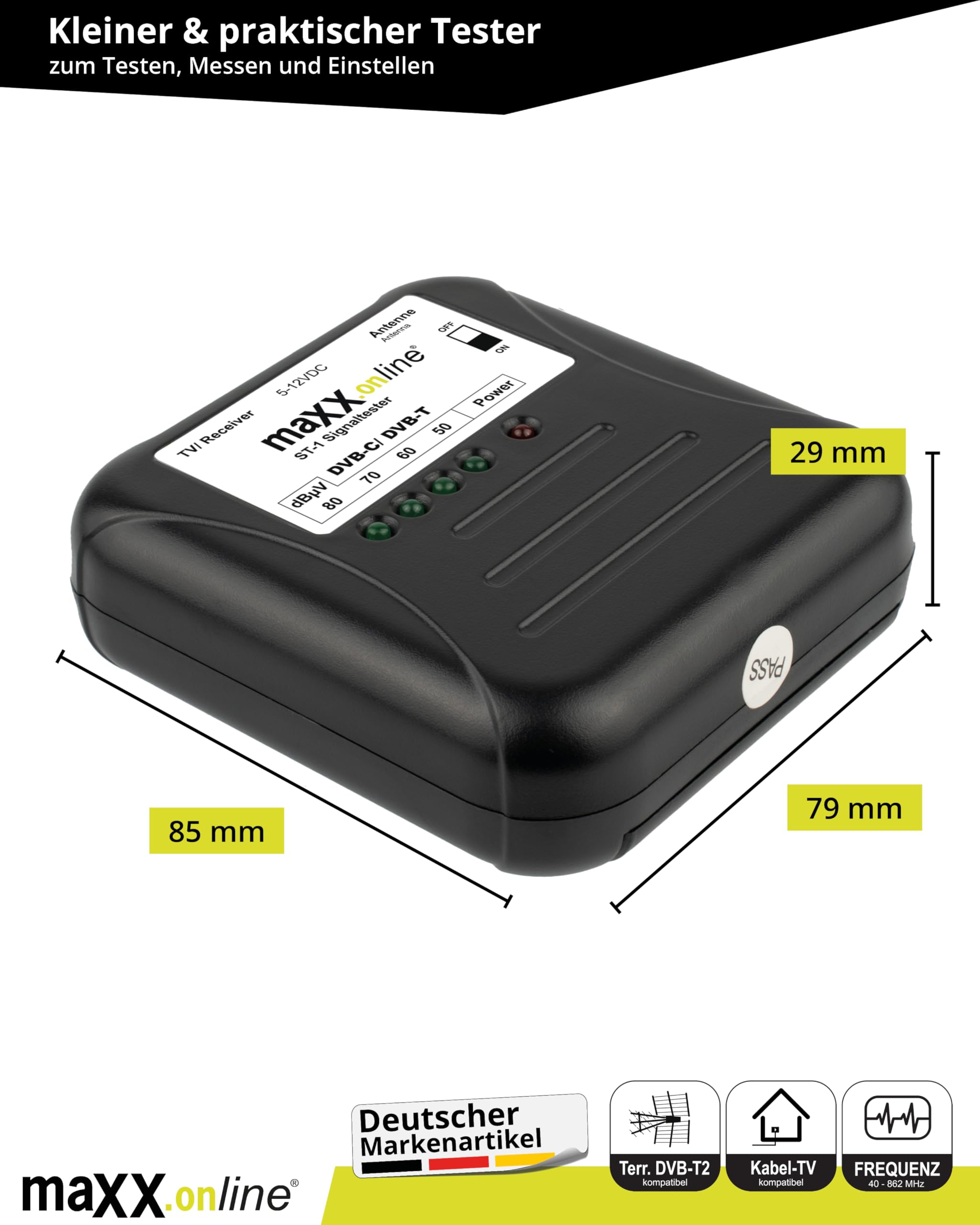

The ST-1 signal tester is ideal for easy verification, signal control or quick debugging of "analogue" as well as "digital" signals in the range of 40-862 MHz (cable connection DVB-C, Unitymedia, Vodafone, Cable Germany, PYUR; DVB-T). Measuring points we can test antenna sockets, HÜPs (home transmission point of the cable provider), house connection amplifier, coaxial cable connections or a DVB-T connection without any specialist knowledge. The signal strength of the respective connection type, can be measured via the included F-connection cable (including adaptor). If a signal is detected, it is displayed via the green LED display of 50 - 80 dB. Technical data: Operating voltage: 9V block battery (PP3) (battery not included) Ext. Voltage: 5-12V DC adapter 3.5 mm plug (DC adaptor not included) or TV/receiver voltage. Power consumption: 5VDC, 40 mA Frequency range: 40-862 MHz Dimensions: 80 x 80 x 25 mm Box contents: 1 x ST-1 signal tester 1 x F-connection cable 22 cm. 1 x IEC plug. 1 x IEC connector socket/socket. 1 x F-connector.
