Maclean MCE358 GR Infrared PIR Motion Sensor IP44 Grey Range 12m Max Load 800/1200W Movement Detector

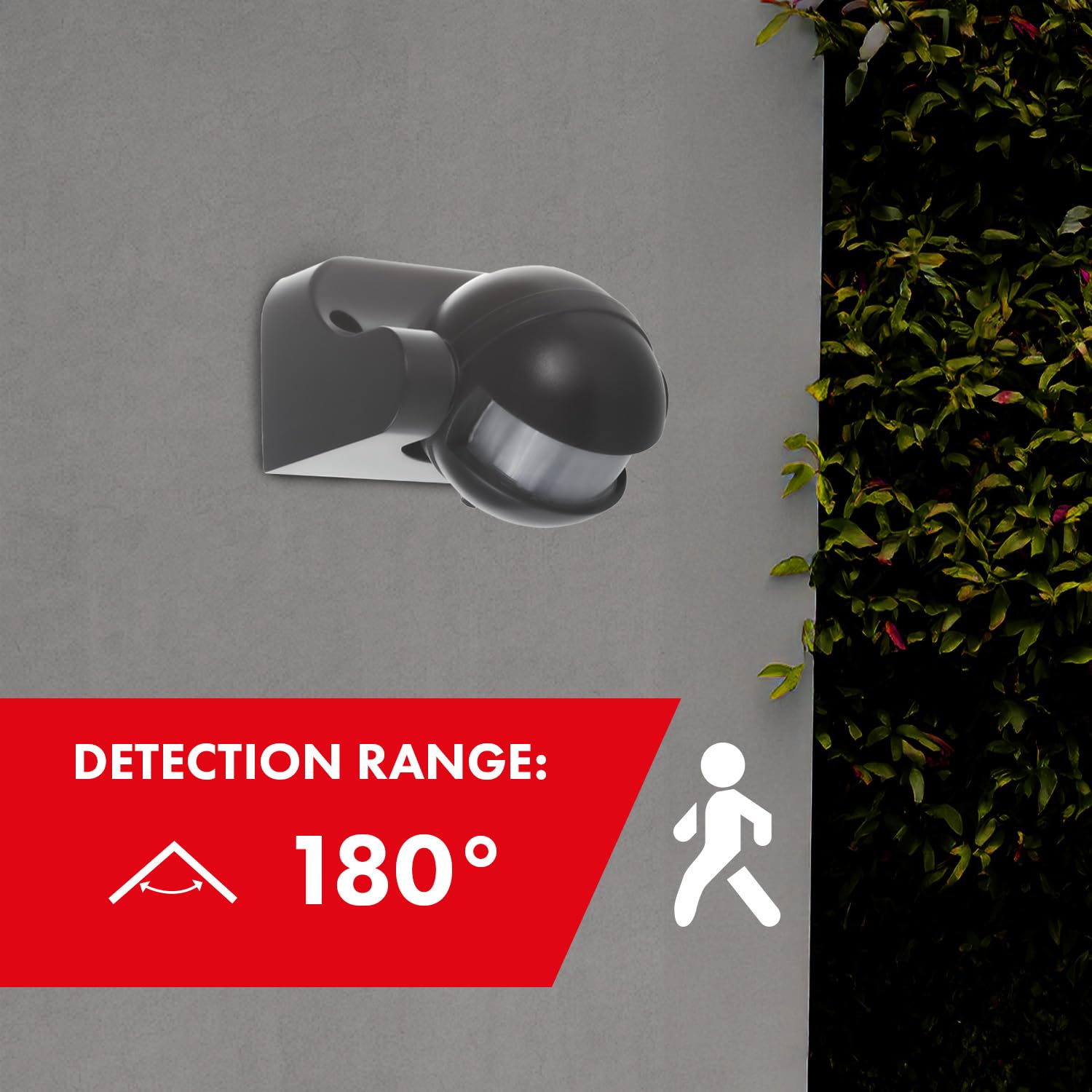

• - Motion detection angle 180° - PIR infrared sensor
• - Maximum power: 1200 W (resistive load) - Works with LED lighting
• - Built-in light intensity sensor

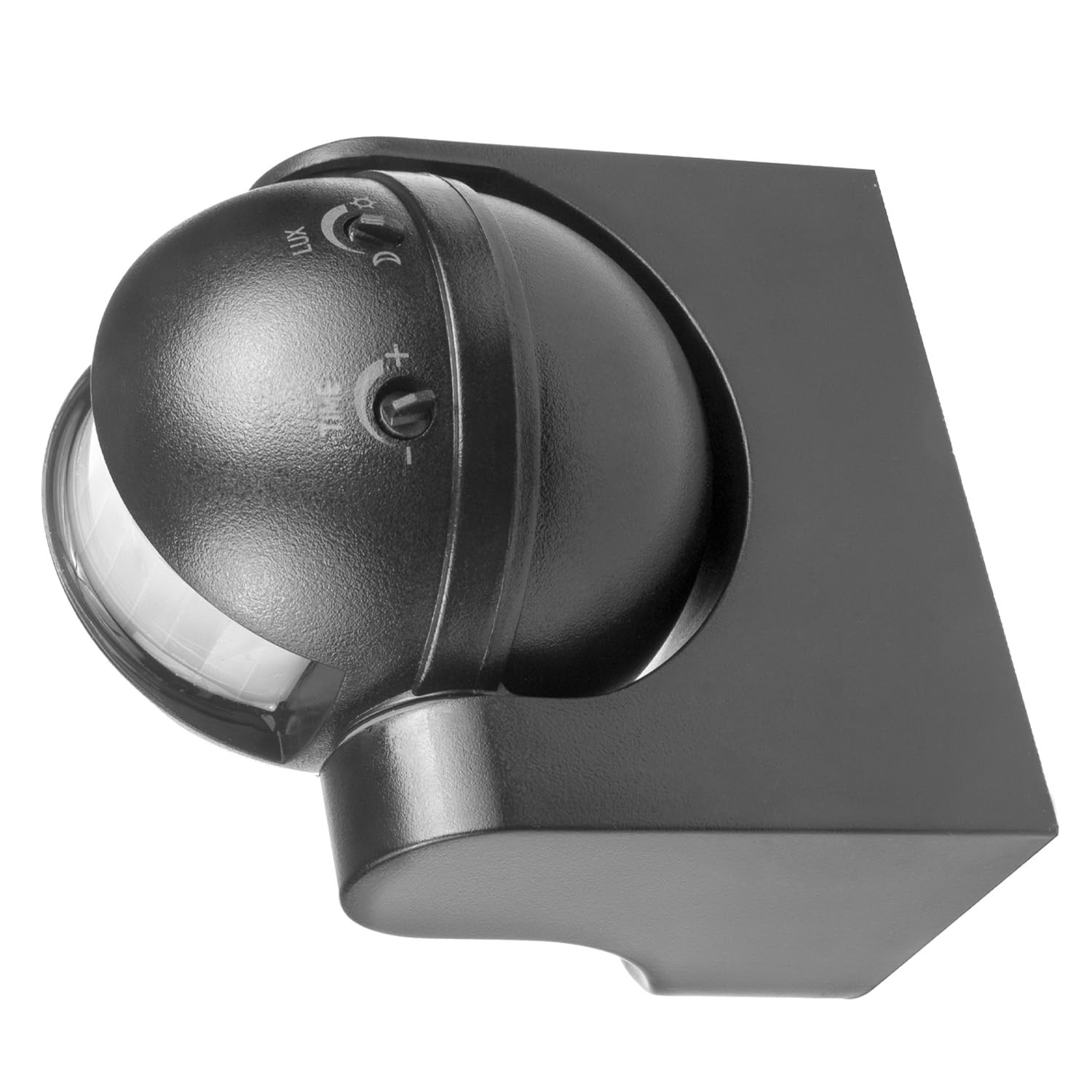

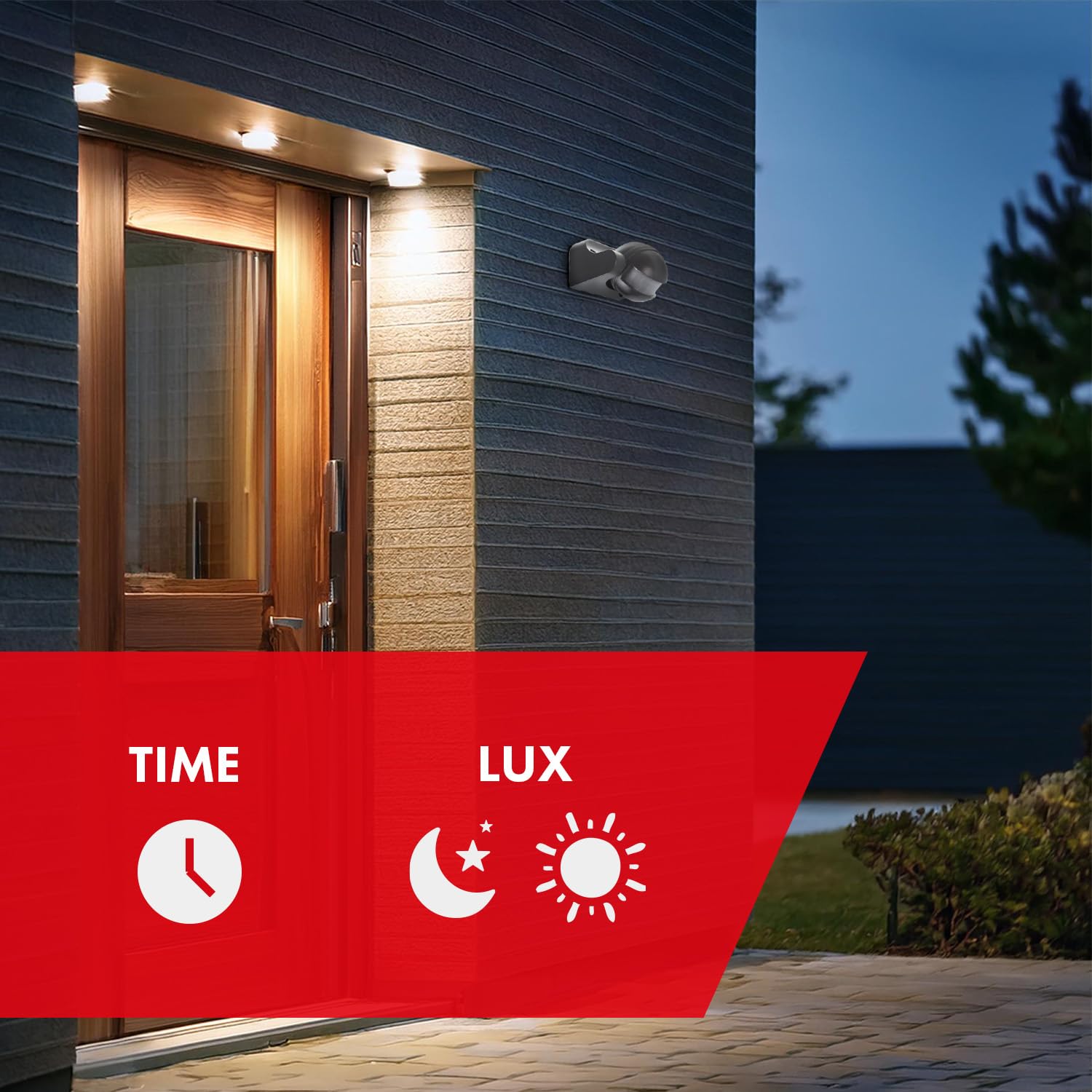

• - Possibility to adjust lighting time and light intensity level at which the device starts working (dusk sensor)

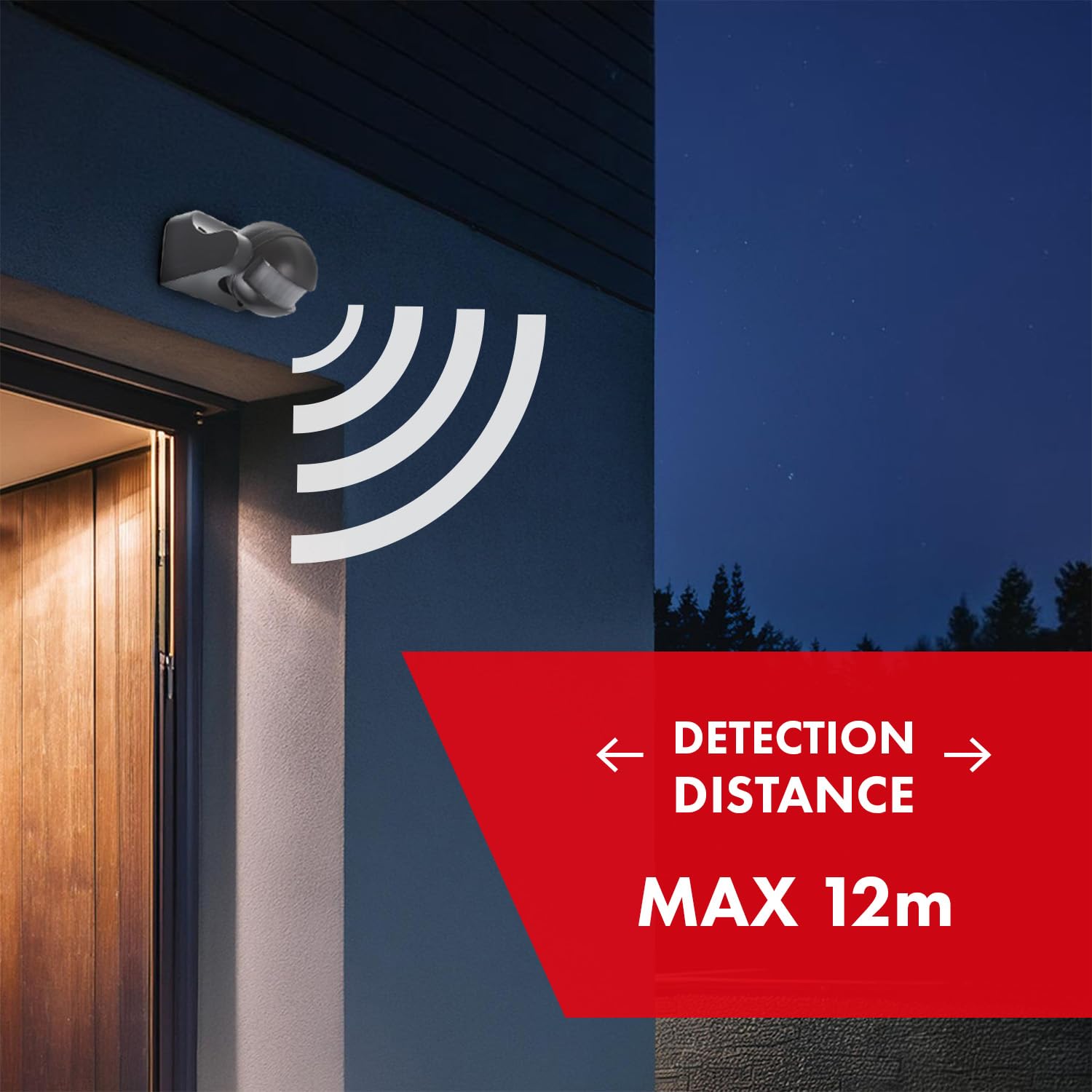

• - Sensor range: max. 12 m - Color: gray

The MCE358 sensor is ideal for use in the garden, around the house or terrace, at the gate, passageways, corridors, basements, warehouses, garages and other places that require lighting or other devices to be turned on when motion is detected. The IP44 protection level provides resistance against raindrops falling at any angle, from all sides. The sensor has high sensitivity and a very good level of workmanship. The main features are automaticity, energy efficiency and built-in practical functions. The sensor identifies day and night (twilight sensor), turns on and off depending on the appearance of an object in the detection field. The device can operate both at night and during the day. The main purpose of the presented sensor is the automatic control of lighting, but it is also possible to connect other electrical devices (e.g. electric heating, air conditioning, etc.), provided that the power receiver does not load the switch with a power greater than 1200 W (resistive load) or 300 W (inductive load). Universal application, to control the lighting of a variety of objects: - facades of residential buildings, courtyards, entrances, gates, garden greenery - parking lots - exterior walls of buildings and other architectural objects - billboards and advertising billboards, storefronts - many other objects, including interiors - Manufacturer: Maclean - Model: MCE243 GR - Color: gray - Operating voltage: 220-240 V/50 Hz - Maximum power: 1200 W (resistive load)/300 W (inductive load) - Detection angle: 180° - Lighting sensitivity adjustment: 3-2000 LUX (adjustable) - Detection range: max. 12 m (<24°C) - Operating temperature: from -20 to +40 °C - Operating humidity range: <93% RH - Sensor: PIR (infrared) detector) - Degree of protection: IP44 (waterproof) - Mounting height: 1.8 to 2.5 m - Speed of motion detection: 0.6-1.5 m/s - Adjustable lighting time: from 10 sec. to 7 min. - Maclean MCE358 GR PIR motion sensor - User manual - Manufacturer's packaging The TIME knob is used to adjust the lighting time (from about 10 sec to 7 minutes). The LUX knob is used to set the ambient light sensitivity (range from 3 to 2000 LUX). When the ambient light is insufficient and you want the device to work both day and night, set the knob to the day position (sun icon). When the ambient light is less than 3 LUX, the knob should be set to the night position (moon icon).
