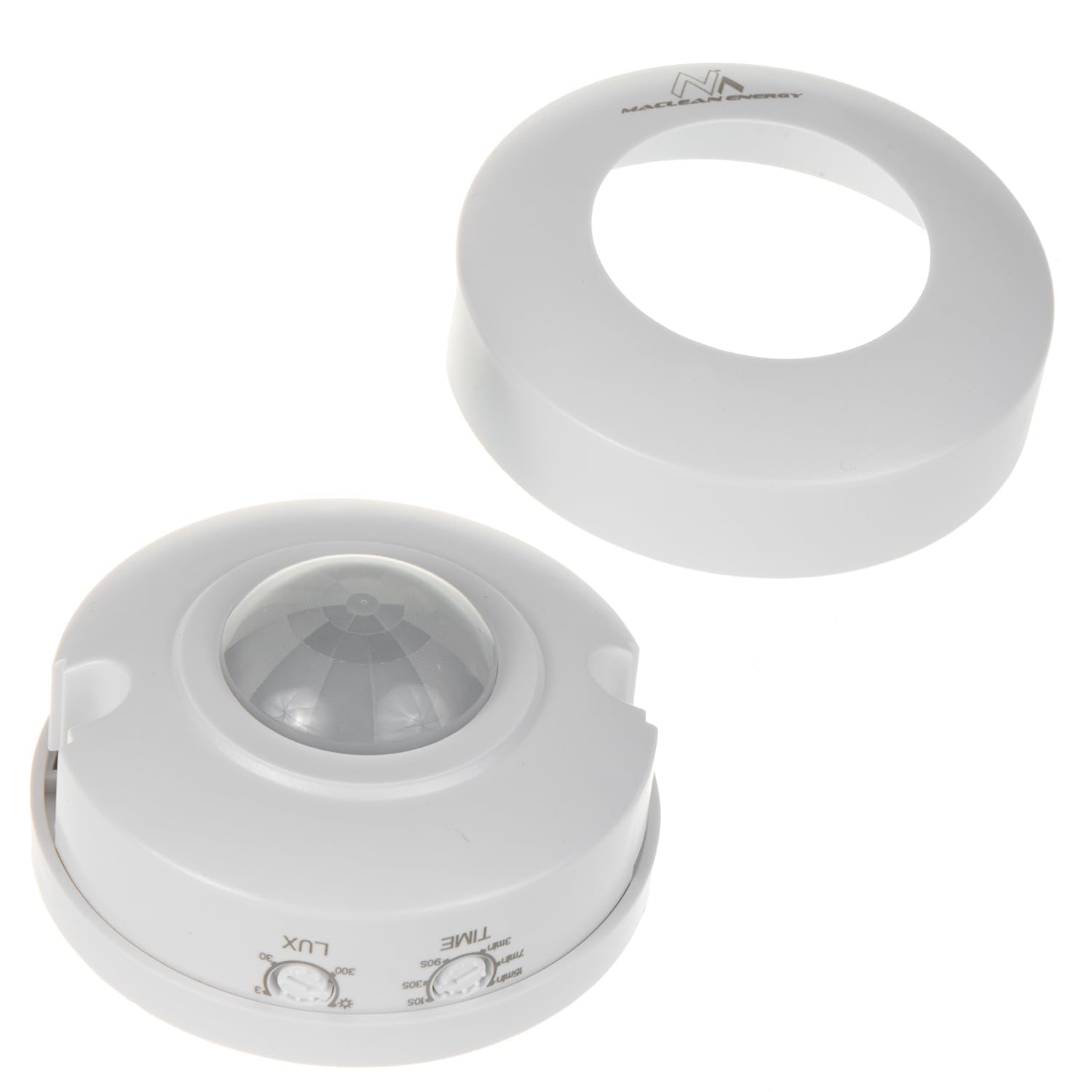

Maclean MCE314 W: PIR Motion Sensor, 6m range, ceiling mounted, max load 1200W, IP20-rated

• ► PIR sensor detects human body heat
• ► Motion detection angle 360°
• ► Works with LED lighting
• ► Possibility to adjust lighting time and light intensity level at which the device starts working (dusk sensor)
• ► Sensor range: max. 6 m ► Color: white

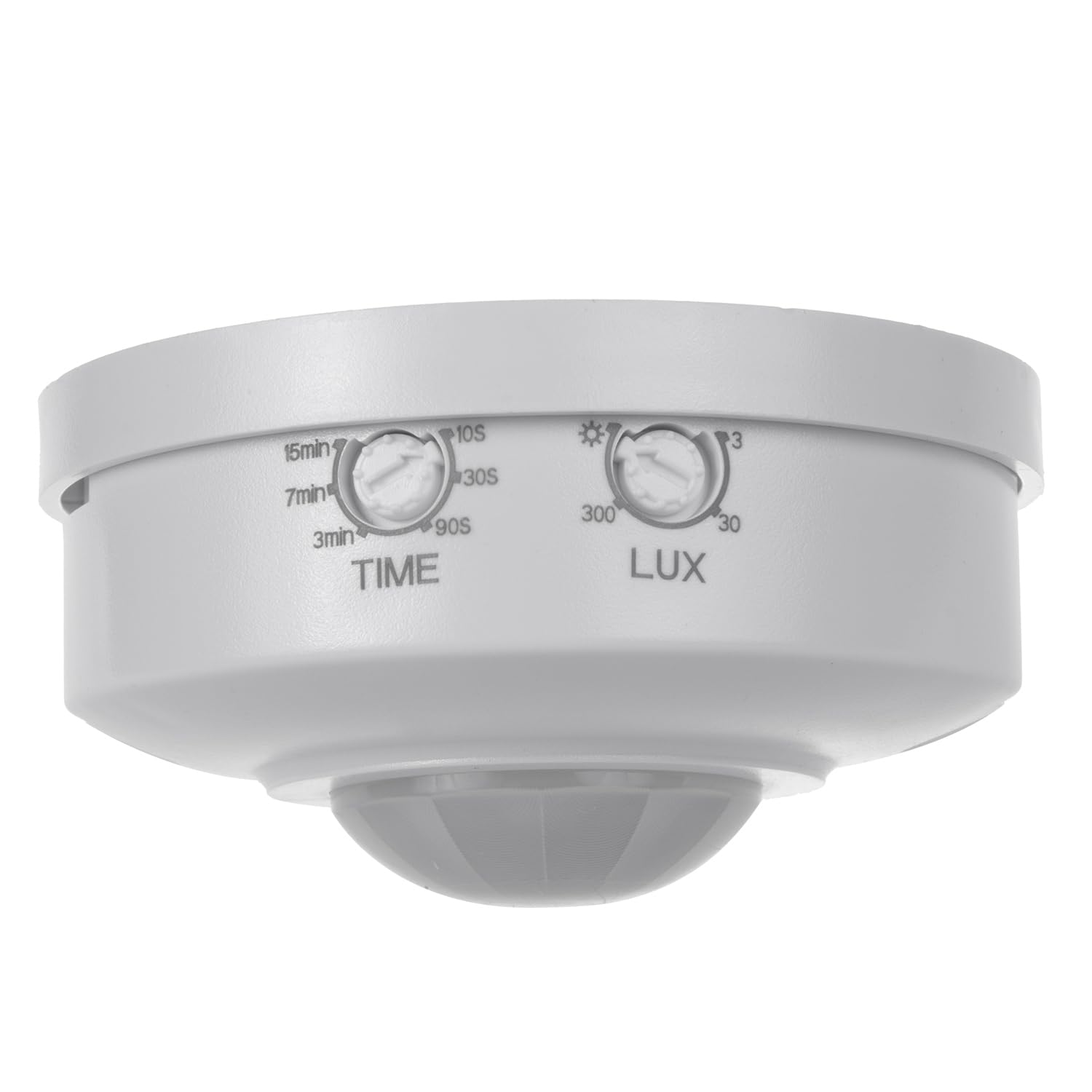

The primary function of the MCE314 sensor is to automatically control lighting, with the added capability of connecting other electrical devices such as electric heating or air conditioning. It's essential to ensure that the connected device does not exceed a power load of 1200W (for resistive load) or 600W (for inductive load) to maintain optimal functionality. With our sensor, you'll experience significant savings on electricity bills, as lighting will on The TIME knob is used to adjust the lighting time (from about 10 sec to 15 minutes). The LUX knob is used to set the ambient light sensitivity (range from 3 to 2000 LUX). When ambient light is insufficient and you want the device to work both day and night, set the knob to the day position (sun icon). The 360° detection angle and detection distance of up to 6 meters allow you to effectively monitor a large area. - Manufacturer: Maclean - Model: MCE314 W - Color: white - Power source: 110-240 V/AC - Power frequency: 50/60 Hz - Lighting sensor: <3-2000 LUX (adjustable) - Time delay: min. 10 sec, max. 15 min (+/- 2 min.) - Operating temperature: -20 to +40°C - Permissible humidity: <93% RH - Maximum load 220-240 V/AC: 1200 W (resistive load) / 600 W (inductive load) - Maximum load 110-130 V/AC: 800 W (resistive load) / 300 W (inductive load) - Detection area: 360° - Detection distance: max. 6 m (<24°C) - Power consumption: approximately 0.5 W - Installation height: 2.2 - 4 m - Speed of motion detection: 0.6 - 1.5 m/s - Degree of protection: IP20 - Protection against electric shock: II
