M.2 PCIE Adapter, PCIE X16 TO M.2 NVME with Cooling Fan 4 PORT High Performance High Speed 4x32Gbps for M.2 PCIe SSD, for Computer Desktop PC

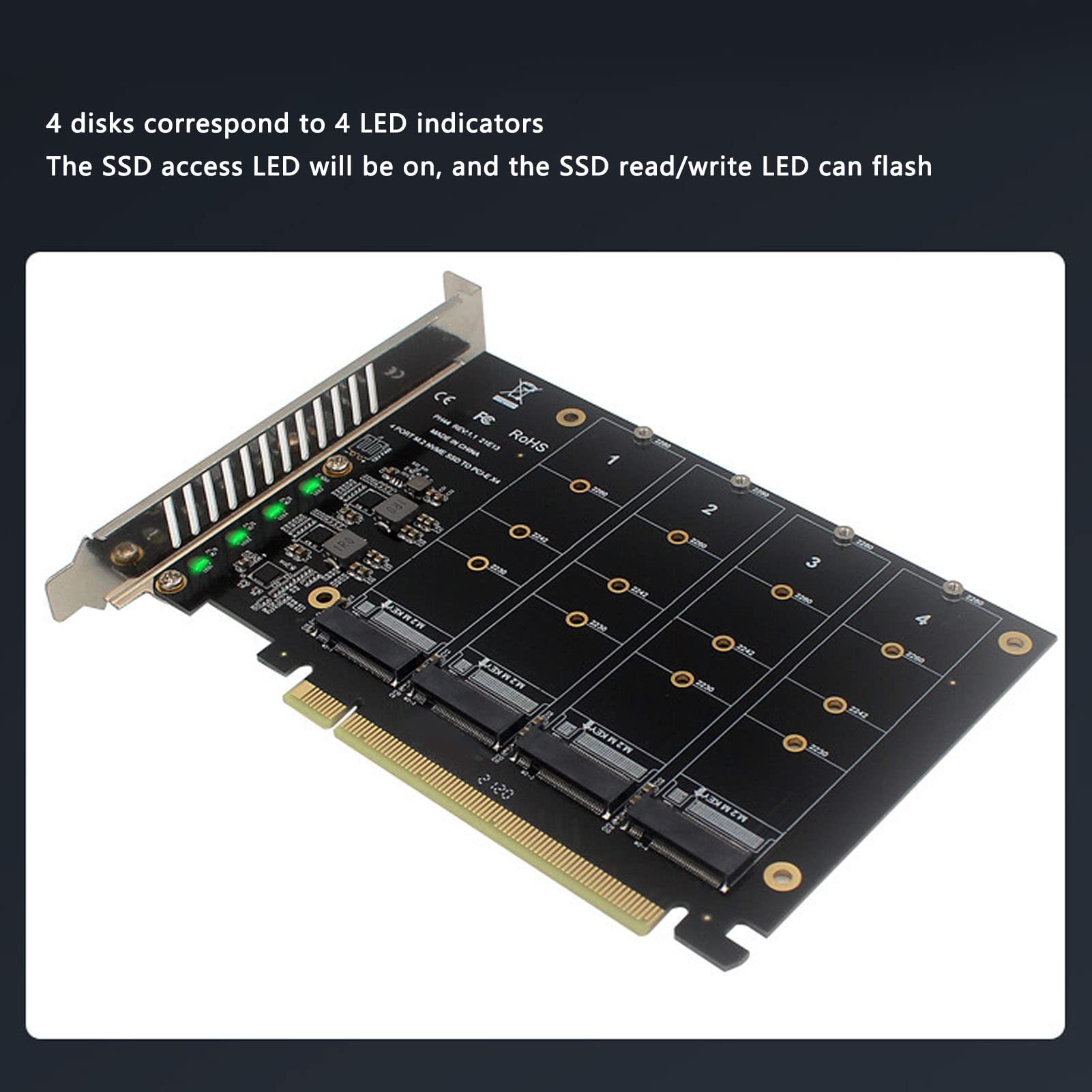

• NVME PCIe Protocol for High Speed SSD Support: This motherboard supports 4 NVME PCIe protocol SSDs, specifically designed for solid state drives that do not support the B key M.2 SATA protocol. These SSDs can operate at a full speed of 32Gbpsx4, providing fast data transfer rates and performance.

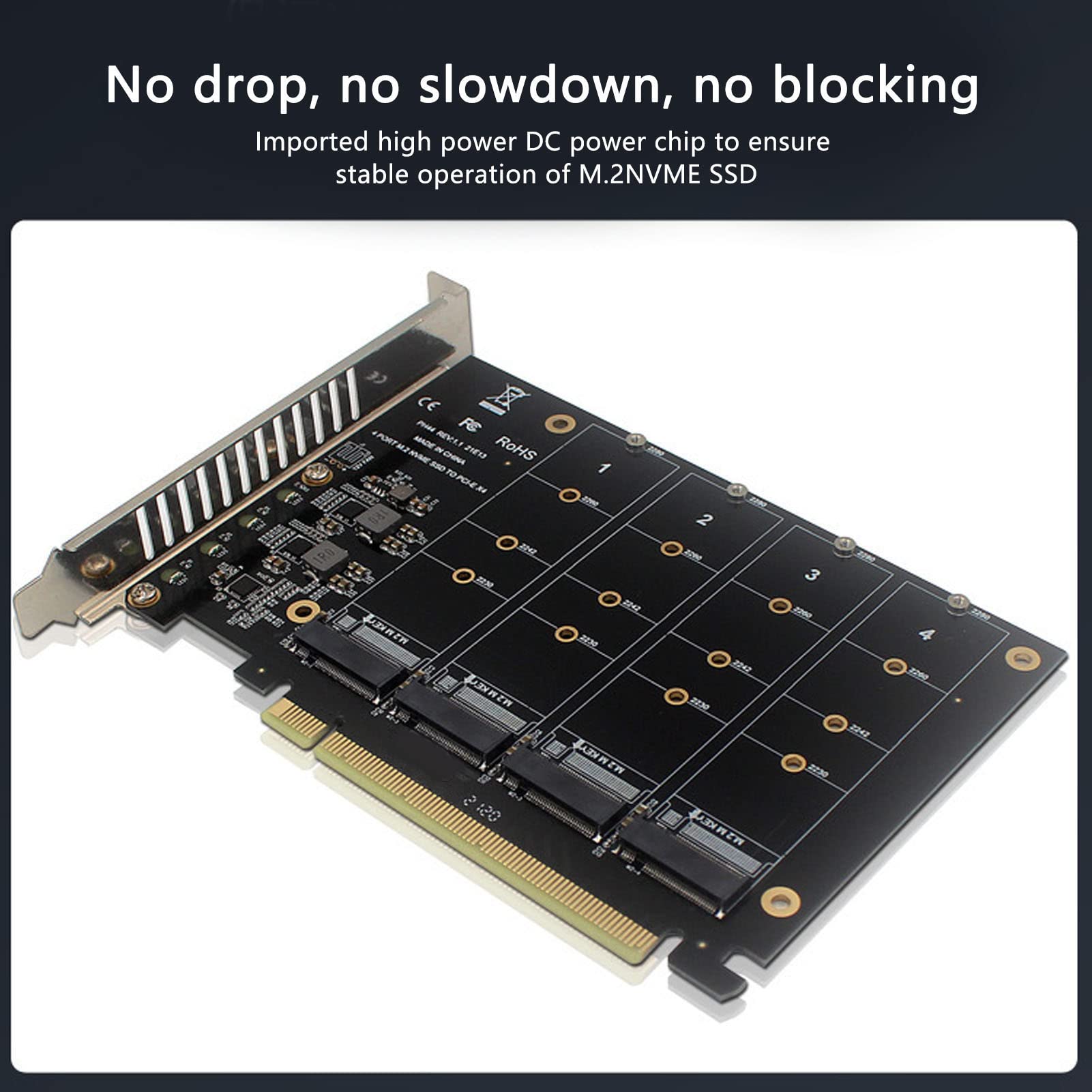

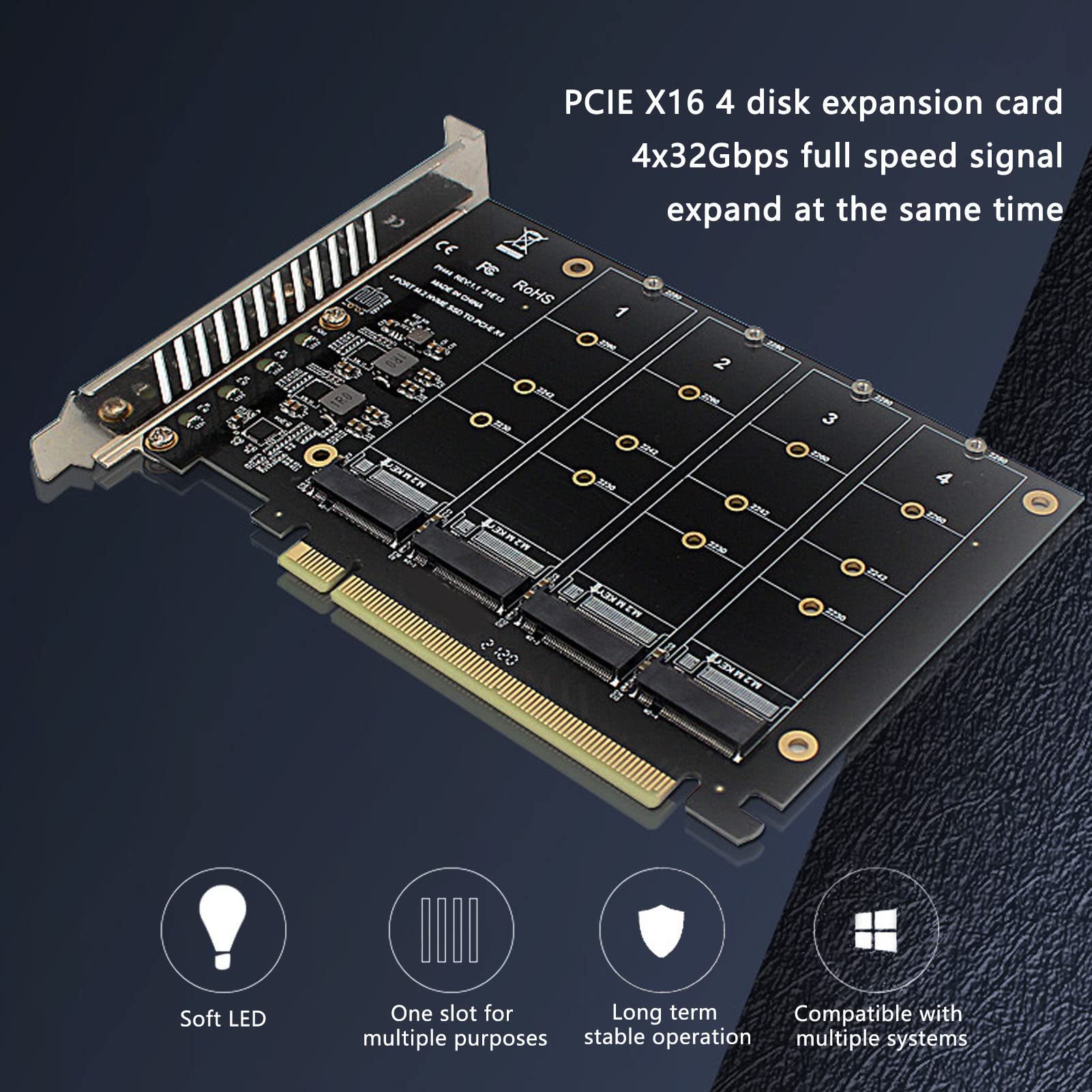

• 4x32Gbps Full Speed Signal: The motherboard features a powerful DC power chip that ensures a stable and uninterrupted 4x32Gbps full-speed signal. With this setup, you can enjoy high-speed data transfers without any drop in performance, slowdowns, or blockages.

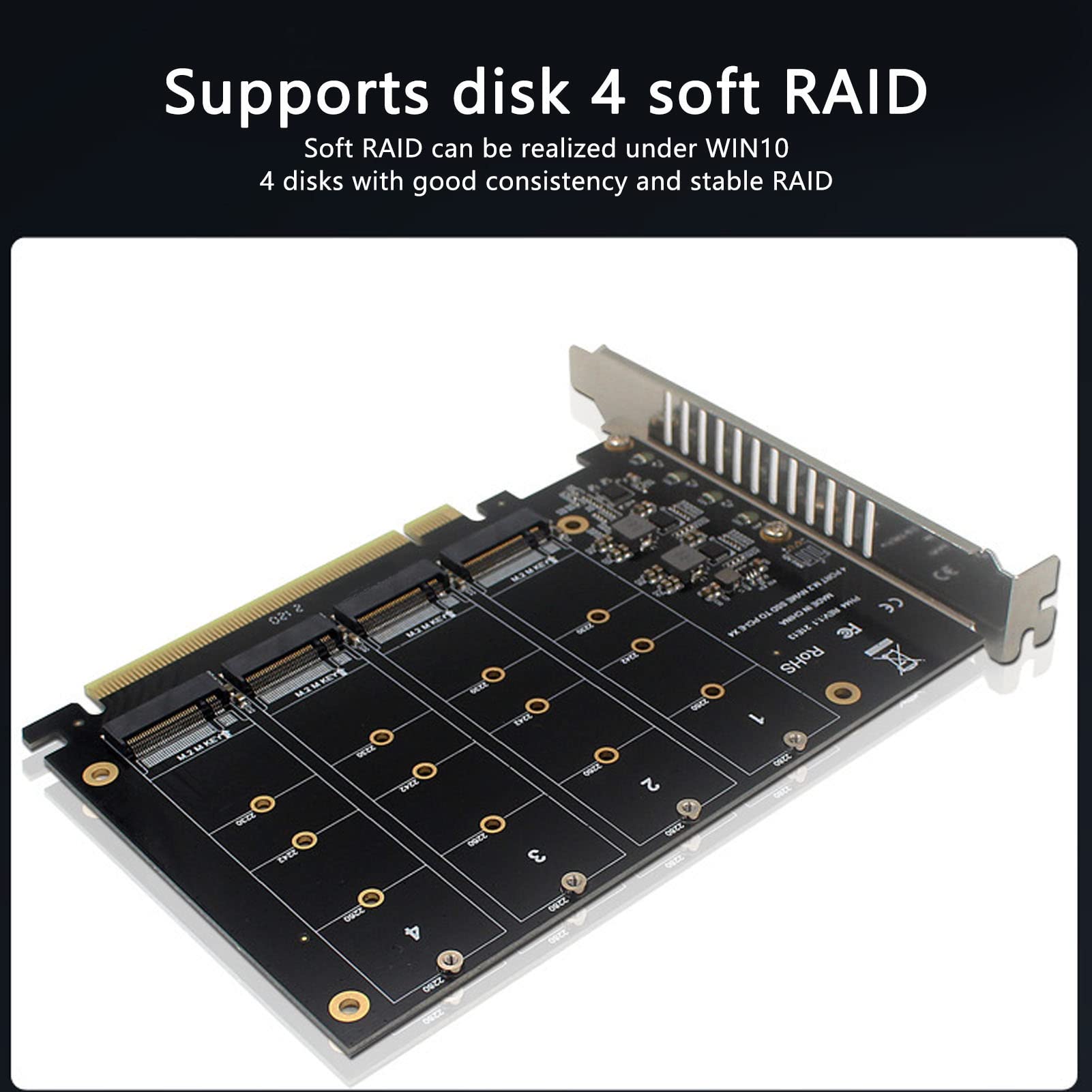

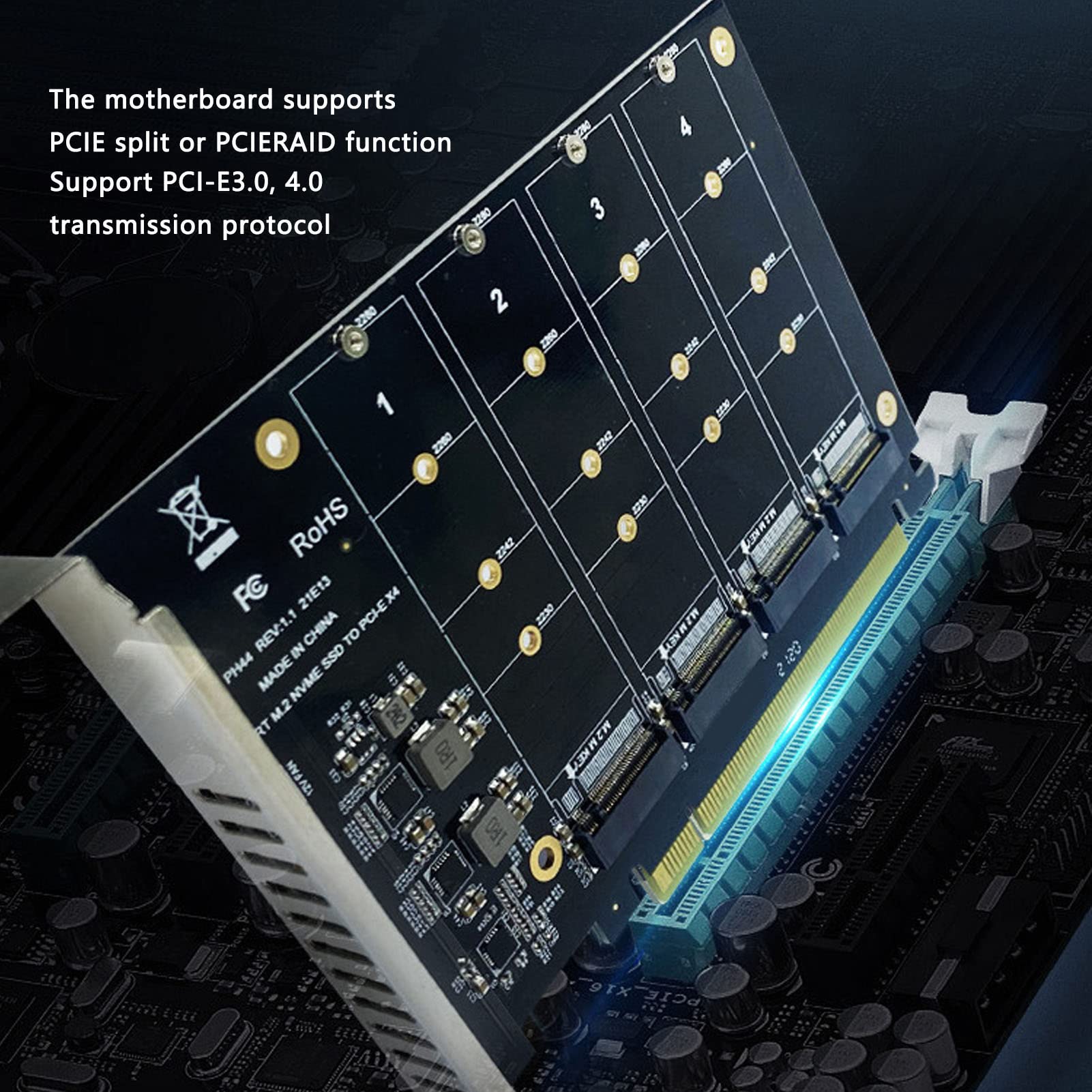

• Support for Various Protocols: In addition to NVME PCIe, the motherboard supports PCIE split or PCIE RAID function and is compatible with both PCIE 3.0 and 4.0 transmission protocols. This versatility allows you to configure your storage setup according to your specific requirements and take advantage of the latest PCIE advancements.

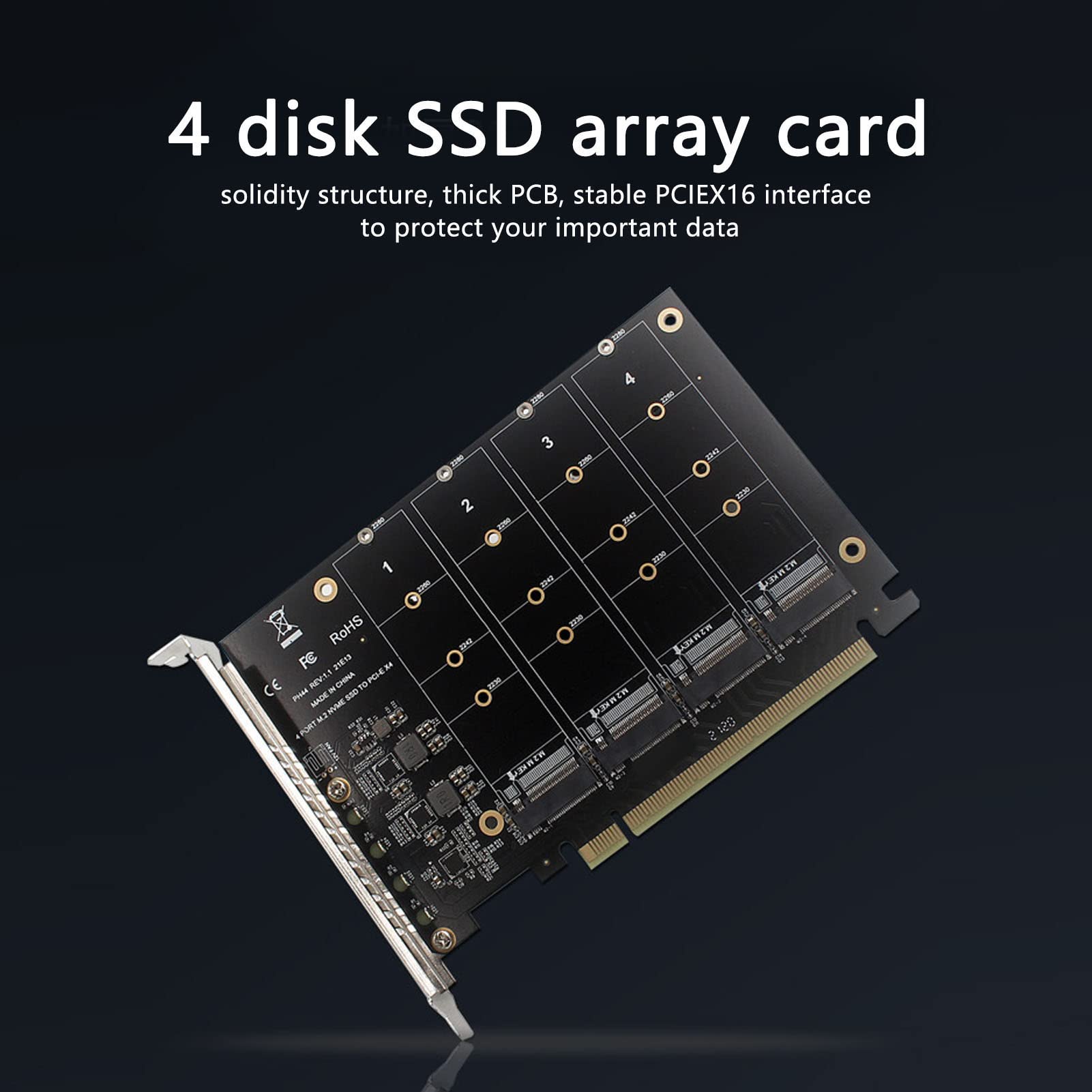

• Enhanced PCIE X16 Interface: The motherboard is equipped with a thickened PCB (Printed Circuit Board) to ensure a stable PCIE X16 interface. It supports high-speed transmission protocols such as PCIE 3.0 and 4.0 and is backward compatible with PCIE 2.0 and 1.0 standards. This provides optimal compatibility and performance for various devices.
• Effective Heat Dissipation: The motherboard incorporates stacked cooling fans to enhance heat dissipation. This efficient cooling solution helps to dissipate heat effectively, prolonging the service life of your SSDs and maintaining their excellent high-speed performance. It ensures that your hard disks operate under optimal temperature conditions, reducing the risk of overheating and potential performance degradation.

Features NVME PCIe Protocol: Supports 4 NVME PCIe protocol SSD solidity state drives (SSD solidity state drives that do not support B key M.2 SATA protocol), full speed 32Gbpsx4. 4x32Gbps: 4x32Gbps full speed signal, imported high power DC power chip, no disk drop, no slowdown, no blocking. Support Protocol: The motherboard supports PCIE split or PCIE RAID function, supports PCIE3.0, 4.0 transmission protocol. PCIE X16 Interface: thickened PCB, stable PCIE X16 interface, support PCIE3.0 4.0 high speed transmission protocol, and backward compatible with 2.0/1.0. Heat Dissipation: Stacked cooling fans to strengthen heat dissipation, effectively solve heat dissipation problems, prolong the service life of SSD, and better protect the excellent high speed state of the hard disk. Specification Item Type: M.2 PCIE Adapter Material: PCB, Aluminum Alloy Model: PA14 RTK Support Hard Disk: SSD/M.2 PCIE Device with M.2 NVME Protocol Transmission Speed: 4 x 32Gbps Support: 4 NVME PCIe Protocol SSD SSD Size: 2230/2242/2260/2280mm (SSD that do not support B key M.2 SATA protocol) Tip: 8/10 Systems Have Their Own Drivers, and 10 can implement soft RAID (Other Systems Need to Install Drivers) How to Use Installed and prepare to use Package List 1 x Riser Card 4 x Screws 4 x Nuts 1 x Screwdriver
