Luqeeg VFD 3 Phase - Motor Variable Frequency Drive, 380‑440V Input 0‑440V Output, 0.75kW 1.5kW 2.2kW 3KW Variable Frequency Drive Inverter VFD Speed Controller Inverter for 3 Phase Motor(3KW 7.5A)

• High Performance Motherboard: Select high end motherboard, intelligent and efficient, has strong performance and complete functions.
• Full SMD Design: All internal components adopt SMD design, which greatly increases the stability of the machine performance.
• ABS Shell: The shell is made of industrial grade ABS plastic, has high impact and heat resistance, strong flame retardancy and good comprehensive performance.

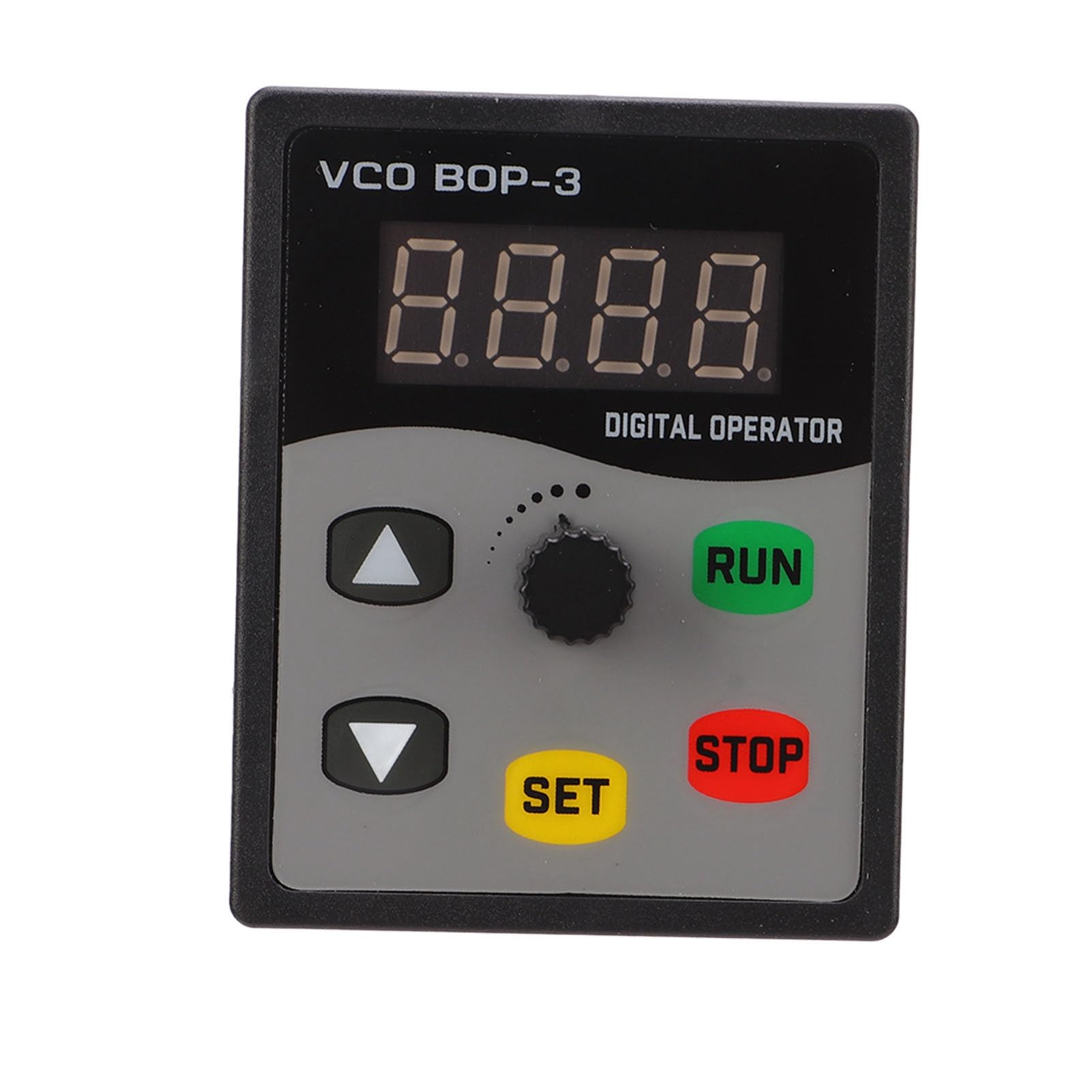

• Easy to Operate: Designed with user friendly keyboard, and equipped with digital display screen, easy and convenient to operate.
• Good Heat Dissipation: Built in super large heat sink with small fan, the heat sink is about 3 times larger than which of similar products, the fan has low noise when running, and assisting good heat dissipation.

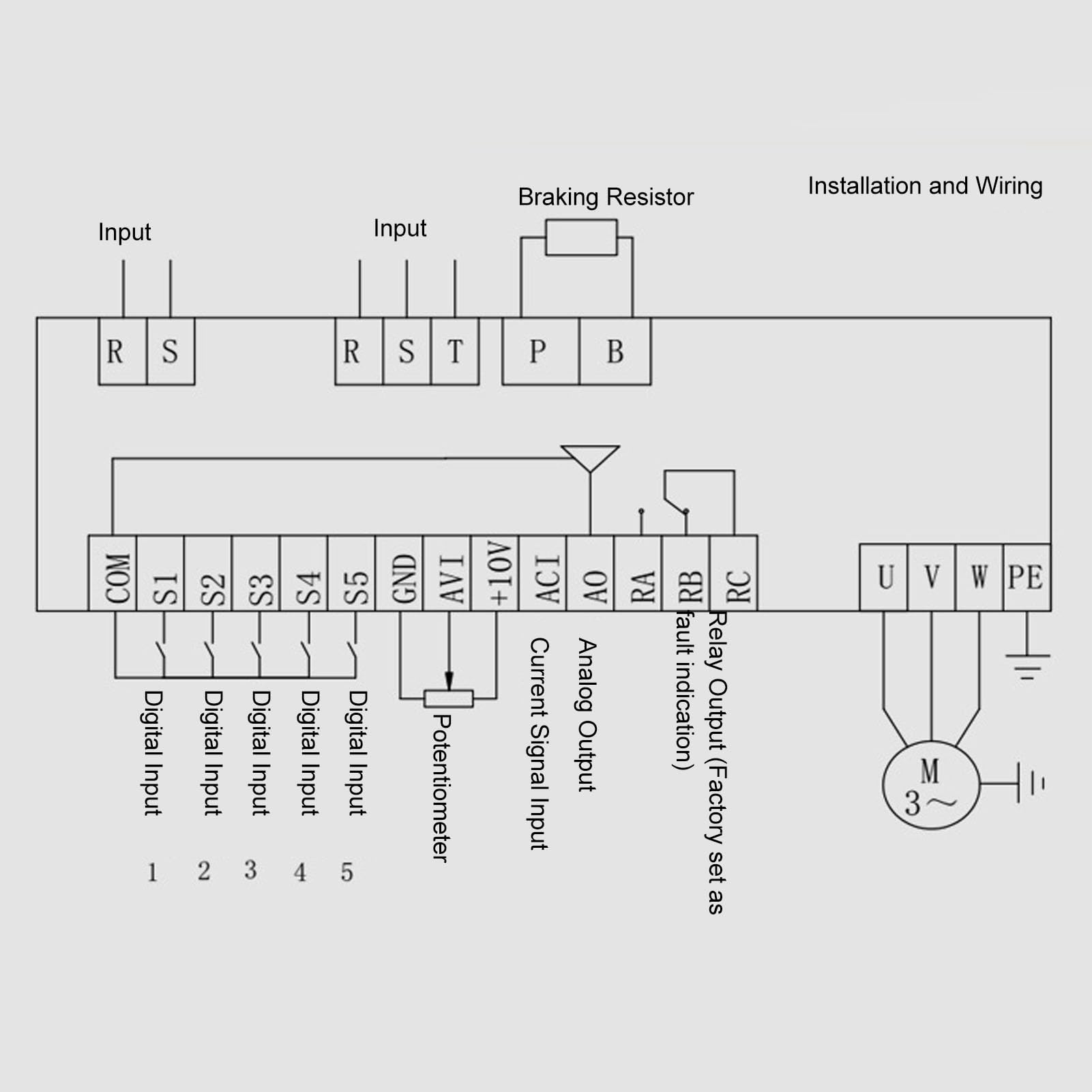

Specification: Item Type: Motor Variable Frequency Drive Material: ABS Storage Temperature: -25℃ to +55℃ Input Voltage: Three Phase 380-440V AC Output Voltage: Three Phase 0-440V AC Package List: 1 x Motor Variable Frequency Drive1 x Manual Note: 1. Before wiring, please confirm whether the input power is in a power off state. 2. The wiring shall be carried out by professional electrical engineering personnel. 3. The grounding terminal must be grounded. 4. After the emergency stop circuit wiring is completed, be sure to check whether the action is valid. 5. Do not connect the output wire of the inverter with the shell, and do not short circuit the output wire. 6. Please confirm whether the voltage of the AC main circuit power supply is consistent with the rated voltage of the inverter. 7. Do not perform withstand voltage test on the inverter. 8. Please connect the braking resistor according to the wiring diagram. 9. Do not connect the power wire to the output U, V, W terminals. 10. Do not connect the contactor to the output circuit.
