Lumonic Thermal Switch 95°C Contact NO 250V 10A Temperature Switch Thermostat KSD301 Bimetal Thermal Protection

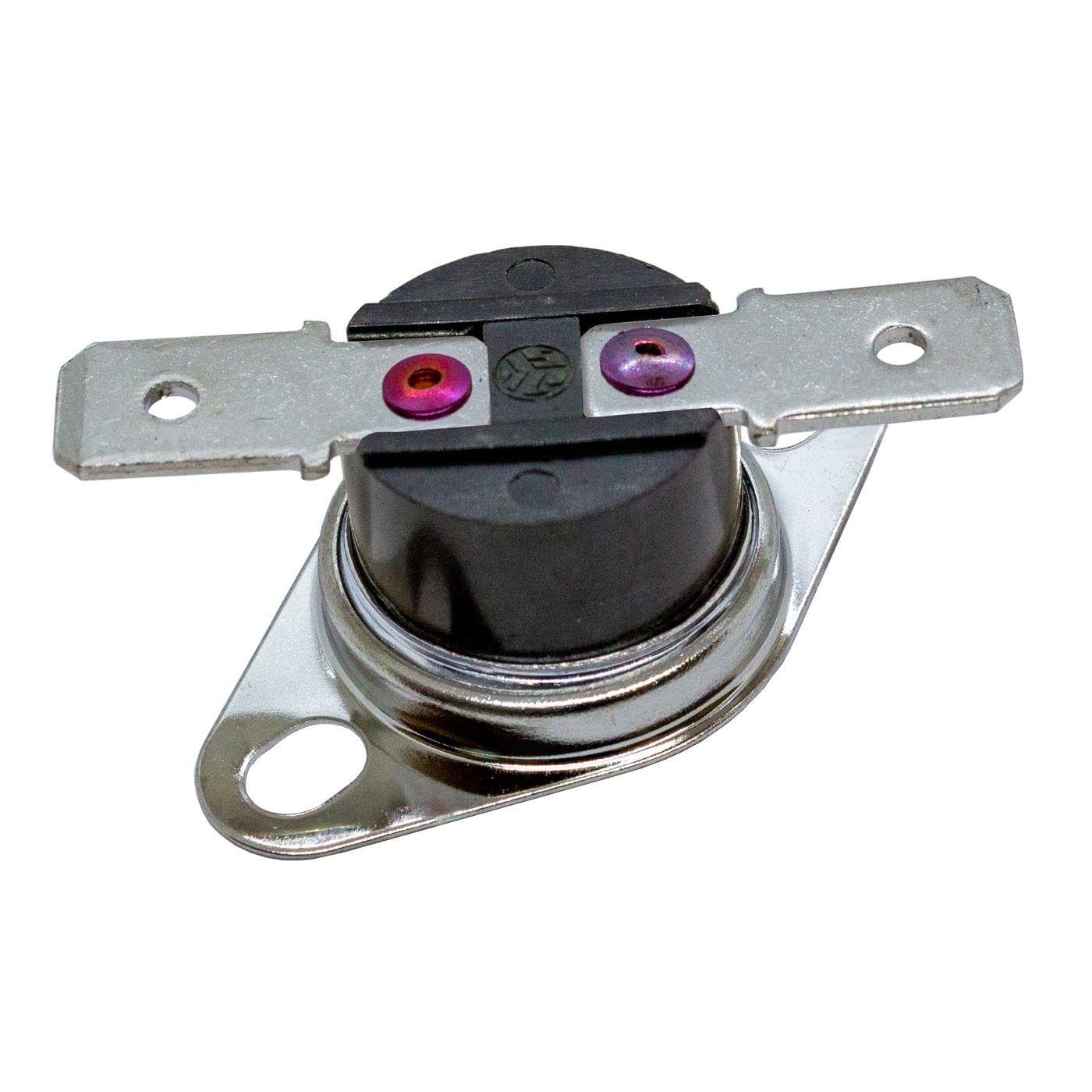

• PRODUCT - This is a KSD301 temperature switch with switch contact (closing). The case with dimensions d15x12mm is made of high quality metal and plastic.
• APPLICATION - Depending on the variant, the bimetallic thermorswitch can be used as a closing or opening contact. The connection is carried out using a flat plug measuring 6.3 x 0.8 mm.
• PERFORMANCE - Between 40°C and 200°C, almost all temperature levels are covered. For this variant, the switching temperature is 95° C. (± 5° C.) and the reset temperature is 75° C. (± 8° C).
• Resistance: Our adjustable thermal switch can withstand up to 250V and 10A. In addition, the contact resistance of our bimetal switches is 50 mOhm.
• Installation – Thanks to the small size of the bimetallic thermoswitch, the installation is child's play and takes only a few minutes.

Type: Temperature Switch KSD301 Switching Contact: NO Contact Switching temperature: 95°C Switching Temperature Tolerance: ± 5°C Reset temperature: 75°C Temperature reset Tolerance: ± 8°C Maximum load capacity AC: 250V 10A Contact Resistance: 50mOhm Envelope Material: Metal & Plastic Envelope dimensions: d15 x 12 mm. Link: Flat socket 6.3x0.8mm
