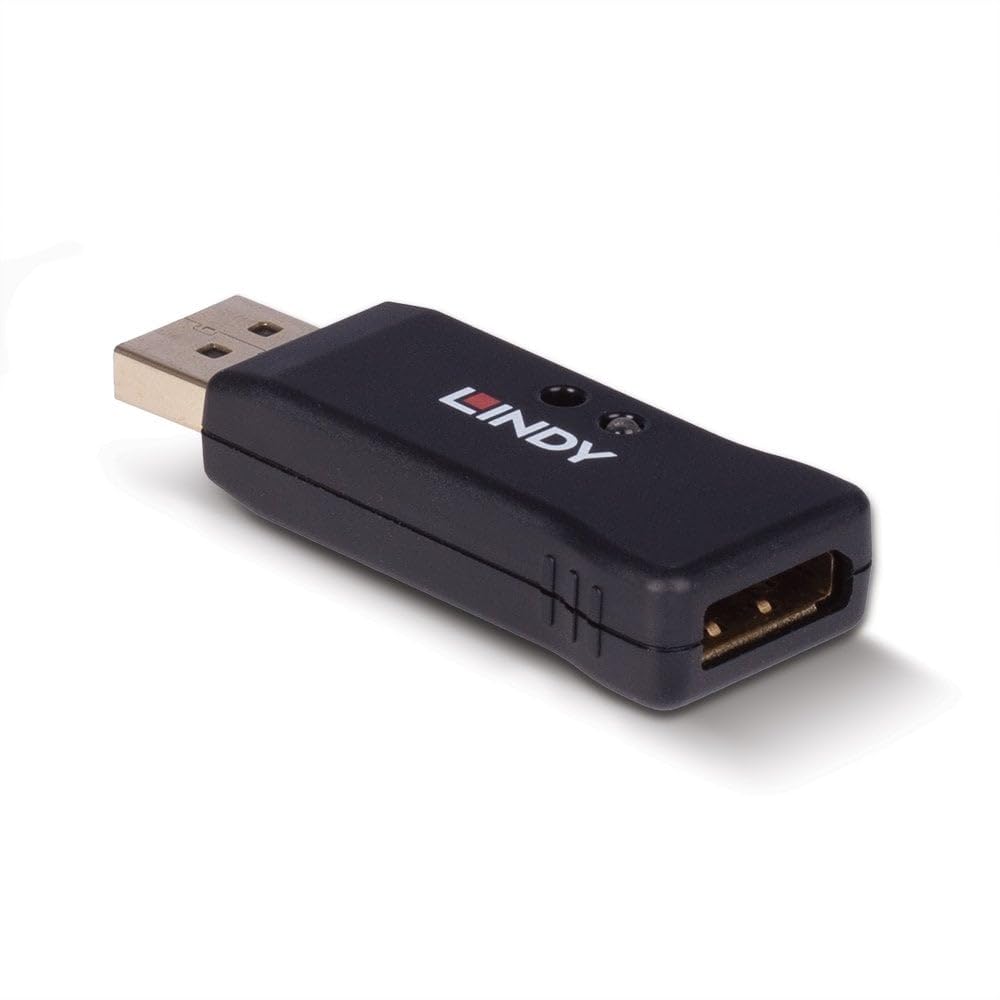

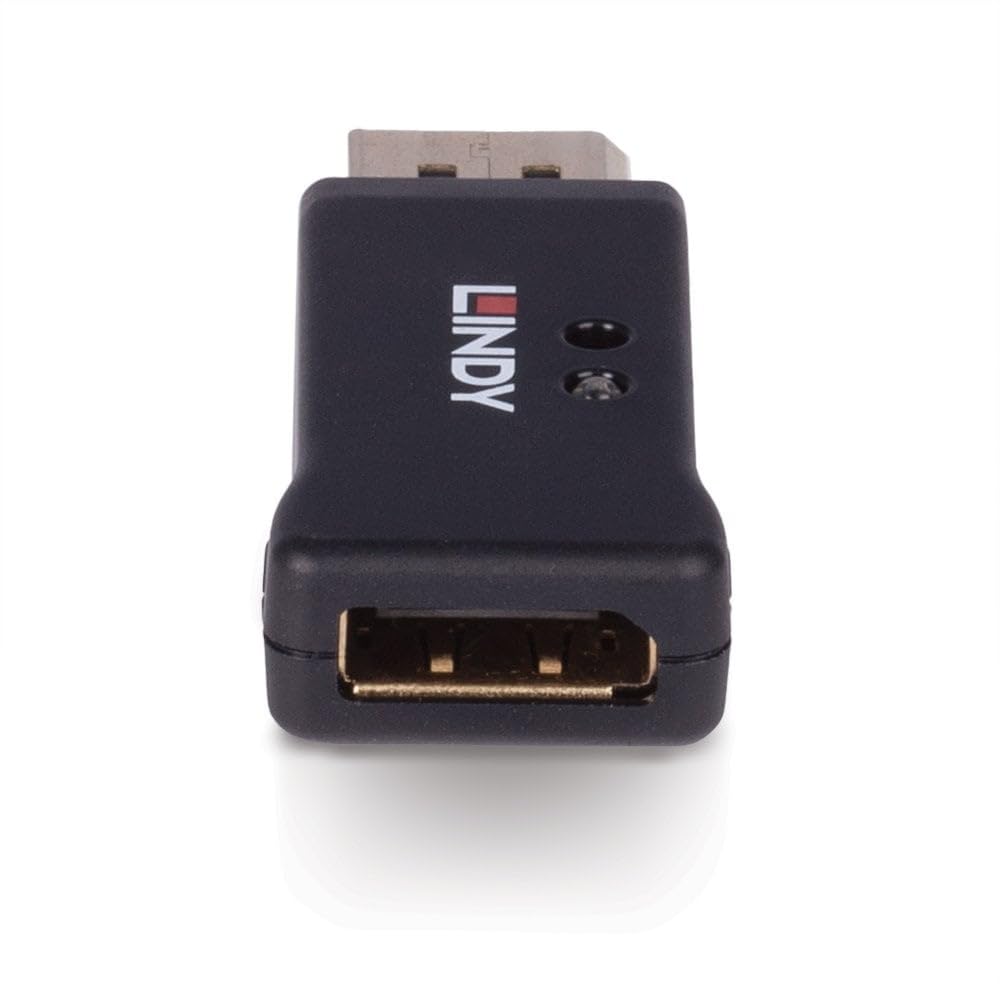

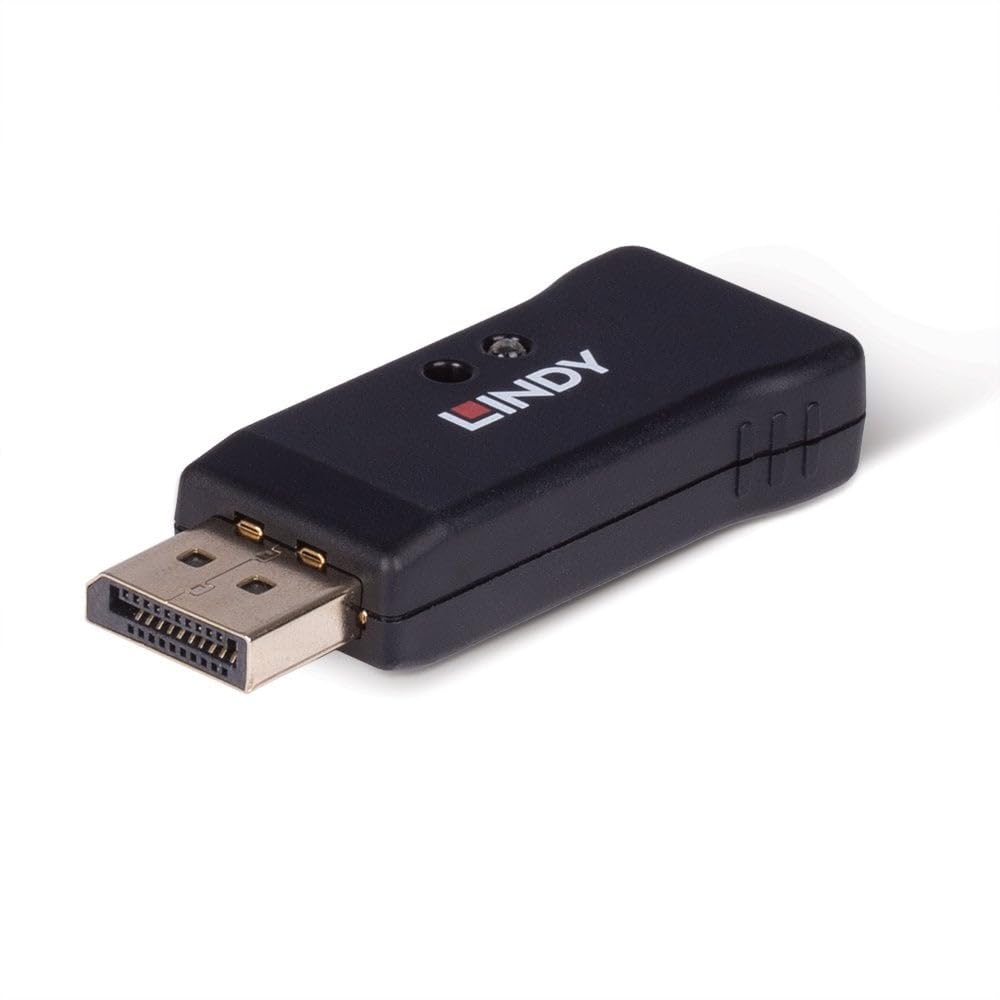

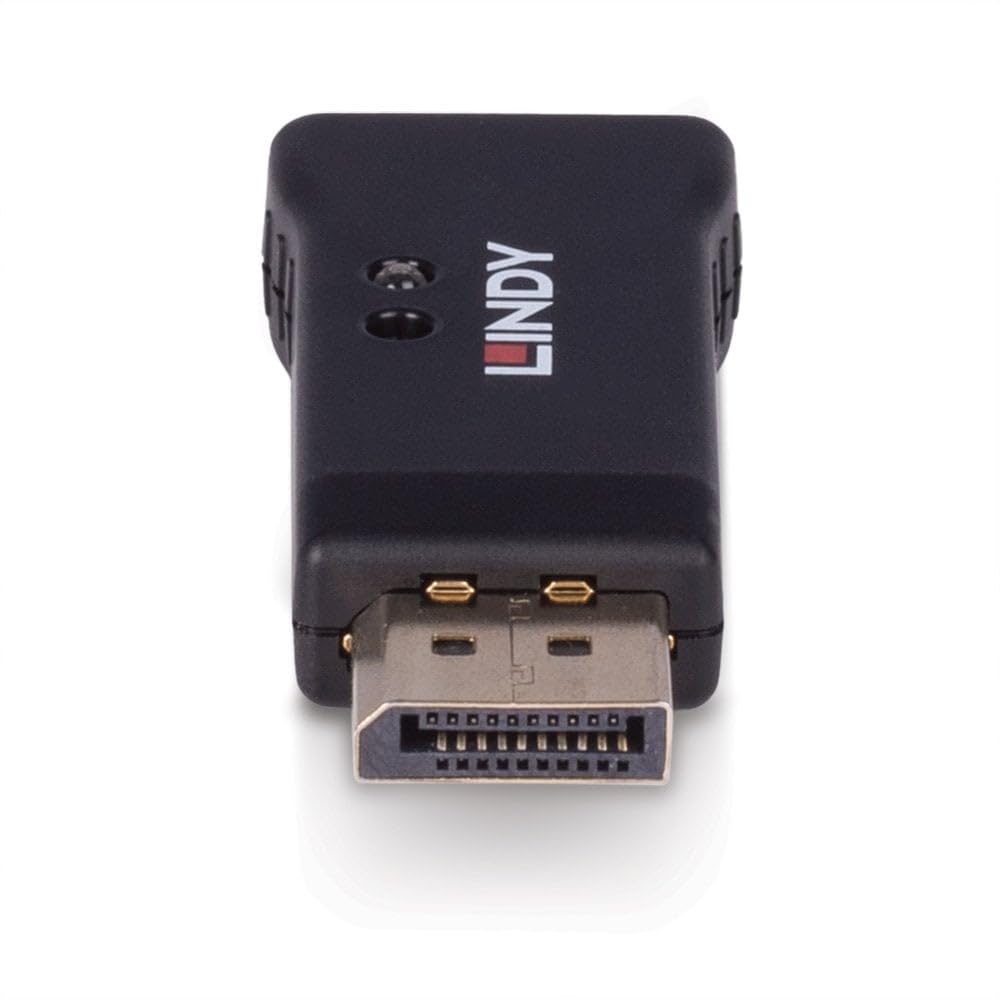

Lindy DisplayPort 1.4 EDID Emulator

• Continuously emulates DisplayPort EDID information
• Supports resolutions up to 7680x4320@30Hz or 3840x2160@ 144Hz, with additional support for HDR
• Uses Cloned Data or Pre-stored resolutions/timings
• Headless connection (No monitor connection required)
• 2 year warranty

The Lindy DisplayPort 1.4 EDID Emulator Adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM's, Extenders, Splitters & Switches. The Emulator also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@30Hz or 3840x2160@144Hz HDR (Via cloning), HDCP 2.2 & DPCP 2.0 pass-through, this emulator is perfect for use with Ultra HD 4K monitors, Displays and source equipment. A headless EDID adapter enables a simulated connection on the video source device without requiring an actual monitor to be connected. With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new DP equipment works seamlessly with no compromise on performance. This adapter can be used to quickly and easily clone the EDID data from the DP display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds; Alternatively the EDID Emulator is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.
