LGA 1155 Motherboard,Desktop Computer Motherboard USB3.0 SATA Mainboard,support VGA + HDMI Dual Output for Intel B75

• ✩✩✩【 MAIN PARAMETERS】 The CPU socket is LGA1155, and the CPU type supports i3, i5 and i7 series. The maximum memory supports two 8G memory, memory type DDR3 1066/1333/1600MHz desktop memory. The I/O connector has 1 USB keyboard and mouse universal interface, 1 RJ45 network interface, 1 audio interface, 2 USB2.0 interfaces and 2 USB3.0 interfaces.

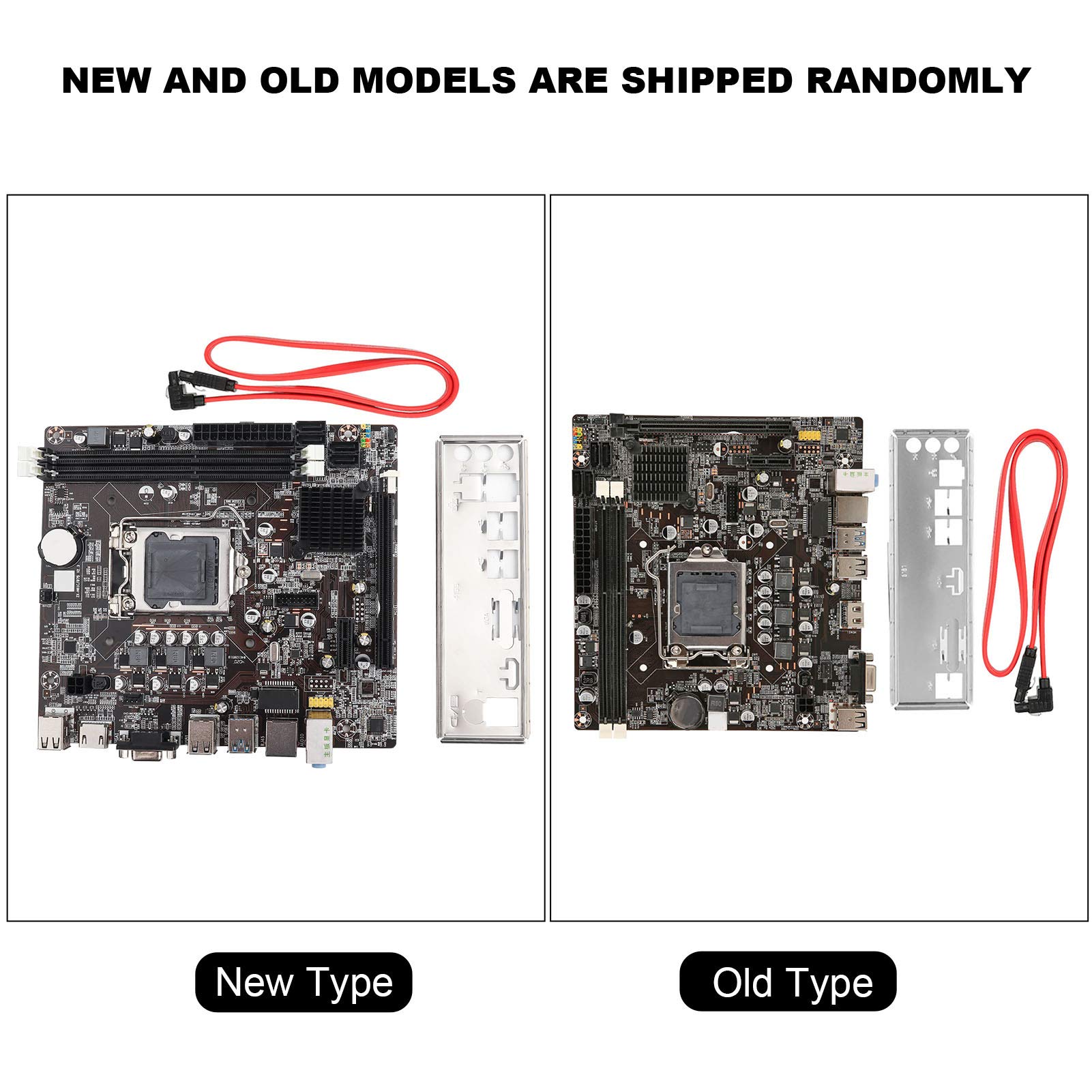

• ✩✩✩【DESKTOP COMPUTER MOTHERBOARD】This product is constantly being updated and iterated, so the slot, bottom plate color, etc. may be different from batch to batch, but it will not affect the normal use of product performance and functions. The board can be booted from USB, the main chipset adopts the Intel B75 series, and the motherboard has integrated 6-channel sound card and RTL8105E network card chip. Professional design, your best choice.
• ✩✩✩【3 POWER SUPPLY METHODS】It adopts 3 power supply modes, the power interface is a 4-pin and a 24-pin power interface, the SATA3.0 high-speed hard disk interface is adopted, and the SSD solid state hard disk high-speed transmission is supported. Core display HDMI high-definition graphics card, support VGA+HDMI dual output.
• ✩✩✩【SLOT COMPOSITION】The expansion slot includes 1 PCI-E×16 graphics card slot, 1 PCI-E×1 slot, 2 USB2.0 slots (1 group), 2 USB3.0 slots (1 group) ), 3 SATA2.0 interfaces and 1 SATA3.0 interface.
• ✩✩✩【IMPORTANT REMINDER】 It is best to be installed by professionals. When the motherboard is normally installed, there is no display, no boot, no picture, no network card, no sound card, etc., it is recommended that the customer restore the factory settings or find an eraser to wipe the memory CPU The golden finger of the graphics card (the part in contact with the motherboard) improves the contact environment.

Specification: Motherboard chip: Integrated sound card / network card Main chipset: for Intel B75 series Audio chip: integrated 6-channel audio chip NIC chip: integrated RTL8105E Processor specifications: CPU socket: LGA 1155 CPU type: i3 i5 and i7 series Memory specifications: Memory type: DDR3 1066/1333/1600MHz desktop memory Memory slot: 2*DDR3 DIMM Maximum memory support 8G*2 Expansion slot: 1*PCI-Ex16 graphics card slot 1*PCI-Ex1 slot 2*USB2.0 slot (1 set) 2*USB3.0 slot (1 set) 3*SATA2.0 interface 1*SATA3.0 interface I/O interface: USB universal interface 1*RJ45 network interface 2*USB2.0 interface 2*USB3.0 interface Audio port Other parameters: Power connector 4 pin, a 24-pin power connector Power supply mode 3 items Size: Approx. 19 x 17 x 4cm / 7.5 x 6.7 x 1.6in Weight: approx. 542g Package list: 1 x Motherboard 1 x SATA cable 1 x Baffle Note:1.It is recommended that professionals perform installation.2. When there is no display, no boot, no picture, no network card, no sound card, etc. after the normal installation of the motherboard, it is recommended that the customer restore the factory settings (see the steps for specific methods) or find an eraser to wipe the golden finger of the memory CPU graphics card (Motherboard contact part) to improve the contact environment. Factory Reset Steps: 1. Shut down 2. Unplug the power cord connected to the motherboard, 24 wires and 4 wires must be removed 3. Remove the battery 4. Reverse the battery 5. Wait 10 seconds 6. Install the battery normally 7. Connect power 8. Boot
