LED Lights Circuit Board,Random Color Bi-Color Blinking Lights Module Kit Dream LED DIY Module for DIY

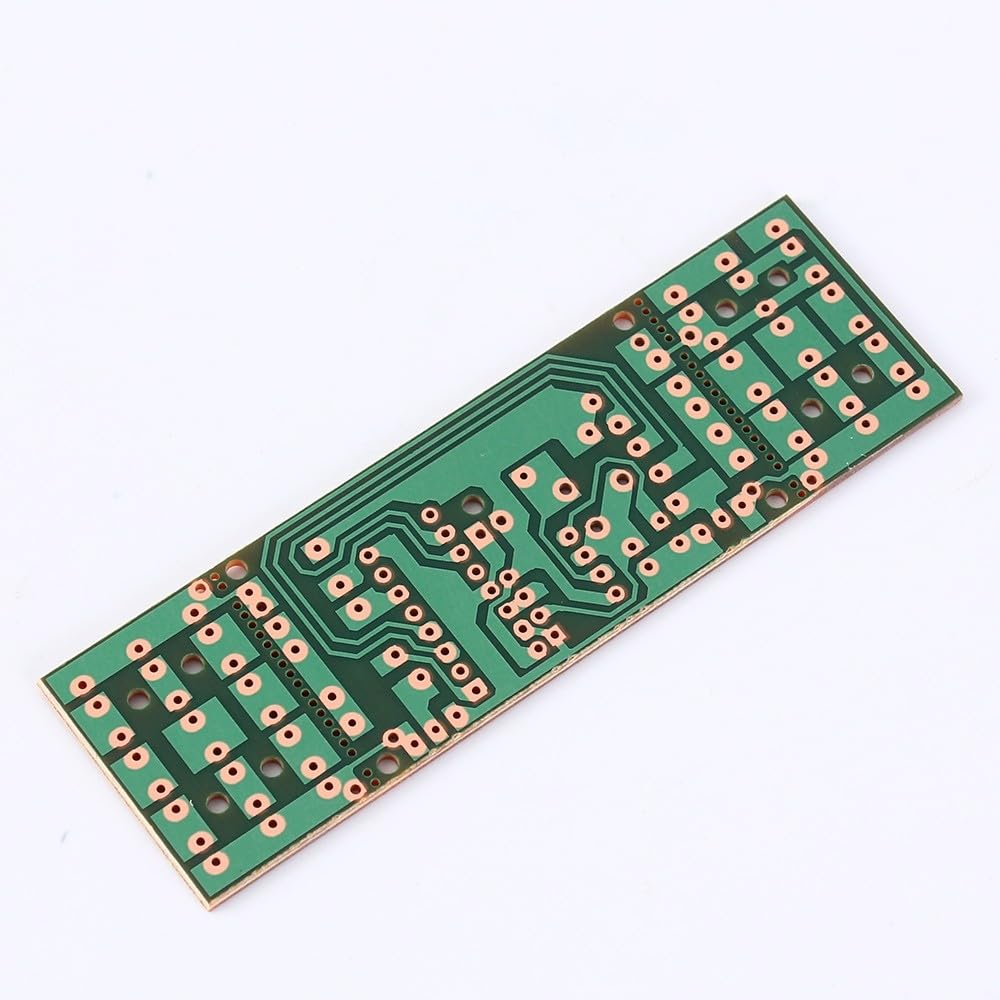

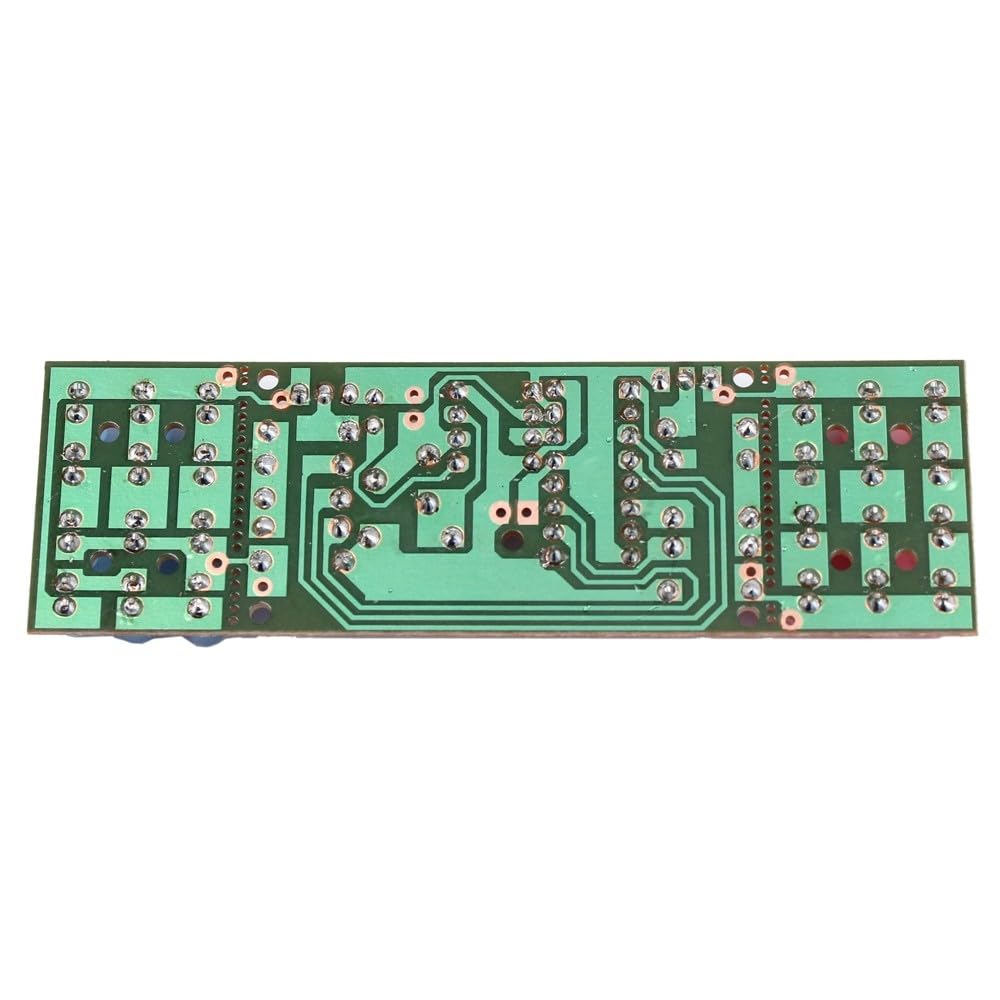

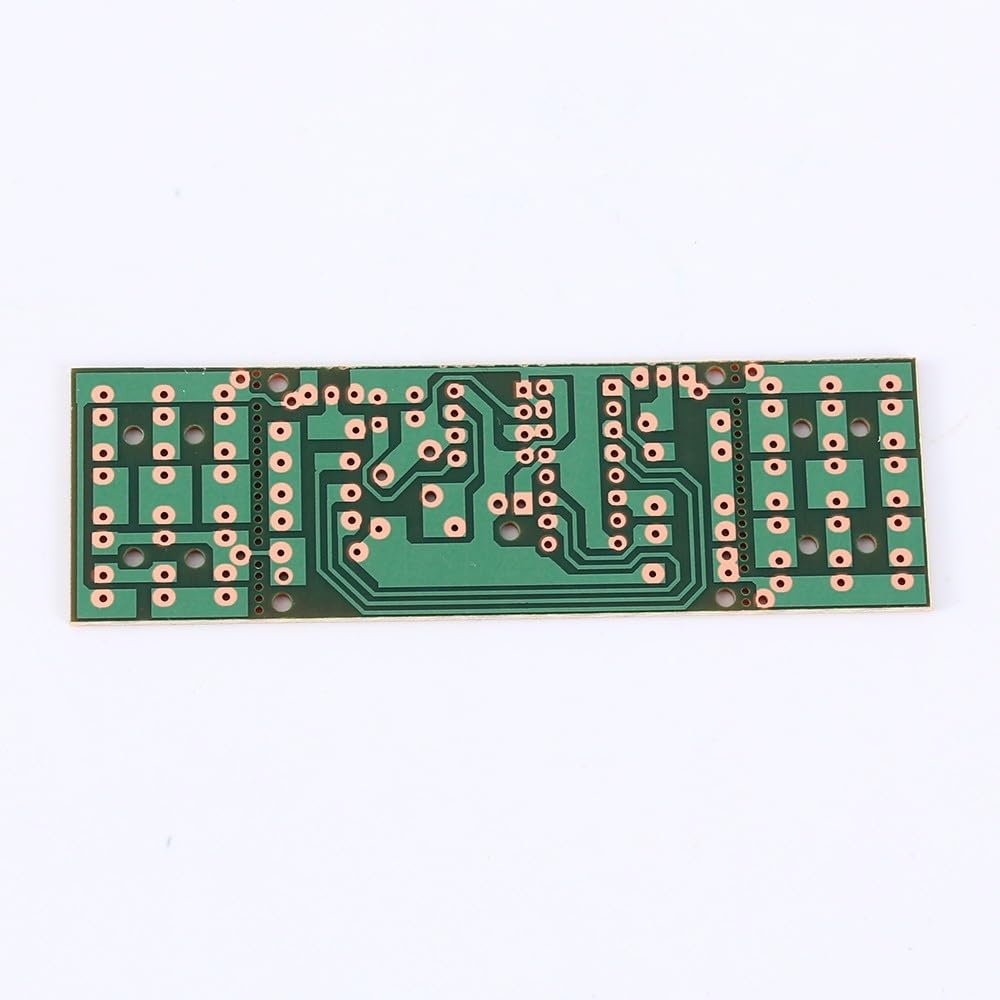

• Red flashing light and blue flashing light form a board separately,connected with the main board through the stamp hole.If you need to install to other place separately or increase the distance,you should cut off through the stamp hole,then connect with the mother board by two wires.

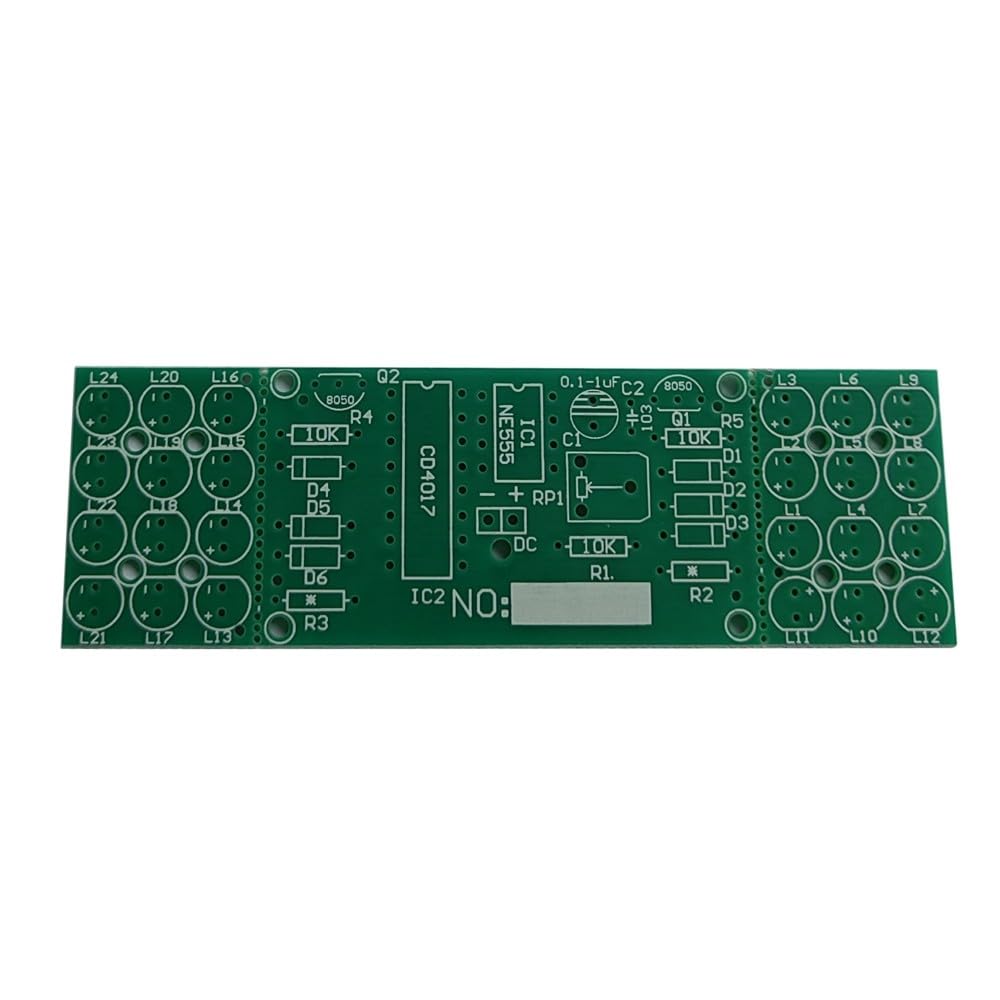

• Please pay attention to the direction of LED when installing,especially the direction of L11 and L12.The R2 and R3 controls with the brightness of light,you can change it appropriately ,the range is 10-100 ohm.

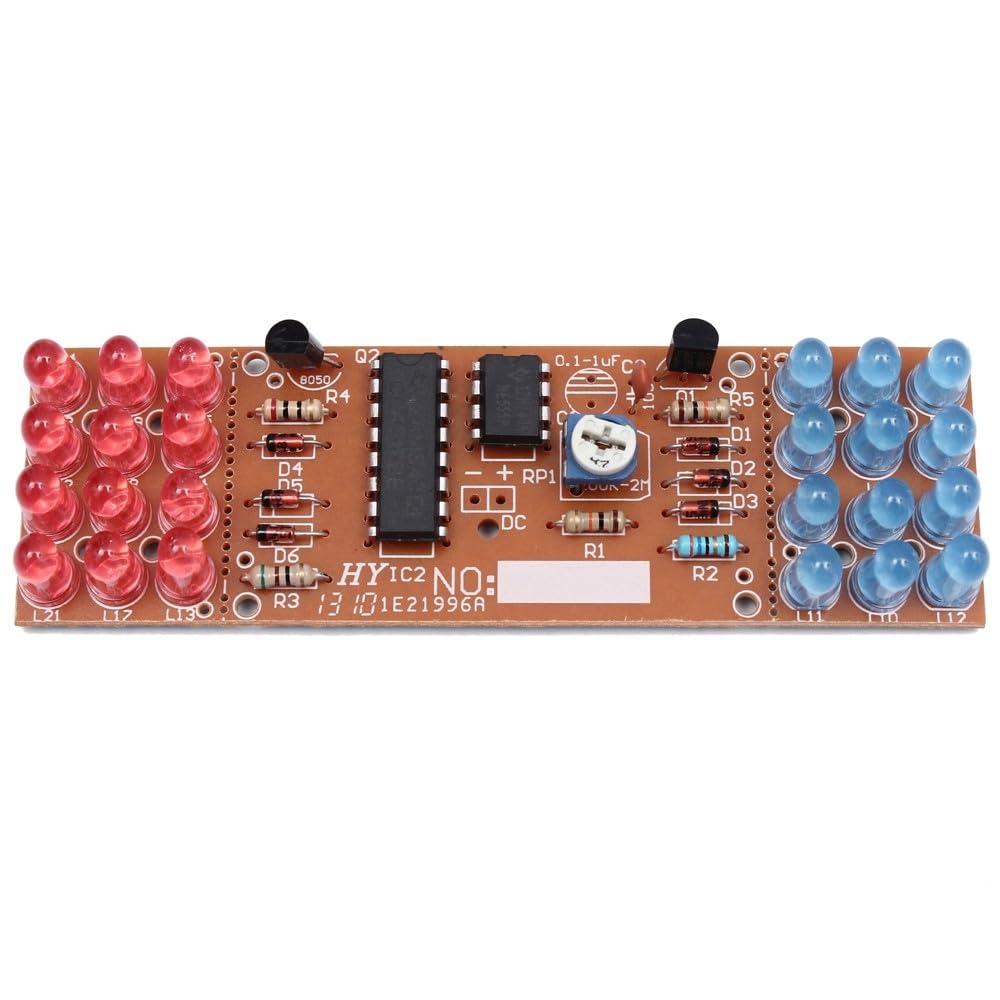

• This suite adopts simulation light circuit made with NE555 and CD4017,the blue LED and red LED flashed alternately according to the pulse.
• The multivibrator composed of NE555 will have a certain frequency of oscillation signal send to CD4017 decimal counter/pulse distributor,in order to count.
• SHOP WITH CONFIDENCE: To provide you with the highest quality service, If you have any question, please contact us.We will provide after-sales service .

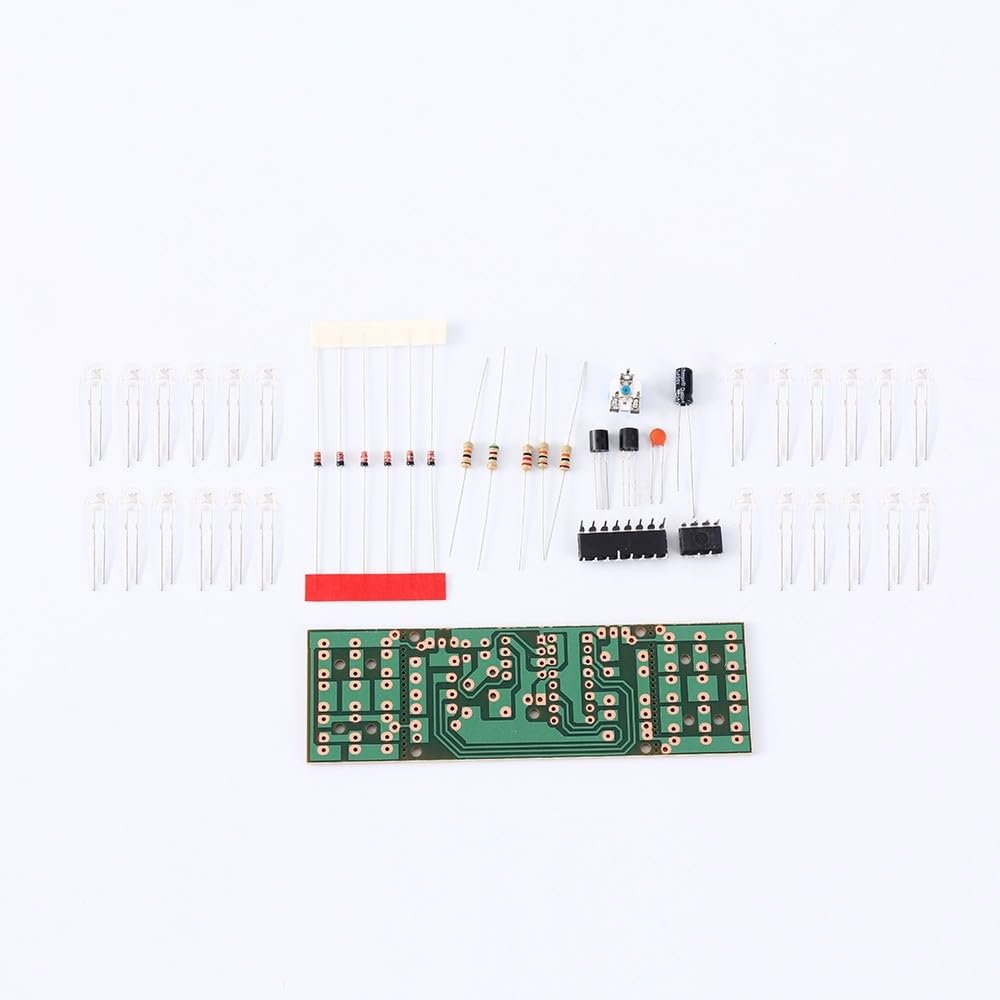

Welcome to my store, Hope you have a pleasant shopping trip! Description: This suite adopts simulation light circuit made with NE555 and CD4017,the blue LED and red LED flashed alternately according to the pulse. The multivibrator composed of NE555 will have a certain frequency of oscillation signal send to CD4017 decimal counter/pulse distributor,in order to count. When the 1,3,5 pulses arrive Q0,Q2,Q4 output high level in turn,blue LED flashes 3 times,Q5,Q7,Q9 output high level in turn.Red LED flashes 3 times,blue LED flashes again when 11,13,15 pulses come,blue and red LED flashes alternately circulatory,so as to like the alarm lamp.Change the RP1 size can change the oscillation period, thus changing the LED shining speed, the whole circuit DC9-12V can be worked. Specifications: Metal film resistor：R1, R4,R5 Metal film resistor：R2,R3 Blue LED：L1-L12 Red LED：L13-L24 Diode 1N4148：D1-D6 NE555:IC1 CD4017:IC2 S8050:Q1,Q2 Adjustable resistor:RP1 Electrolytic capacitor:C1 Ceramic capacitor:C2 Package List: 1 x LED Lights Circuit Board Notes: 1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2. Please allow 1-2cm slight dimension difference due to different manual measurement. 3.NOTE：There is no IC socket in kits.User can weld IC on PCB Directly.
