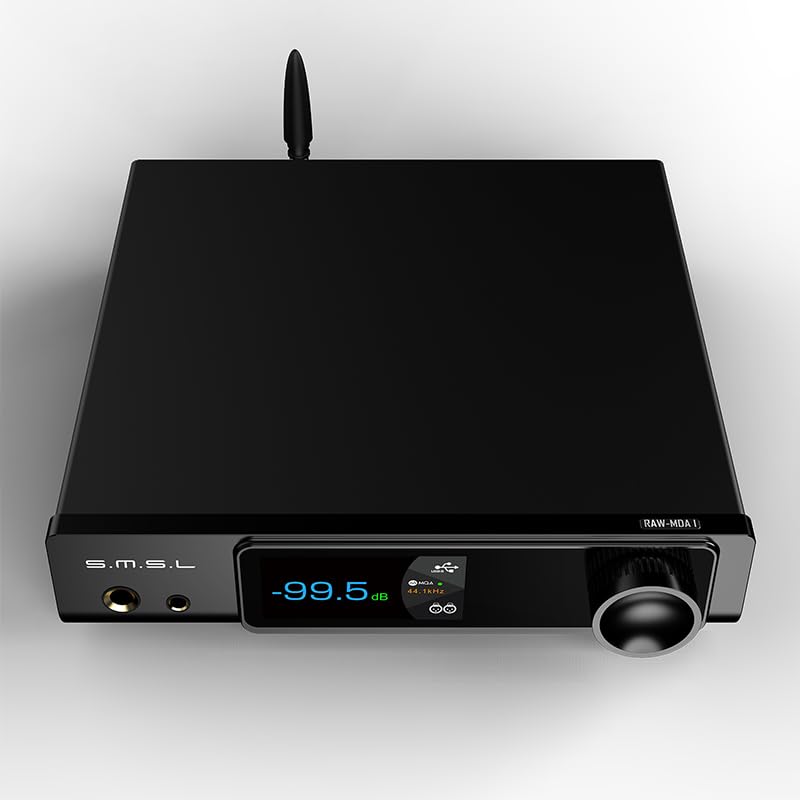

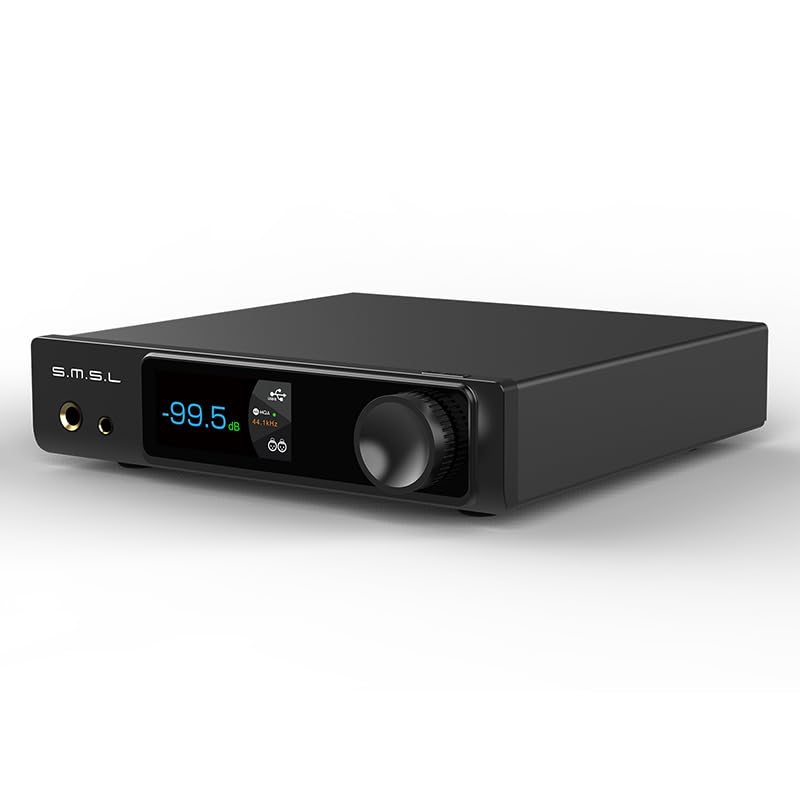

LEAUDIO S.M.S.L RAW MDA1 Decoder Dual ES9039Q2M Decoder support MQA MQA-CD LDAC Hi-res DAC

• Support MQA &MQA-CD
• The latest high-end dual ESS decoding chipES9039Q2M
• Qualcomm Bluetooth chip ：Supports LDAC24bit/96kHz, APTX/HD, SBC and AAC.
• XMOSXU-316： USB adapts XMOS XU-316, for a real 32bit， Support DoP and native DSD， PCM supports up to 768kHz and DSD supports up to DSD512.
• USB1.1 and USB2.0，Two-mode options： Allow to switch two different USB modes in the menu. Using USB2.0 supports 768kHz/32bit with driver installation required. Using USB1.1 supports 96kH without the driver. To output various audio directly.

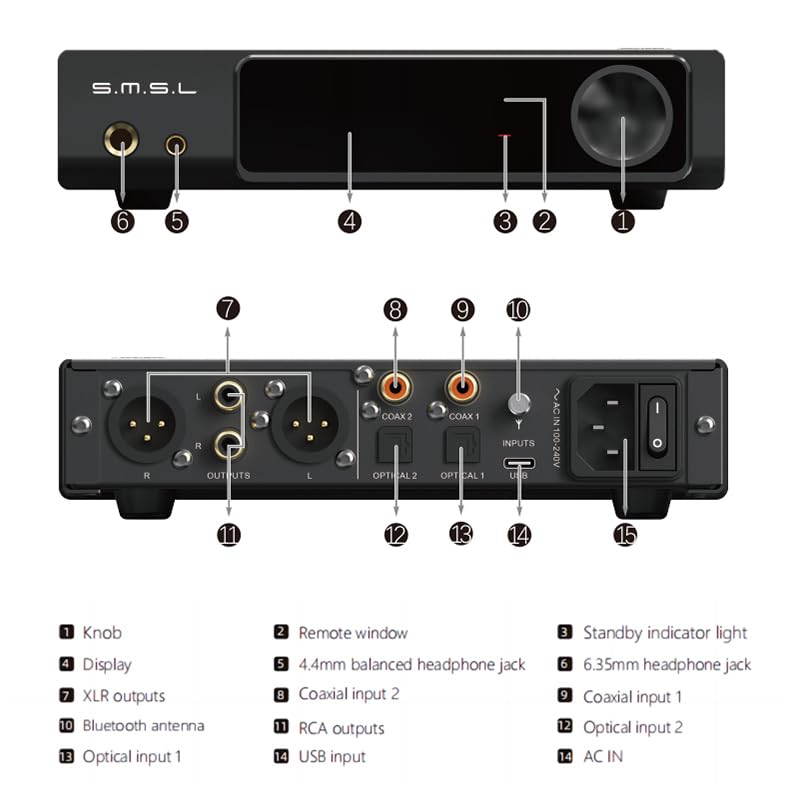

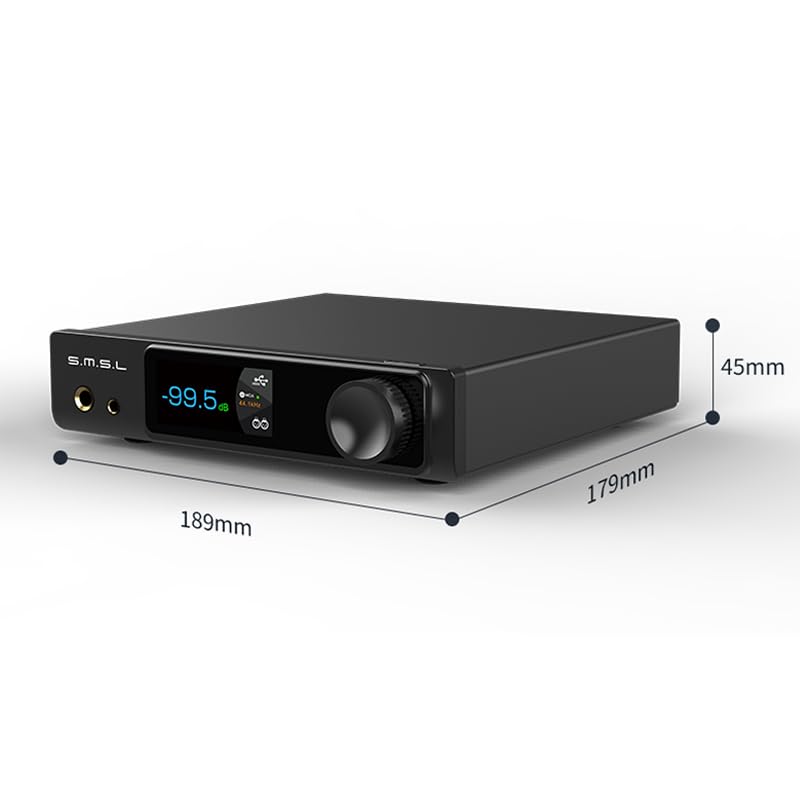

Input......USB/Optical x2/Coaxial x2/Bluetooth Output.....RCA/XLR/HEAPHONE THD+N.....0.00005%(-124.5dB non-Weighting) Line output amplitude......XLR 5.2Vrms RCA 2.5Vrms HP 8.2Vrms Headphone output power....16Ω 2.5Wx2 32Ω 1.7Wx2 Output Impedance............. LINE OUT 100Ω HP OUT Near 0Ω Dynamic range............XLR 132dB RCA 127dB HP 122dB SNR..................XLR 132dB RCA 127dB HP 122dB USB transmission..............Asynchronizatio USB compatibility..................window 7/8/ 8.1/ 10/ 11(Needs Driver) Mac 0SX10.6 or Later、Linux(Driverless) MQA decoder.......................USB/optical/Coaxial Sampling rate & Bit Depth: USB PCM 44.1~768kHz(32bit) DSD 2.8224~22.5792MHz(1bit) DoP DoP256 Optical/ Coaxial 44.1~ 192kHz(24bit) DoP DoP64 Bluetooth specification..............5.1(support SBC,aptX,aptX HD,LDAC) Power Consumption.......<30W Standby power....................<0.5w Size...........................189x45x179mm(WxHxD) Weight.......................1.02kg/2.24lbs
