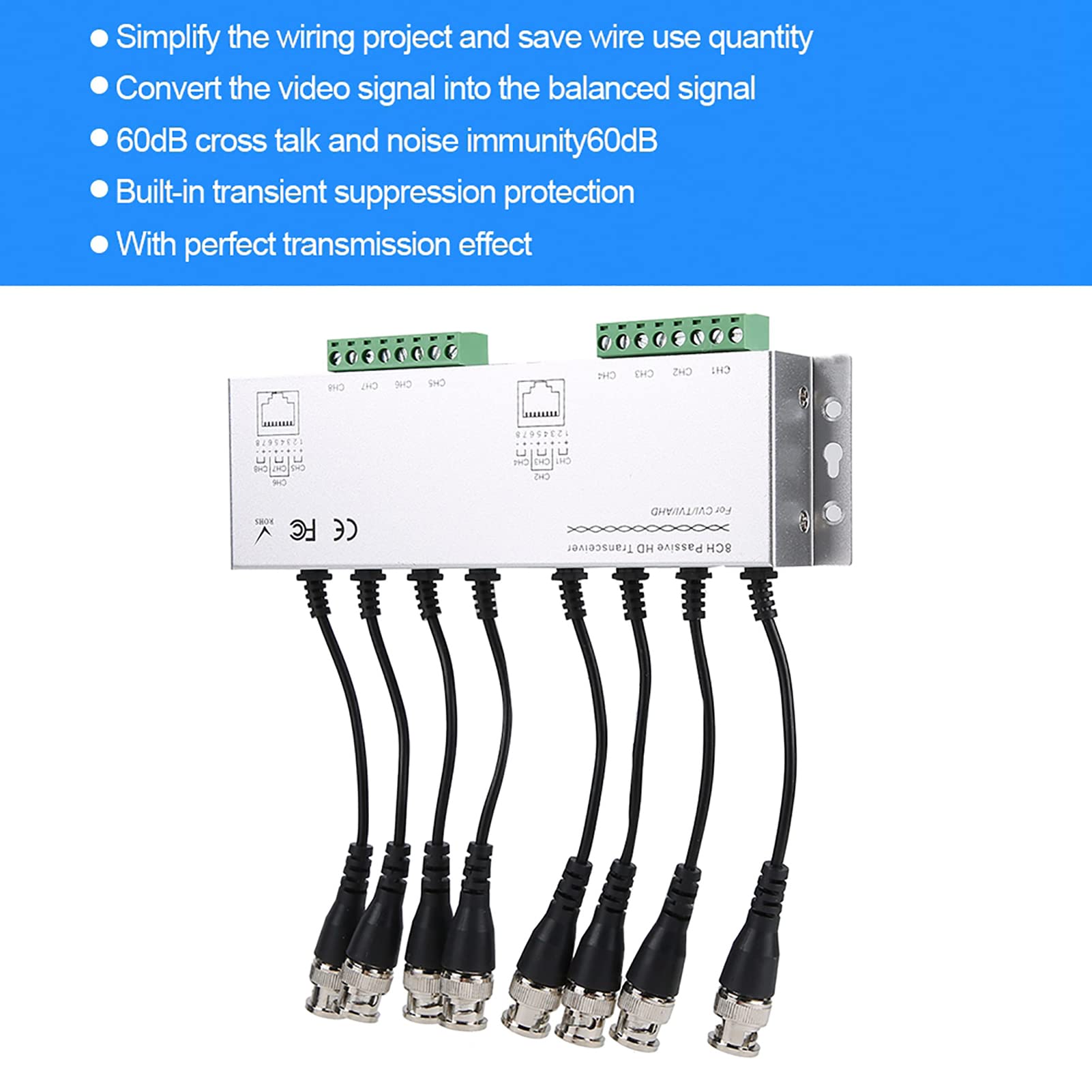

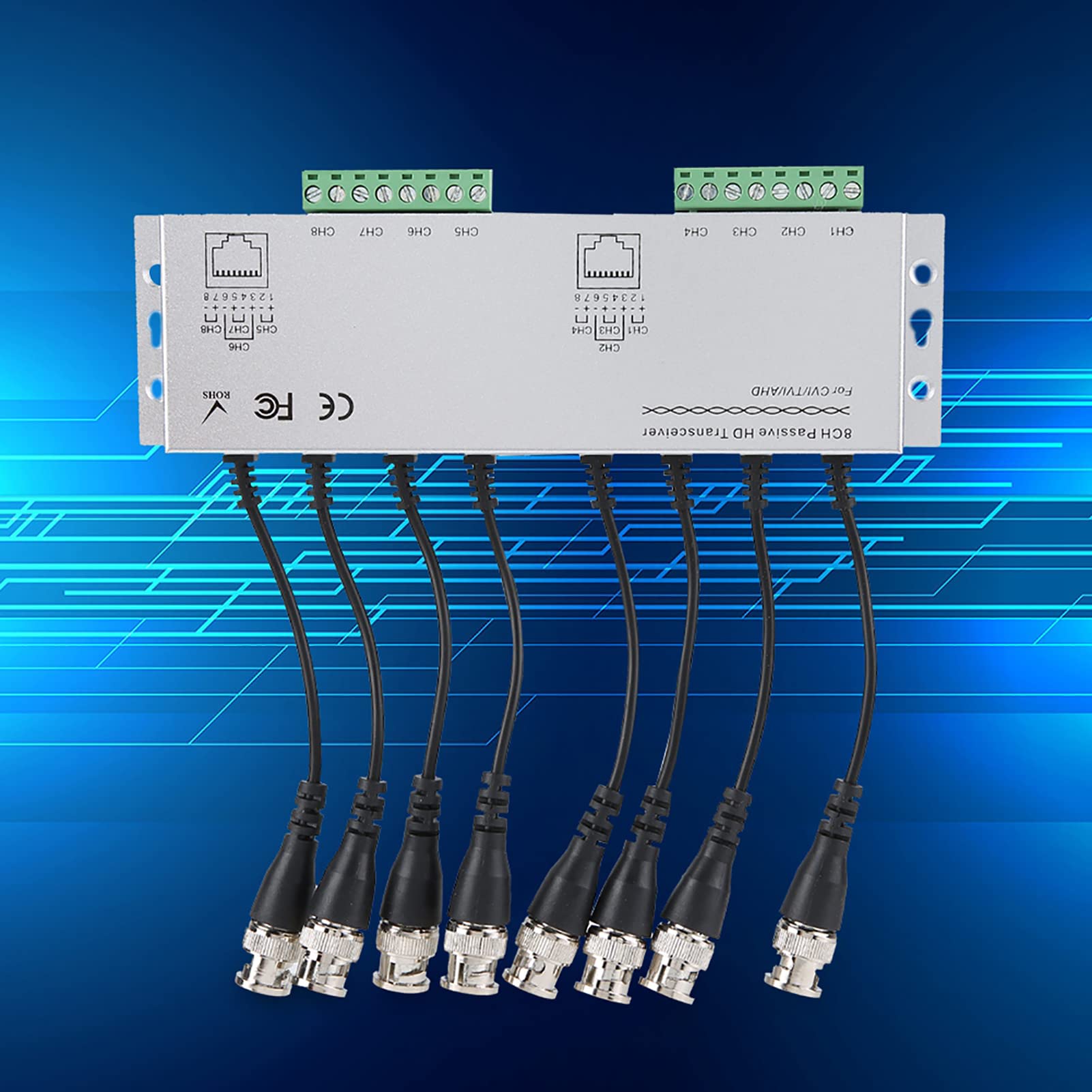

Leapiture 8CH HD Passive Video Balun, BNC Male To UTP Cable Converter CCTV Video Balun Transceiver for Camera System

• HD VIDEO BALUN - HD video signals can be converted into balanced signals for transmission over ordinary Cat-5 unshielded twisted pair cable. This design can provide perfect transmission effect and ensure the clarity and stability of video images.
• WIDELY USED - Video balun is suitable for video surveillance, video conferencing and many other scenarios, providing users with high-quality image transmission solutions. Whether for home security or commercial use, your product can help users realize high-definition video transmission and monitoring.
• RELIABILITY - Video converter is capable of transmitting four video images simultaneously over a single 8-core Cat-5 twisted pair cable. Users can transmit multiple video signals with one converter, simplifying wiring projects and saving cable usage.
• SIMPLIFY CABLING - Passive video balun requires separate video cables, whereas using your product can greatly simplify the cabling process by requiring only one Cat-5 twisted pair cable for video transmission. This not only saves cables and costs, but also makes the whole wiring more neat and easy.

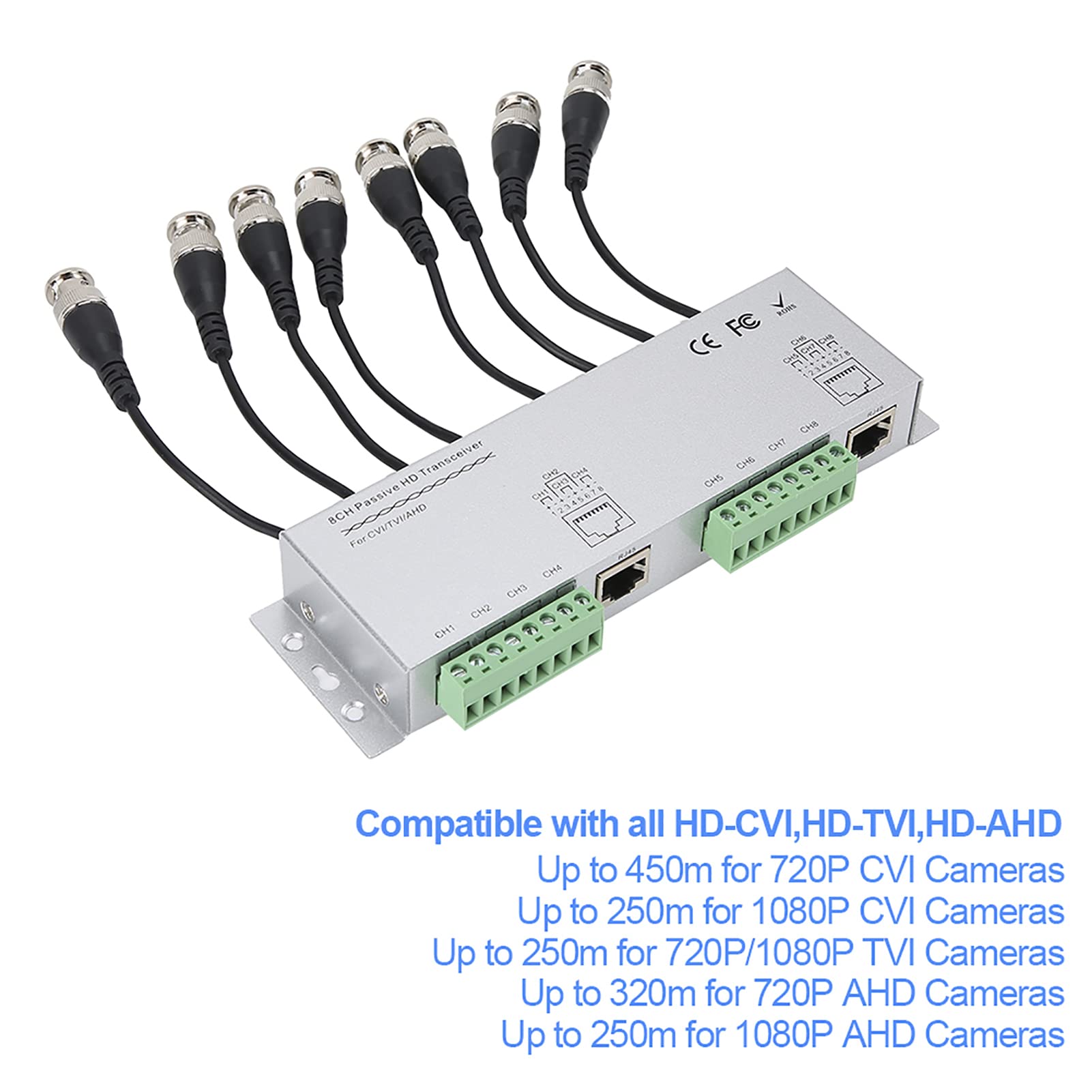

• COMPATIBILITY - CCTV video balun is compatible with all HD-CVI, HD-TVI, HD-AHD and other HD video standards. For 1080P AHD cameras, the transmission distance can reach up to 250 meters, which ensures the long-distance transmission needs for video surveillance.

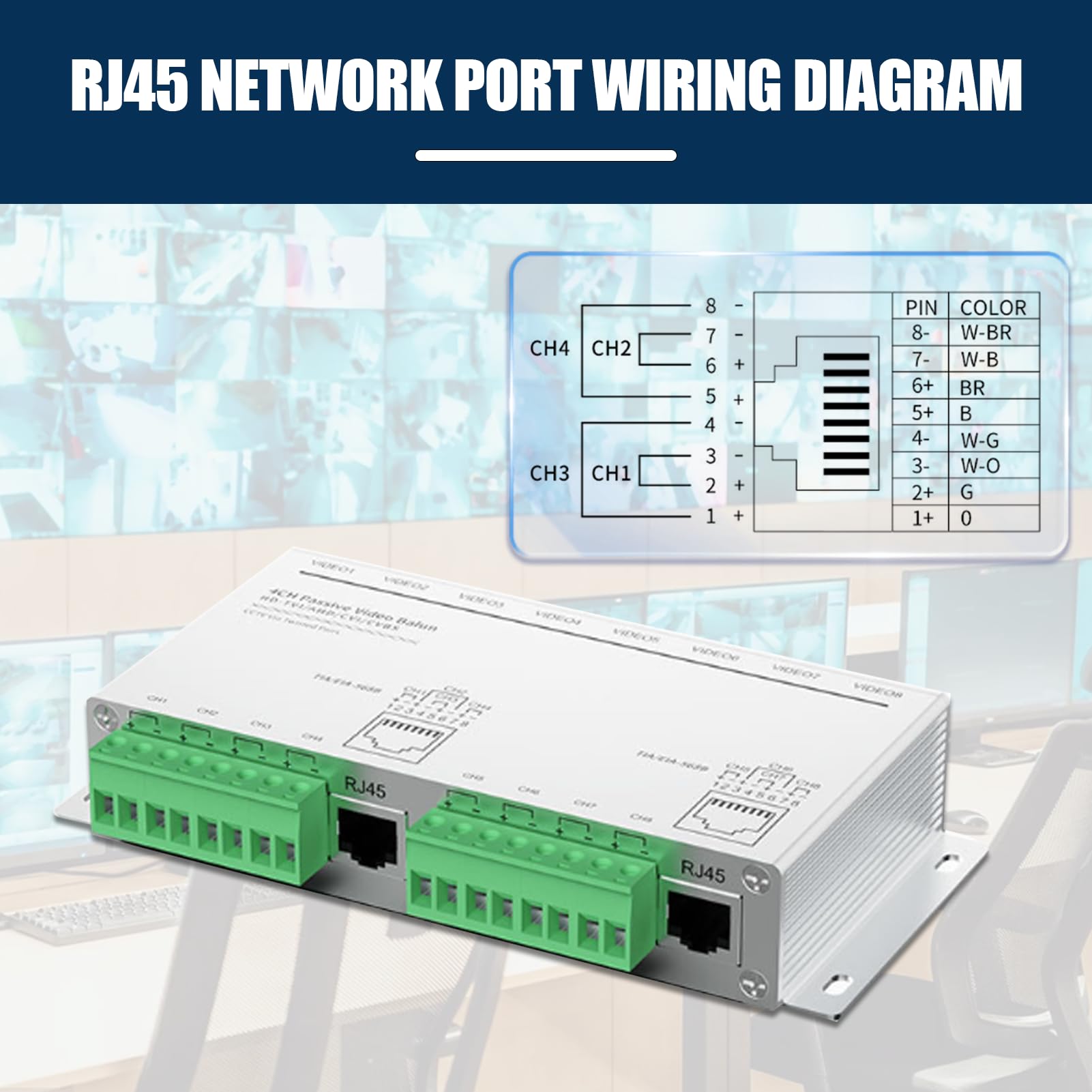

Welcome to VKander! Explore the boundaries of technology and master the infinite possibilities! Welcome to the world of electronic devices, where innovation, convenience and exciting experiences come together. Let's take you on a journey through a sea of electronic devices. Start your technological journey and create the future with us! Specification: Condition: Brand New Item Type: Video Balun Color: Shown as Picture Material: Metal Compatible: HD-CVI,HD-TVI,HD-AHD Video Formats: NTSC,PAL, SECAM Frequency Response: DC to 60Mhz Attenuation: 0.5dB Type CMRR: 60dB Surge Protection: 4KV ESD: 8KV Impedance: BNC: 75ohms, RJ45: 100ohms Working Temperature: -10℃ -70℃ Storage Temperature: -30℃ -70℃ Humidity: 0-95% Type of wire required: Unshielded Cat-5 or above twisted pair cable (Please use standard Cat-5 or above twisted pair cable. The quality of the wire will directly affect the transmission image effect and transmission distance.) Characteristic impedance: 100Ω±20Ω DC loop resistance: 18Ω/ 100m Differential capacitance: 62pf (maximum) Connection Method: Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket,connect the coax to the BNC. Package List: 1 x 8CH Passive Video Balun 1 x Manual Warm Tips: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
