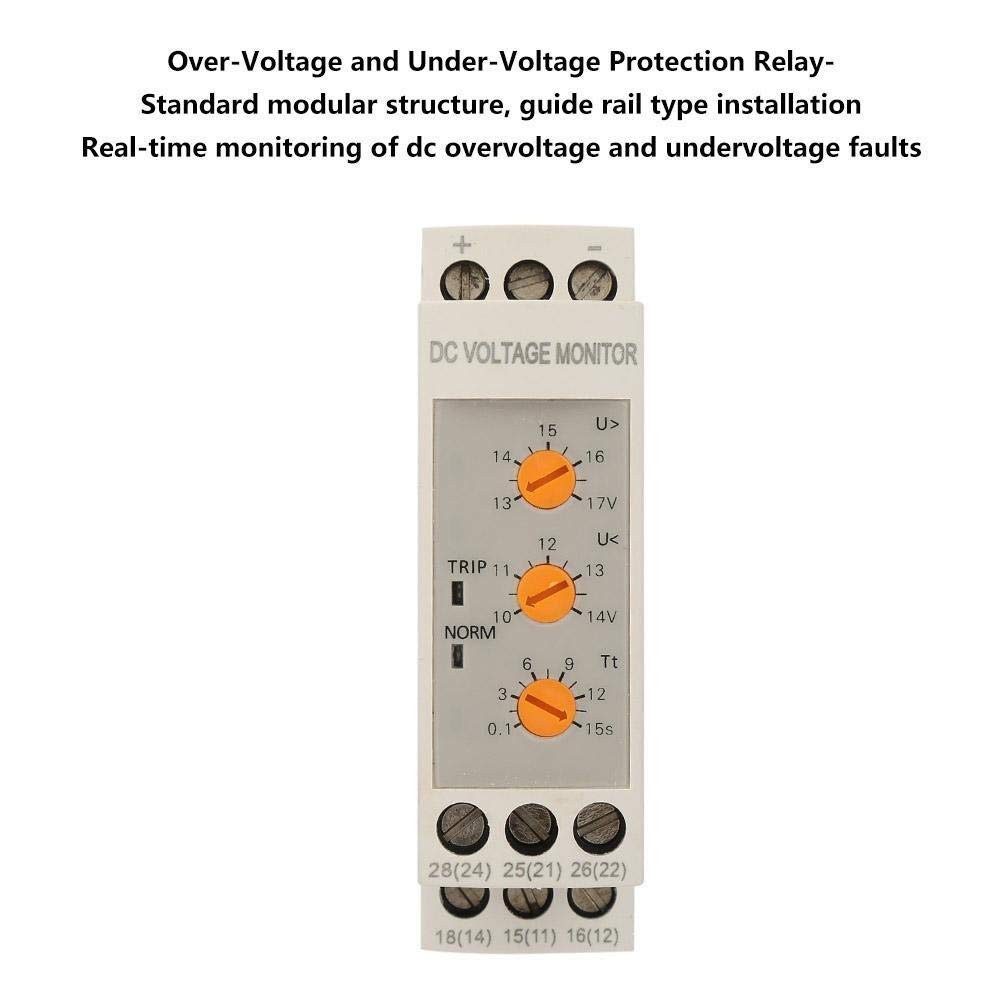

KSTE Over Voltage Protection, DVRD Over-Voltage and Under-Voltage Protection Relay(DC 12V)

• 【Easy to install】The relay motor overvoltage protector adopts standard modular structure, guide rail type installation.
• 【Real-time Monitoring】Real-time monitoring of dc overvoltage and undervoltage faults. No additional auxiliary power supply is required.
• 【Adjusted】Overvoltage undervoltage protector action time can be adjusted, Both over - voltage and under - voltage value can be adjusted.
• 【Convenient and practical】2 sets of normally open and normally closed contacts, 2 indicator lights indicate various working conditions.
• 【Typical applications】Dc motor, battery,UPS power supply, dc switchgear, dc panel, industrial control system

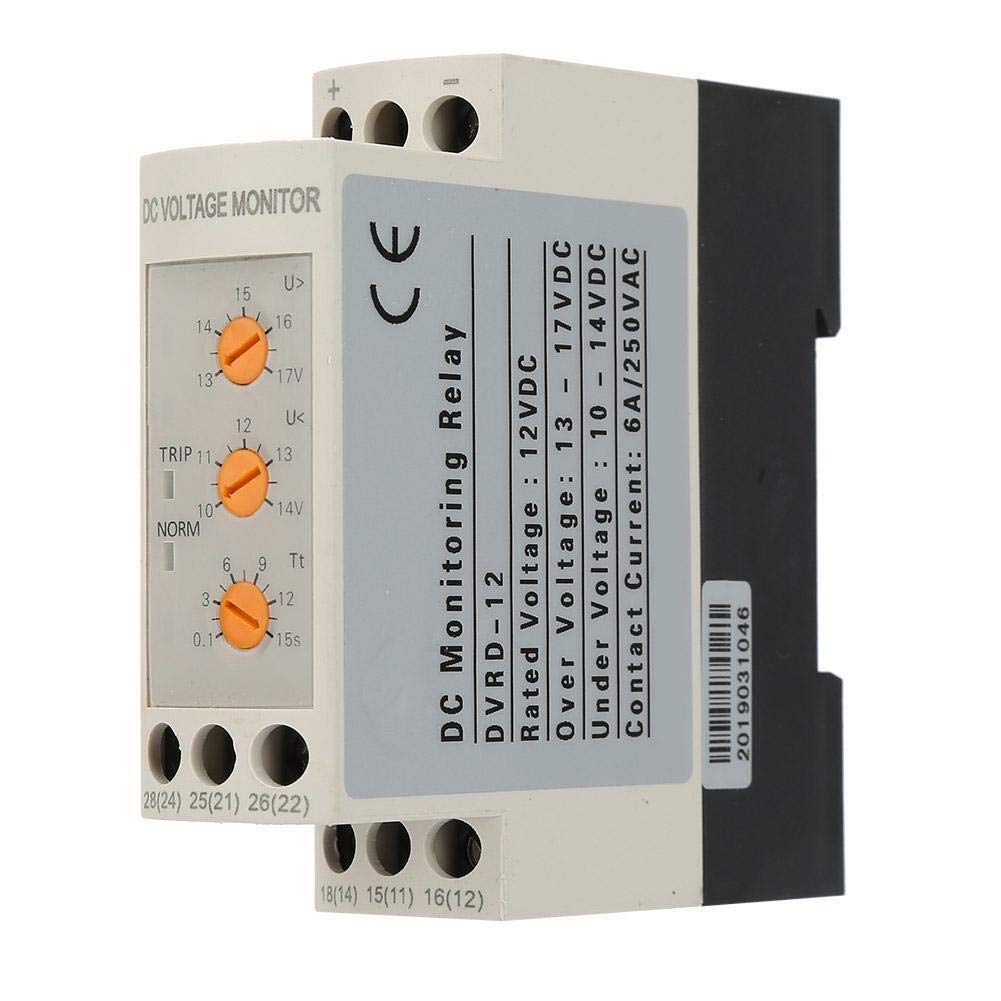

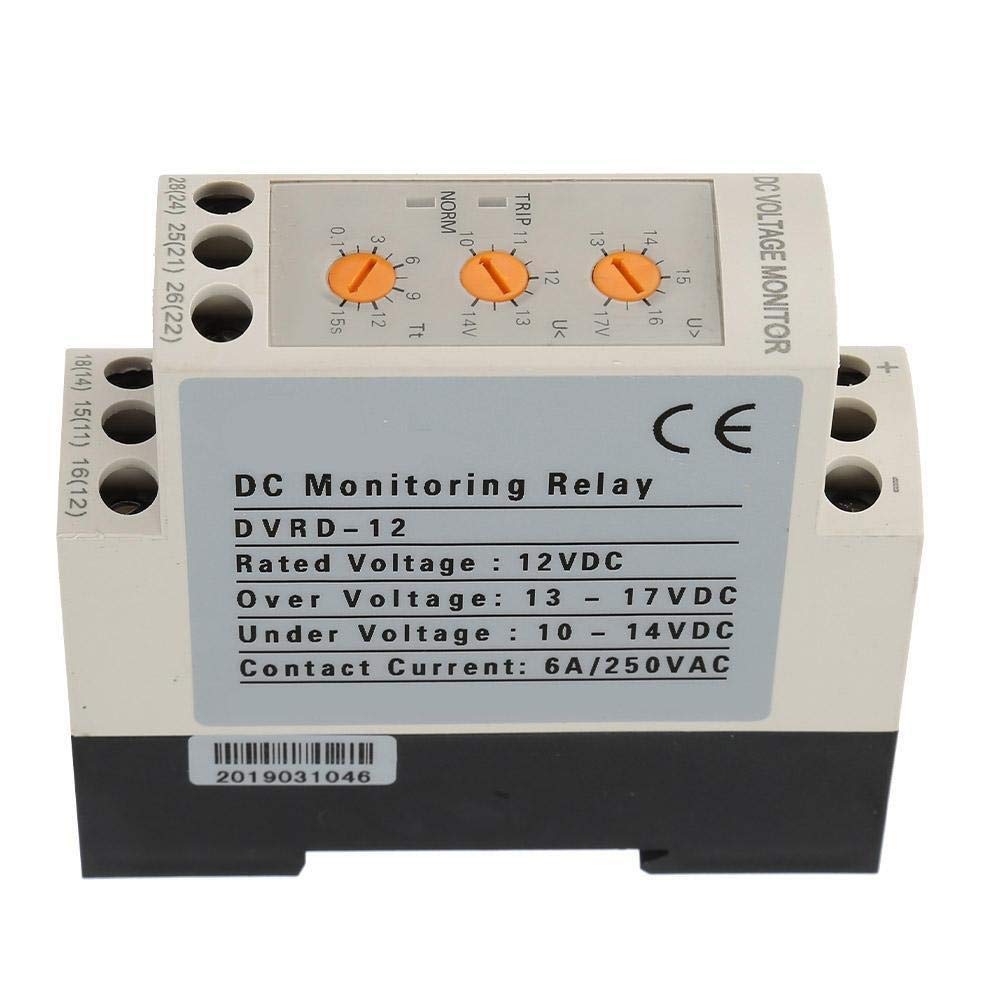

Features: Standard modular structure, guide rail type installation Real-time monitoring of dc overvoltage and undervoltage faults No additional auxiliary power supply is required Both over - voltage and under - voltage value can be adjusted Action time can be adjusted 2 sets of normally open and normally closed contacts 2 indicator lights indicate various working conditions Typical applications: dc motor, battery,UPS power supply, dc switchgear, dc panel, industrial control system Specification: Protection function: over voltage, under voltage Model: DVRD - 12/24/36/48(Optional) Rated voltage: DC 12V/24V/36V/48V(Optional) Monitoring circuit: direct current circuit Protection function: over voltage, under voltage Overvoltage regulation range: 13-17v Undervoltage adjustment range: 10-14v Action delay range: 0.1-15s Display mode: normal, action 2 LED lights indicate the working status Contact form: 2 set of normally open and normally closed contacts Contact capacity: 6A 250VAC (resistivity) Installation: 35mm guide rail Overall dimension: 79 * 23 * 79mm / 3.1 * 0.9 * 3.1in Weight: 200 g / 7.1 oz(approx.) Package list: 1 x Overvoltage Undervoltage Protector
