Khadas Edge2 IO Module - Universal GPIO Expansion Board with UHS-I SD Card Reader, Dual-Channel Infrared Receiver, 3.5mm Headphone Jack, 16-Pin GPIO, 10-Pin Pogo Pads for Enhanced Connectivity

• Multi-function expansion board: Khadas Edge2 IO Module is a GPIO expansion board that expands the functionality of Edge2 by connecting to the FPC connector at the bottom of Edge2. It integrates UHS-I SD card reader, dual-channel infrared receiver, USB port, etc., providing you with more connection options.
• Rich interface design: This expansion board has UHS-I SD card reader, 5-pin 1.25mm pitch USB HOST interface, 3-pin 1.25mm interface for analog speaker, 2-pin 1.25mm interface for analog microphone, 3.5mm headphone jack and dual-channel infrared receiver to meet your diverse needs.
• Accurate size: The module size is 52.2mm (length)/66.7mm (including FPC) x 46.5mm (width) x 6.3mm (height). The precise design ensures a perfect match with Edge2 for easy installation and use.
• Designed for Edge2: This IO module is designed for Khadas Edge2 to ensure compatibility and performance, making your Edge2 device more powerful.
• Package Contents: The package contains Edge2 IO module x1, M2 short screws x2, M2 long screws x2, providing you with complete installation accessories for quick installation and use.

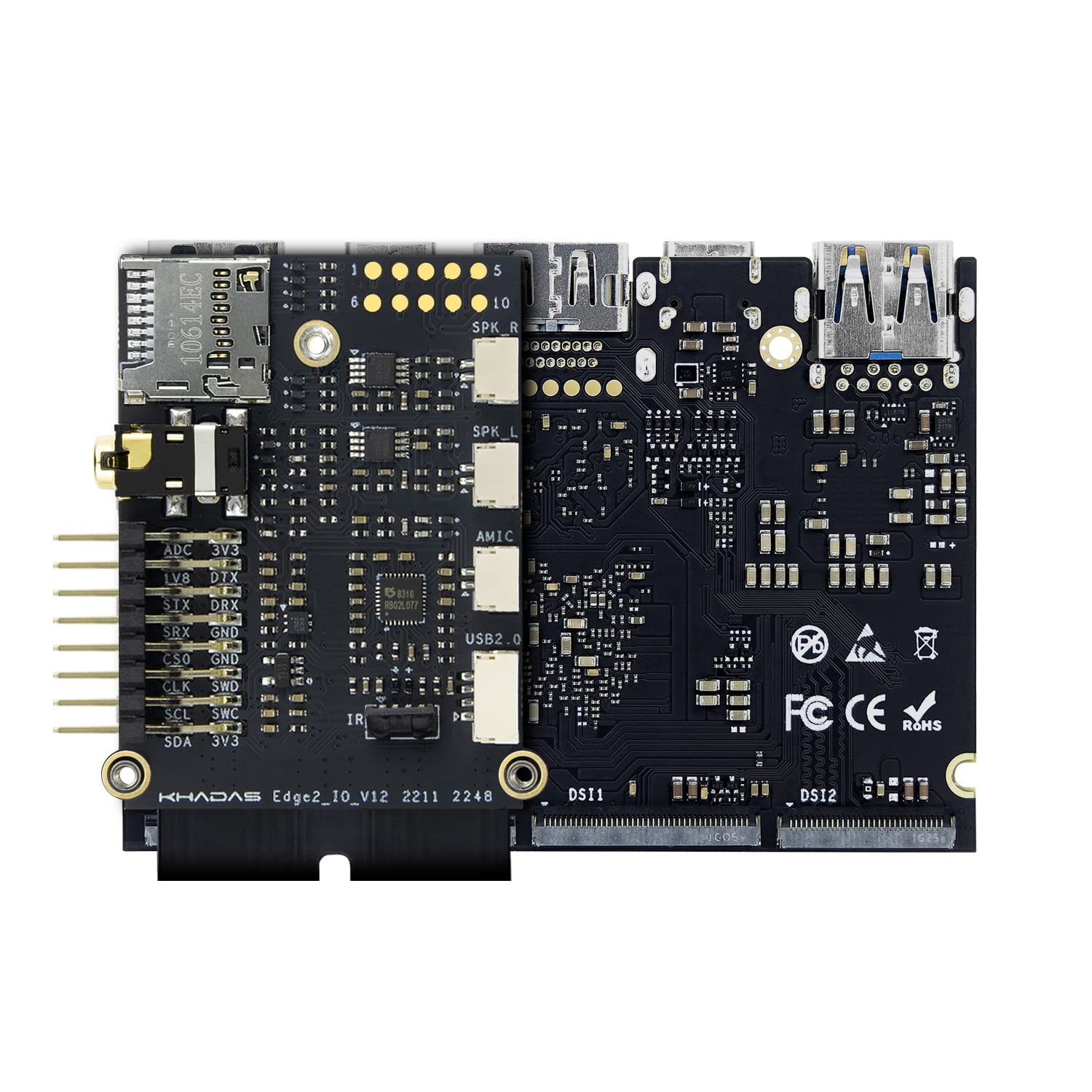

The Khadas Edge2 IO Module is a GPIO break-out board for the Edge2 that expands the functions of Edge2 by connecting to the FPC connector on the underside. It incorporates a UHS-I SD card reader, a dual-channel infrared receiver, USB ports and more! Features: SD Card Reader (UHS-I) 4-pin, 1.25mm pitch, detachable Crimp Connector (USB HOST) 2-pin, 1.25mm pitch, detachable Crimp Connector (Analog Speaker Output) 2-pin, 1.25mm pitch, detachable Crimp Connector (Analog Microphone Input) 3.5mm Headphone Jack IR Receiver (Dual Channel) Expand I/O 16-pin, 2.54mm pitch, GPIO Header (CPU: UART, ADC, SPI, I2C; MCU: SWDIO, SWCLK) 10-pin, 2.54mm pitch, Pogo Pads (CPU: I2S, PWM, WPR_KEY; MCU: UART) Dimensions: 52.2mm (l) / 66.7mm (with FPC) x 46.5mm (w) x 6.3mm (h) Compatibility: Edge2
