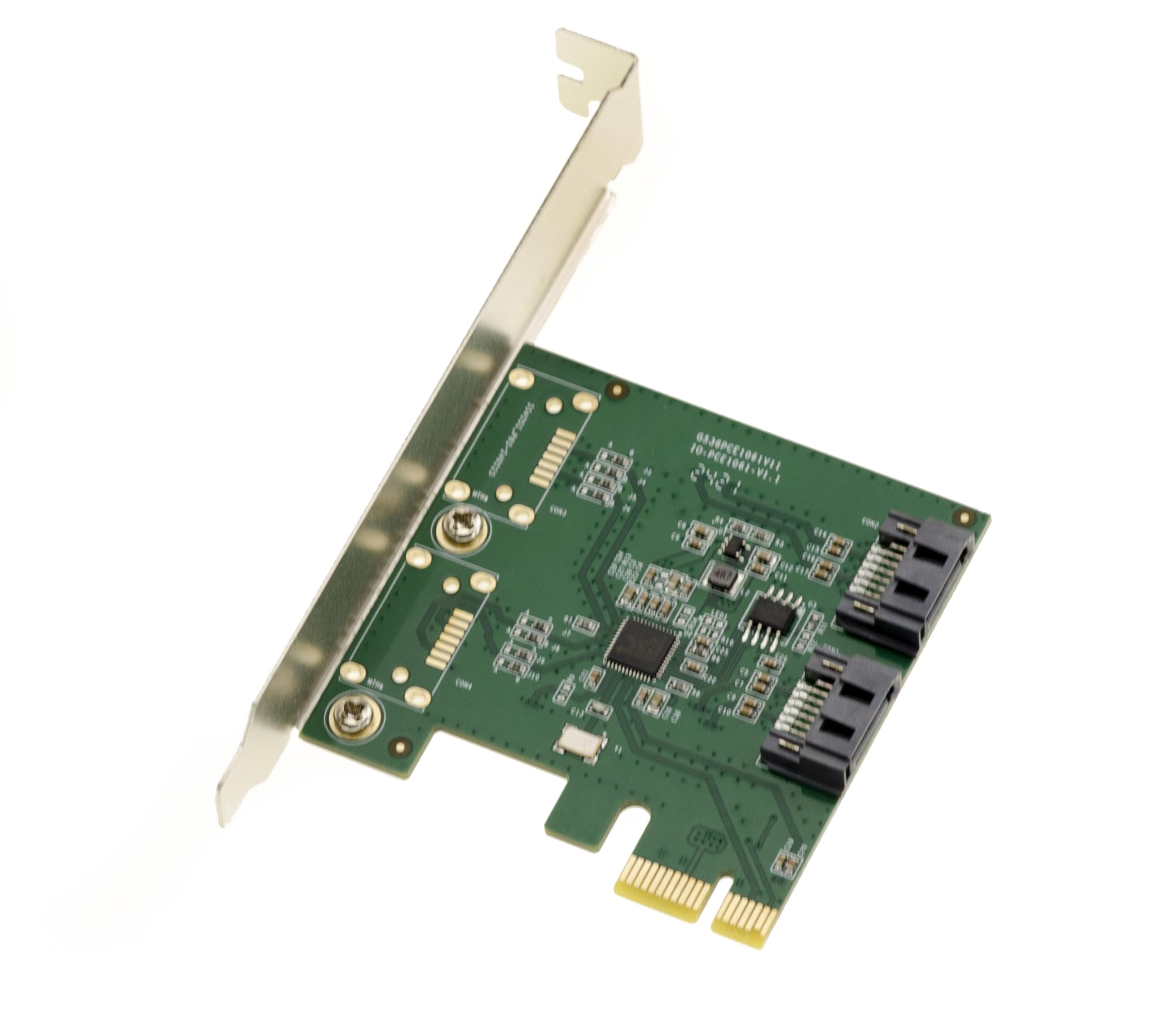

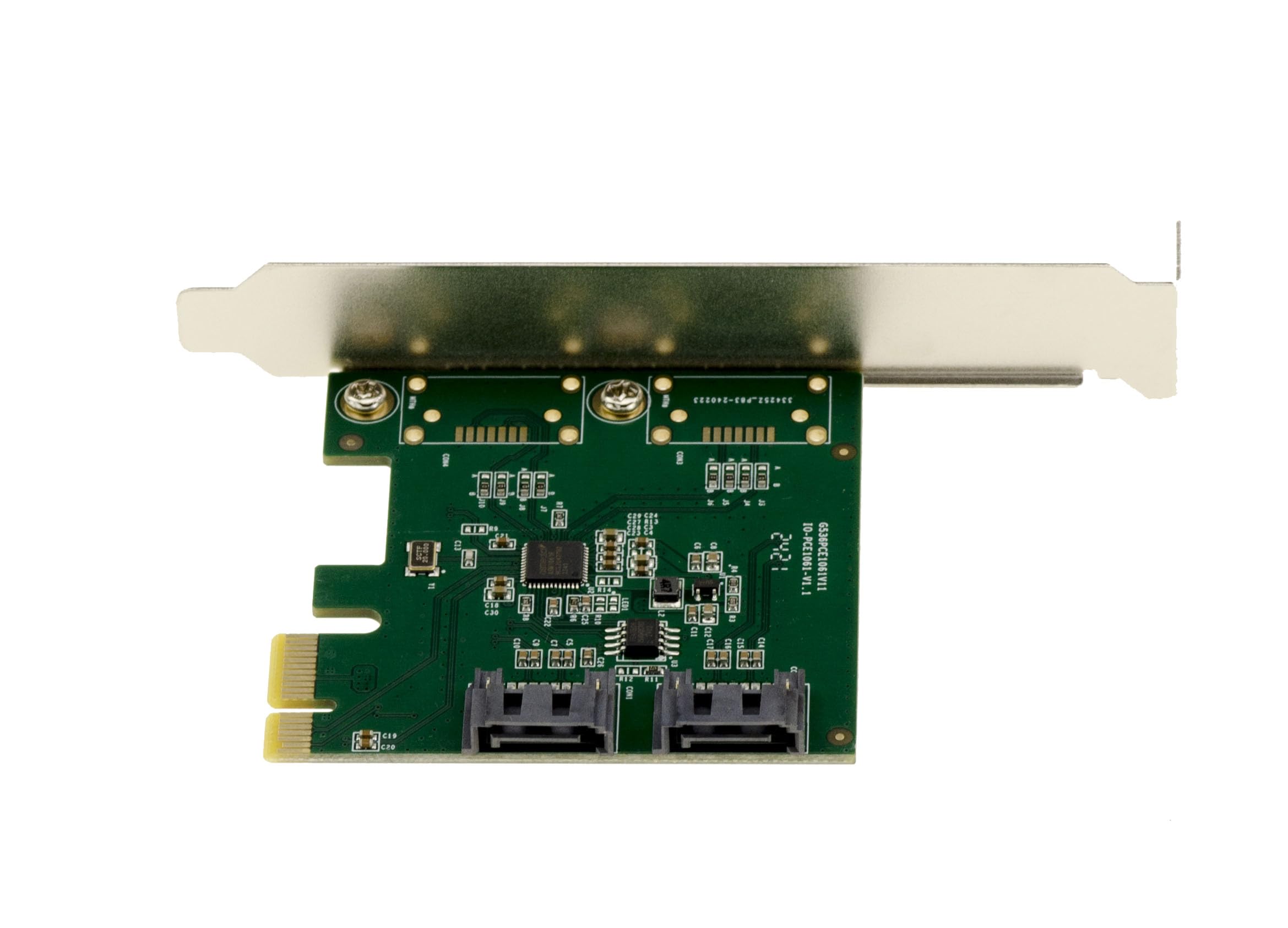

KALEA-INFORMATIQUE PCI EXPRESS PCIe 2x SATA 3 6G controller card. RAID 0 1 SPAN. Low and High Profile boards with ASM1061R Chipset

• PCI Express Base Specification Rev. 2.0 PCI Express Card Electromechanical Rev. 2.0 Serial ATA AHCI Spec. Rev.1.3 Serial ATA Revision 3.2 Serial ATA Features Supports 2 ports Serial ATA PHY
• 1.5Gbps, 3.0Gbps and 6.0Gbps speed negotiation SATA PHY 1i/1m/2i/2m/3i Supports AHCI and IDE programming interface Supports Native Command Queue (NCQ) Supports Port Multiplier command based switching Embedded hardware RAID engine Supports RAID0, RAID1, SPAN
• RAID mode changeable, controlled via the setting by two GPIOs or GUI utility RAID0 high performance for the data transmission Supports S.M.A.R.T feature Supports automatic rebuild Supports high performance off-line rebuild Supports background rebuild
• Package Contents 1 x User Manual 1 x SATA III (6Gbps) 2-port PCI-Express Controller RAID Card 1 x SATA Cable
• Windows 10, 8.1,7 (32 / 64 bit) / Vista / Server 2012 / 2008，Linux

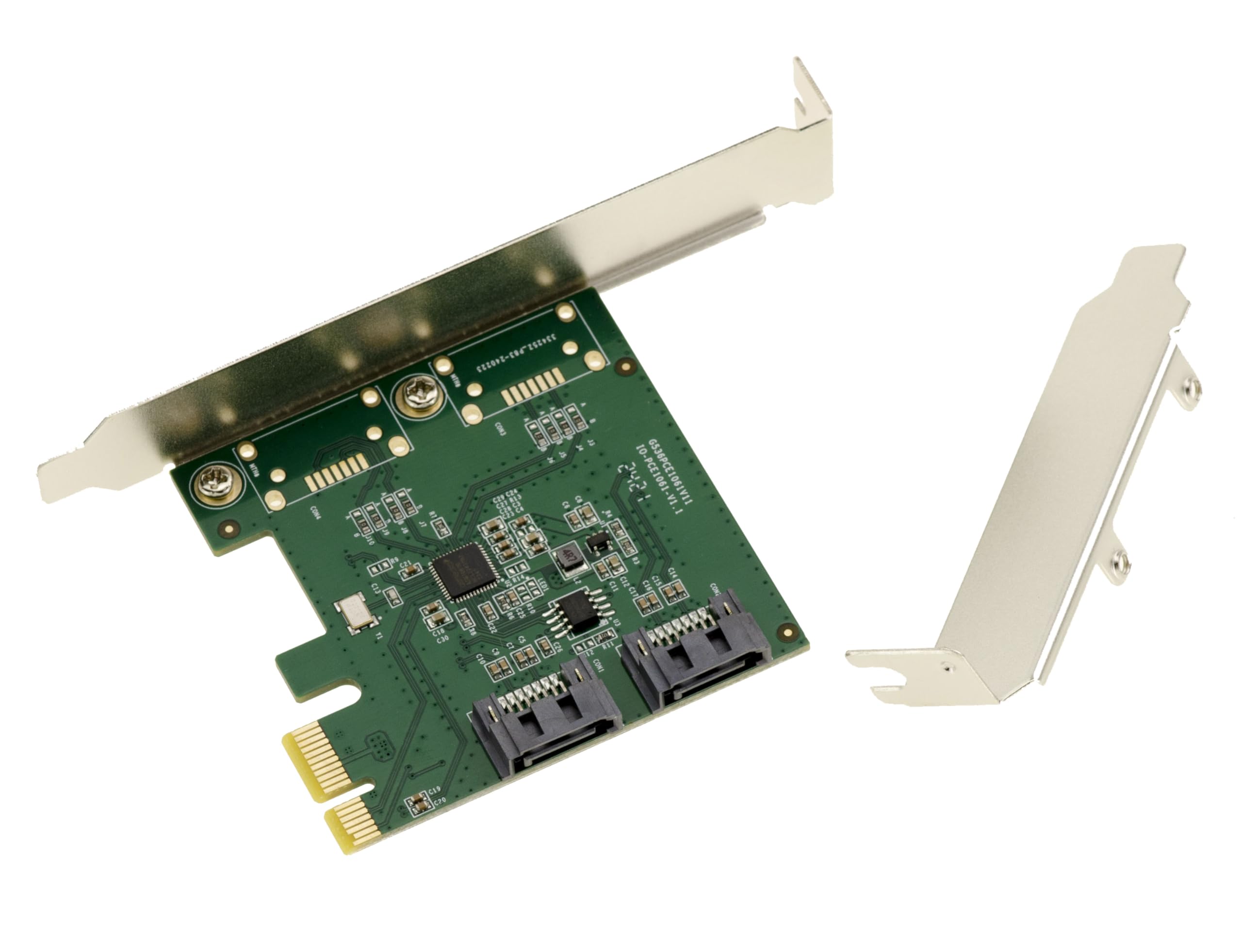

For desktop PCs on PCI Express port. Allows you to add 2 internal SATA ports to connect 1 to 2 SATA III devices independently or as a RAID cluster. Compatibility: SATA 3 (backwards compatible with SATA 1 and 2). Theoretical maximum throughput with SATA 3 hard drives is 600MB/s (6GB bandwidth). Drivers included for: Server 2003 / Server 2008 / XP 32 and 64 bit / Vista 32 and 64 bit / Seven / 8 / 8.1 / 10-11 32 and 64 bit . PCI Express 1x (PCIe 2.0) port Compatible with SATA 3 (revision 3.2), accepts SATA 1 and 2 drives, but the maximum throughput will then be 150MB/s and 300MB/s respectively. Auto negotiation of the throughput depending on the type of disk plugged in. For hard drives or optical drives. SATA PHY 1i/1m/2i/2m/3i. Compatible with AHCI/IDE programming. NCQ compatible. Compatible with Port Multiplier devices. Built-in RAID engine, with 3 possible modes: RAID0, RAID1, SPAN. RAID mode controlled by the BIOS of the card or GUI software. Compatible with S.M.A.R.T. Simple, automatic or offline reconstruction. Maximum transfer speed of 600MB/second (6Gbp bandwidth). Plug and play. Card supplied with two brackets: high profile (original mount) and low profile (to be mounted).
