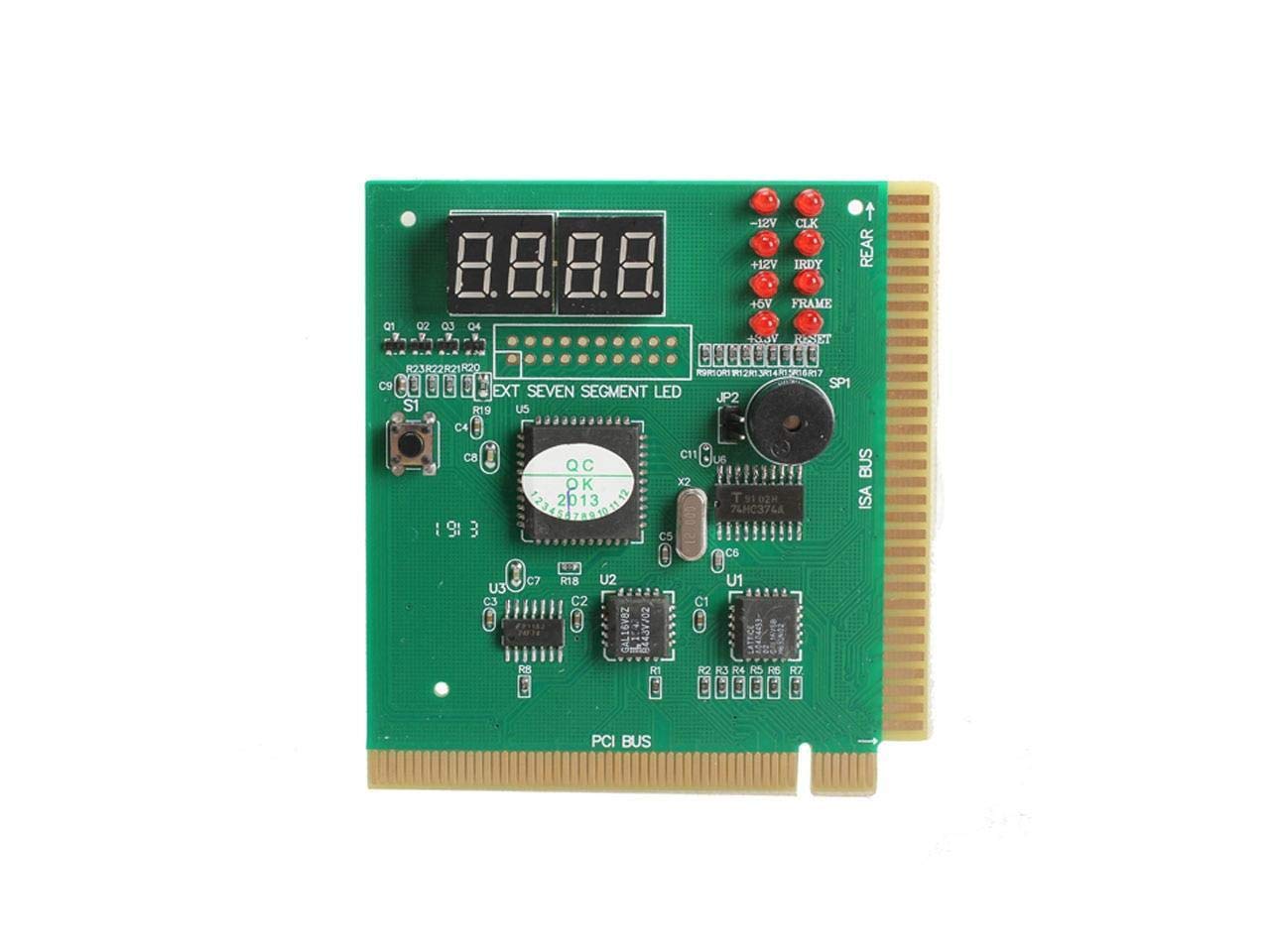

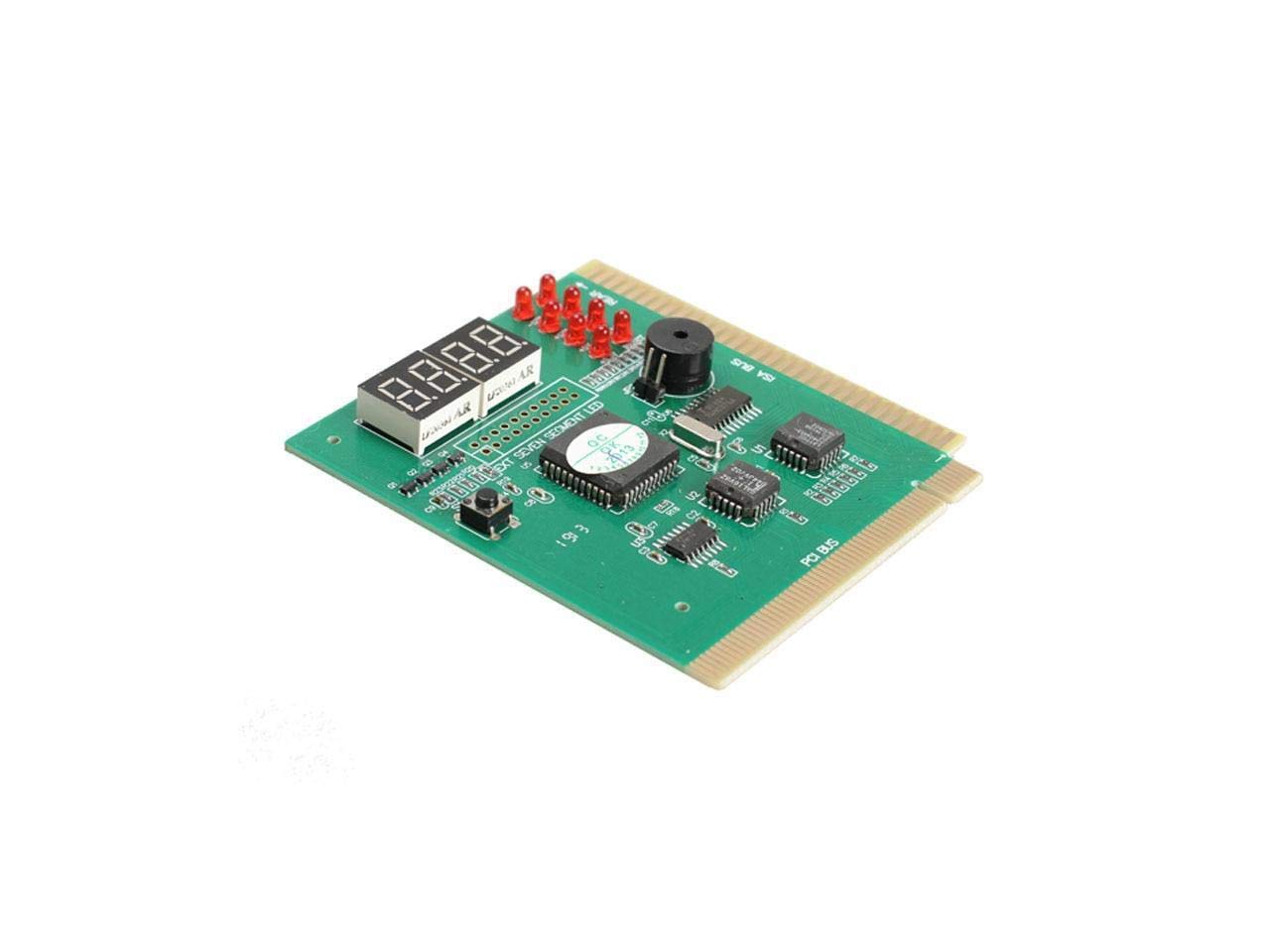

KALEA-INFORMATIQUE Internal motherboard tester for PCI or ISA ports, 4-digit display. Allows POST control

• PCI or ISA port interface. Compatible with the vast majority of motherboards, including the latest. The tester reads the card's BIOS, so it doesn't matter which socket the processor uses!
• This tester will enable you to diagnose the origin of a motherboard fault. Be careful, you'll have to link the code obtained with the damage suffered, and this requires a good knowledge of English (the error codes are always expressed in English in the databases), as well as a good knowledge of hardware.
• 4-digit digital display. Buzzer (to be wired if you wish to hear the beeps emitted by your motherboard). The card can display up to 88 records.
• Method: Turn everything off, remove all components from the motherboard, insert the tester in a PCI or ISA port, then boot up, inspect the voltage diodes and validate the voltages, inspect the code obtained and refer to the manual or the manufacturer's databases, turn everything off, insert the components, then boot up, inspect the code obtained and refer to the manual or the manufacturer's databases.
• Using the control buttons: When the tester has finished its test phase, you can use the button to navigate between all the stages that made up the POST test, and thus obtain the test result at each stage. The first two digits then indicate the sequence number of the test, and the last two the error code obtained. KNOWLEDGE OF ENGLISH REQUIRED TO USE THIS TYPE OF TOOL

For DESKTOP PCs. PCI or ISA port interface. Compatible with the vast majority of motherboards, including the latest. The tester reads the card's BIOS, so it doesn't matter what type of socket the processor is using. This tester will help you diagnose the source of a motherboard fault. Be careful, it will be up to you to link the code obtained with the damage suffered, and this requires on the one hand a good knowledge of English (the error codes are always expressed in English in the databases), and on the other hand a good knowledge of 'Hardware'. Functions: Digital 4-digit display. Buzzer (to be wired if you want to hear the beeps emitted by your motherboard). The card can display up to 88 records. Method: Turn everything off, remove all the components from the motherboard, insert the tester in a PCI or ISA port, then start it up, inspect the voltage diodes and validate the voltages, inspect the code obtained and refer to the manual or the manufacturer's databases, turn everything off, insert the components, then start it up, inspect the code obtained and refer to the manual or the manufacturer's databases. Using the control buttons: When the tester has finished its test phase, you can use the button to navigate between all the stages that made up the POST test, and thus obtain the test result at each stage. The first two digits indicate the sequence number of the test, and the last two the error code obtained.
