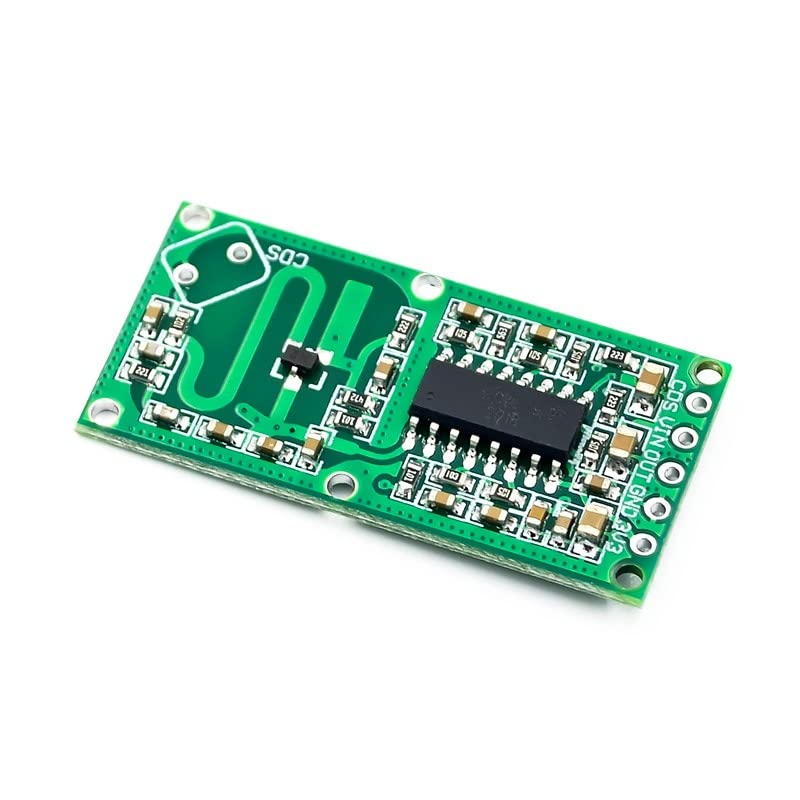

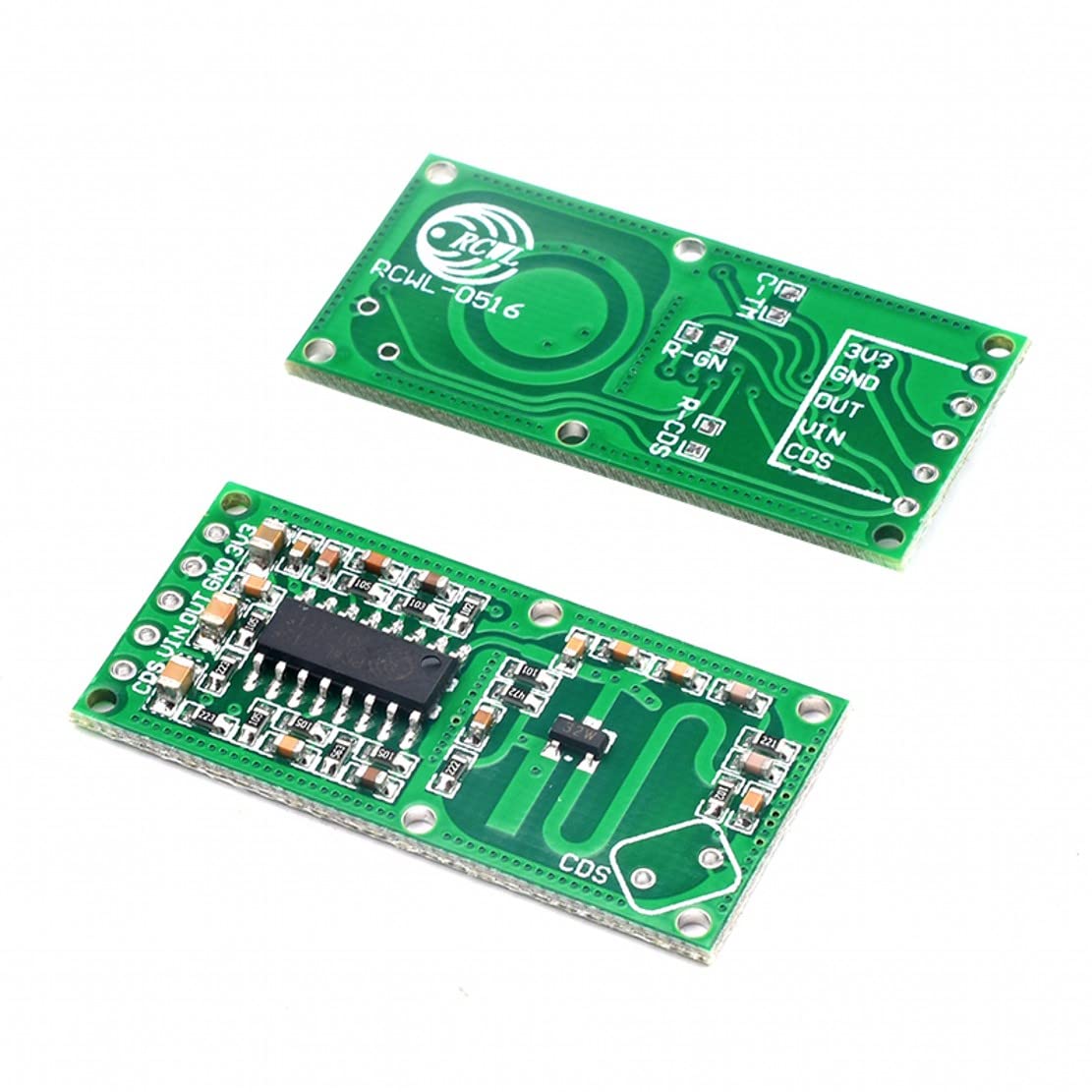

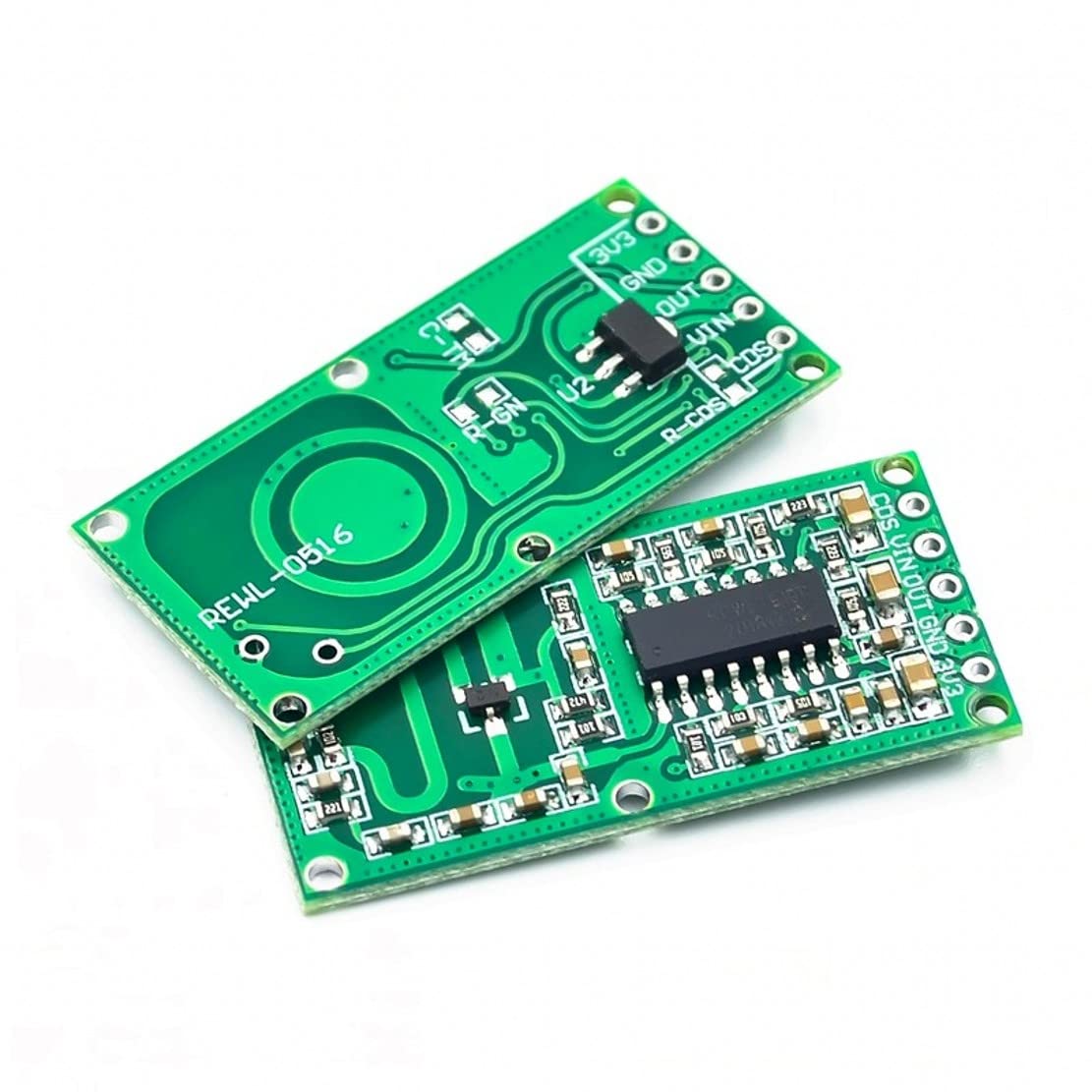

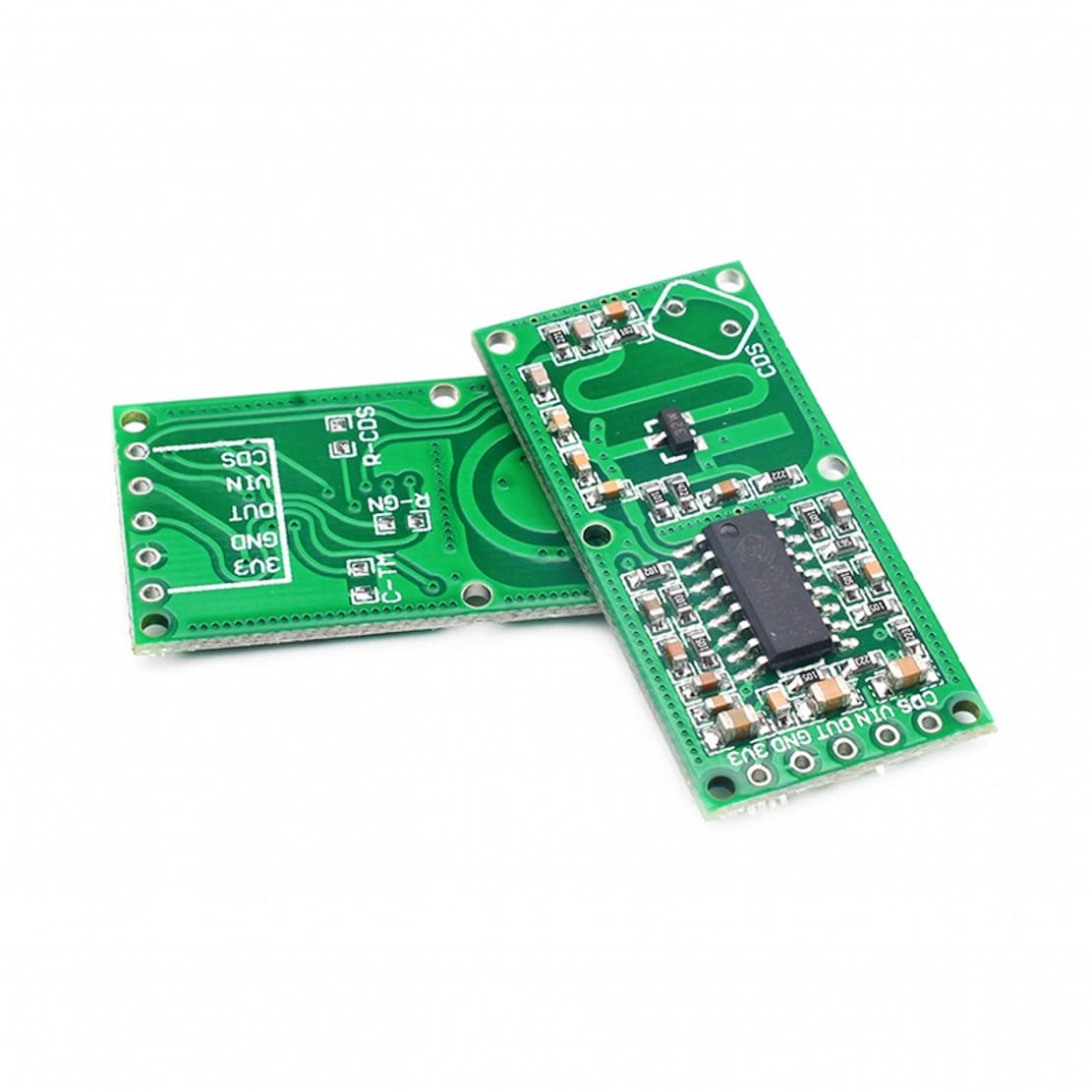

JZK 5PCS Microwave sensor switch module RCWL-0516 Radar, Motion induction detector Board, Body Induction Module for Detecting Moving Objects

• An alternative to the infra red detectors, and as this RCWL-0516 motion detection sensor can see through walls etc. Non thermal movement detection. Compared with the traditional infrared feeling PIR, with the penetrating detection capability.
• RCWL-0516 microwave radar sensor is a sensitive doppler radar that detects movement without the use of a PIR. Standard logic level output that can be used to control a logic input or for interfacing to any digital devices for intruder detection, door opening, moving machinery or whatever you need where movement needs to be flagged with no temperature difference required.
• This is a microwave sensor module specifically for detecting moving objects (such as animals, vehicles, etc.) and human body. This microwave sensor module is widely used in human body sensing lighting system, anti-theft alarm system, Automatic lighting, smart home, etc.
• The microwave radar module RCWL-0516 has many advantages such as high sensitivity, long sensing distance, wide sensing angle, high reliability, high penetrating detection capability， wide range of operating voltage.
• Packege contains: 5 pieces of RCWL-0516 motion sensor module. Transmission signal processing control chip RCWL-9196, wide operating voltage range: 4.0-28.0V. Output voltage: 3.3V (from 3V3 pin). Operating current: less than 3 mA

Packege contains: 5 pieces of RCWL-0516 motion sensor module An alternative to the infra red detectors, and as module can see through walls etc. Non thermal movement detection. Compared with the traditional infrared feeling PIR, with the penetrating detection capability. This module is a sensitive doppler radar that detects movement without the use of a PIR. Standard logic level output that can be used to control a logic input or for interfacing to any digital devices for intruder detection, door opening, moving machinery or whatever you need where movement needs to be flagged with no temperature difference required. This is a microwave sensor module specifically for detecting moving objects (such as animals, vehicles, etc.) and human body. Widely used in human body sensing lighting system, anti-theft alarm system, Automatic lighting, smart home, etc. The microwave radar module RCWL-0516 has many advantages such as high sensitivity, long sensing distance, wide sensing angle, high reliability, high penetrating detection capability， wide range of operating voltage. Features: Transmission signal processing control chip RCWL-9196 Working voltage: 4-28VDC Operating current: less than 3 mA Output voltage: 3.3V (from 3V3 pin) Output Current: 100mA maximum Output control high level: 3.3V Detecting range: less than 120 degrees taper angle within 7 meters Trigger mode: repeat trigger Delay time: 2 seconds (the default value), by soldering capacitor in different capacities on C-TM pads to adjust it Active Level: high (when it detects a moving object) Output Interface: 3V3 (3.3V power supply output), GND (power ground), OUT (output signal), VIN (power input), CDS (detection can be turned off during the day by soldering an external photoresistor to ground). Only need to use GND / OUT / VIN in general applications.
