JZK 3pcs CD74HC4067 Multiplexer Precise Module, 16-Channel Analog Digital Multiplexer Breakout Board Module 2V-6V

• 2V to 6V operation. “On” resistance: 70 Ohms @ 4.5V . 6ns break-before-make @ 4.5V . Wide operating temperature range: -55C to 125C. Analog signal input: C0-C15/16 channel. Analog output: DIG . Channel control: S0-S3 .

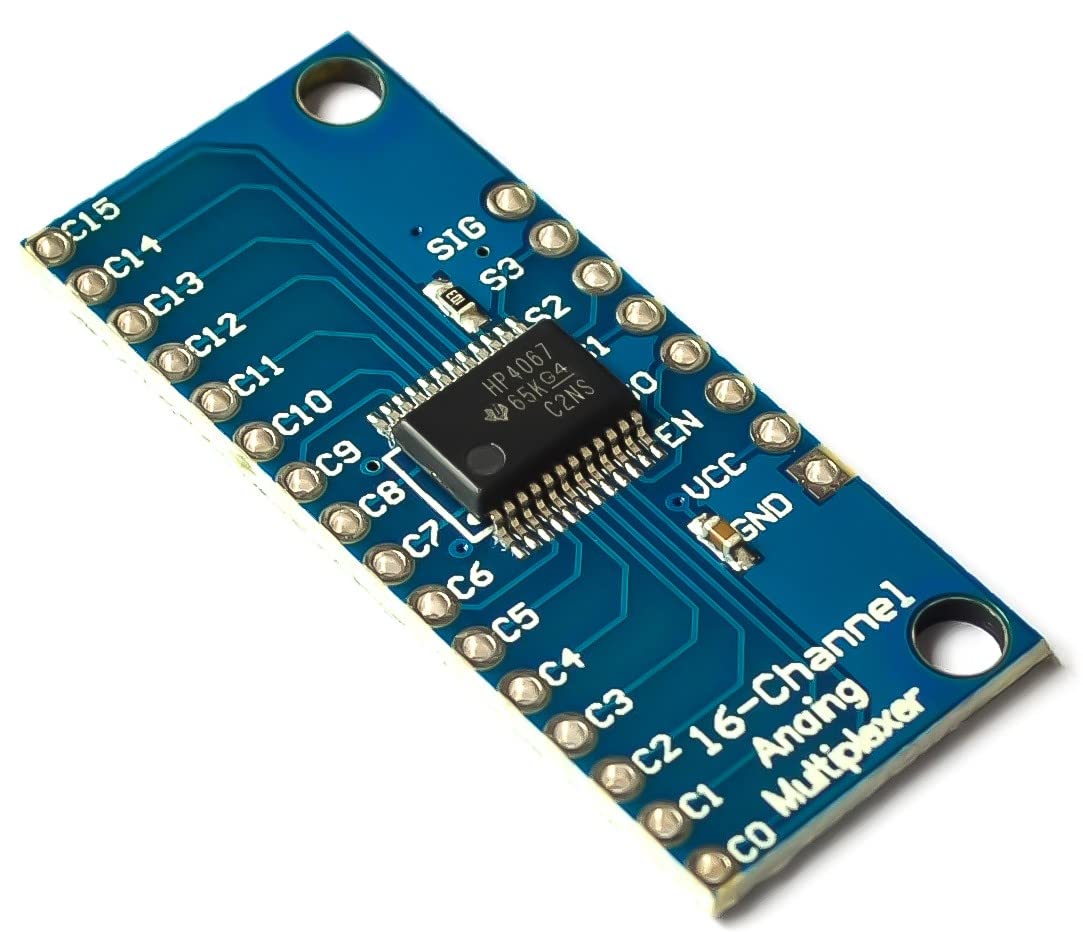

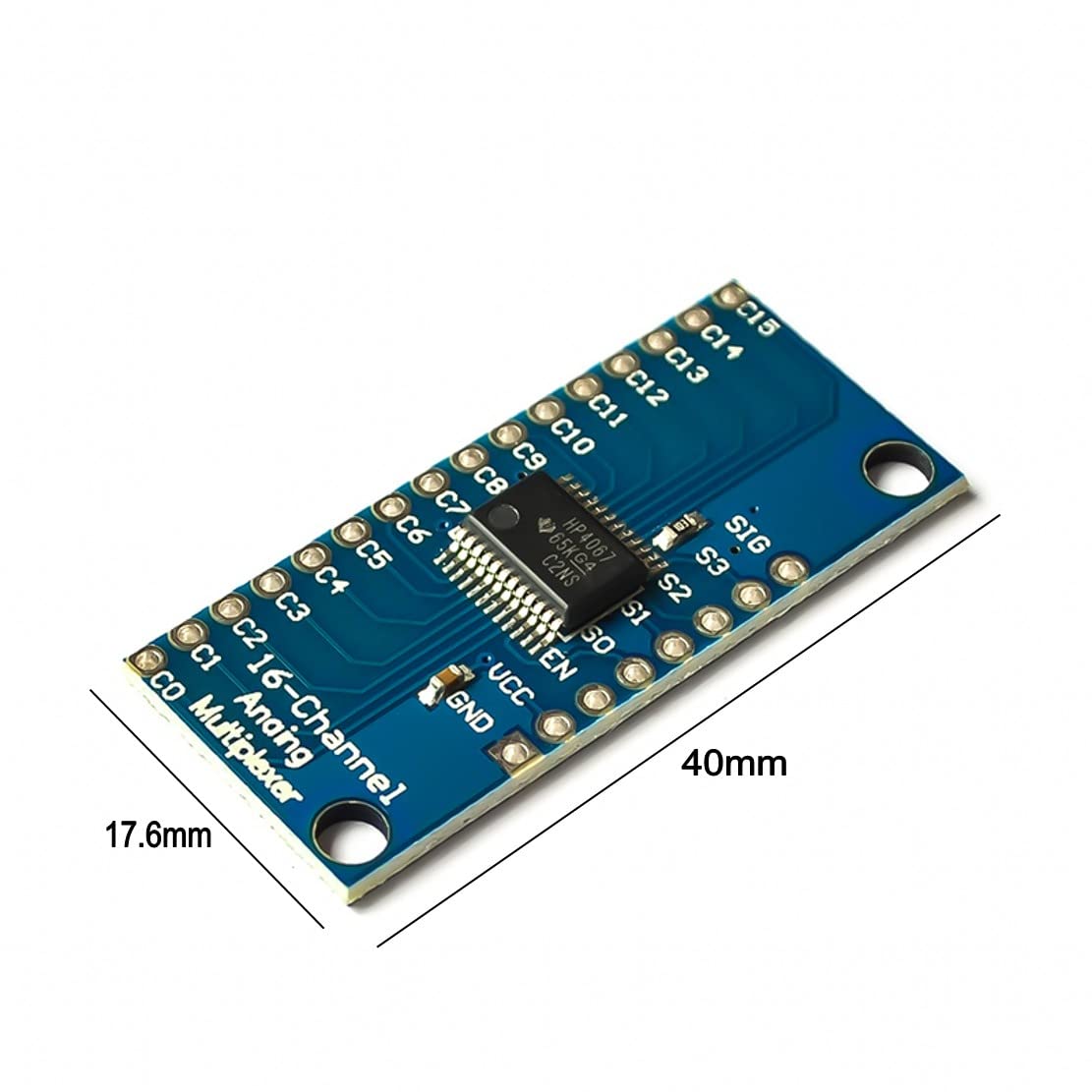

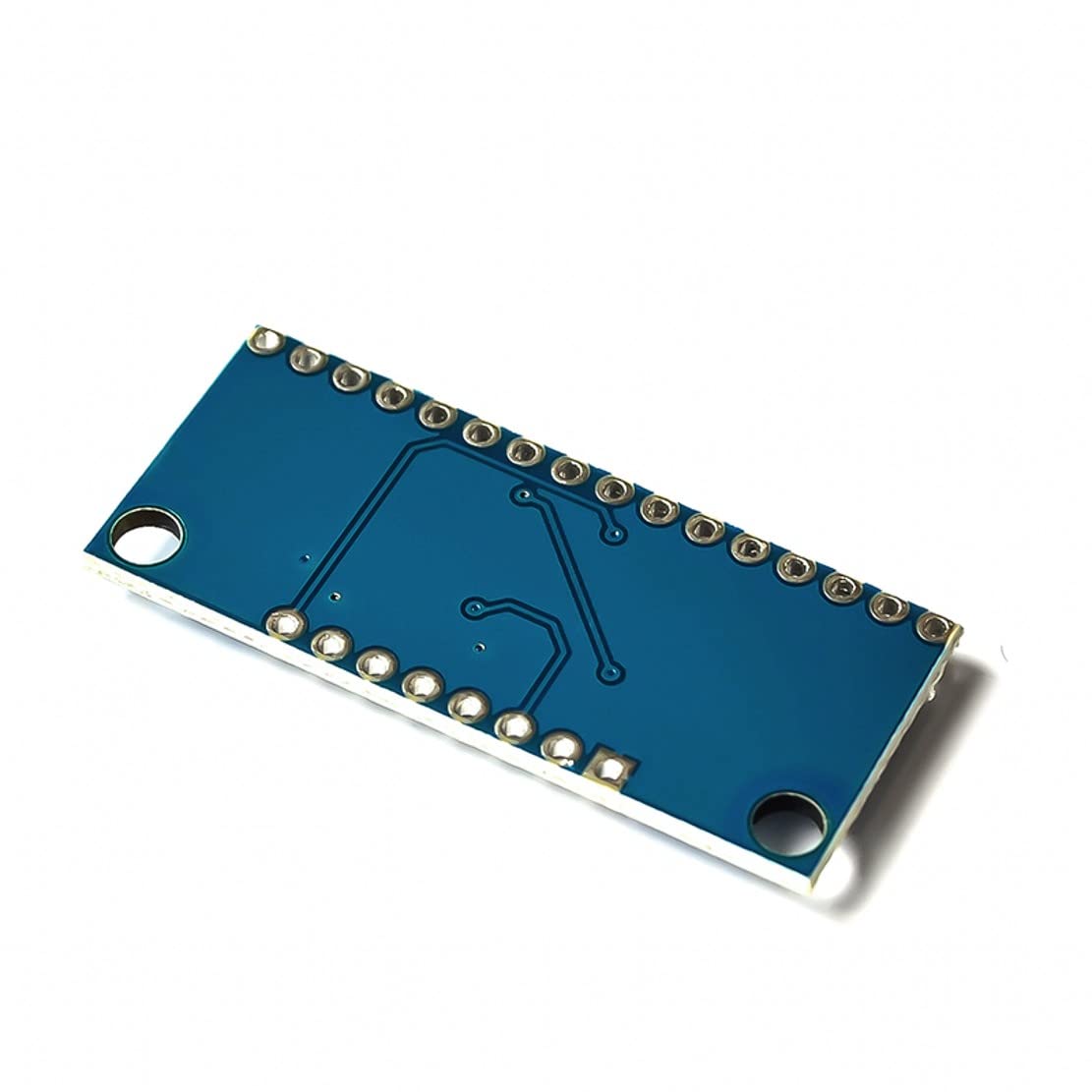

• This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins .
• It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction.
• To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want. This allows you to connect up to 16 sensors to your system using only 5 pins!
• The internal switches are bidirectional, support voltages between ground and VCC, have low “on” resistance and low “off” leakage, and to prevent crosstalk, perform “break-before-make” switching. The board also breaks out the chip’s “enable” pin, which when driven high, will completely disconnect the common pin (all switches “off”).

Package Includes: 3 x CD74HC4067 Multiplexer Module Specifications: 2V to 6V operation. “On” resistance: 70 Ohms @ 4.5V . 6ns break-before-make @ 4.5V . Wide operating temperature range: -55C to 125C. Analog signal input: C0-C15/16 channel. Analog output: DIG . Channel control: S0-S3 . This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins . It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction.
