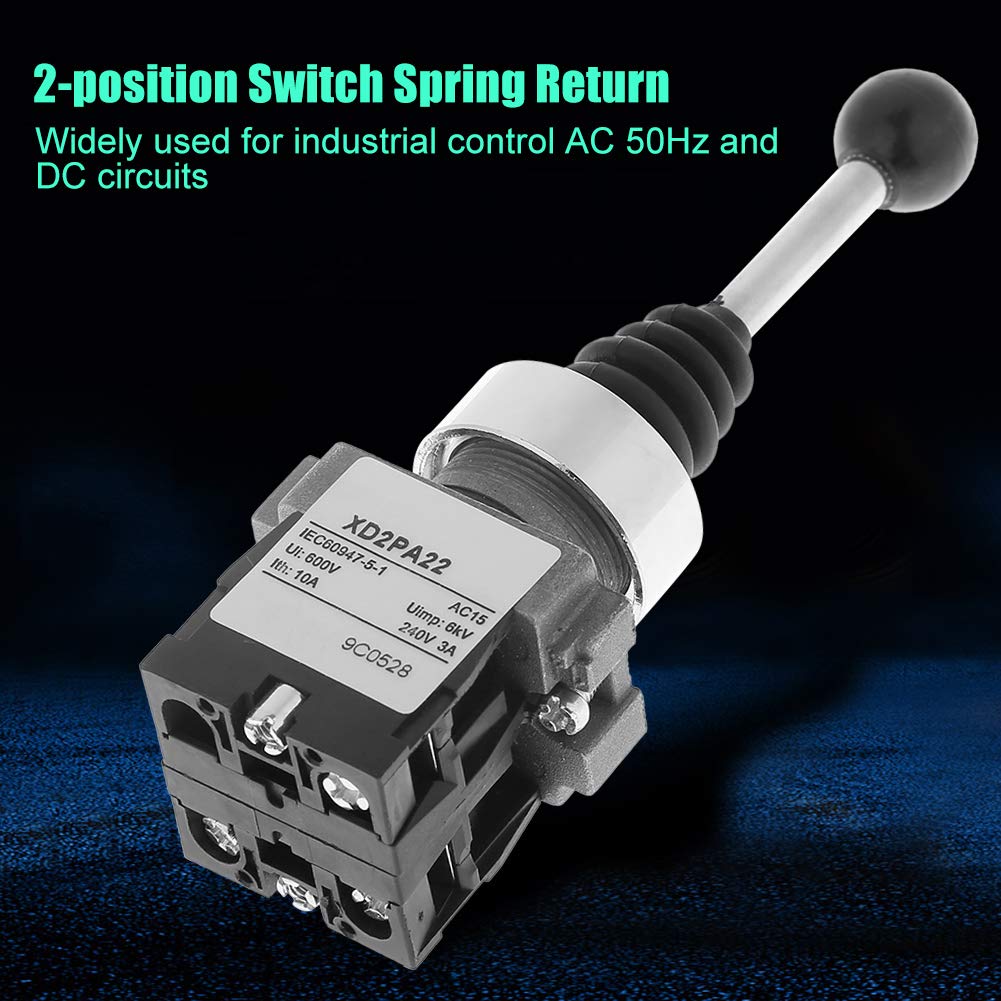

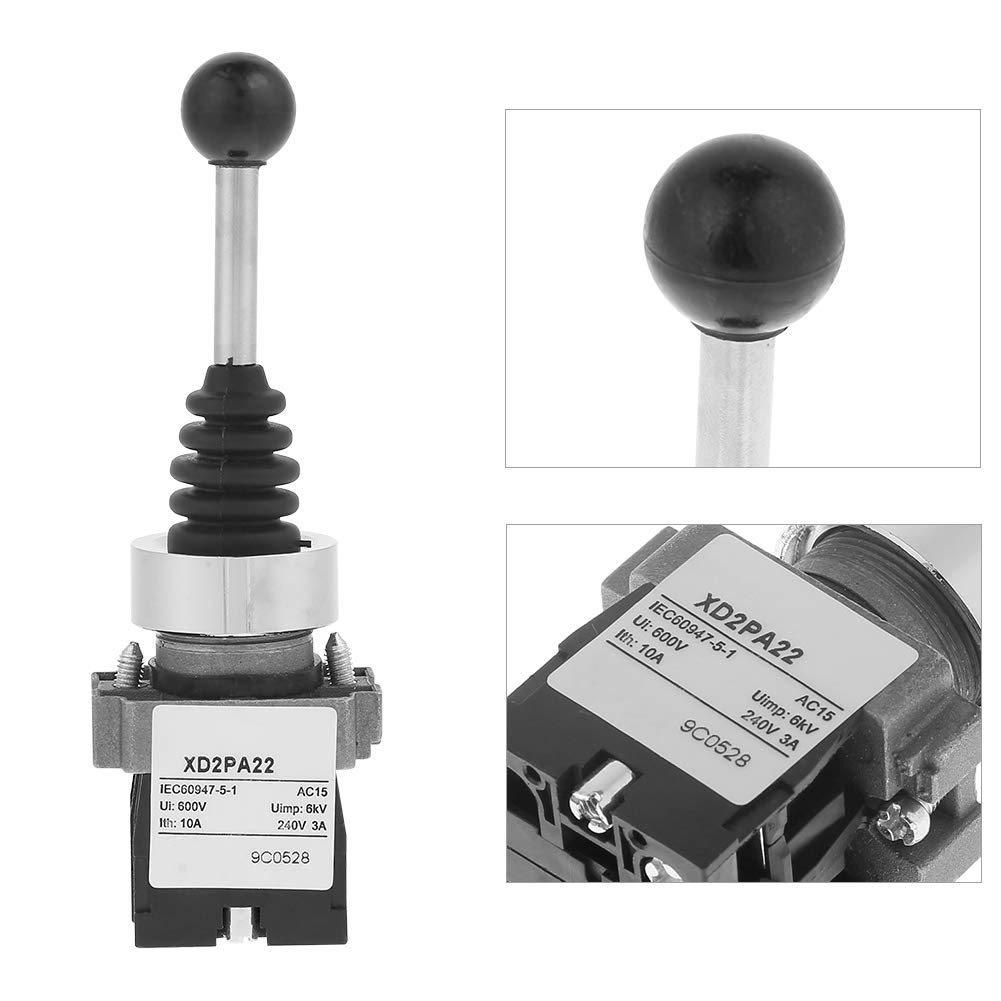

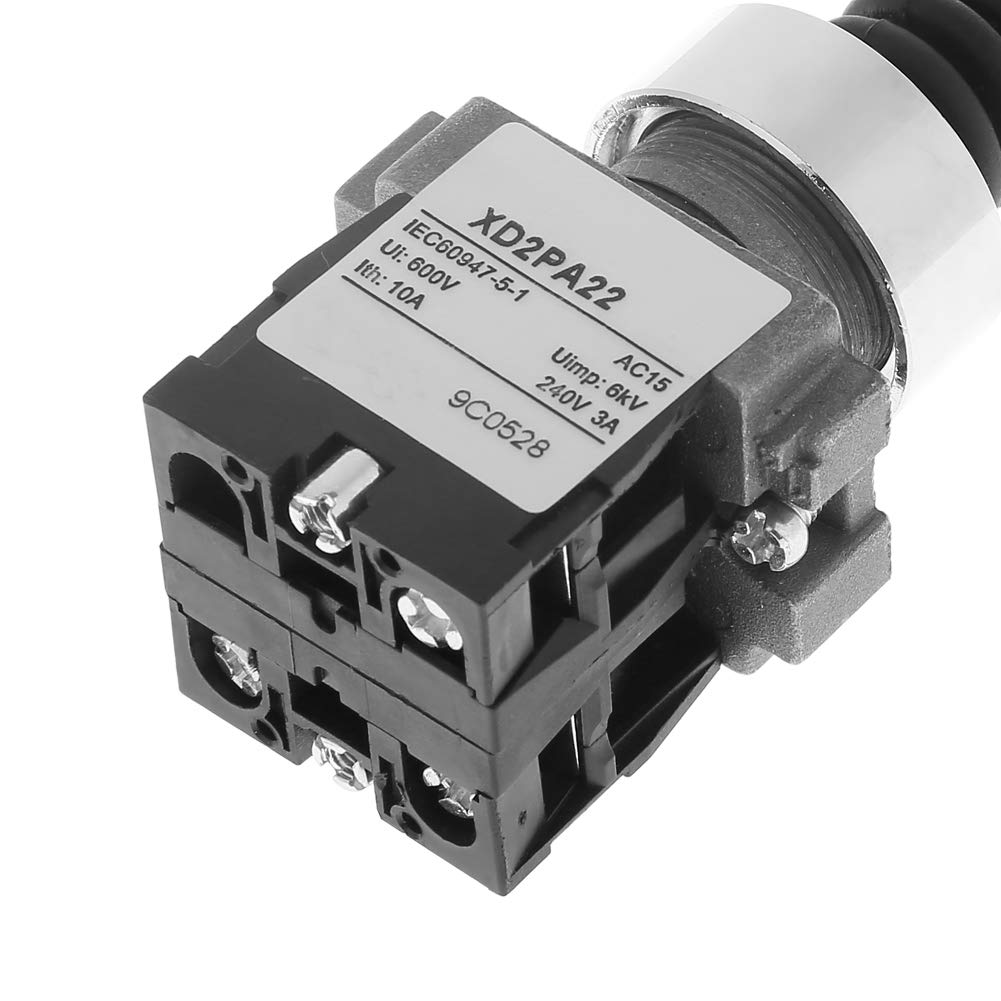

Regun 2-Position Joystick Momentary Switch, 2NO, Spring Return, Panel Mount, Screw Terminal, Through Hole, Brass Contact, 22mm Mounting Hole, Toggle Switch

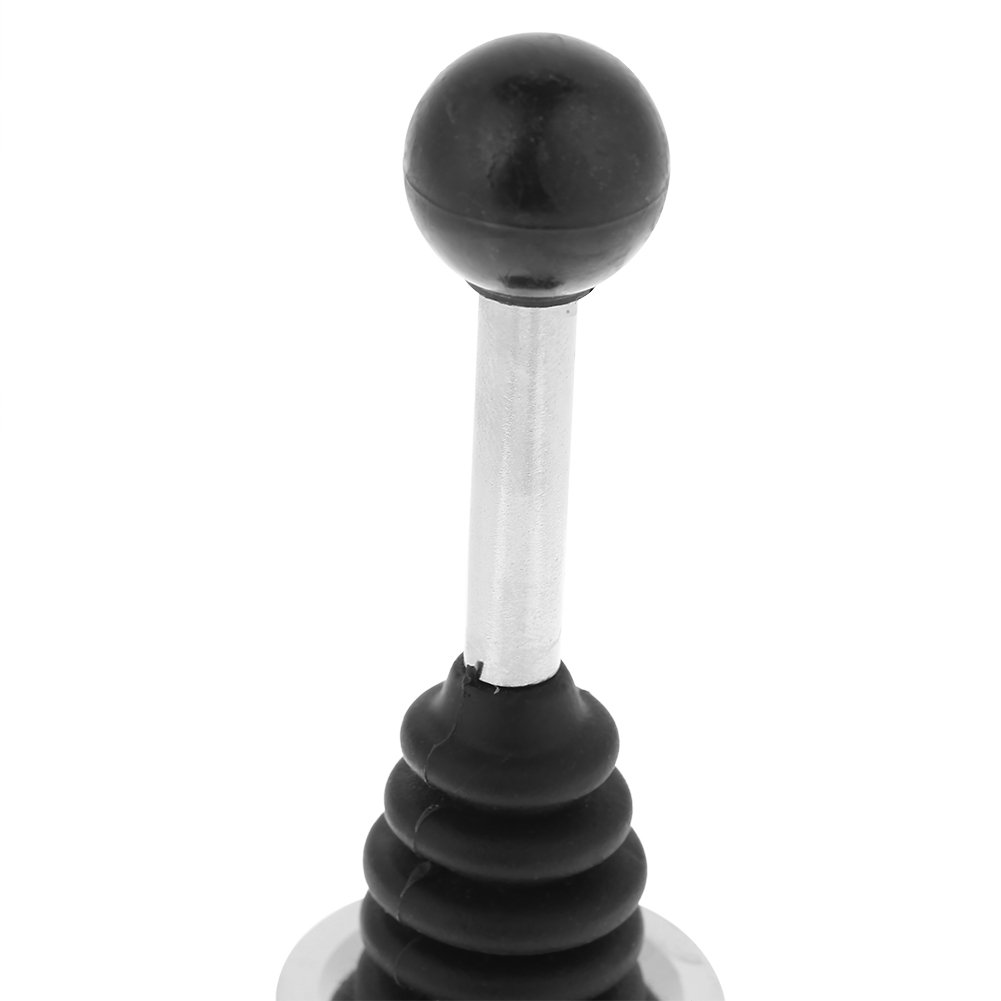

• DURABLE AND PROTECTIVE: The rubber sleeve cover on the stick offers durability and protection against water, oil, and dust. This feature ensures long-lasting performance and reliability, making it suitable for use in various industrial environments.
• EFFICIENT CONTROL: Ensure efficient control with the 2-position Switch. This versatile switch allows for ease of operation and precise control, making it suitable for a wide range of applications in industrial settings.
• ENHANCED FUNCTIONALITY: The 2NO Joystick Switch features two normally open contacts, providing enhanced functionality in control circuits. It allows for versatile and precise control of industrial equipment and electrical circuits, ensuring efficient operation.
• EFFORTLESS RETURN: Experience effortless operation with the Spring Return Switch. Once released, the stick will automatically return to its original position, promoting ease of use and eliminating the need for manual resetting.
• WIDELY USED FOR CONTROL: The Joystick Switch is widely used for industrial control in both AC 50Hz and DC circuits. Its versatility and compatibility make it a popular choice for controlling magnetic starters, contactors, relays, and other electrical circuits.

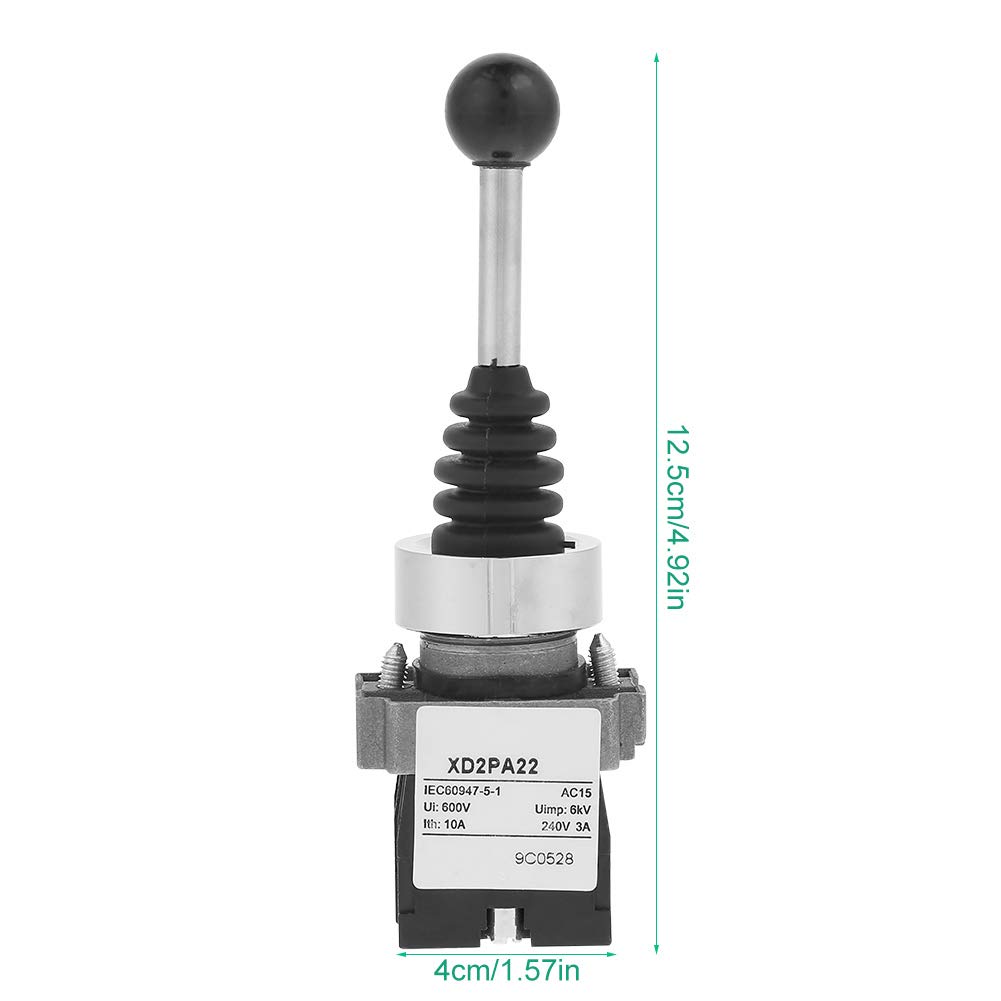

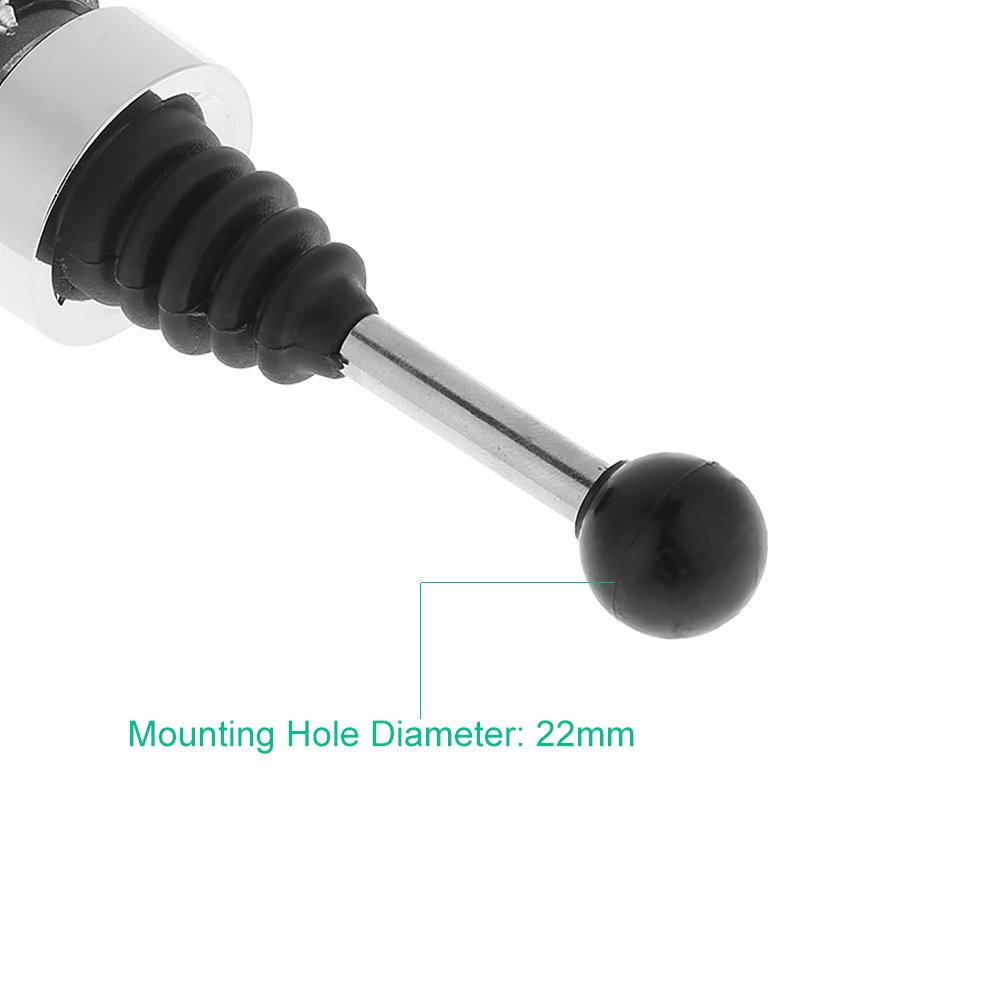

Specifications: Model: XD2-PA22CR Type: 2-position momentary Contact: 2NO Rated Voltage: 0~380V AC (50Hz); 0~220V DC Mounting Hole Diameter: 22mm Electrical Life: >500,000times Mechanical Life: >500, 000times Size: 12.5*4cm/4.9*1.6in Operating Temperature: -25~+55℃ (no ice) Operating Humidity: 45~85%RH (no condensation) Contact Resistance: ≤50mΩ Isolation Resistance: ≥100Ω Max. Withstand Voltage: 3000V, AC 50Hz Vibratility: 50Hz, amplitude is about 1mm Shock Resistance: >10m/s² (about 10G) IP Rating: IP55 Weight: 124g(approx.) Package Includes: 1 x Switch
