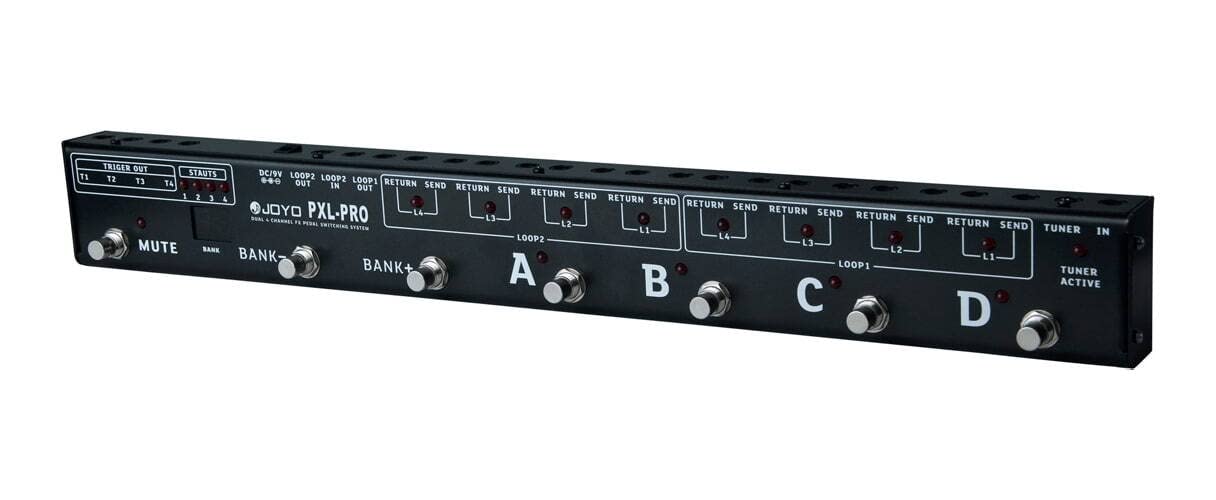

JOYO PXL-PRO - Effect Pedal Loop Switching System with Amp Switching

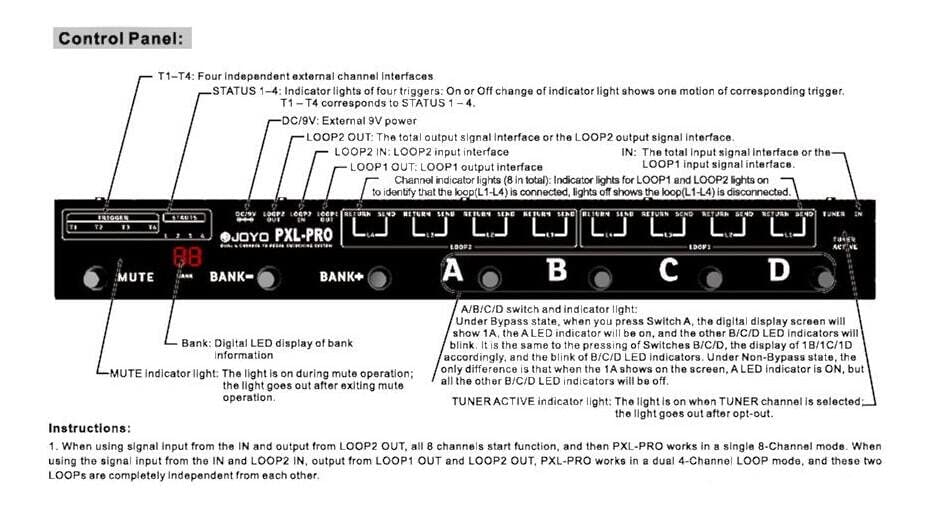

• Total 8 loop channels, used as dual independent 4-channel setting
• Four triggers can be set separately for trigger polarity, mode and action status
• Tuner interface
• Include independent mute switch for keeping mute or tuning
• Store up to 32 effect sets, bypass all loops with a single stomp

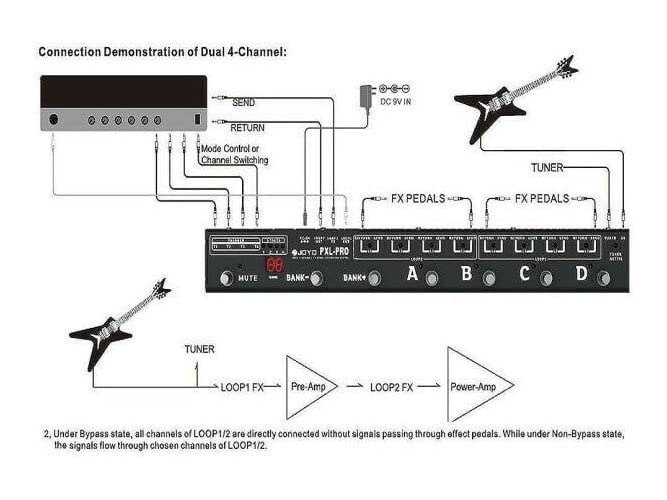

Product Description The PXL-PRO is the big brother of Joyo's PXL8 and PXL4 and has made some great steps forward. Like the PXL8 you have 8 programmable loops for your pedals, but now you can set them up as one series loop of 8 or you can split them into 2 loops of 4. This means that loop one can be for your pre amp effects (OD, distortion etc.) then loop two can be plugged into your amps FX loop and used for post amp effects (delay, reverb etc). Another great new feature of the PXL-PRO is the 4 switch triggers. This means that you can control up to 4 switchable functions on external devices right from the PXL-PRO via 4 1/4 inch jacks (amp channels, effect modes etc.). You can even program each trigger to latch or make a momentary contact and you can also set the polarity (Normally open/Normally closed). Some amps may need a custom cable to work with the PXL-PRO, check with your amps manufacturer for details. Other features include a mute/tuner out switch, store up to 32 effect sets, bypass all loops with a single stomp. In summary this is an AWSOME unit at a great price. Check out the video below for afull demo. Specs. Bypass type: Buffered Bypass Power consumption: 240mA @ 9V DC Weight: 1.68kg Dimensions: 54.1cm x 6.7cm x 5.3cm Box Contains 1x Effect Pedal Loop Switching System with Amp Switching
