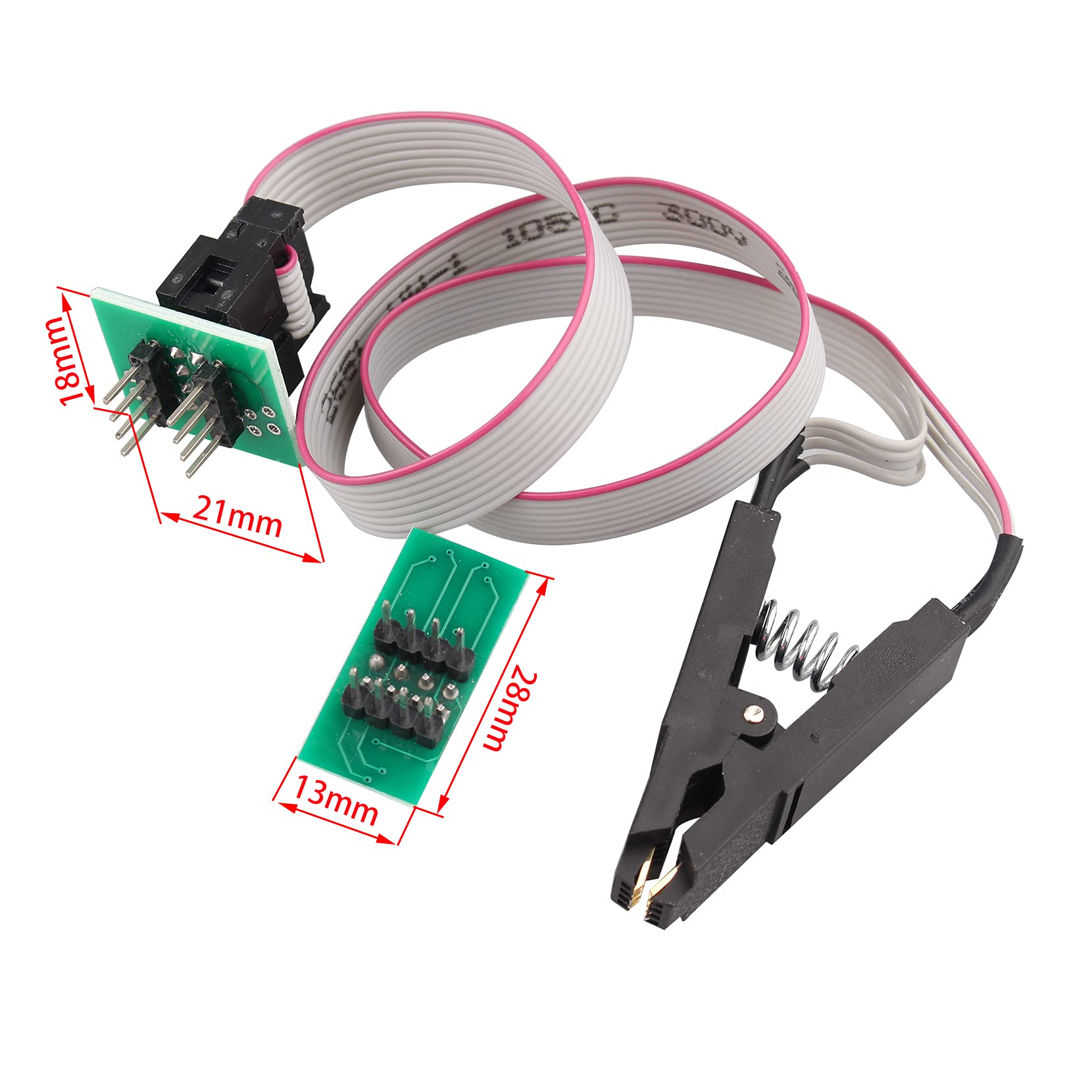

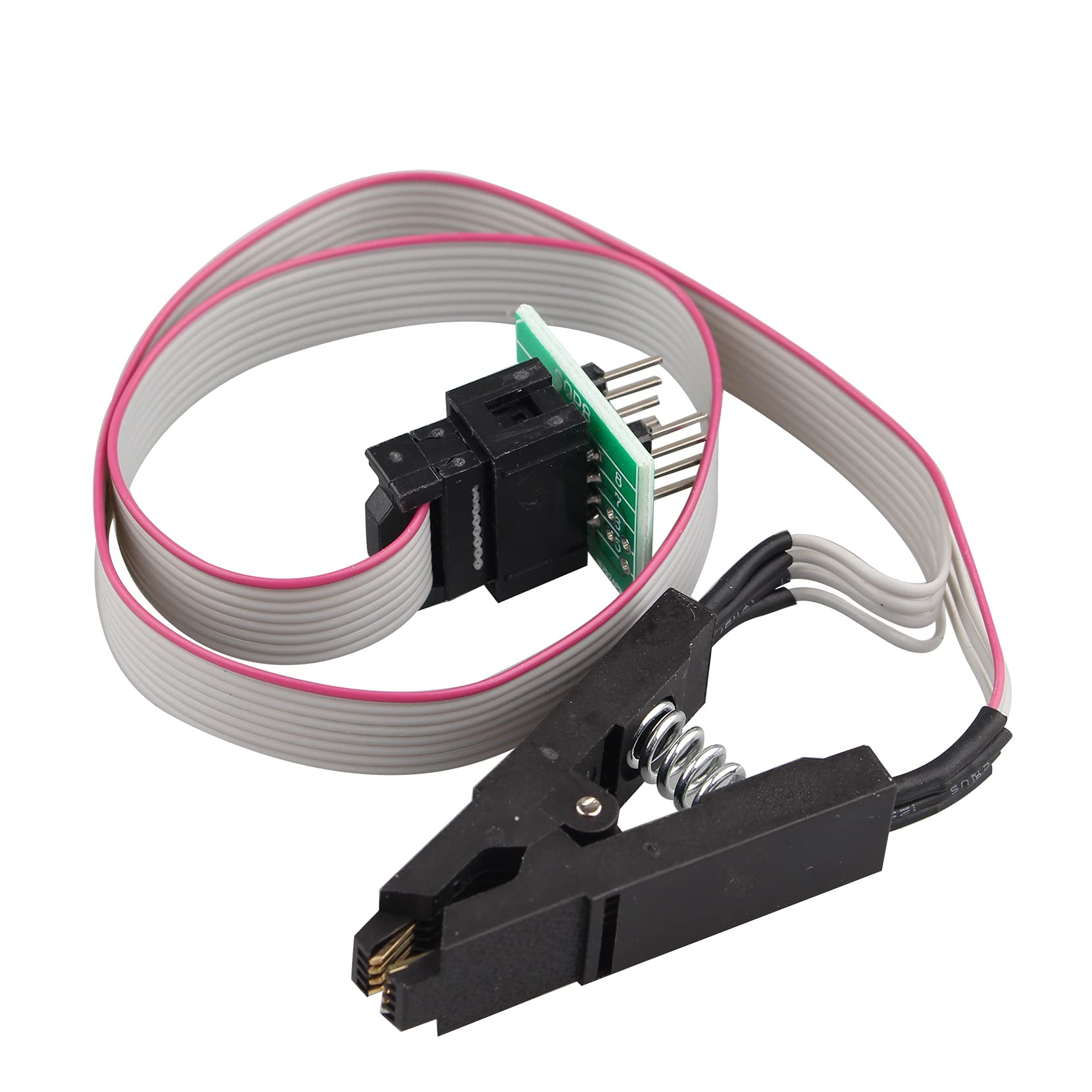

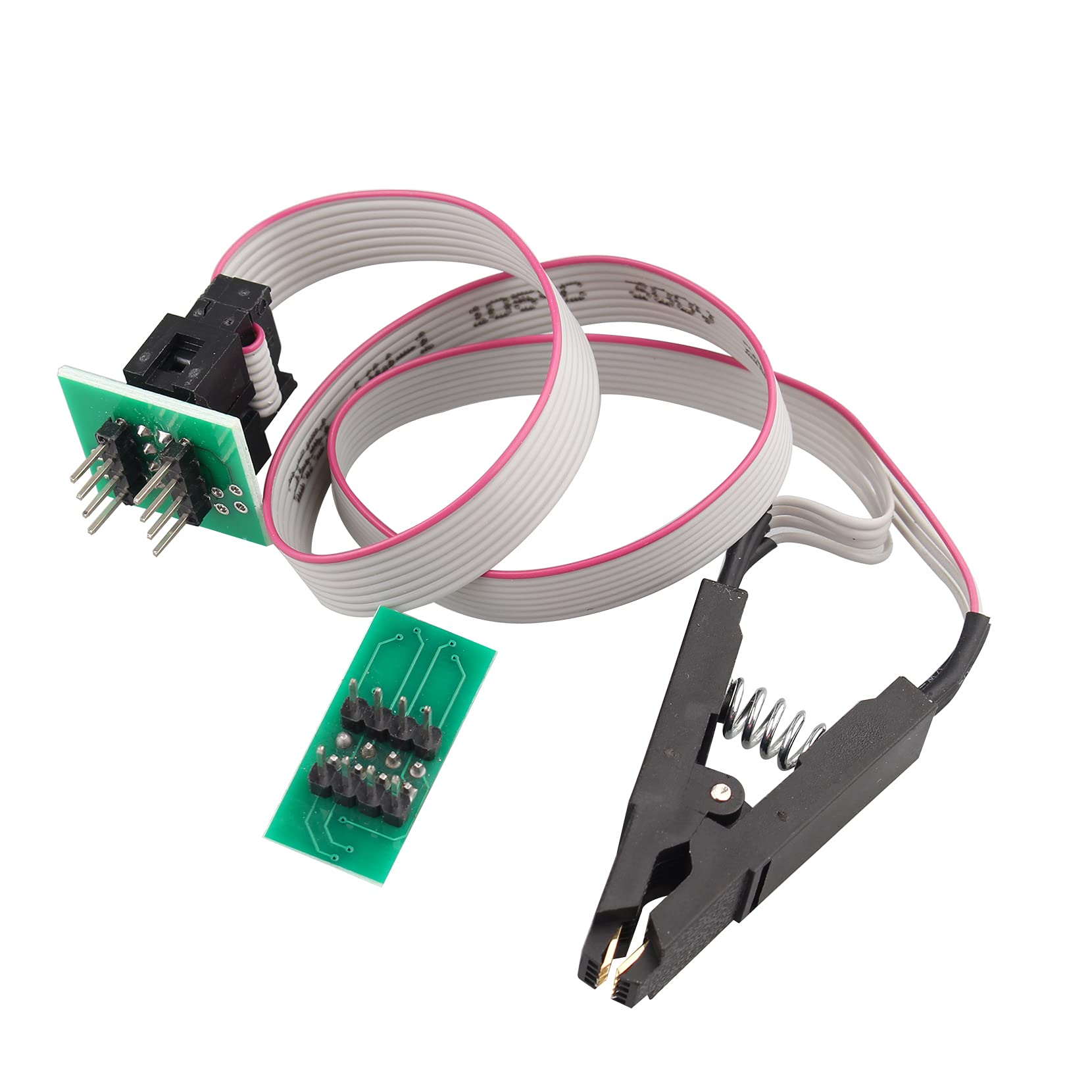

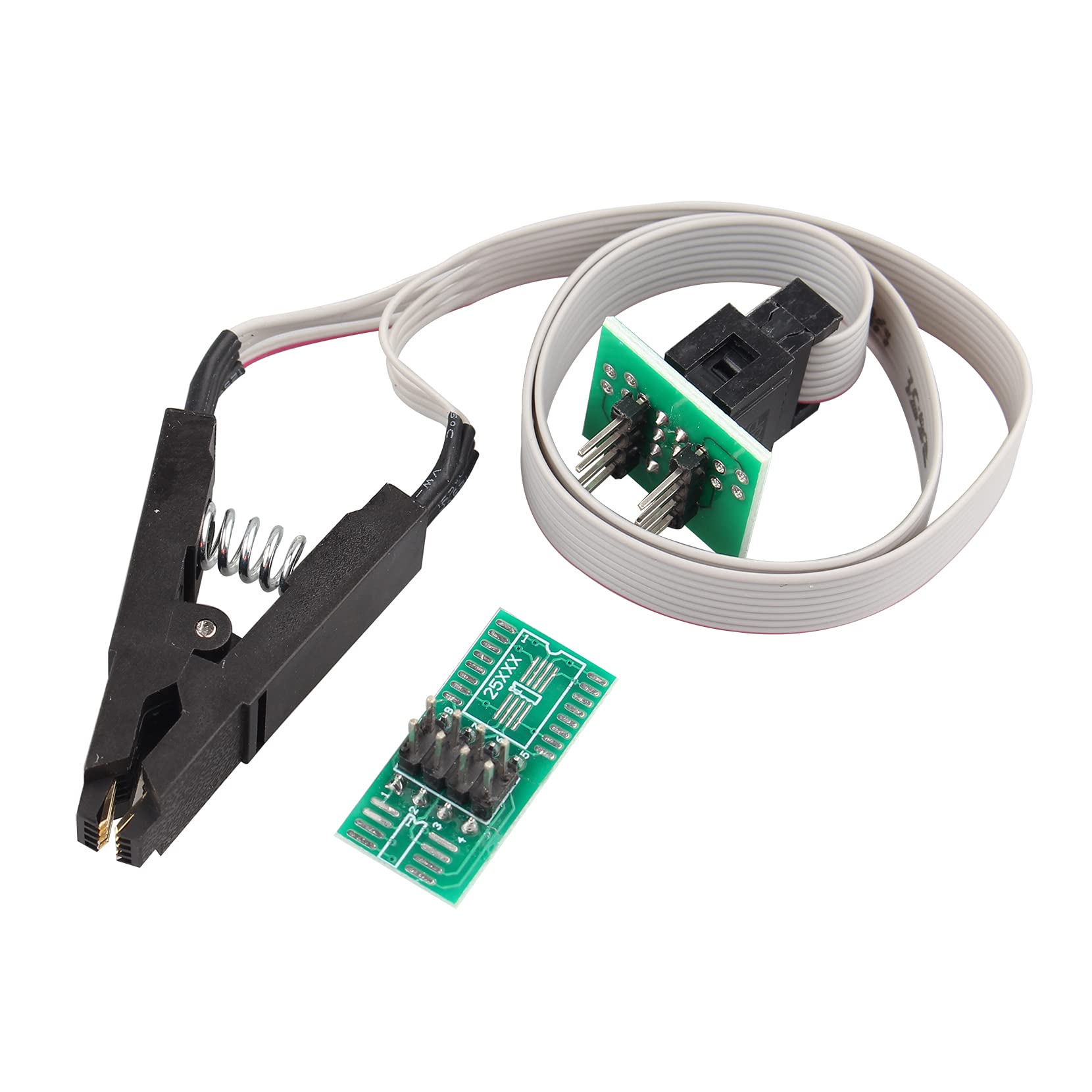

Jopto SOIC8 SOP8 Flash Chip IC Test Clip Programming Socket Adapter Board Cable, SOIC8 SOP8 Test Clip with 2 Adapter Boards Compatible with EEPROM 93CXX/25CXX/24CXX in-circuit Programming

• This product is suitable for SOP8 chips, such as 25, 24C, 93Cand so on.
• Can be used to connect SOP8-DIP8 adapter.
• It is used for a SOP8 chip programming that has been soldered on the circuit.
• It can online programming the SOP8 chip.
• No need to take the chip from the circuit board, so that it can save time and labor.

Features: This item for sop8 chip ,such as 25**, 24c** , 93c** and so on. it can be used for the online in-circuit sop8 -dip8 adapter ,it is used for a sop8 chip programming that has been soldered on circuit board , it can online programming the sop8 chip , do not need take the chip of f the circuit board , so it can save people's time. Caution: Some boards can directly clamp the chip, but some boards cannot be operated in this way, because the chip will be affected by the peripheral circuit on the board, please know before taking the picture, but soldering the chip down is equivalent to a universal socket and can be used directly, and Both wide-body and narrow-body are common. How to use: Many high-power programmers can basically be used normally. When encountering a programmer with a protected function, the clip cannot be read under normal voltage. At this time, a 3.3V voltage needs to be added. The method is: The clip clamps the chip, and the chip corresponds to pin 8. Apply a 3.3V voltage to the pin. Generally, there are two wires for the 3.3V power supply, then VCC corresponds to the clamp, and the other wire is directly grounded. Specification: Connector type: Test Clip Pin format: SOIC / SOP TEST CLIP, SOIC 8/ SOP8 Clip Size: 42 × 26 × 11 mm Cable Length: 35cm Adapter 1: 28 × 13 × 18 mm Adapter 2: 21 × 18 × 20 mm Weight: 18.3 g Package Content: 1 x Test Clip with cable 2 x Adapter Board
