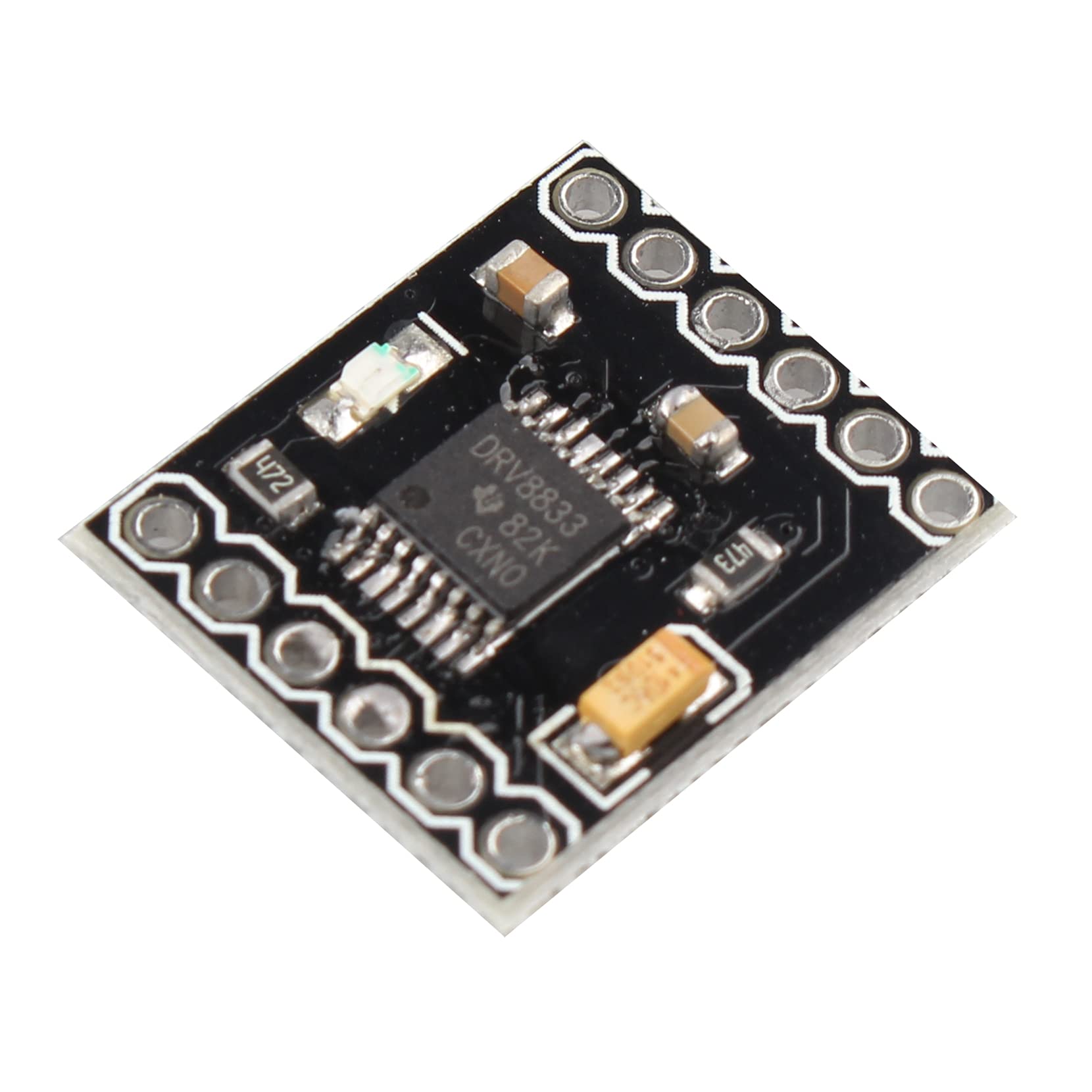

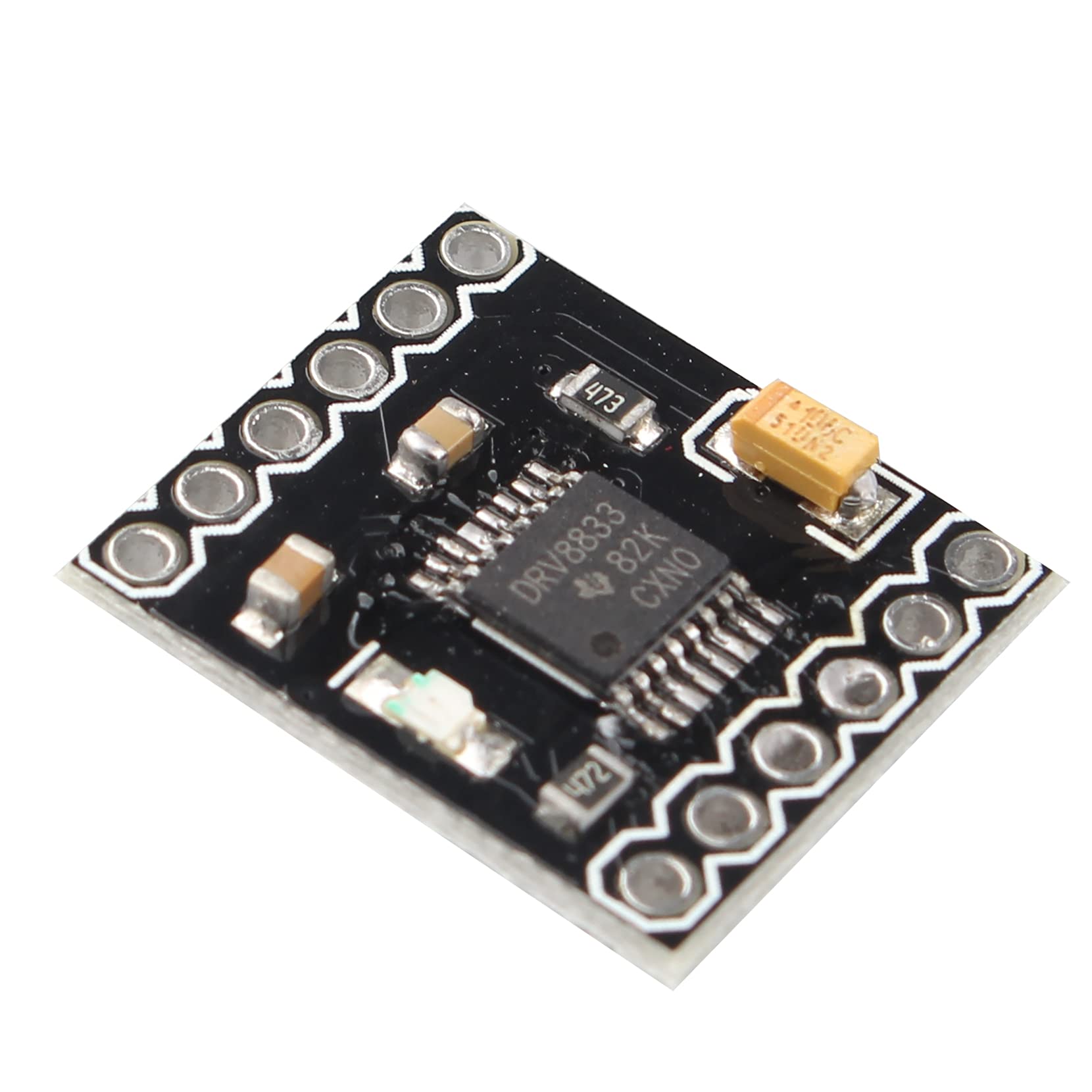

Jopto 5PCS DRV8833 1.5A 2 Channel H Bridge DC Gear Motor Driver Module Board Input Voltage 3-10V Compatible with 3D Printer Arduino

• Driver Chip: DRV8833
• Input voltage: 3-10V
• Single H bridge output current: 1.5A, can drive 2 DC geared motors.
• Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode.
• Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors.

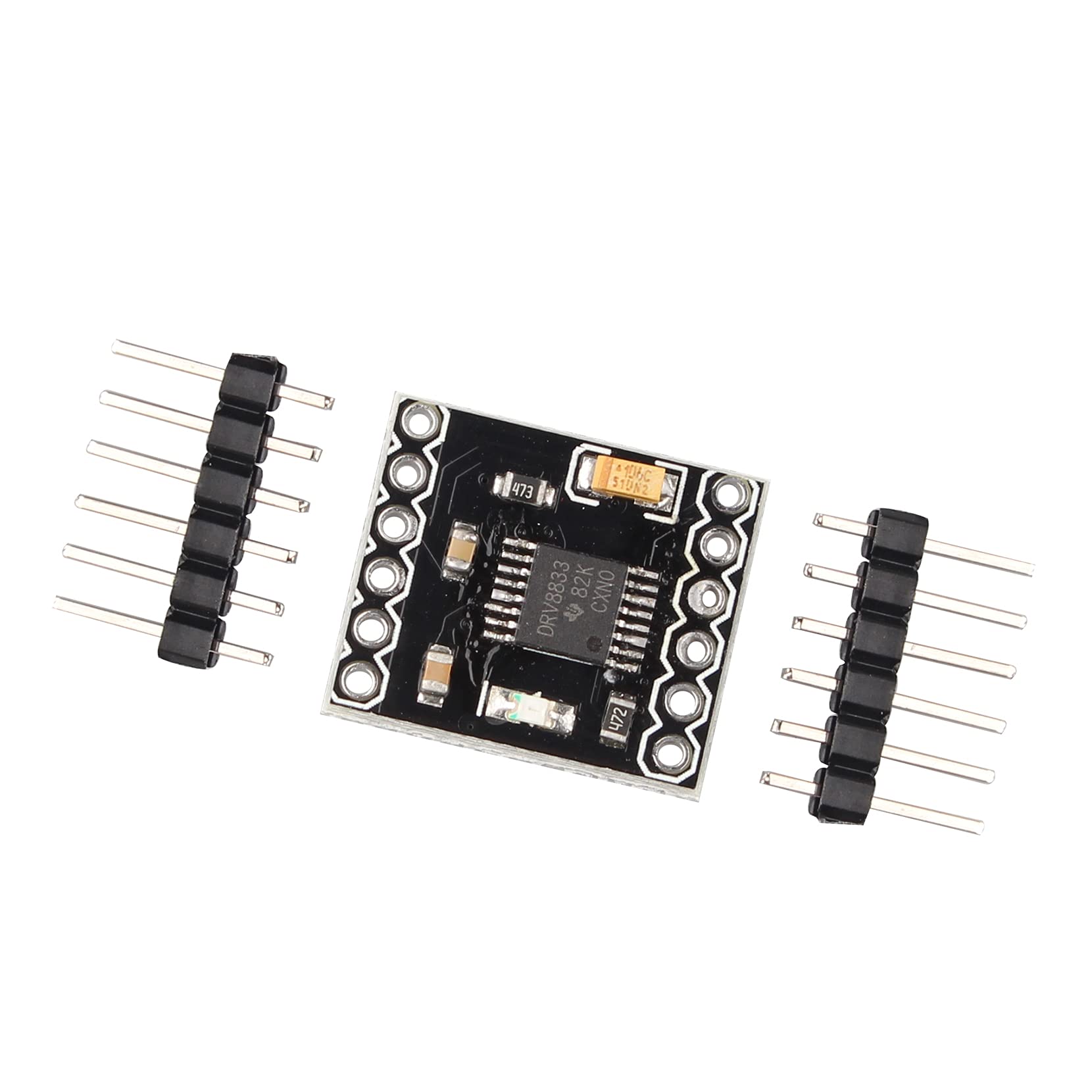

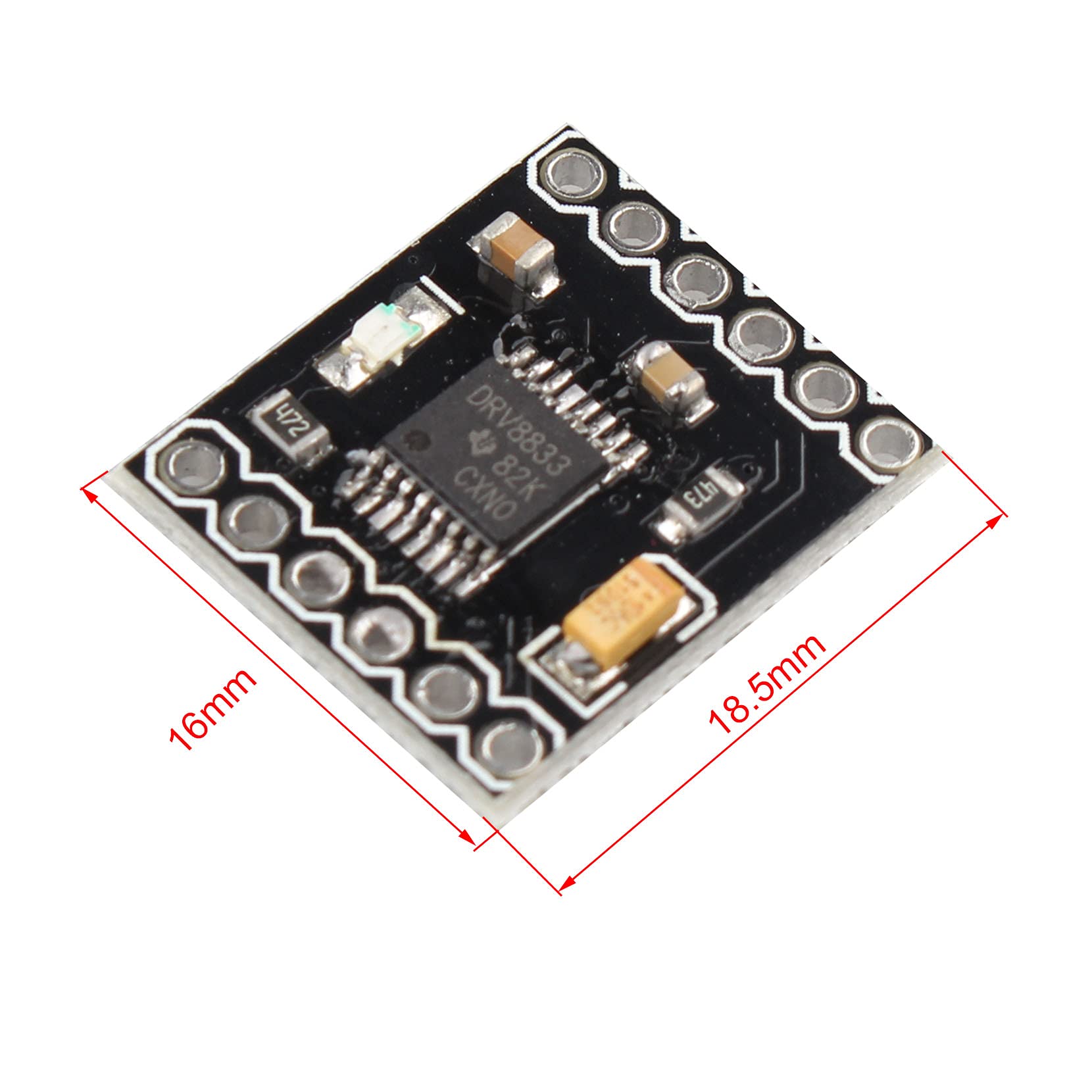

Features: Driver Chip: DRV8833 Input voltage: 3-10V Single H bridge output current: 1.5A, can drive 2 DC geared motors. Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode. Uses: It can drive DC motors up to 1.5A and 4-wire stepper motors. Size: 18.5 × 16 × 3 mm Weight: 1.6g Instructions: ULT low level is sleep mode (need to disconnect the J2 short solder joint behind the module) OUT1, 0UT2 is a 1-way H-bridge, and the corresponding control is IN1, IN2. OUT3, 0UT4 is the second H-bridge, and the corresponding control is IN3, IN4. EEP is the protection output and is not used by default. VCC is a voltage input of 3 to 10V. GND is grounded. Package Content: 5 x DRV8833 Motor Driver Module
