Jopto 2PCS 5V IIC I2C 1602 LCD Display Module 16X2 Character Serial LCD Board Blue Backlight White Character LCD Module Compatible with Arduino UNO R3 2560 Due Raspberry Pi DIY

• Model: I2C 1602 16X2 LCD Display Module; Display: Blue Backlight, White Character

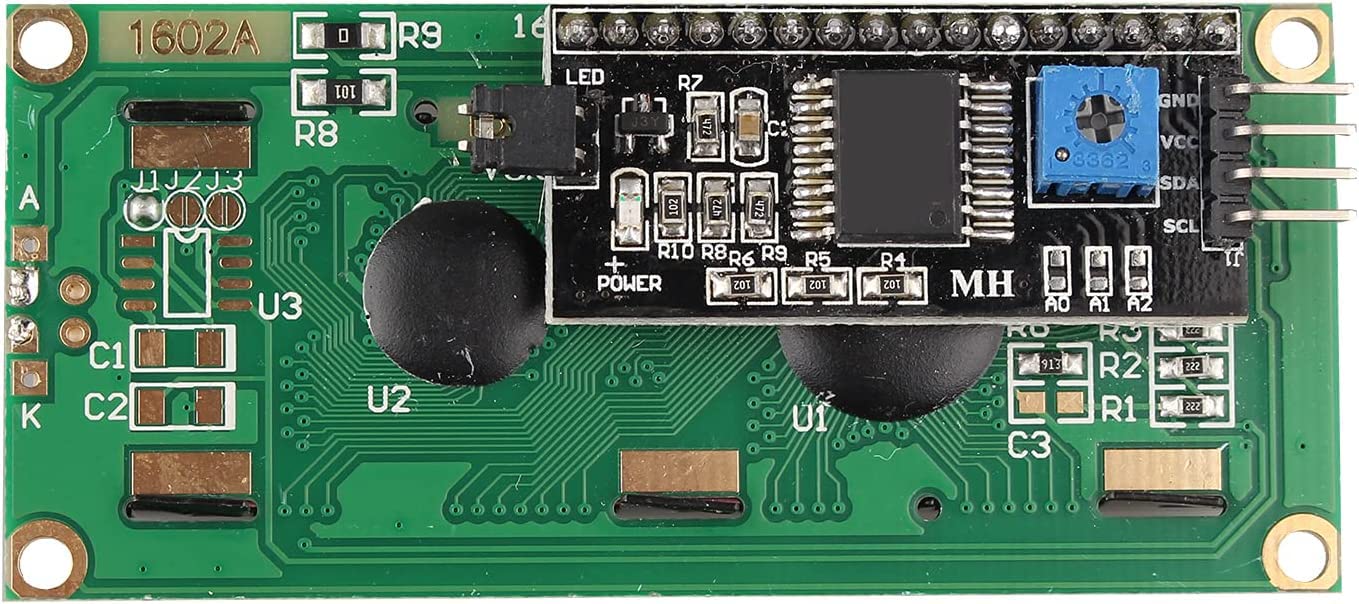

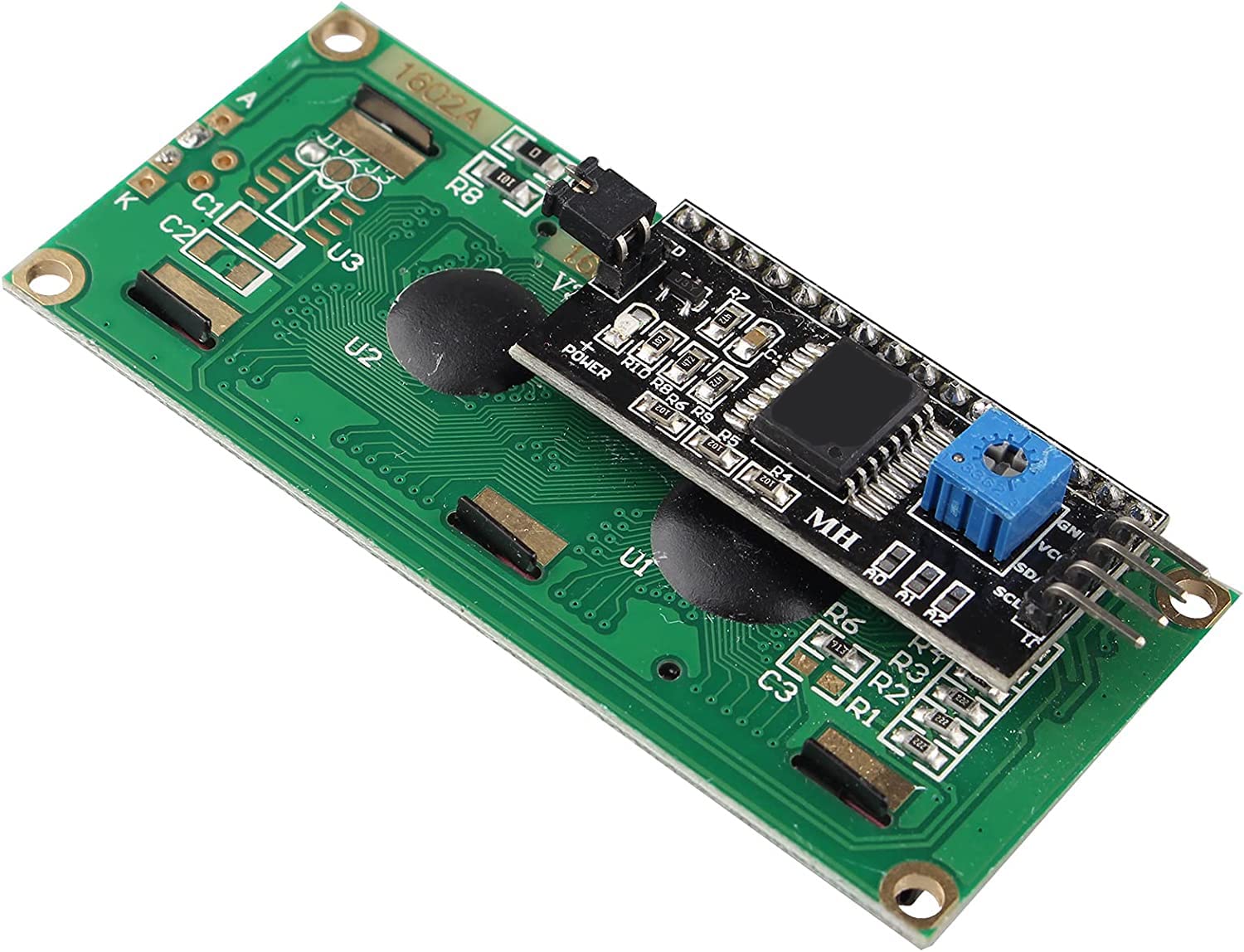

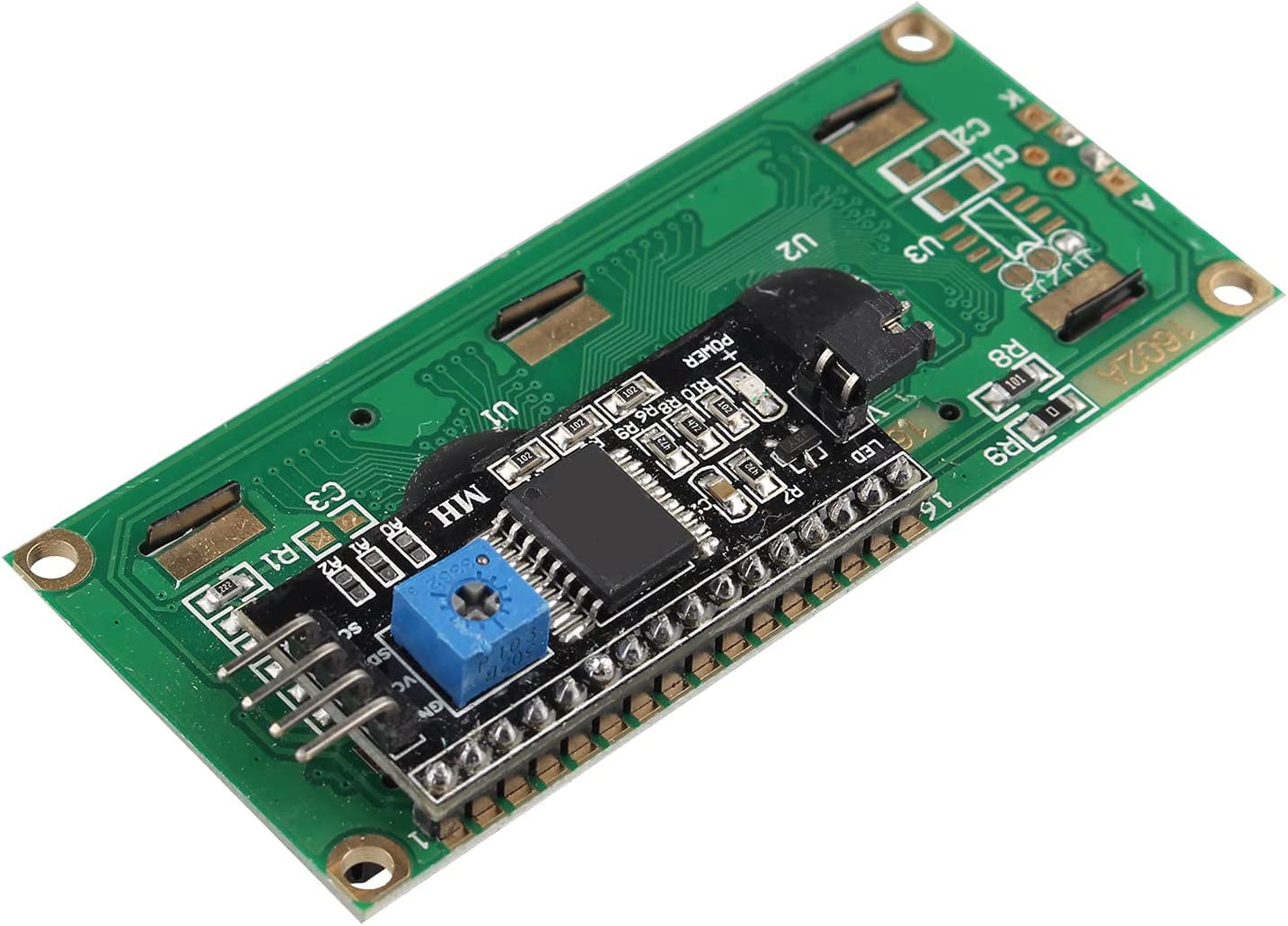

• LCD screen can display 2-lines x 16-characters; The i2c LCD adapter built-in industry standard equivalent LCD controller. Come with a potentiometer, which is applied to adjust backlight and contrast.
• Use the i2c protocol to reduce the occupation of I/O ports, making it easier to add to the project, and less wiring is more beautiful.
• LCD display with I2C serial interface is compatible with for Arduino and Raspberry pi. Compatible with all current development boards, such as Arduino, Raspberry pi, Tinkerboard, Banana pi, stm32 and so on.
• Commonly used in Internet of things, DIY project, home animation, smartbuilding, maker’s DIY project.

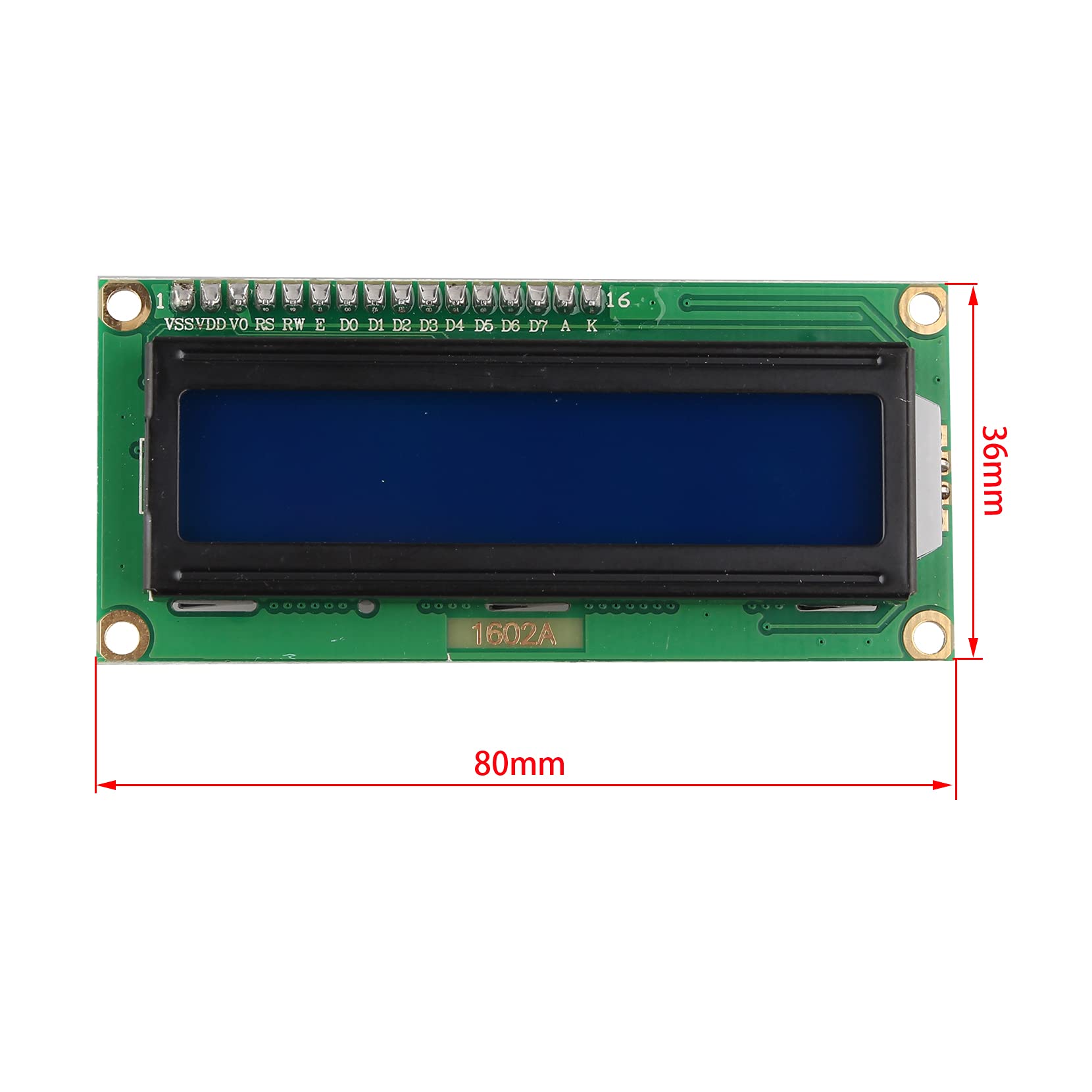

Feature: The principle of the LCD1602 liquid crystal display is to use the physical characteristics of the liquid crystal to control the display area by voltage, that is, the graphic can be displayed. In general, the 1602 uses a standard 16-pin interface, and our display module is a module that provides I2C functionality. It can be operated as long as it supports the I2C development board. For example, the common Arduino, raspberry pi and so on. Widely used for copiers, fax machines, laser printers, industrial test equipment, networking equipment etc. Specification: Display: 2-lines x 16-characters Backlight: blue backlight, white character Wide viewing angle and high contrast. Built-in industry standard equivalent LCD controller. LCM type: Characters Four Pin Definition: GND, VCC, SDA, SCL Working voltage:5V Adjust Contrast: Potentiometer Viewing area size: 64.5mm x 16mm Module dimension: 80mm x 36mm Weight: 34.7 g Package Content: 2 x 1602 IIC/I2C LCD Module for Arduino
