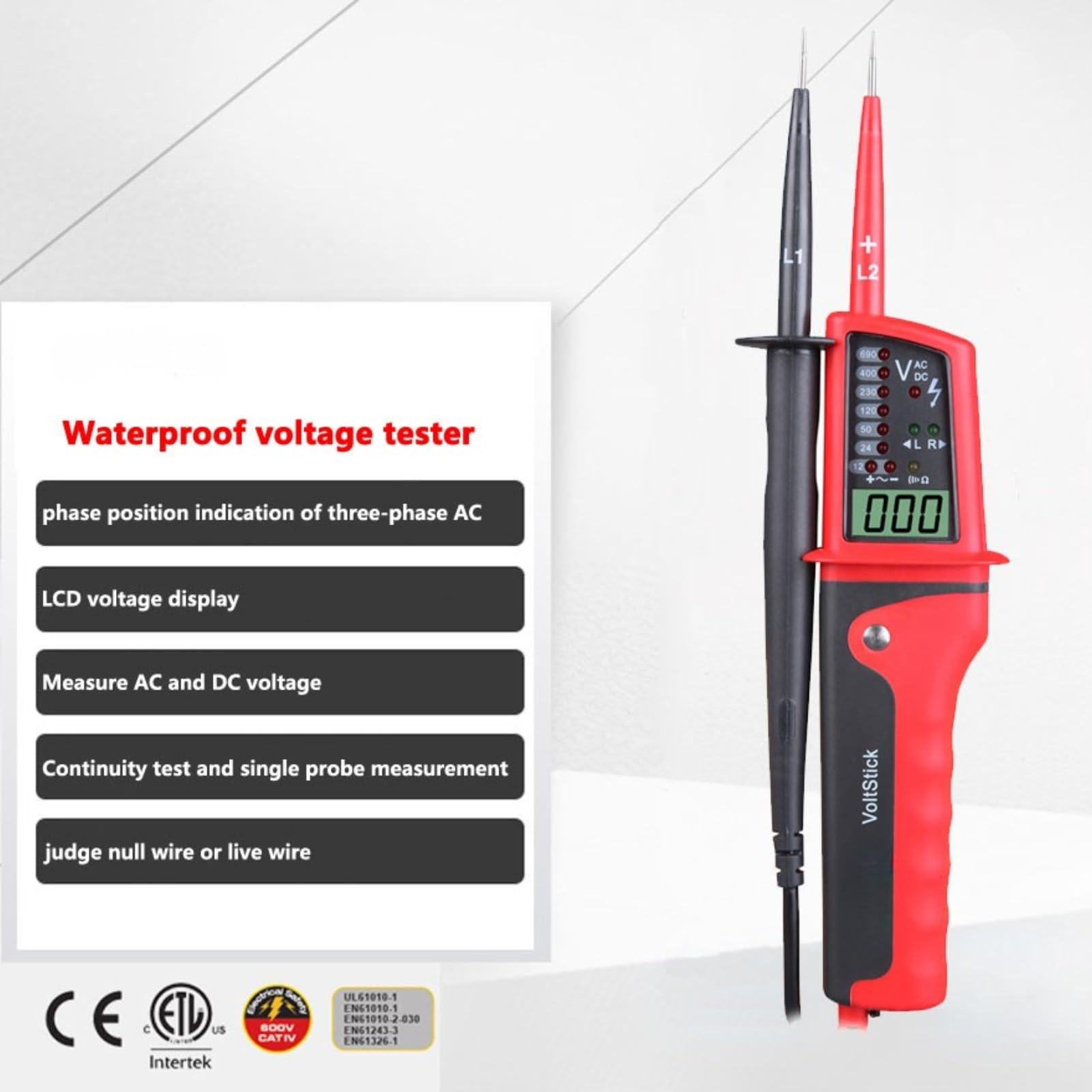

Jadeshay Voltage Tester,12V-690V AC DC Waterproof Digital Voltage Meter Phase Rotation Voltage Tester LCD Display Electric Circuit Testing Multimeter Pen with Auto Range Continuity Polarity Test

• 【Function】The voltage tester with three-phase AC phase indication for measuring AC and DC voltage. With buzzer and LED indication,when the battery is low, the two LEDs are short-circuited and the LED and buzzer are off.

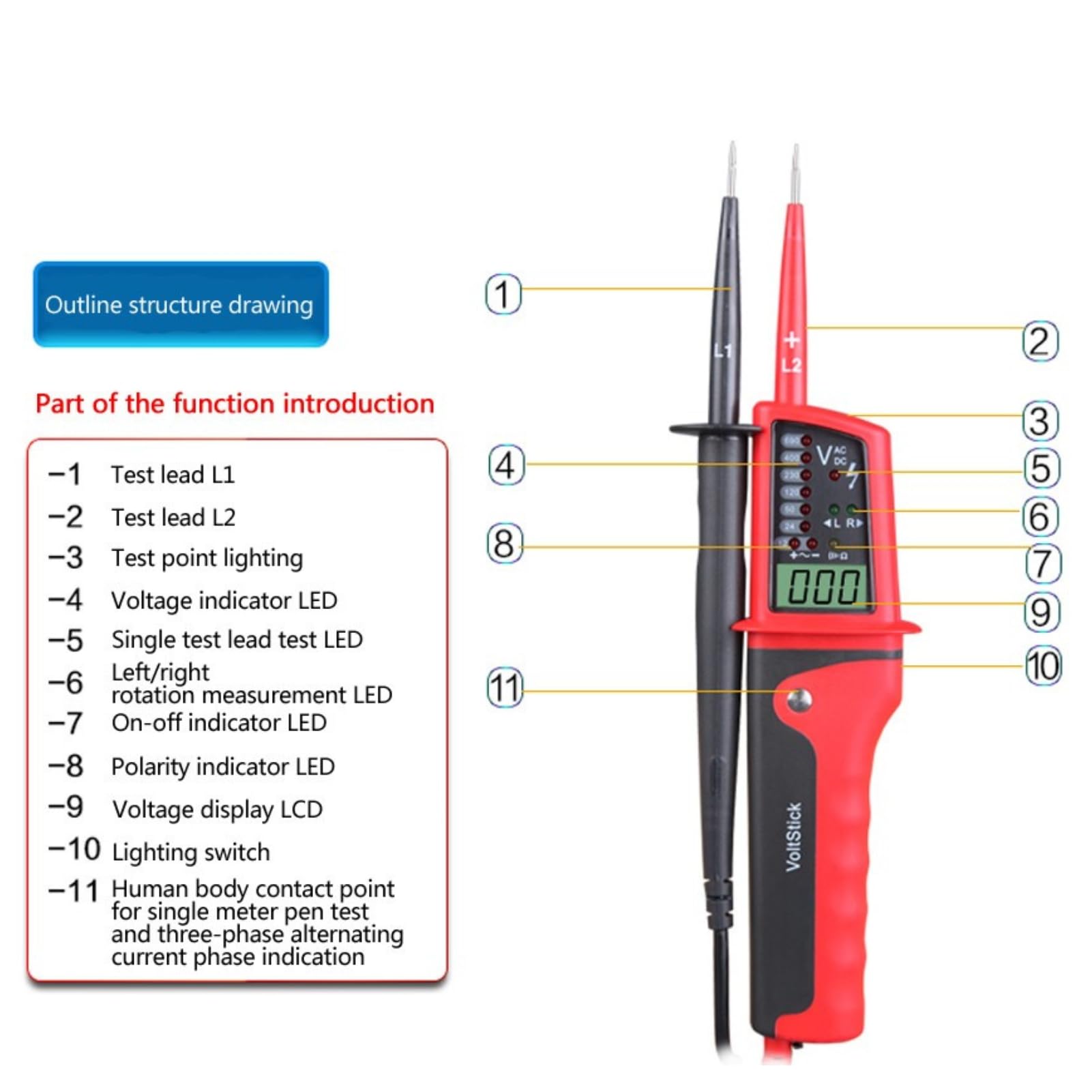

• 【Easy to Use】Support auto range, phase rotation test, continuity test and single-probe measurement, the single probe measurement can judge zero fire line. Polarity prompt, showing the positive and negative power of the driver under test.

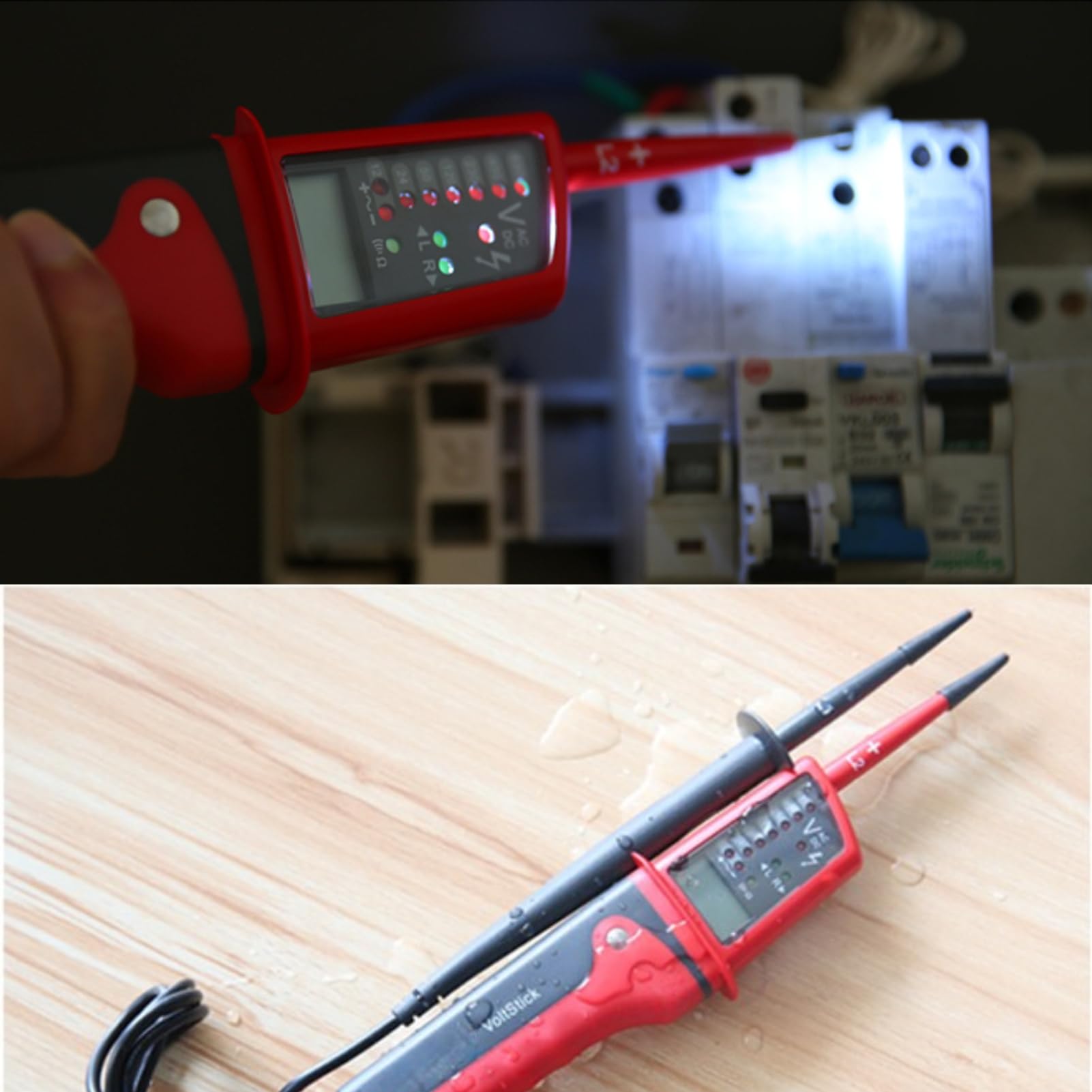

• 【Application】IP65 waterproof grade, waterproof voltage tester can be widely used in smelting, electronics, manufacturing, petrochemical, national defense, electric power, chemical and other industries, ideal tester for breakpoint testing.
• 【Multifunctional Design】Built-in flashlight, this voltage tester meets the requirements of working in the dark environment or at night, adapts to more measurement places and environments, and the low battery indicator reminds you to charge the tester in time.
• 【Lightweight and Compact】Button design, the voltage tester is easy to press, the probe is sensitive, the response is fast, the liquid crystal voltage displays the measurement data in real time, clear and easy to read, the tester is small and compact, and easy to hold.

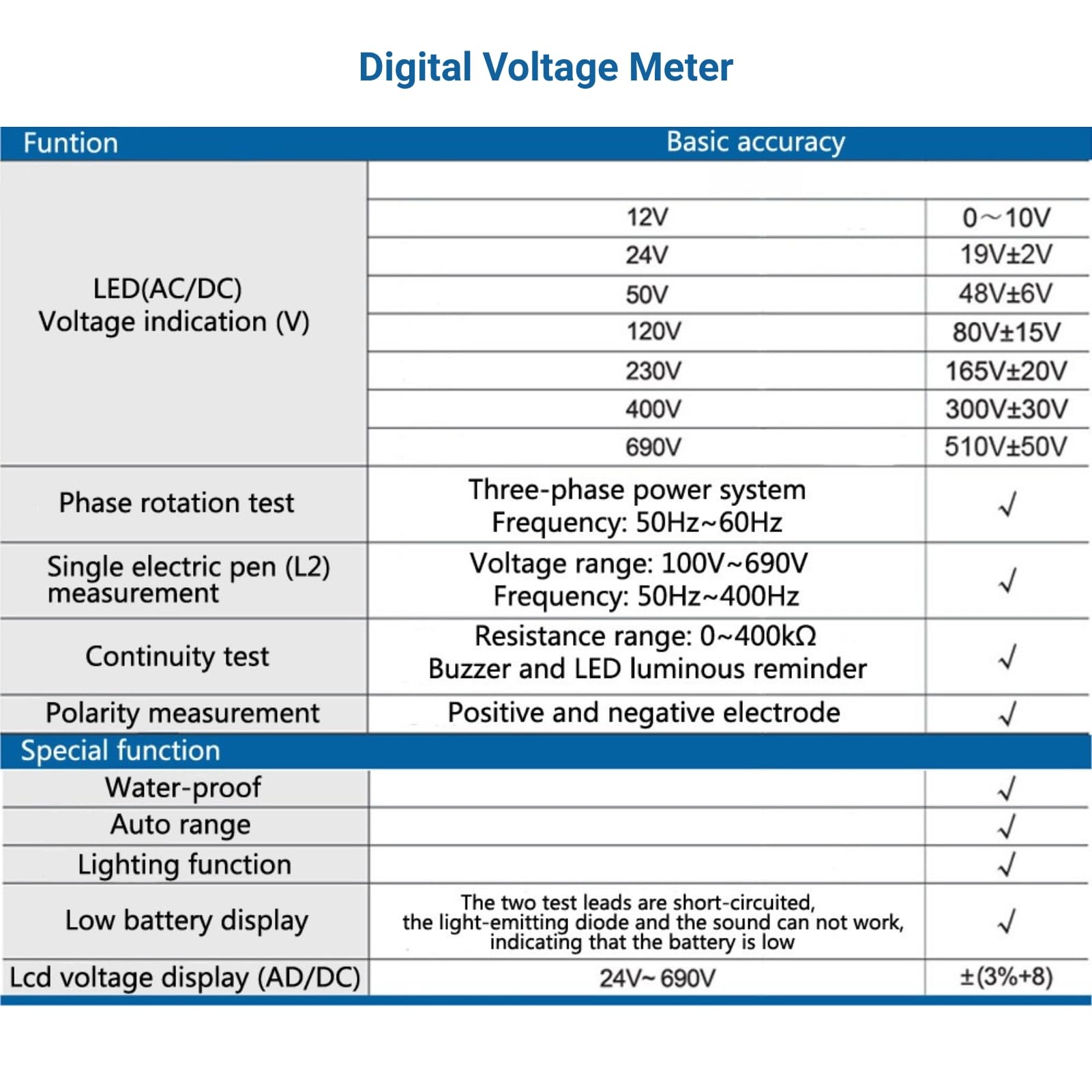

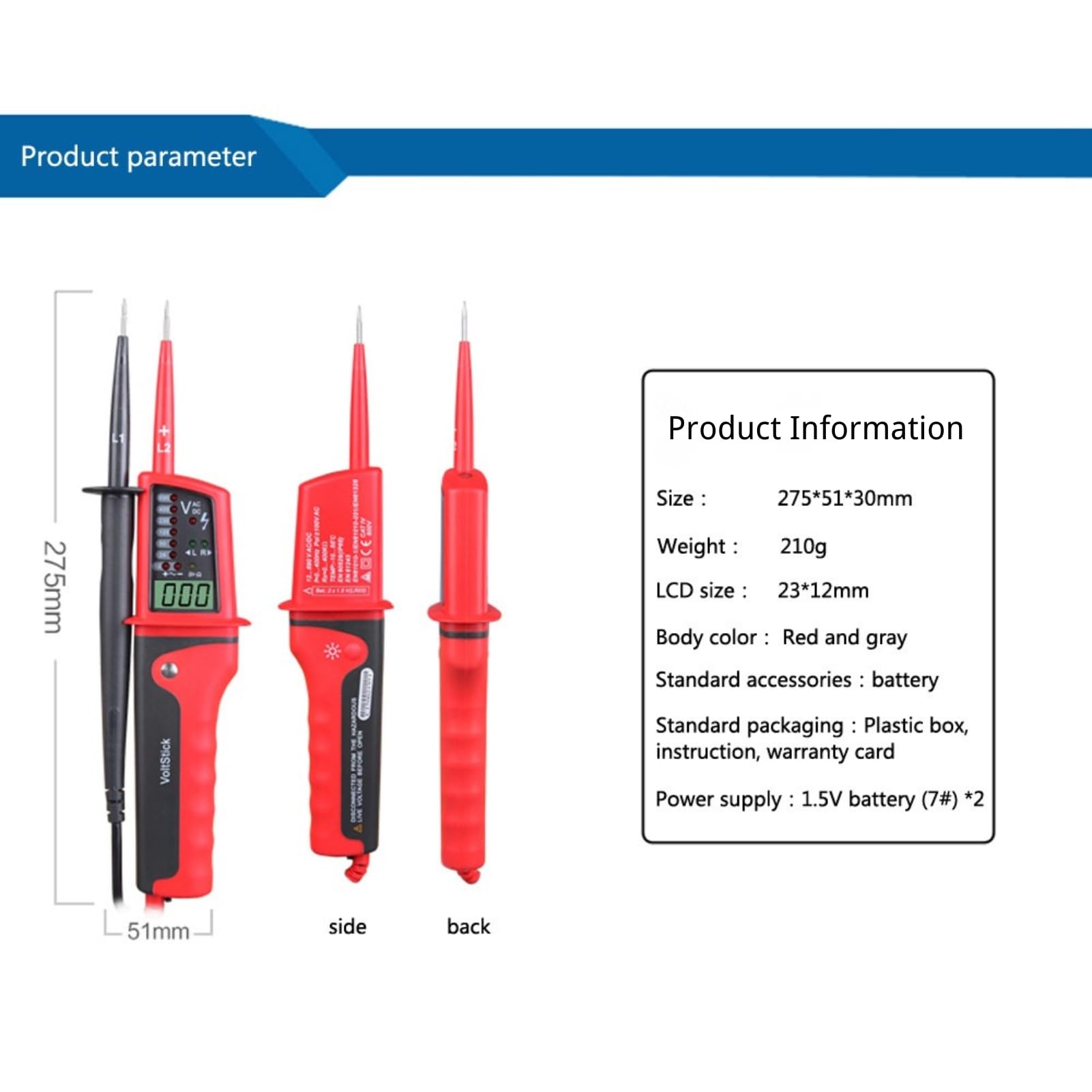

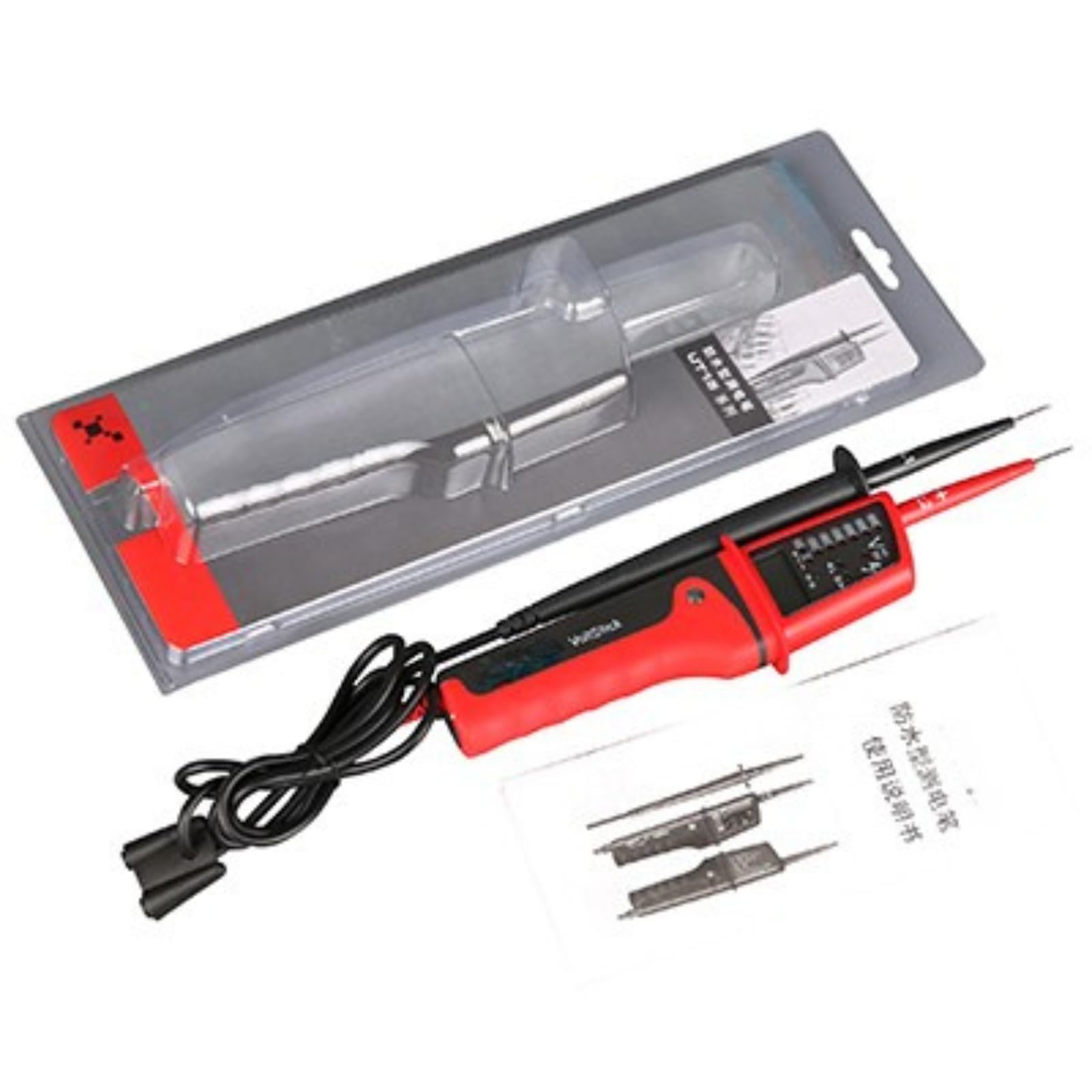

Specifications: Model: UT15C LED AC/DC voltage indicator (V): Range UT15C 12V 0~12V 24V 17V±2V 50V 35V±5V 120V 80V±15V 230V 165V±20V 400V 300V±30V 690V 510V±40V Phase rotation test: Working voltage: 0V~690V Frequency: 50Hz~60Hz Single-lead (L2) voltage detection: Working voltage: 0V~690V Frequency: 50Hz~400Hz Continuity test: Resistance: 0~100kΩ Buzzer and LED indicator: support Polarity detection: Positive and negative: support Waterproof rating: IP65 Automatic range: support Work lights: support Low battery indicator: When the battery is low, the two LEDs are short-circuited, and the LED and buzzer are off LCD AC / DC voltage display 24V~690V ±(3%+5) General characteristics: Power supply: 2X1.5V battery (not included) Display: UT15C- 23mmx12mm Product color: red and gray Product net weight: 210g Packing list: 1X Tester 1X Manual
