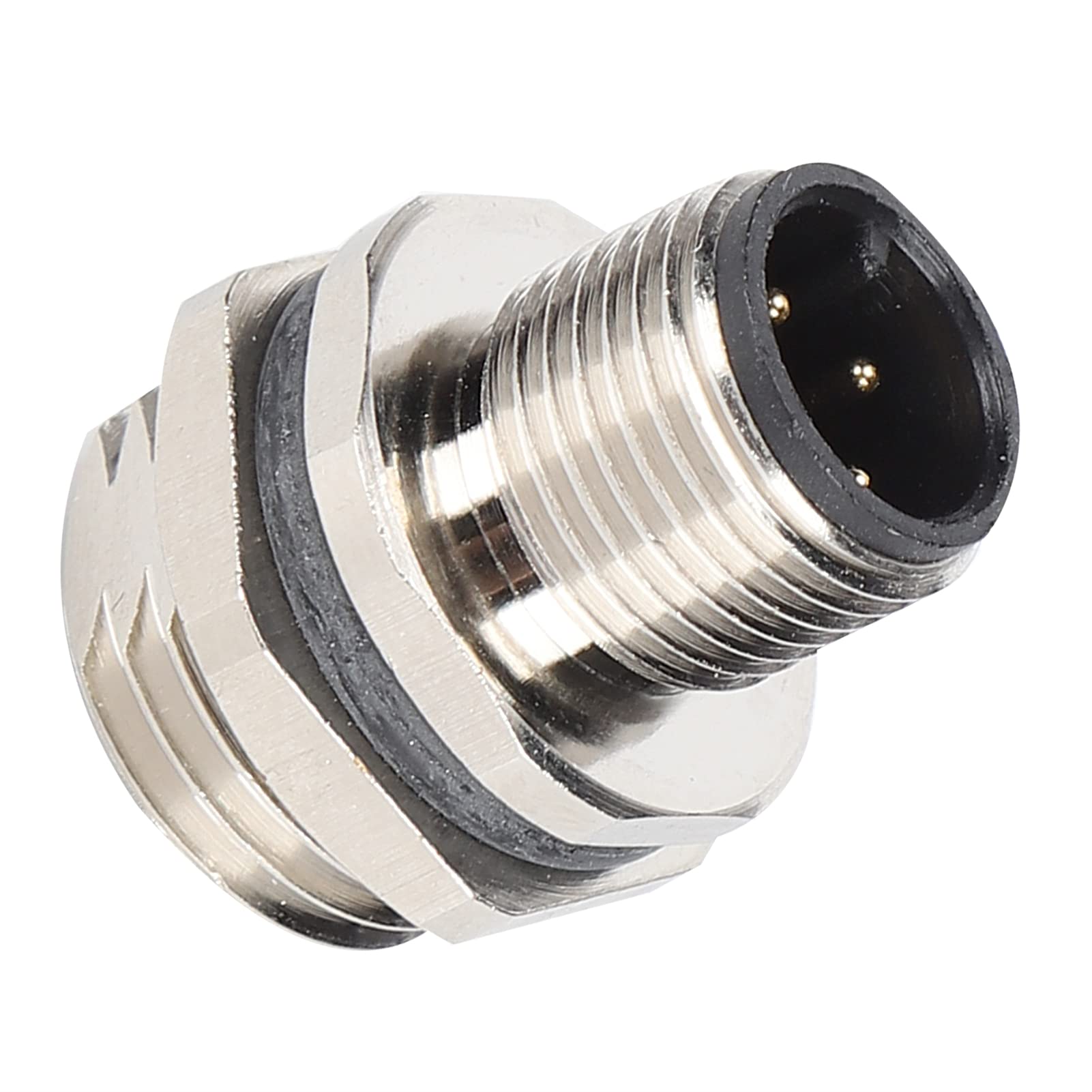

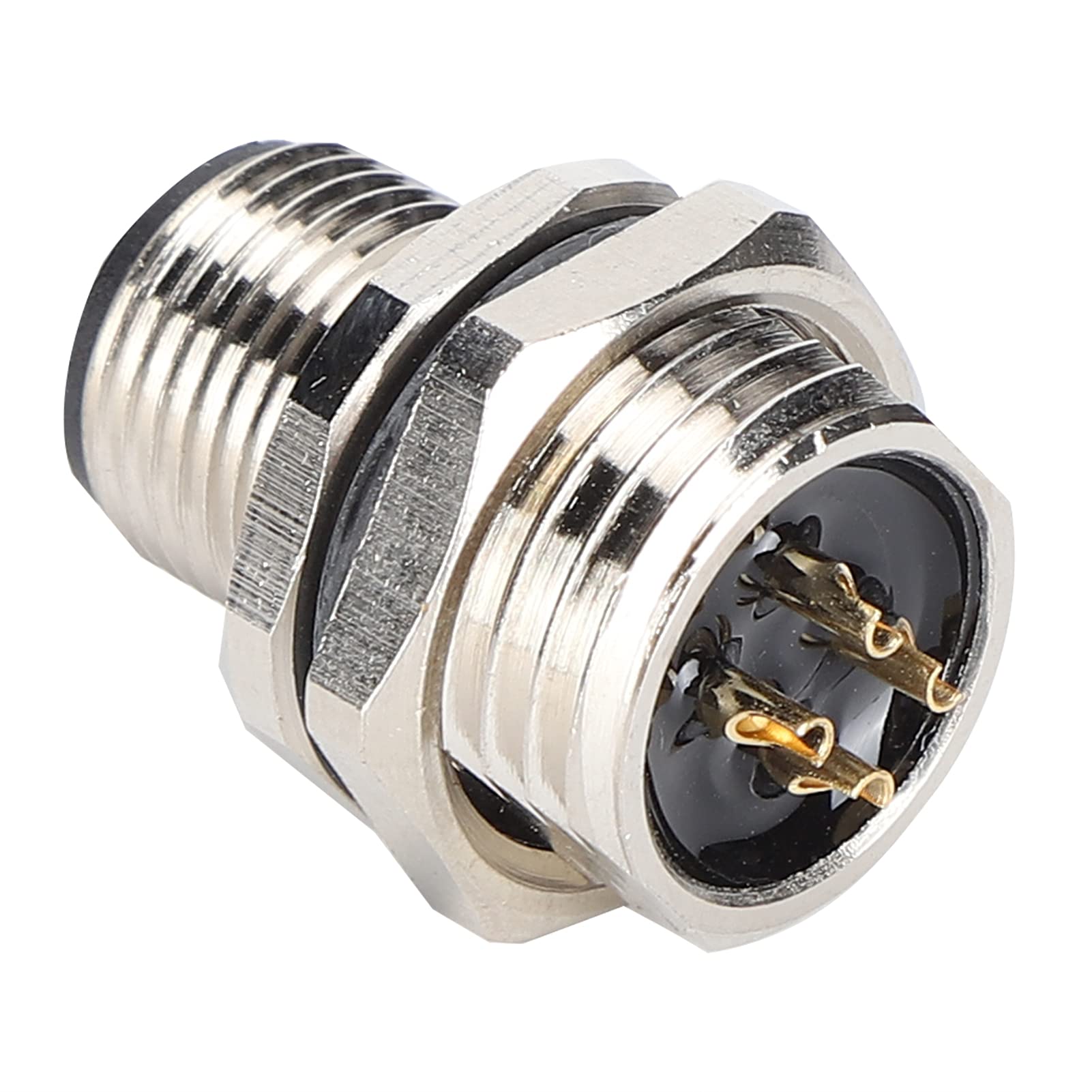

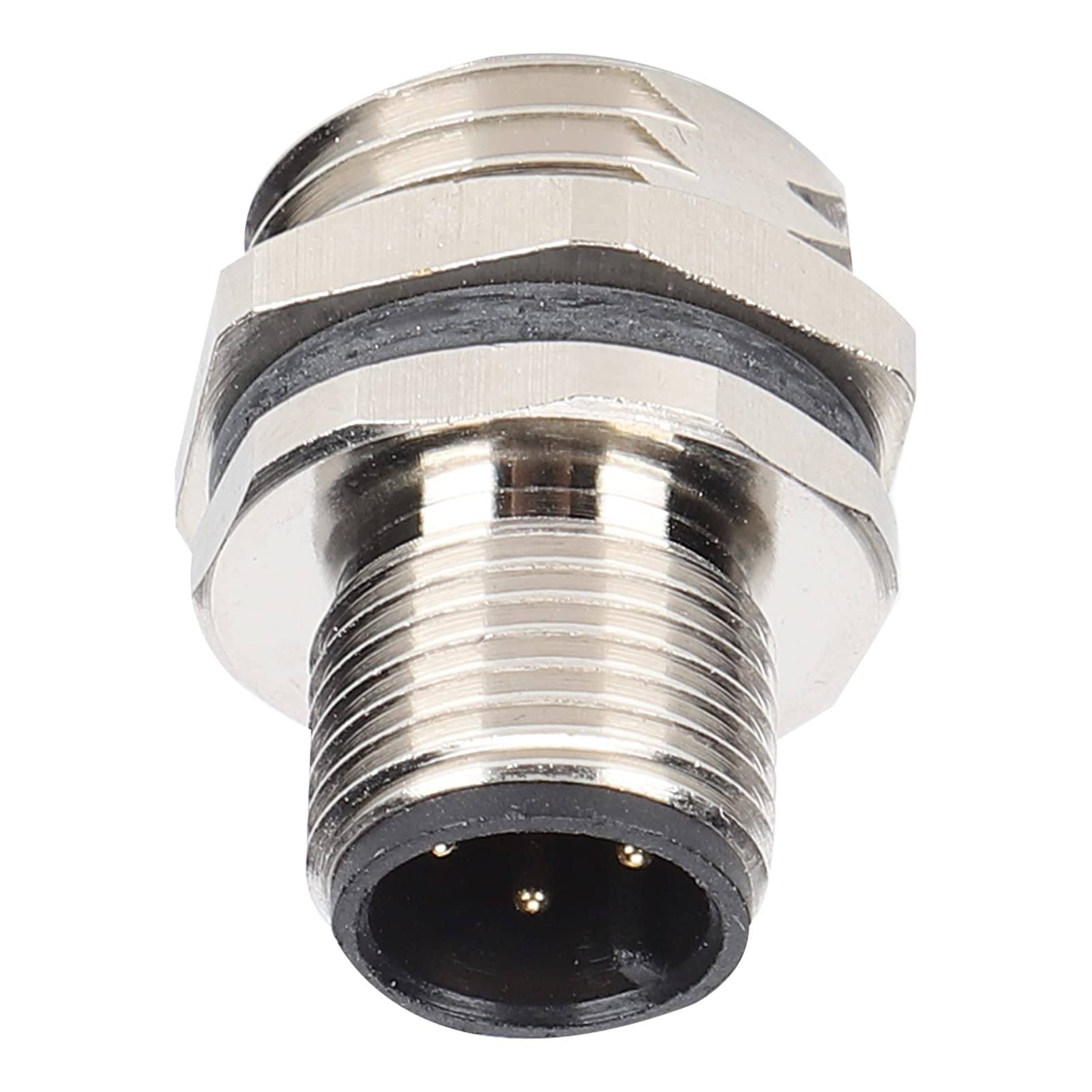

Jadeshay Connector - M12‑B‑P4 M16 Thread Panel Mounted Socket M12, IP67 Waterproof,4pin Plug Adapter

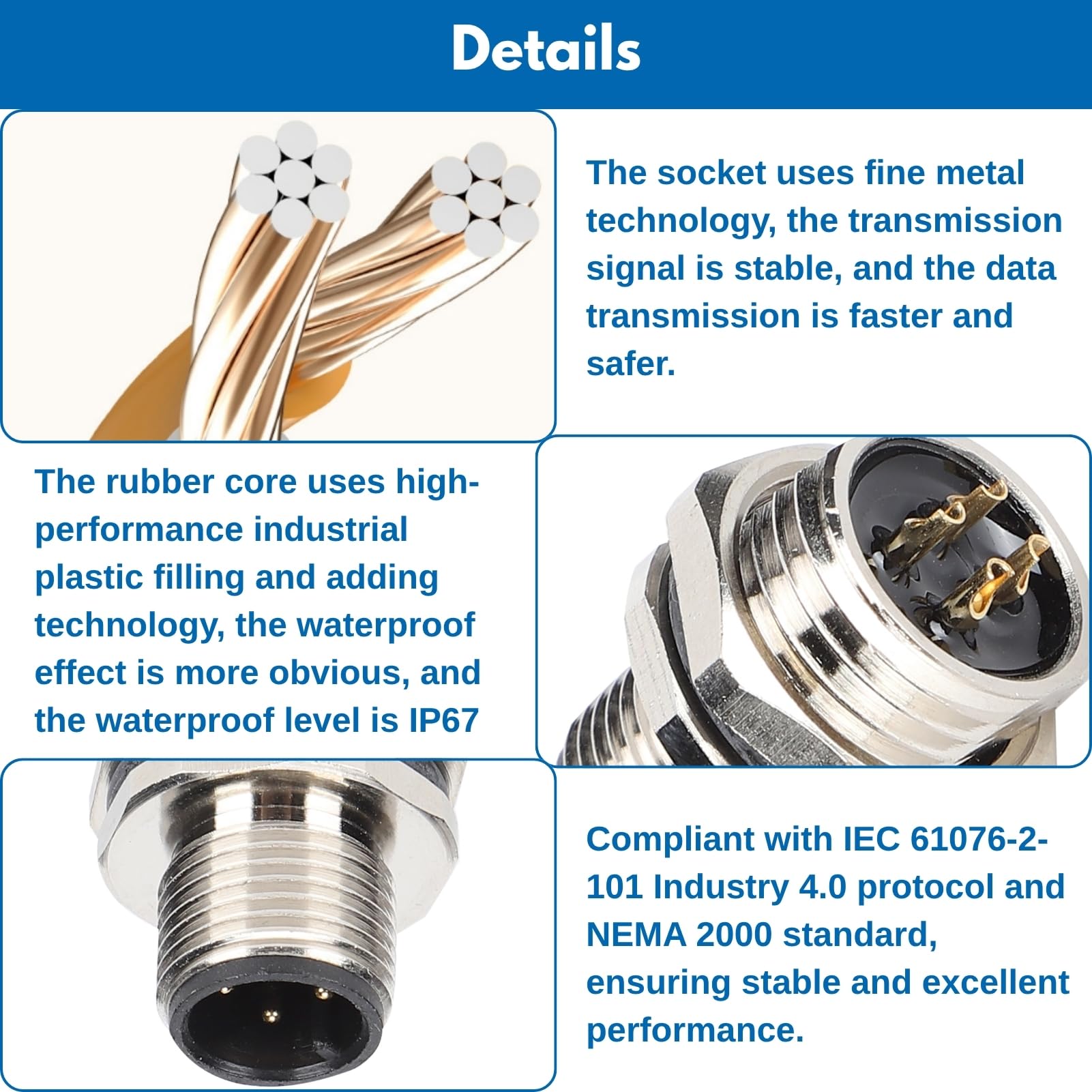

• Preferred Materials: Panel Mount Receptacle M12 Connector, Nickel Plated Brass Shell Material, Excellent 360 Degree Full Shielding.
• Stable work: Compliant with IEC 61076-2-101 Industry 4.0 protocol, NEMA2000 standard to ensure stable and excellent performance.

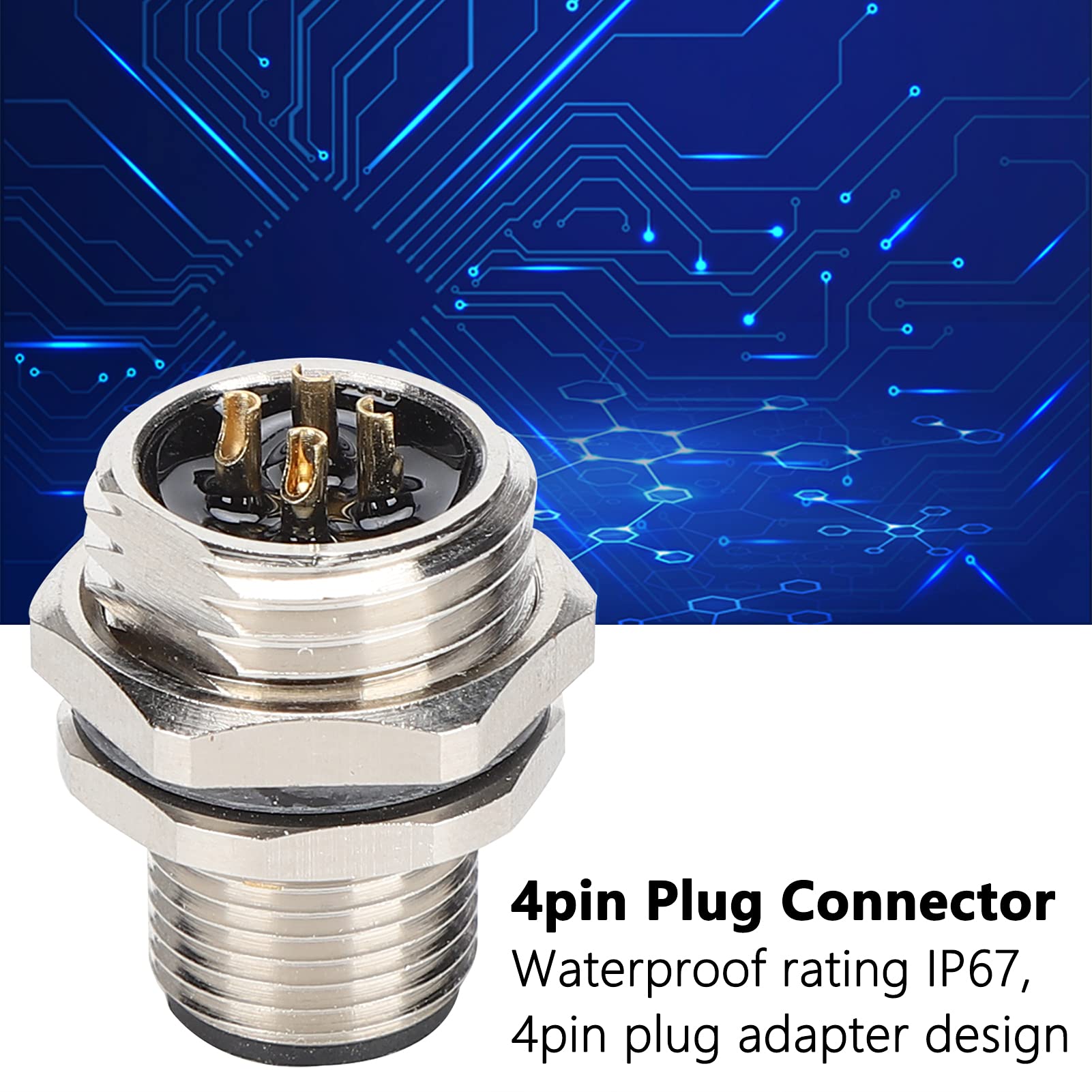

• Reliable product: waterproof grade IP67, 4pin plug adapter design, brass gold-plated pin material, not easy to corrode.
• 4A rated current and can support ≥500 times of plugging and unplugging, and the sealing material is designed with epoxy resin.
• AC/DC250V rated voltage, M12-B-P4 panel mounting socket design, easy to install.

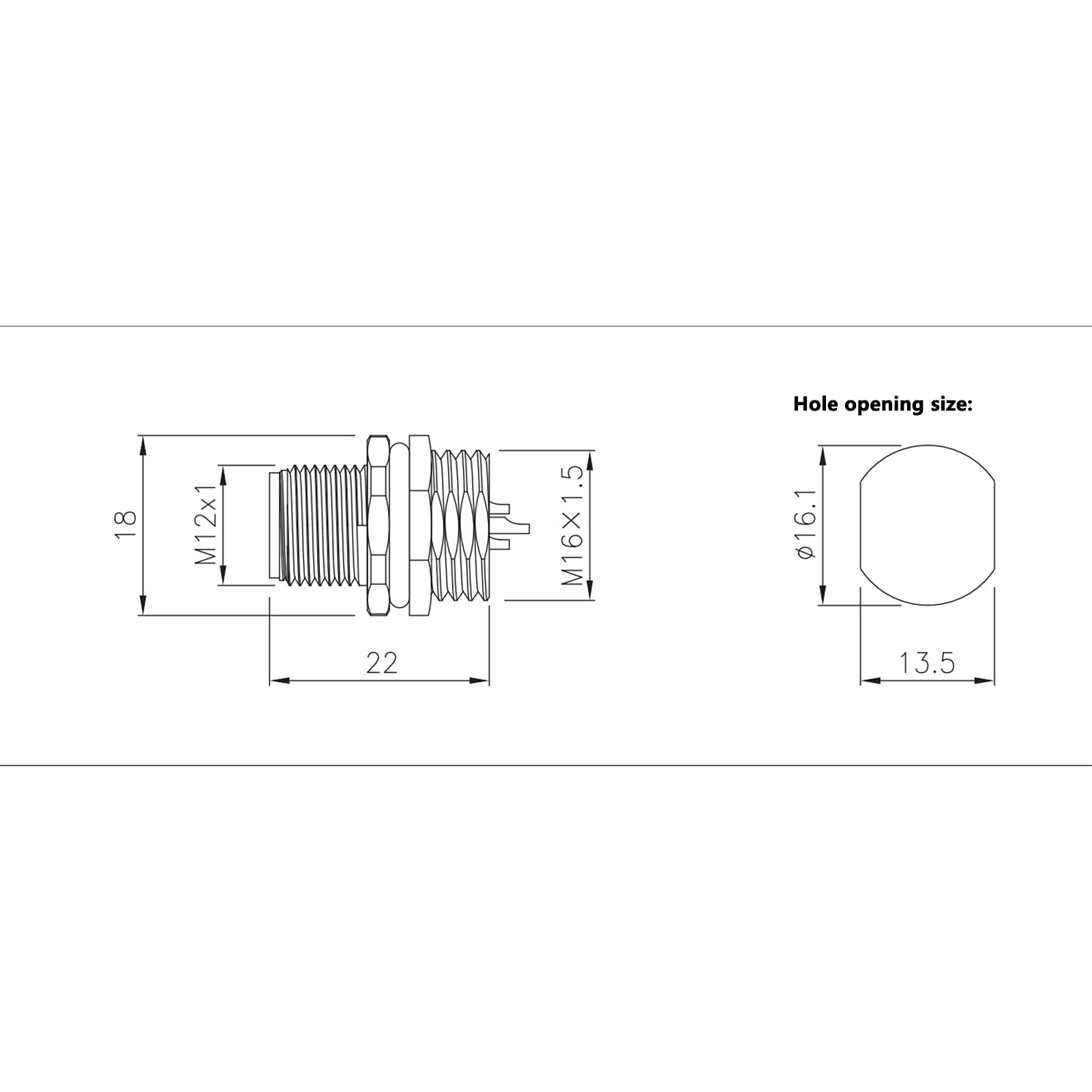

Feature: Preferred Materials: Panel Mount Receptacle M12 Connector, Nickel Plated Brass Shell Material, Excellent 360 Degree Full Shielding. Stable work: Compliant with IEC 61076-2-101 Industry 4.0 protocol, NEMA2000 standard to ensure stable and excellent performance. Reliable product: waterproof grade IP67, 4pin plug adapter design, brass gold-plated pin material, not easy to corrode. 4A rated current and can support ≥500 times of plugging and unplugging, and the sealing material is designed with epoxy resin. AC/DC250V rated voltage, M12-B-P4 panel mounting socket design, easy to install. Specification: Item Type: Panel Mounted Socket Connector Material: Brass Shell Material: Brass nickel plated Sealing Material: Epoxy resin Pin Material: Brass gold plated Core Material: PA+GF/TPU Molding Material: TPU/PVC Rated Current: 4A Rated Voltage: AC/DC250V Conductor Specification: AWG22, 0.34mm² Contact Impedance: ≤5mΩ Plugging Times: ≥500 times Pin Number: 4 Standard: IEC61076-2-101 Applicable Temperature: -25℃~+80℃ Waterproof Rating: IP67 Hole Opening Size: Approx. 16.1 x 13.5mm / 0.63 x 0.53in Package List:1 x Connector
