Irfora A1 Mini Multimeter LCD Digital Tester Voltage Detector 2000 Counts DC/AC Voltage Frequency Resistance NCV Continuity Live Wire Neutral Wire Check True RMS Meter

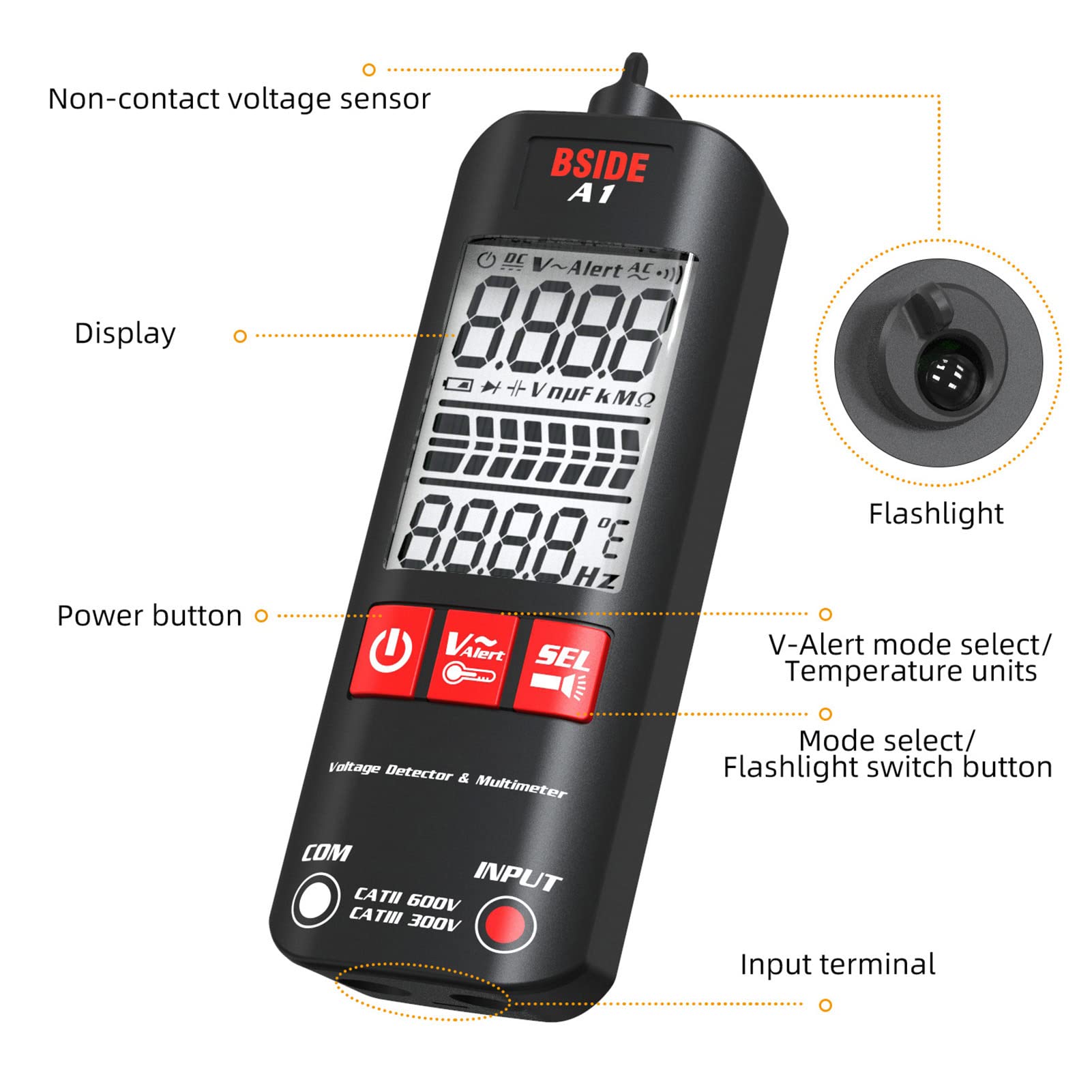

• 1. Dual Mode: Multimeter ports auto mode and manual mode. Auto mode can automatically measure AC / DC voltage, resistance and continuity.

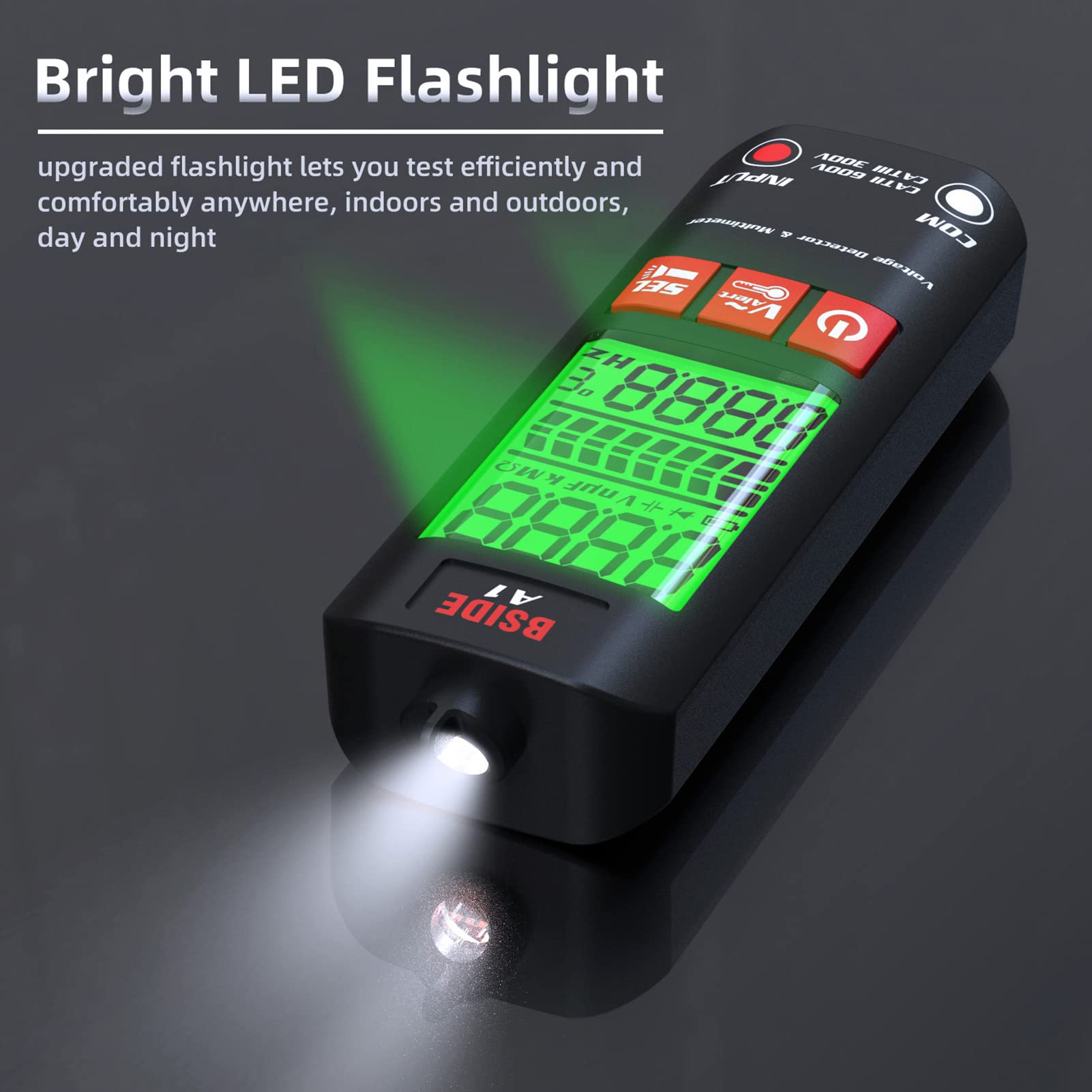

• 2. Bright LED Flashlight: LED flashlight lets you test efficiently and comfortably anywhere, indoors and outdoors, day and night.

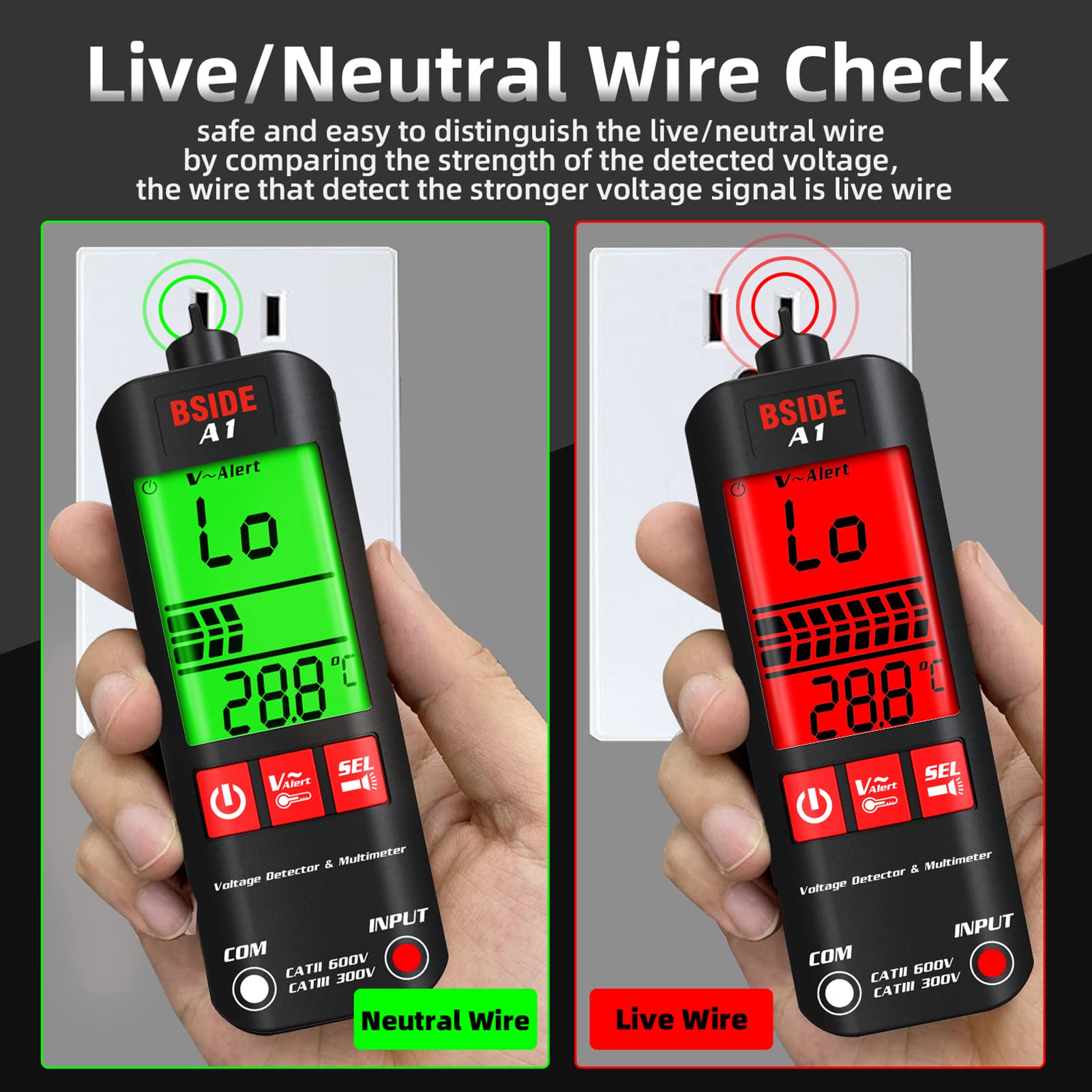

• 3. Live / Neutral Wire Check: Safe and easy to distinguish the live / neutral wire by comparing the strength of the detected voltage, the wire that detect the stronger voltage signal is live wire.

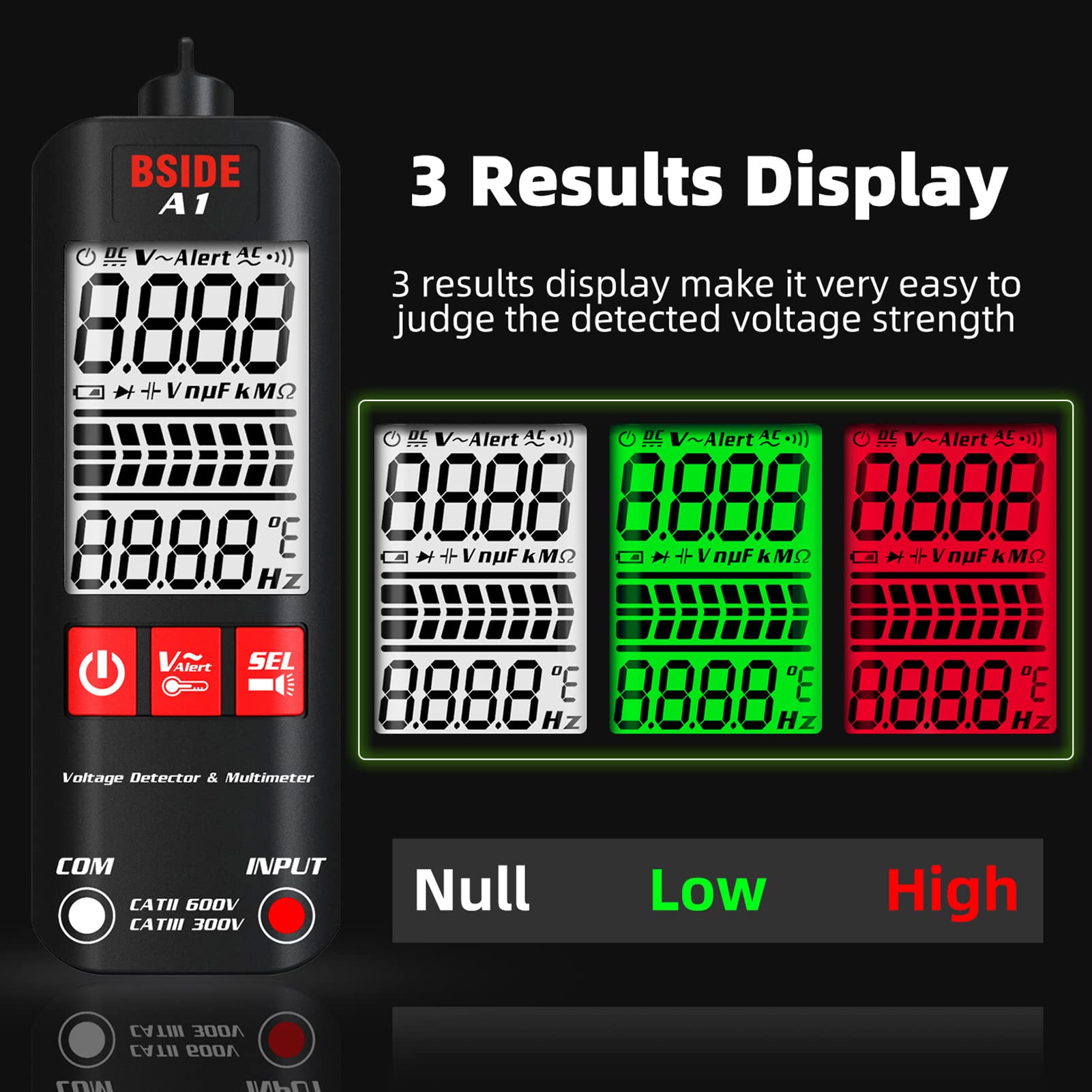

• 4. LCD Display: Greatly enhance the reading experience, the lighted up numbers and letters make it very easy to read, even in bright sunlight or poor light.
• 5. Easy to use: Insert the red test into the "INPUT" terminal, black test into the "COM" terminal. The AC and DC voltage, resistance and continuity can be measured directly after startup.

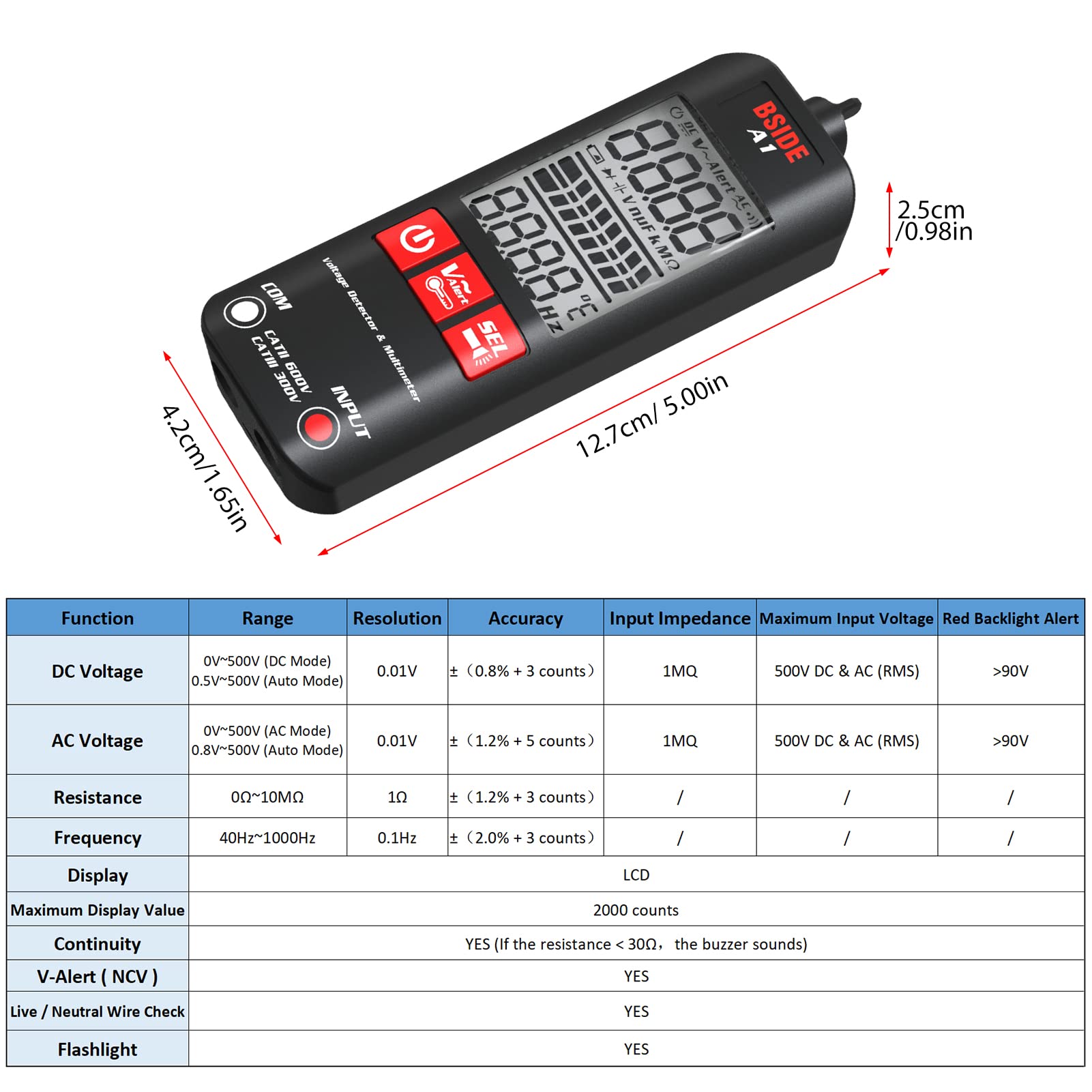

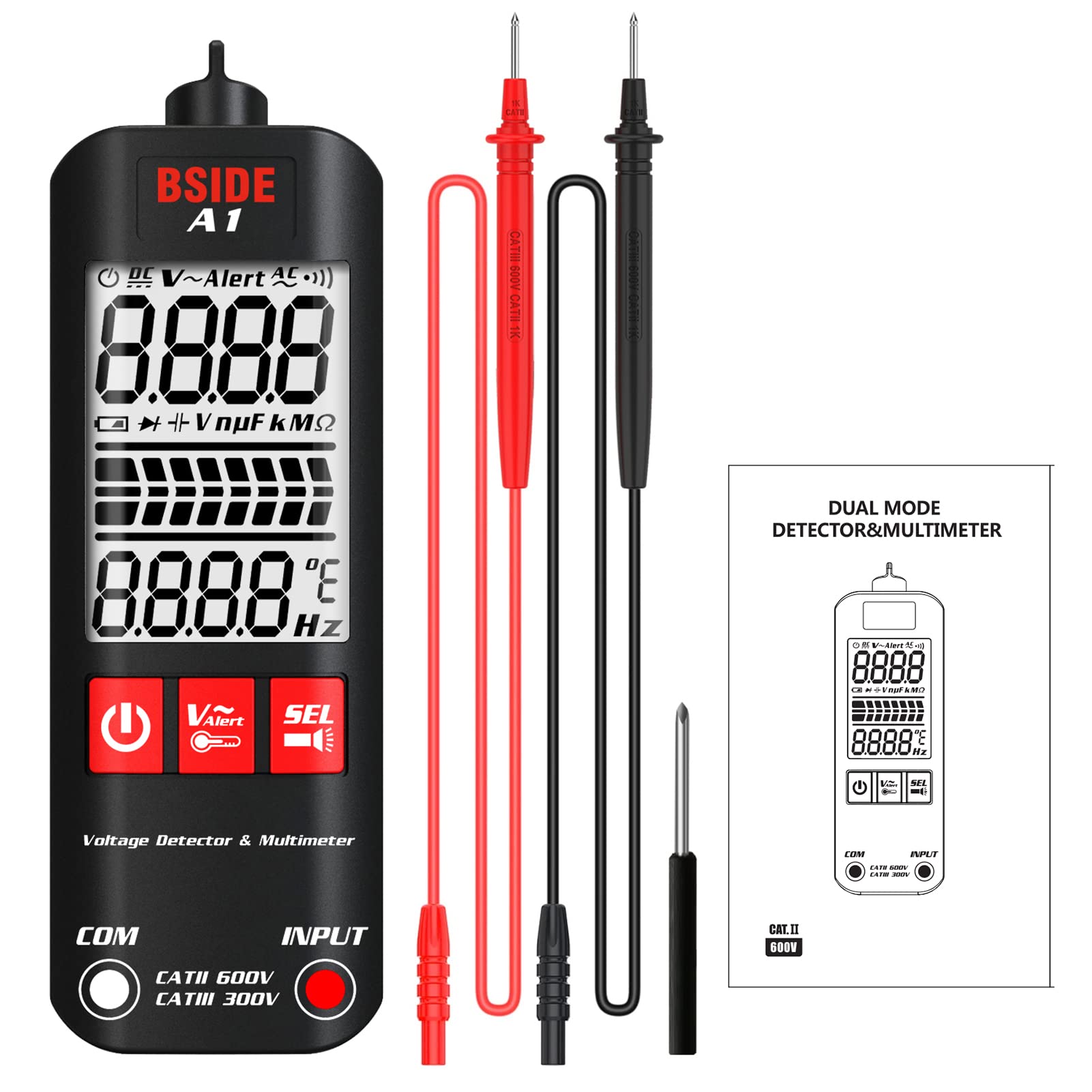

Temperature: 0~40℃ / 32~104℉ Storage Temperature: -10~60℃ / -4~140 ℉ Operating Altitude: ≤ 2000m Battery: 1.5V AAA x 2 ( Not Included ) Automatic Measuring Range: YES Full Measuring Range Overload Protection: YES Flashlight: YES V-Alert (NCV): YES Live / Neutral Wire Check: YES Breakpoint Locate: YES Automatic Identification: YES Item Size: 12.7*4.2*2.5cm / 5.00*1.65*0.98in (L*W*H) Packing Size: 16.5*7.3*3.8cm / 6.50*2.87*1.50in (L*W*H) Net Weight: 67g / 2.36oz ( without battery） Gross Weight: 159g / 5.54oz Function Range Resolution Accuracy Input Impedance Maximum Input Voltage Red Backlight Alert DC Voltage 0V~500V (DC Mode) 0.5V~500V (Auto Mode) 0.01V ±（0.8% + 3 counts） 1MQ 500V DC & AC (RMS) >90V AC Voltage 0V~500V (AC Mode) 0.8V~500V (Auto Mode) 0.01V ±（1.2% + 5 counts） 1MQ 500V DC & AC (RMS) >90V Resistance 0Ω~10MΩ 1Ω ±（1.2% + 3 counts） / / / Frequency 40Hz~1000Hz 0.1Hz ±（2.0% + 3 counts） / / / Package List: 1 * Multimeter ( Without Battery ) 2 * Test ( Red & Black ) 1 * Screwdriver 1 * Instruction Manual ( Chinese & English )
