IP 20 LED Continuous Light Emergency Lighting Emergency Exit Escape Route Light Emergency Light Escape Route Exit (Continuous Light IP20)
About this item

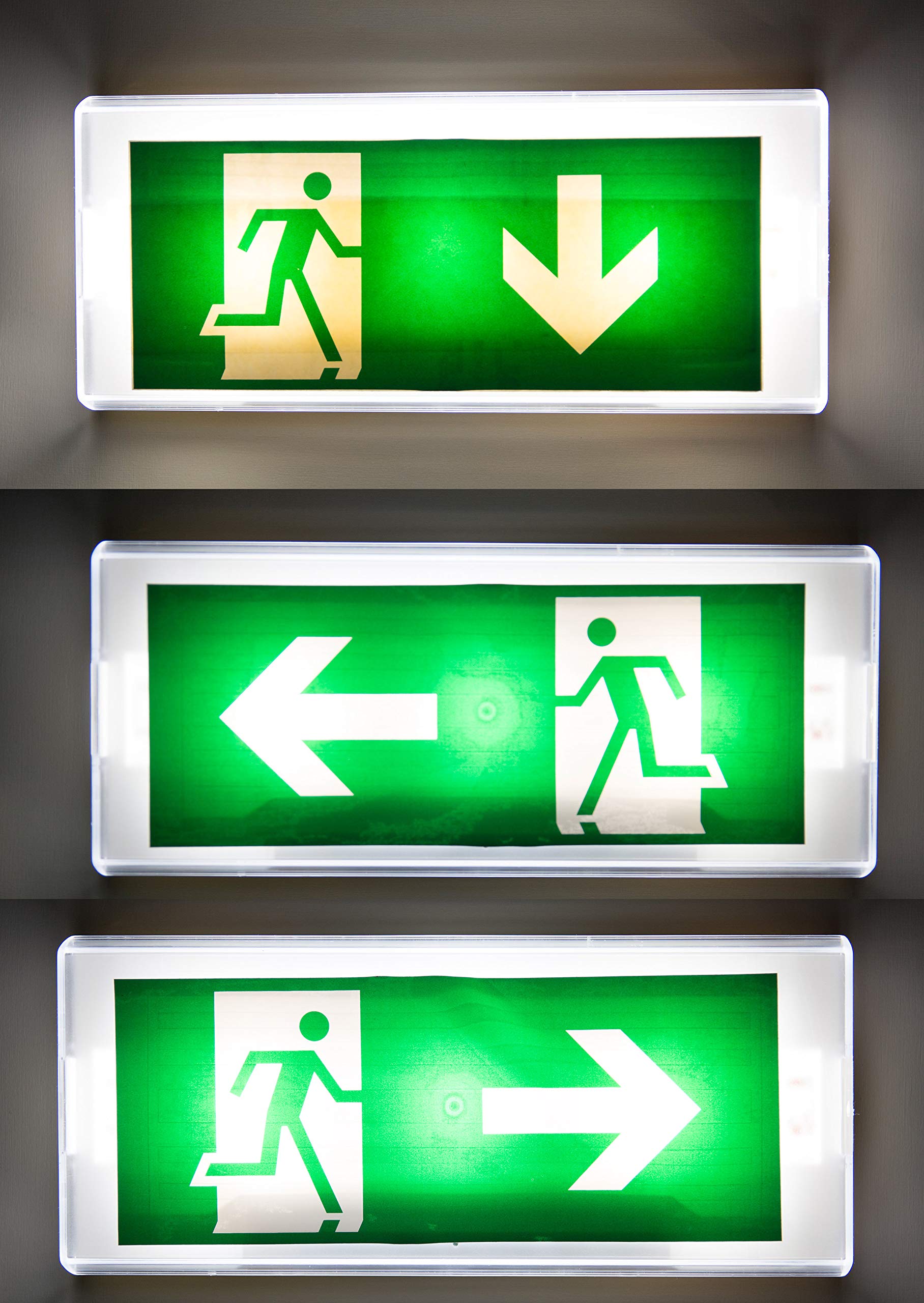

- LED emergency light IP20. With 1 sticker, you can make all directions (bottom, left, right)
- LED emergency lighting. This emergency light lights up permanently. There is also possibility to light only in the event of a power failure. This is what you do when JMP1 is removed
- Mounting Type: Wall Batteries: 3.6 V / 1500 mAh, emergency light duration: 180 minutes, battery charging time: 24 hours, lights permanent or only in case of storm failure
- Power supply: 220-240V 50/60Hz AC, 11 LED diodes
- EN 60598-2-22:2002+A1:2004+A2:2008; EN 13032-2:2004+A1:2012; EN 1838:2013, ISO 7010, ASR1.3
Product description
Continuous light LED emergency light. - Good workmanship. Easy to install. Modern design. Left, right bottom. Wall mounting. Technical data: Power supply: 230 V AC/50 Hz. Power consumption: 1.2 W. Batteries 3.6 V / 1500 mAh. Charging current: 50 mA. Battery charging time: 24 hours. Emergency light duration: 180 minutes. Indicator of the charge red LED. Battery protection recharge and discharge. Fluorescent lamp LEDs. Protection class IP 20. Certificate number 98-1628. Working temperature: 0-60 ยฐC, ambient humidity, up to 90% relative humidity. Dimensions: 250 x 110 x 50 mm. Weight: 500 g. Installation instructions (English 1. The emergency lights are packed semi-closed. 2. Open the housing of the light carefully. 3. Place the intermediate plate and the clear cover to the side. 4. Mount the base on the wall with 2 dowels. 5. Take the intermediate plate and connect the supply cable to the connection terminal. 6. The corresponding location of the terminal can be seen at the bottom of the wiring diagram. 7. The red LED lights up when voltage is applied. 8. Place the intermediate plate on the base. 9. When JMP1 is removed, the emergency light only illuminates when storm falls. 10. Put the clear cover back on and gently press under light pressure in the bottom until the cover closes securely and firmly. Made in the EU. CE mark. Certified
Product details
