iOVEO 201MU00001 Temperature Transformer Active 0-10V or 4-20mA in Housing Measuring Range Adjustable

• Measuring range adjustable: 0°C to 50°C, -50°C to +50°C, 0°C to 100°C or -50°C to +160°C

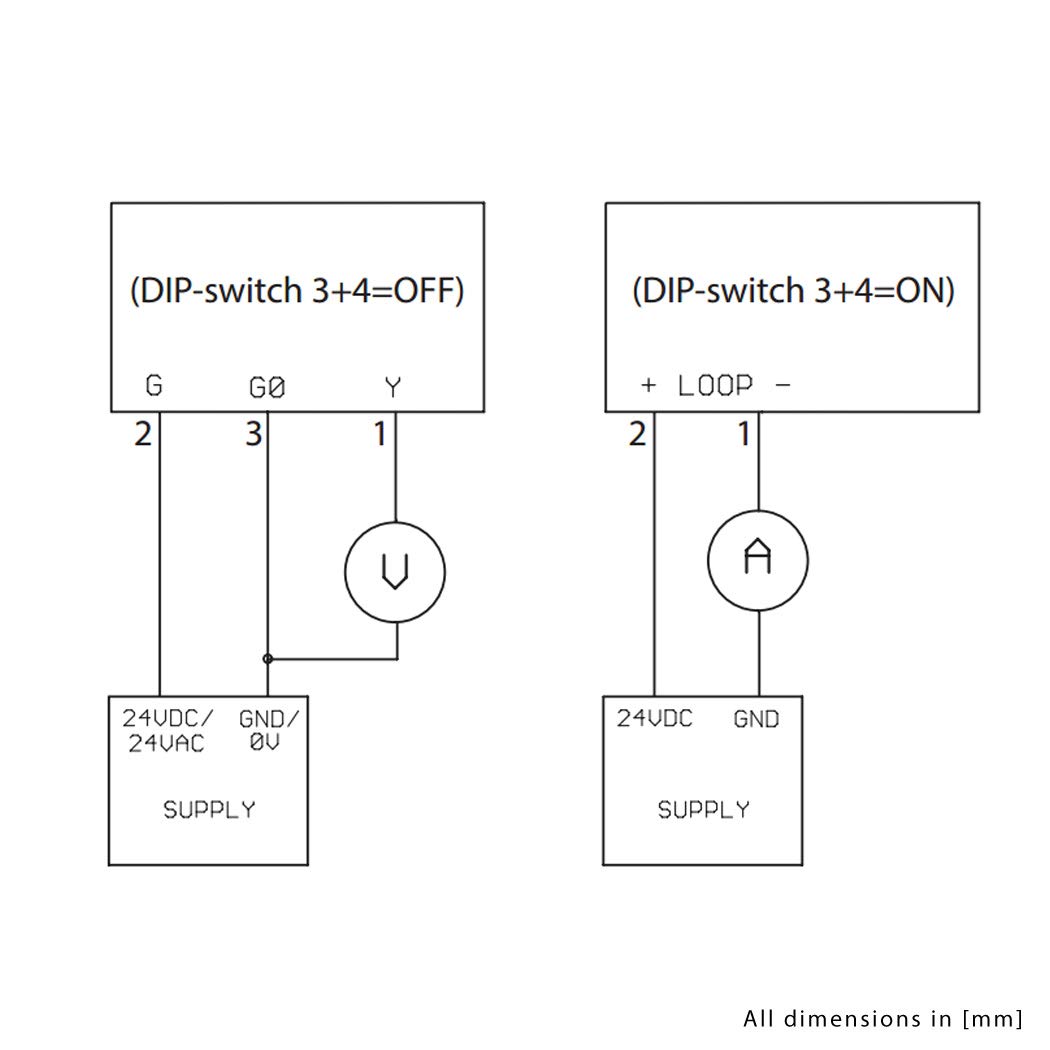

• Output signal adjustable: 0...10V or 4...20mA; compatible with EN 61326 KL. B Industry
• Dust-proof and jet-water protected polyamide (glass fibre reinforced) connection housing (IP65)
• Quick release - bayonet screws - open/closed with a 1/4 turn
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

This polyamide housing with 2 cable grommets, which is 30% glass ball reinforced, are included mounting blocks for self-shaping screws for mounting clamping sockets or circuit boards. One cable grommet has the size M16 x 1.5 screw connection with strain relief and the other the size M12 x 1.5 - screw connection with strain relief (RAL 7035, light grey). The case has a quick release. The temperature range should be between -50°C to +90°C. The installation can be done by means of 2 screws on the wall. The iOVEO is your partner when it comes to products in the field of measuring technology and sensory technology. We supply a wide range of standardised products for building automation and industry specially made for your needs. With us you can rely on the quality of our "Made in Germany" products, which are manufactured in compliance with high quality standards. This means for you a long and reliable service life of our products. Your individual requirements are our top priority.
