Inductive Proximity Switch / Sensor 12-24 Volt PNP 5 mm CNC 3D Printer Endstop Square

• INTERNAL SNAP NOO - This inductive sensor in cuboid shape reacts to metals. If the inductive proximity switch detects a metal in the detection range, it switches a signal.
• Detect metals in the detection range of up to 5 mm. The switching status is indicated via an LED. The compact ABS housing is robust and temperature resistant up to -25 to 65 °C. Protection cl IP65, it has full touch protection. Dust cannot penetrate and it is protected against jet water from any direction.
• Versatile use: thanks to its compact design, this proximity sensor is suitable for a wide range of applications. Whether industrial, automation technology, home technology or model making, this sensor is ideal for most applications

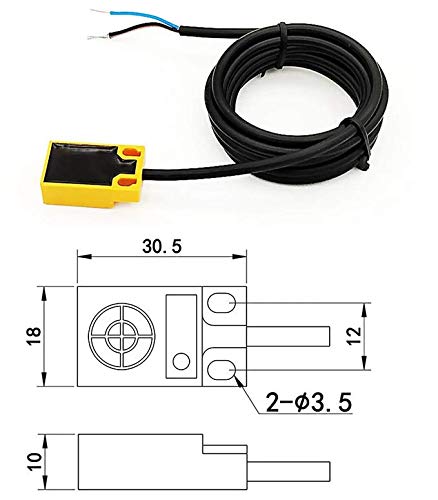

• Operating voltage 12 - 24 V DC, NO (closing), output PNP, operating temperature -25 °C to 70 °C, max. Switching load 200 mA, detection range 5 mm, size 30 x 18 x 10 mm, 3-core connection cable 180 cm. The switching status is displayed via an LED
• Easy to use: you are not 100% satisfied with our sensor Then send the inductive proximity switch back for and you will receive your without ifs and buts. No risk Corporate headquarters in Germany.

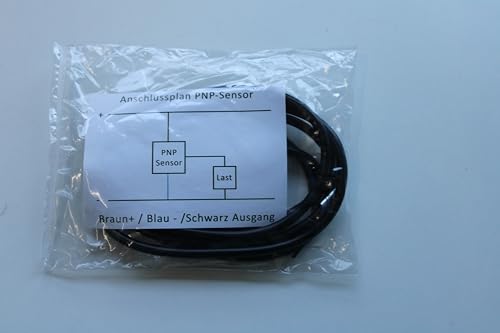

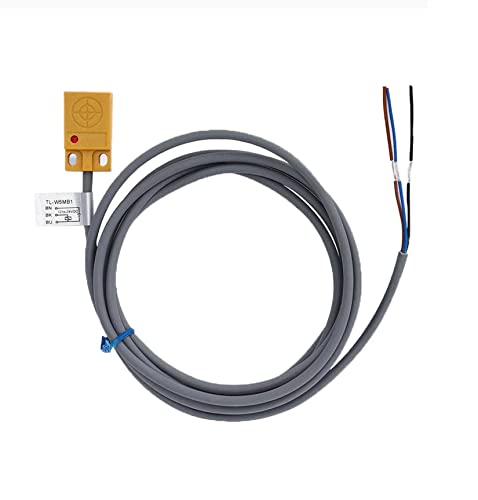

Inductive proximity sensor reacts to iron objects. The switching status is displayed via an LED. Ideal for CNC, 3D printers and automation technology. Technical data: operating voltage 12-24 volts max switching load 100 mA distance up to 5 mm for iron / steel other metals less output PNP NO normaly open 3-core connection cable brown + / blue / black output dimensions 30 x 18 x 10 mm cable length 180 cm. Please observe the enclosed connection diagram. Incorrect wiring may destroy the sensor.
