Illuminize High Voltage Components and Games Switch-Actuator

• Switching at 230 V: now turn your existing lamps on and off with our high-quality high-voltage switching actuator at 230 V. Also halogen lamps (e.g. GU10), bulbs and power supplies can be switched on and off. Push buttons with status lights must not be used. Important: not compatible with Zigbee 3.0.

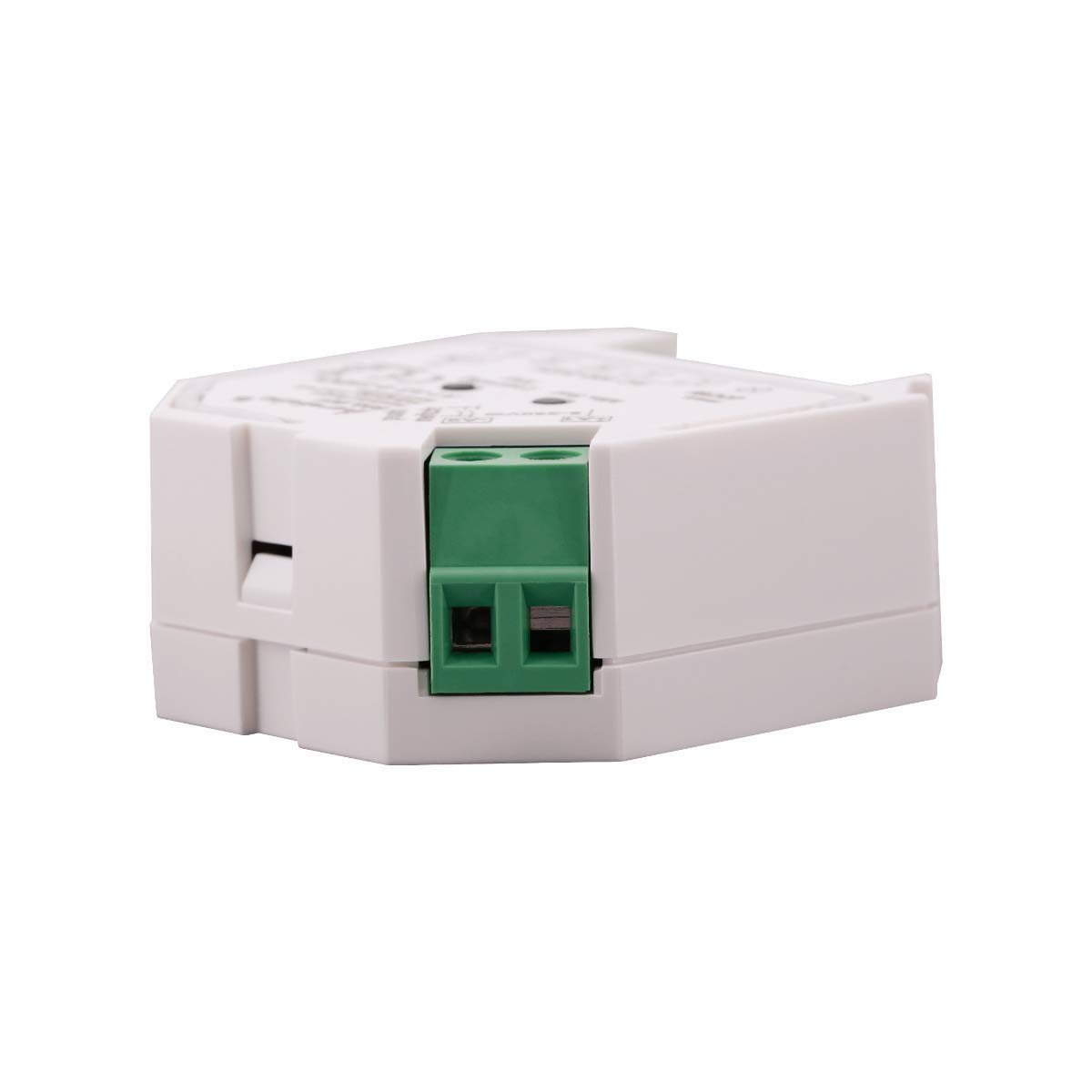

• Fits in the switch box: thanks to its small dimensions of 45 mm x 45 mm x 21 mm, the mini switch actuator fits behind the switch in a switch box, but can also be mounted in the lamp or on the ceiling.
• ILUMINIZE LED SYSTEM: Like our LED controllers, the switch actuator is compatible with iluminize wireless hand remote controls, wall dimmers and desk dimmers for white LEDs as well as the WiFi bridge and can be operated from these in a light zone. Important: not compatible with Zigbee 3.0.

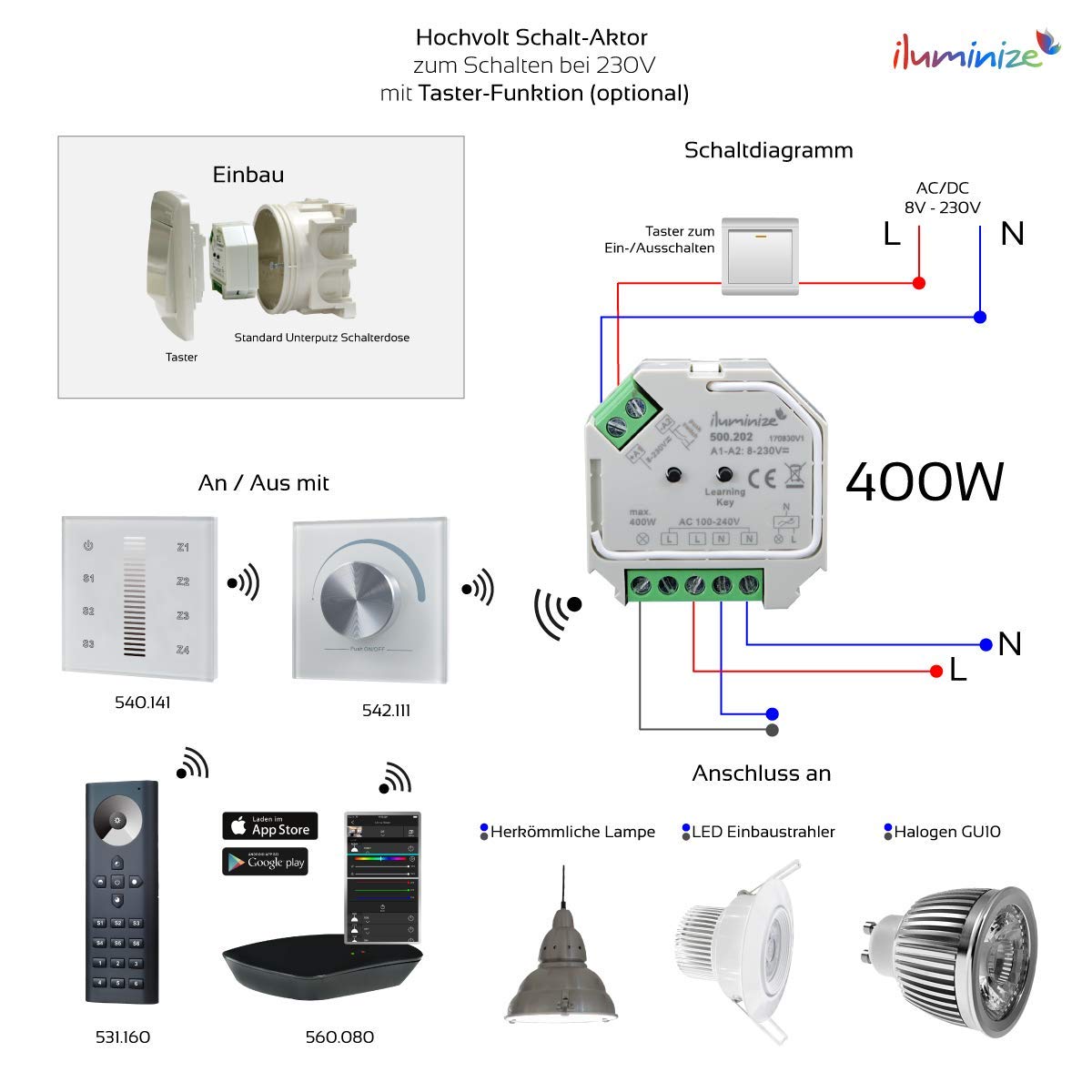

• Optional switching via button: switching can also be done additionally/exclusively with one or more buttons (from several locations such as a changeover circuit, suitable for the electrical installation series, not included). The voltage range (for button) is 8-230 V, so almost any button can be used.
• Essential light advice: Are you planning a light installation Please contact us and take advantage of our consultation offer by email or phone (0049 2835 782 37 - 00, Mon-Fri. 9 am-5 pm). You can also send us sketches or floor plans of your planning.

Only the radio switch actuator is included. The instruction manual can be found at: -bedienungsanleitungen/anleitungen-led-controller. Important: not compatible with Zigbee 3.0. In order for the product to be operated by radio, a suitable 'remote control' from iluminize must be purchased in addition, unless it is already available from other LED projects. The switching actuator can be paired wirelessly with up to 8 different remote controls: Wall Dimmer for White LEDs ASIN: B01BAWAWZY Wall Dimmer Touch for White LEDs ASIN: B0173G7QUA Mini Hand Remote Control for White LEDs ASIN: B01BB1ZDQ2 Midi Hand Remote Control for White LEDs ASIN: B01BIXGDN0 White LED Desk Dimmer ASIN: B01BIXFM2I Wifi Bridge, ASIN: B01BIXJ76U In order for the switching actuator to be controlled with a remote control, the two devices must be paired once. This is very simple: 1. Connect the switching actuator to the mains supply, the lamp(s) are connected. After switching on, the lamps light up. 2. Turn on the remote control (if required). 3. Select a zone (1-6) on the remote control (if required) 4. Short press the learning button on the switch actuator, "operate" the remote control. The lamps flash briefly and the two devices are paired. For setup in the app, please consult the appropriate WiFi operating instructions (link above). The installation must be carried out in Germany by an electric master company. Note: If the switching actuator is disconnected from the mains or the power fails, it "remembers" the last setting. Push buttons with status lights must not be used.
