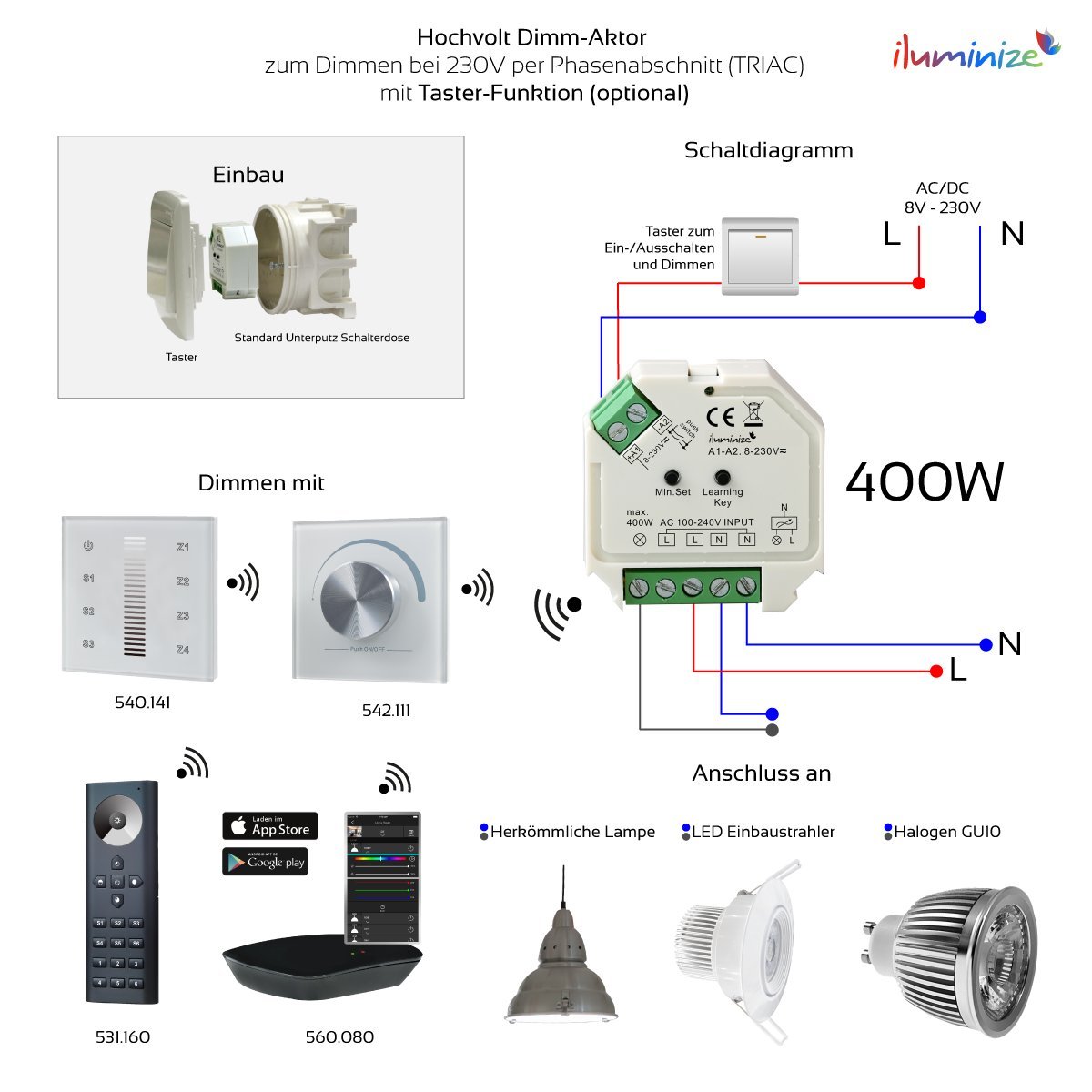

• Part of the Iluminize LED system: dimming LED (max. 200 W), halogen or incandescent bulbs (max. 400 W) without significant minimum load. Comfortable dimming and switching via the included 4-zone remote control. Optionally controllable via smartphone/tablet when using the iluminize WiFi bridge. Important: not compatible with Zigbee 3.0.

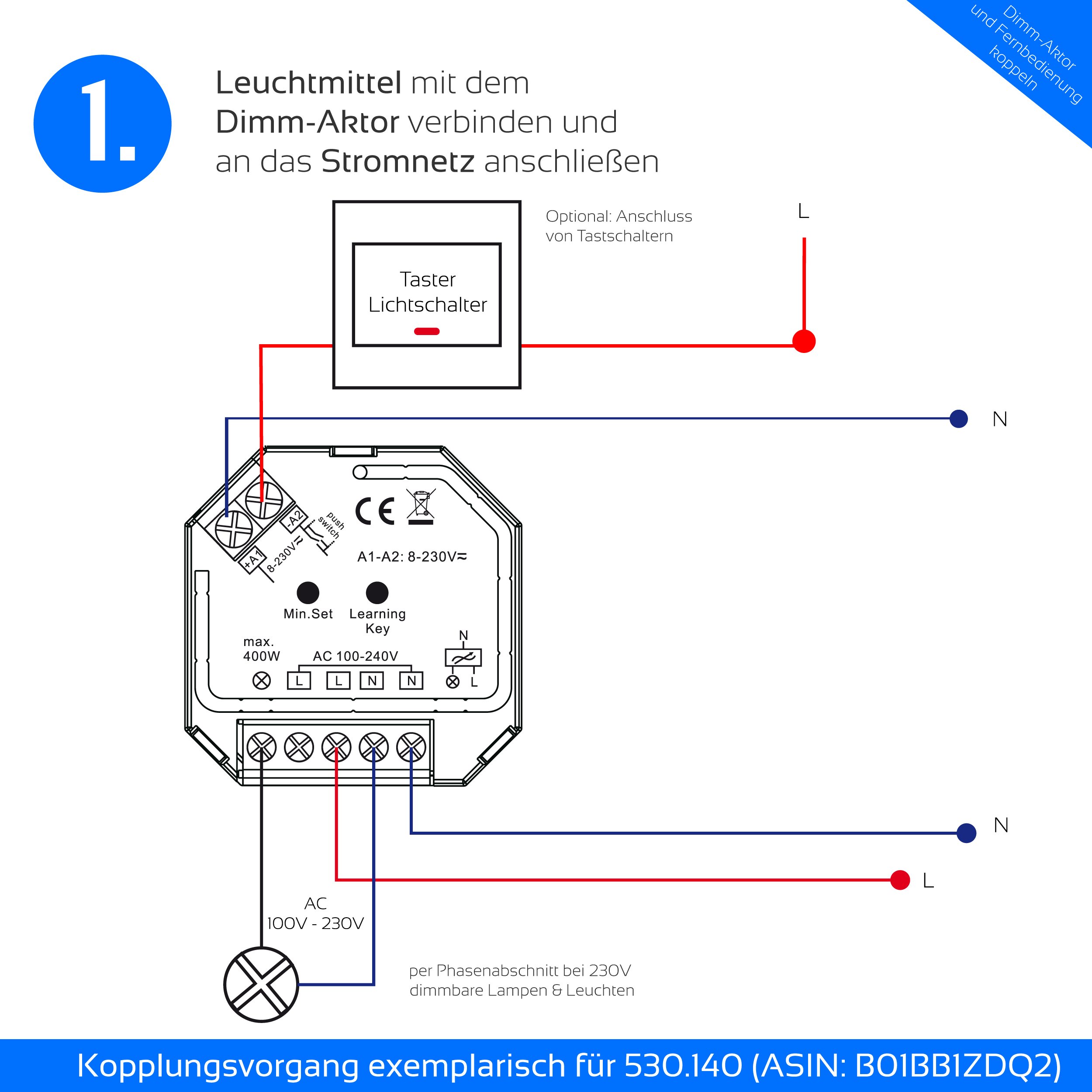

• Fits in the switch box: thanks to its small dimensions of 45 mm x 45 x 21 mm, the mini dimming actuator fits behind the switch in a switch box, but can also be mounted in the lamp or on the ceiling. Tip: placed behind a socket, the socket is dimmable/switchable up to max. 400 W. The mini dimming actuator is simply switched in between, see circuit diagram in the attached pictures.

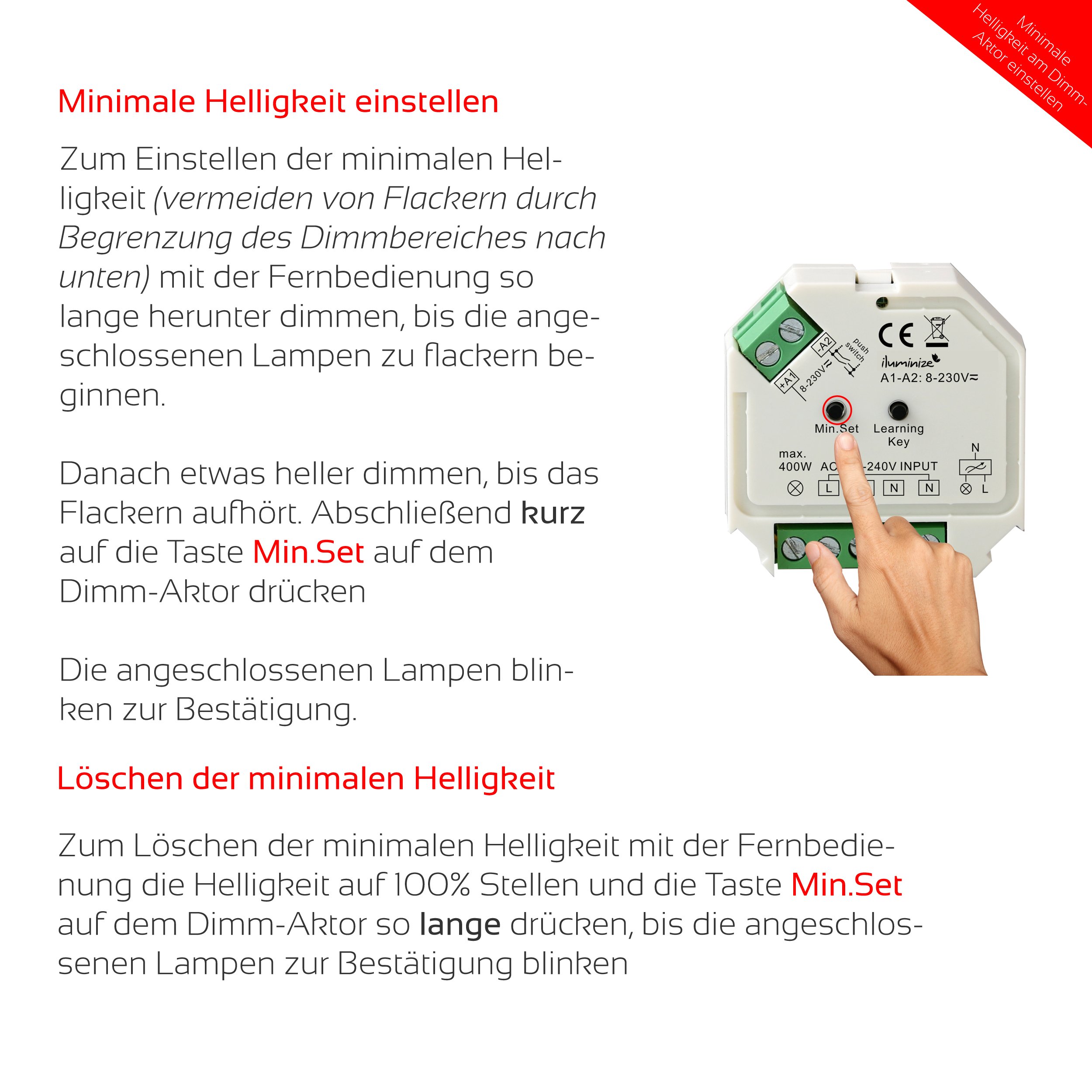

• Avoid flickering: at the touch of a button, the minimum brightness can be adjusted, so the connected lamps can be prevented from flickering if they are dimmed too much. Please note: lamps with low-value drivers (often inexpensive offers) can be dimmed without flicker even with this high-quality device.
• Optional switching/dimming via button: dimming and switching can also be done additionally/exclusively with one or more buttons (from several locations such as a changeover circuit, suitable for the electrical installation series, not included). The voltage range (for button) is 8-230 V, so almost any button can be used. Push buttons with status lights must not be used.
• Essential light advice: Are you planning a light installation Please contact us and take advantage of our consultation offer by email or phone (0049 2835 782 37 - 00, Mon-Fri. 9 am-5 pm). You can also send us sketches or floor plans of your planning.

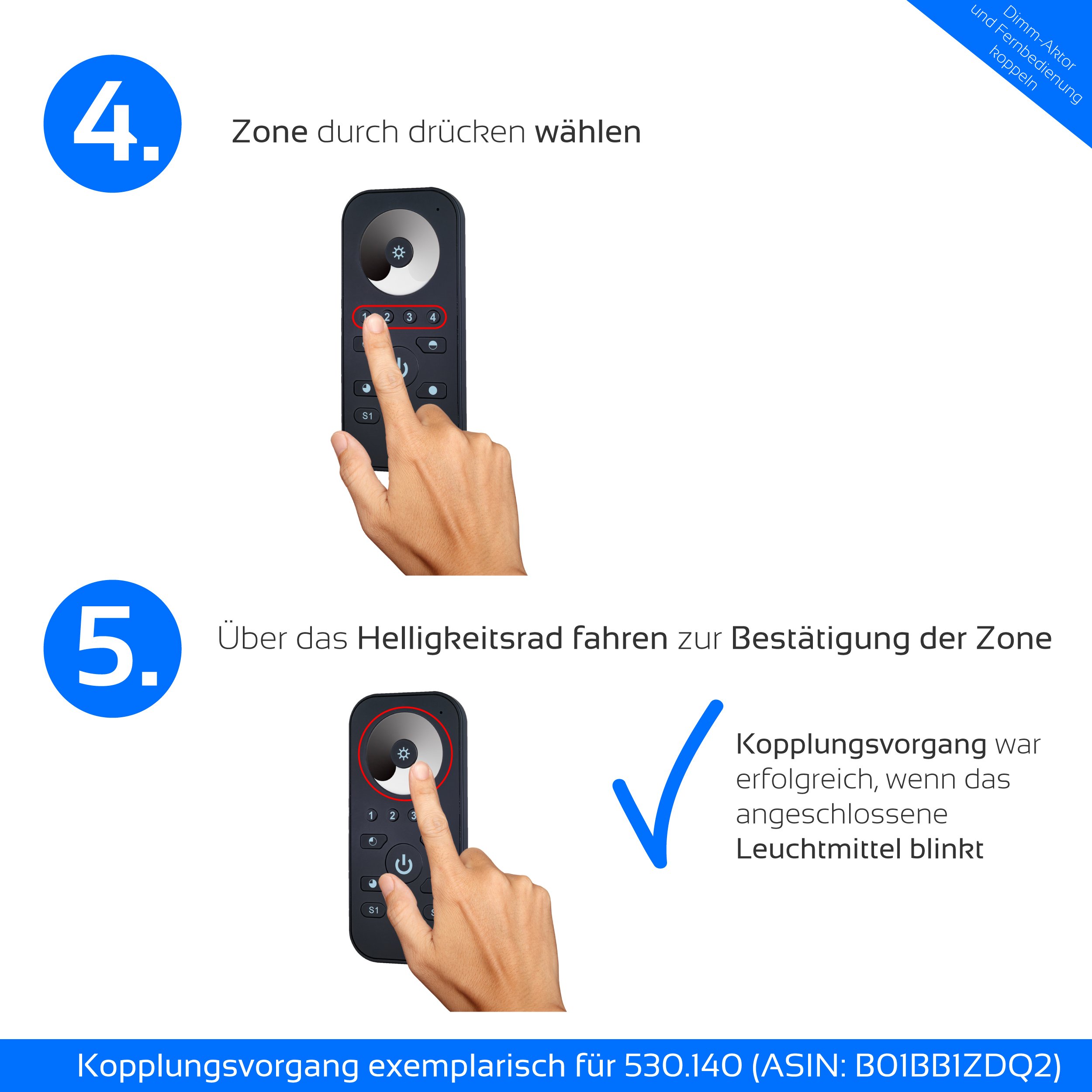

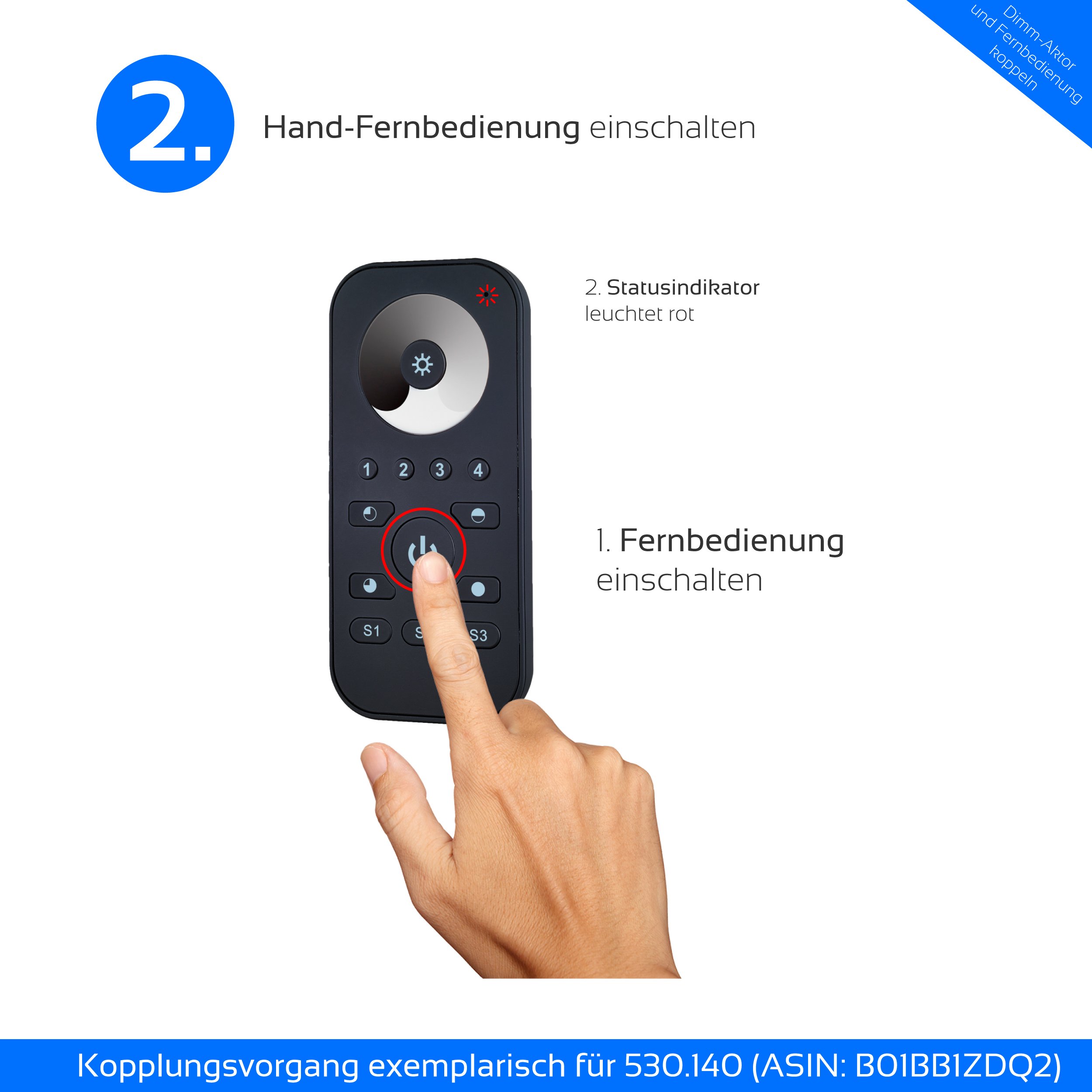

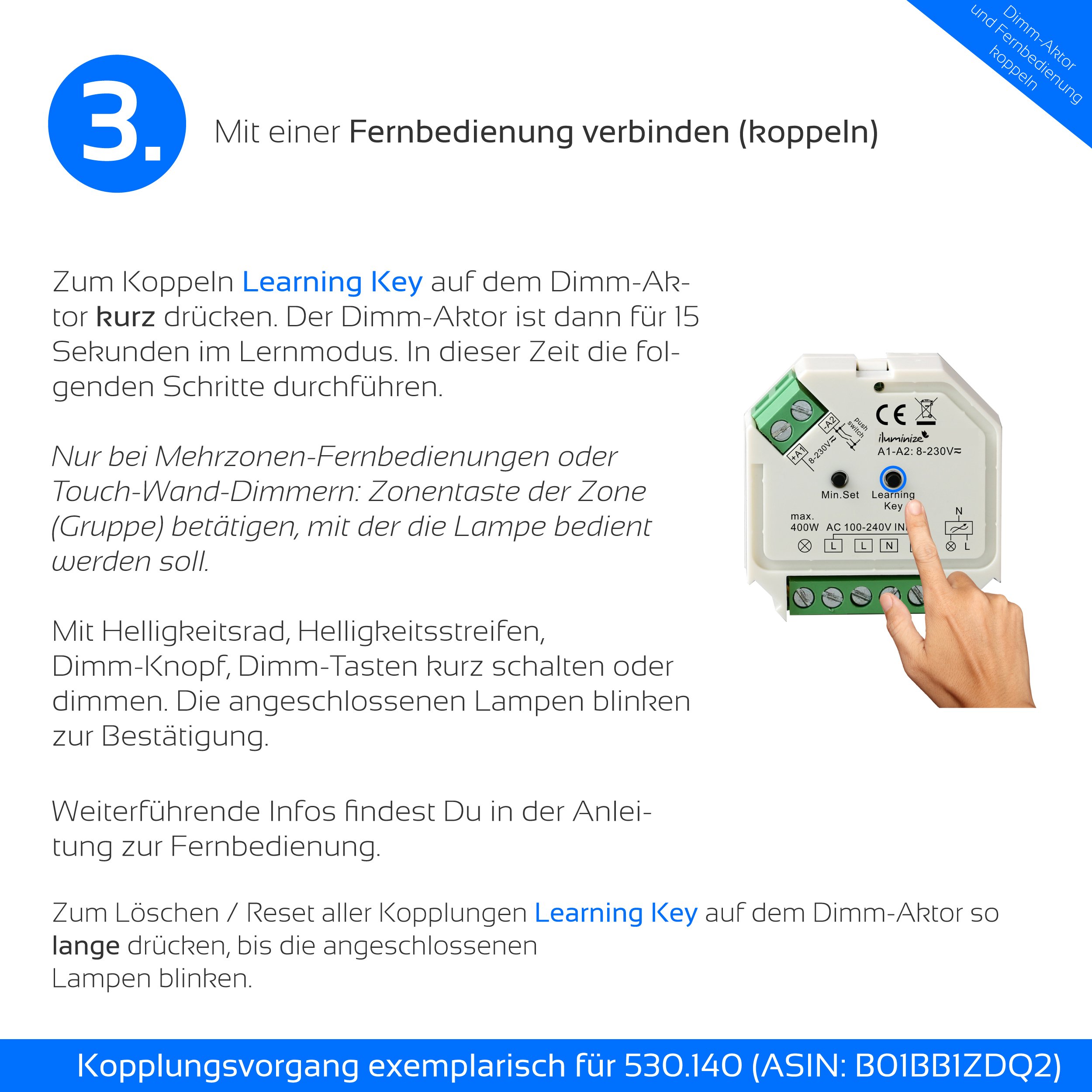

The scope of delivery includes the wireless dimming actuator as well as the hand-held remote control (including magnetic holder) for white LEDs. The instruction manual can be found at: -bedienungsanleitungen/anleitungen-led-controller. Important: not compatible with Zigbee 3.0. The dimming actuator can be paired wirelessly with up to 8 different remote controls: Design Wall Dimmer R for White LEDs, Product No. 542.111, ASIN: B01BAWAWZY Design wall dimmer touch for white LEDs, product no. 540.141, ASIN: B0173G7QUA Mini Hand Remote Control for White LEDs Product No. 530.140 ASIN: B01BB1ZDQ2 Midi White LED Hand Remote Control Product No. 531.160 ASIN: B01BIXGDN0 White LED Desk Dimmer Product No. 550.110 ASIN: B01BIXFM2I Wifi Bridge, Product No. 560.080, ASIN: B01BIXJ76U In order for the dimming actuator to be controlled with a remote control, the two devices must be paired once. This is very simple: 1. Connect the dimming actuator to the mains supply, the lamp(s) are connected. After switching on, the lamps light up for approx. 75% dimmed 2. Turn on the remote control (if required). 3. Select a zone (1-6) on the remote control (if required) 4. Short press the learning button on the dimming actuator, "operate" the remote control. The lamps flash briefly and the two devices are paired. For setup in the app, please consult the appropriate WiFi operating instructions (link above). The installation of the device must be carried out in Germany by an electric master company. Notes: If the dimming actuator is disconnected from the mains or the power fails, it "remembers" the last setting. Push buttons with status lights must not be used.
