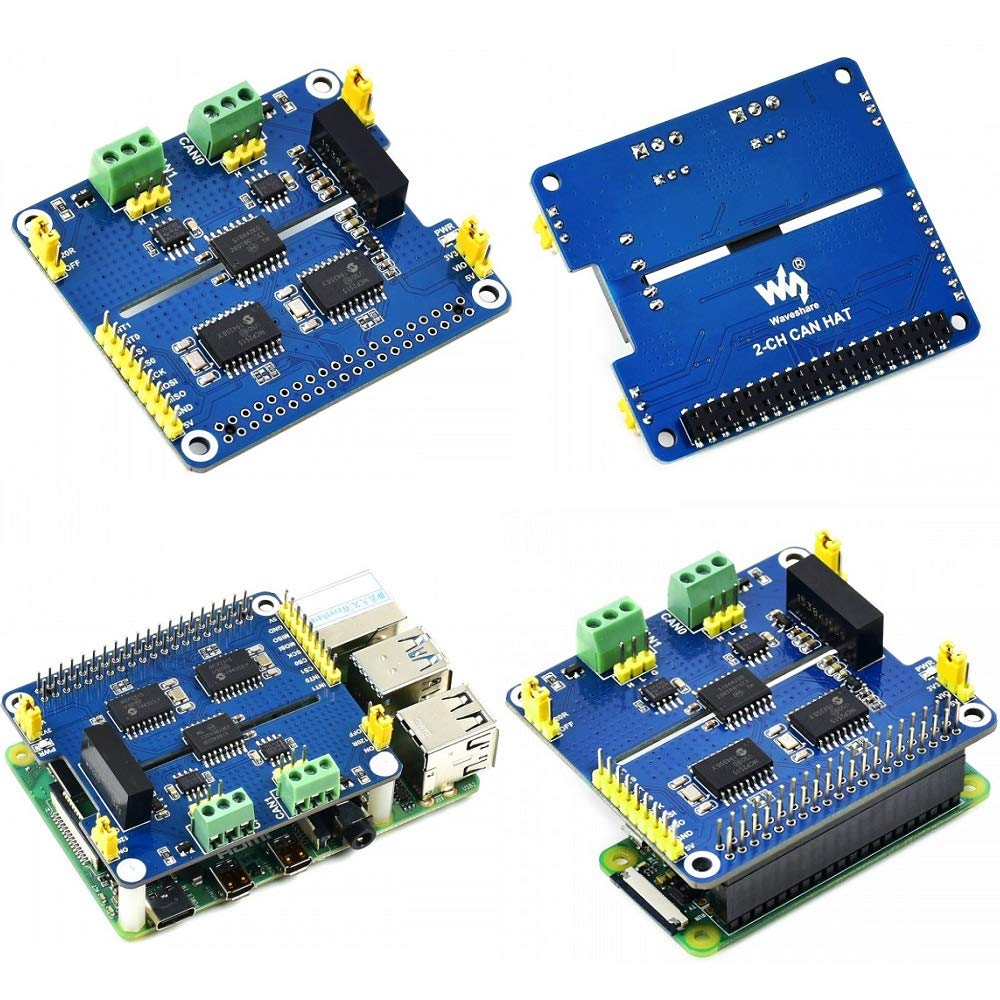

2-CH CAN HAT 2-Channel Isolated CAN Bus Expansion HAT Board for Raspberry Pi 4B 3B 2B Zero Zero W MCP2515 SN65HVD230 Dual Chips Solution with Multi Onboard Protection Circuits

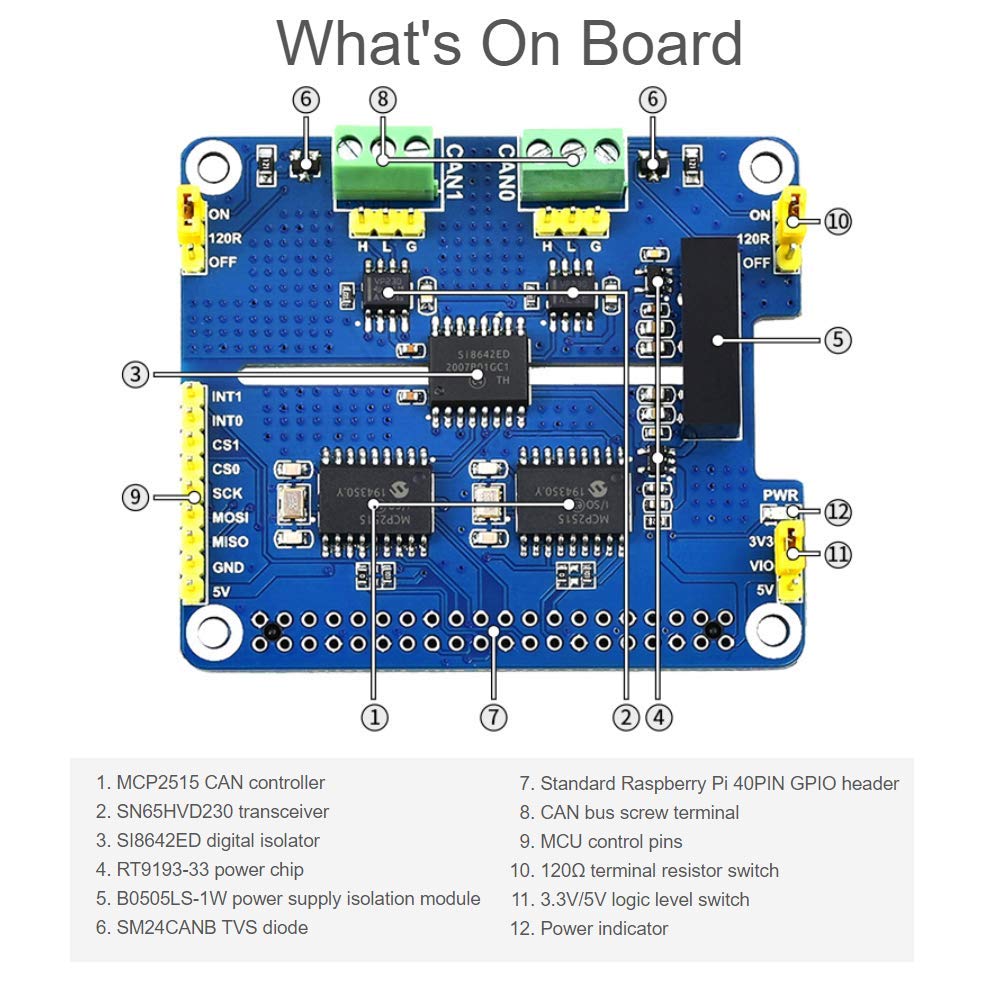

• Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
• Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
• Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference.Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
• Onboard voltage translator, select 3.3V/5V operating voltage by jumper.Onboard 120Ω terminal resistor, configured by jumper
• Breakout SPI control pins, for connecting with host control boards like STM32/Arduino

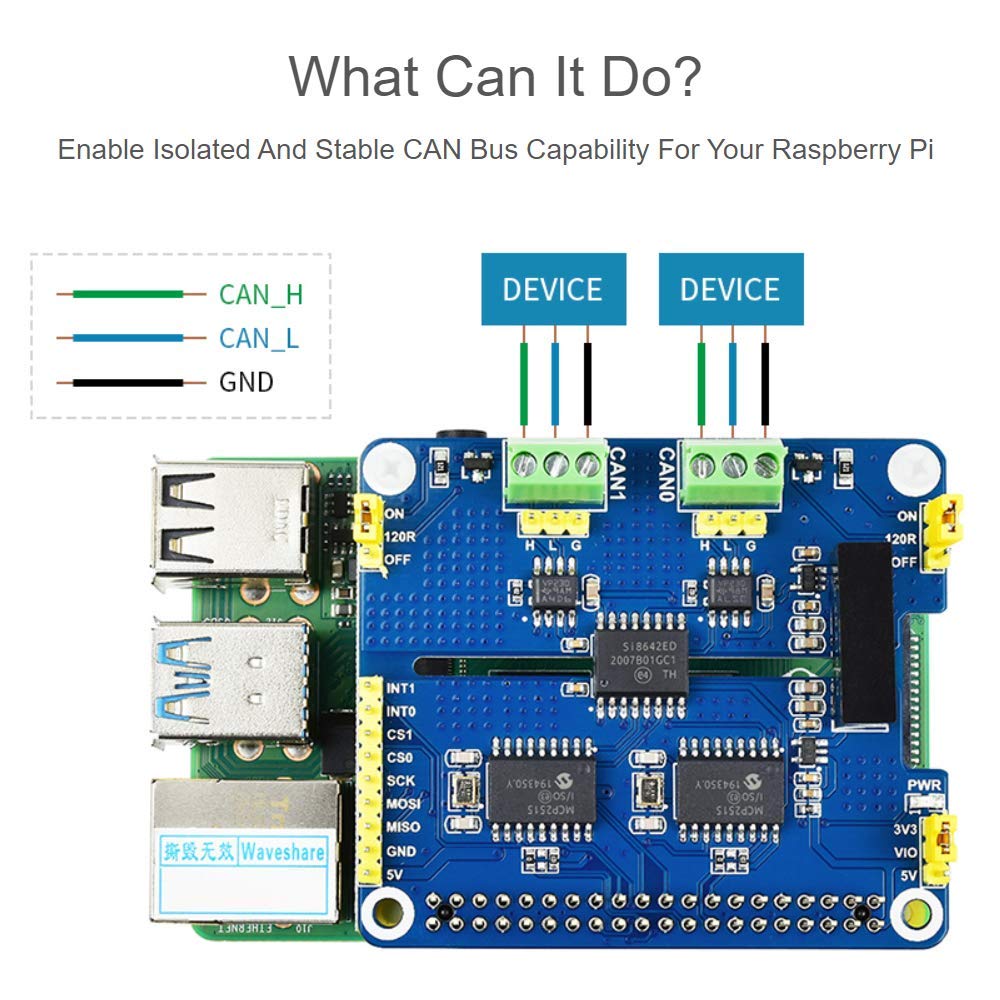

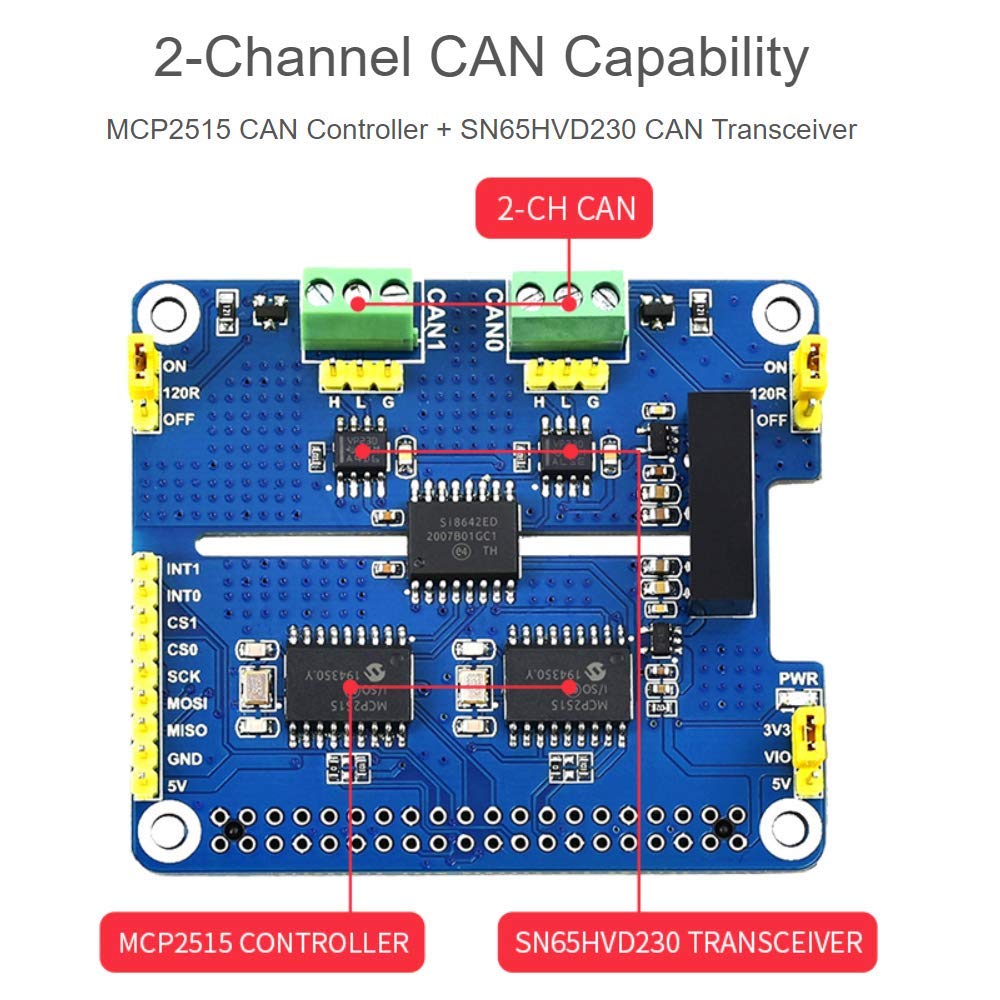

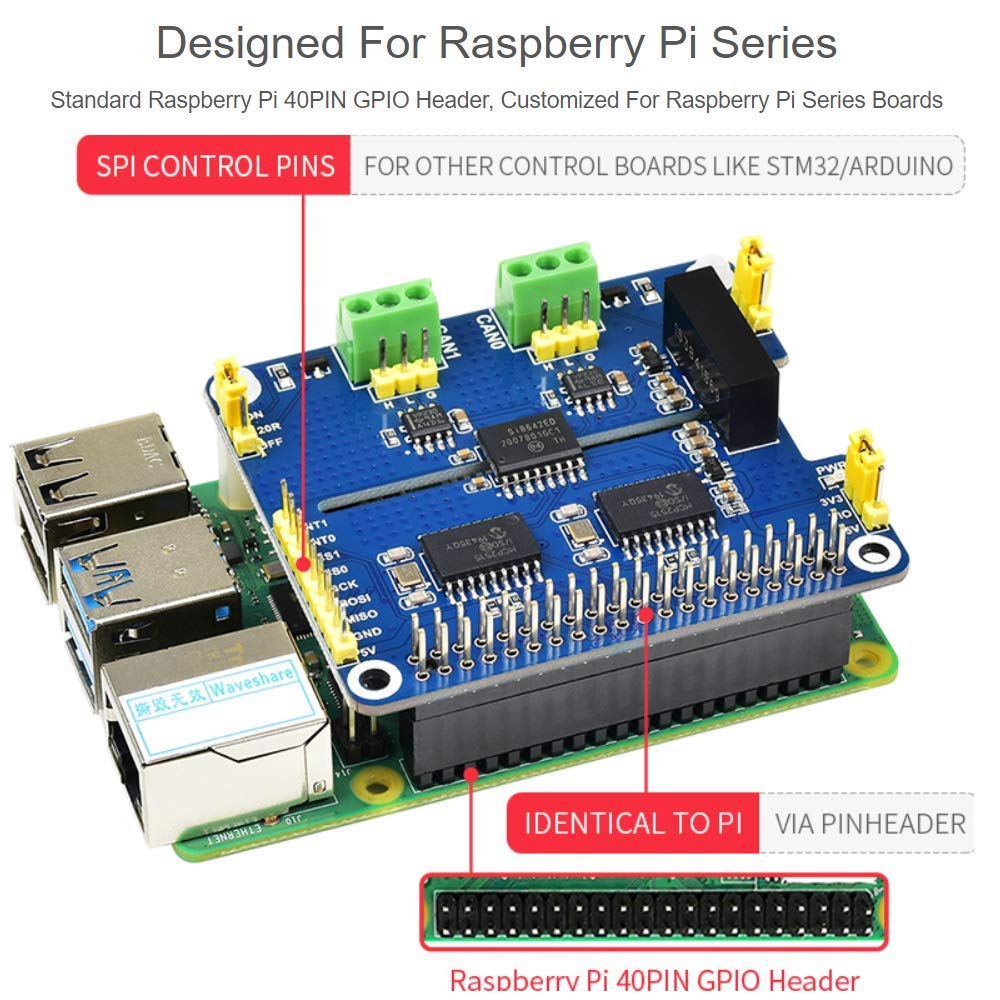

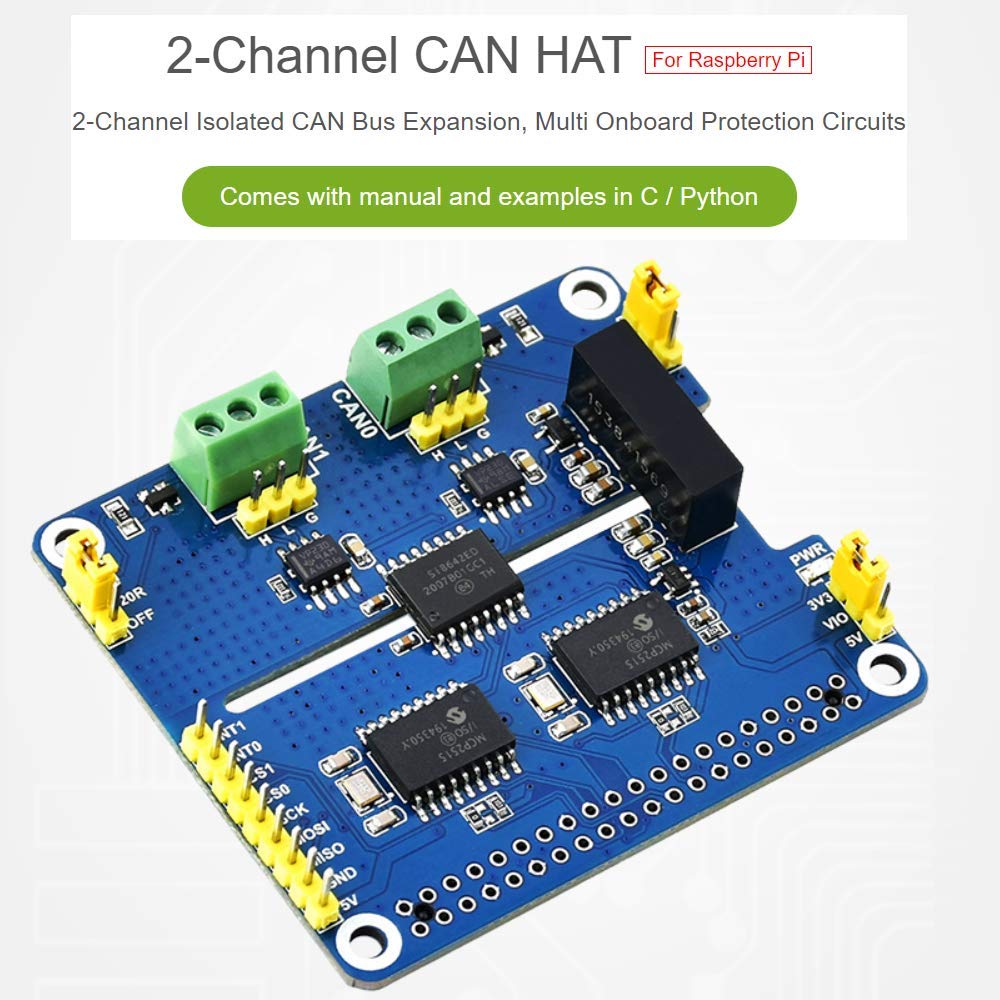

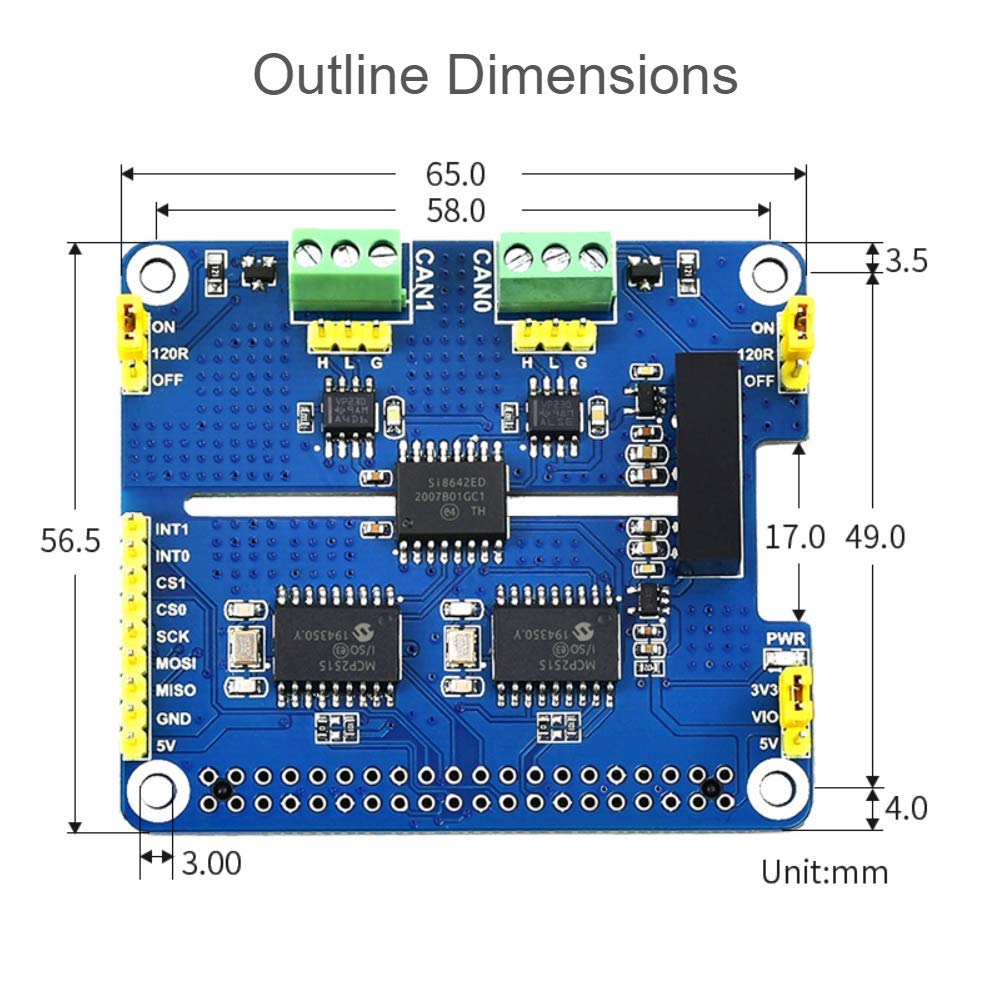

2-Channel Isolated CAN Bus Expansion HAT For Raspberry Pi, MCP2515 + SN65HVD230 Dual Chips Solution, Multi Onboard Protection Circuits Features 2-Channel CAN HAT 2-Channel Isolated CAN Bus Expansion, Multi Onboard Protection Circuits, comes with manual and examples in C/Python and examples Designed For Raspberry Pi Series Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards 2-Channel CAN Capability MCP2515 CAN Controller + SN65HVD230 CAN Transceiver Electrical Isolation Circuitry-Safe and Stable SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection Flexible And Handy Jumpers Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120Ω Terminal Resistor, Via Onboard Jumpers What Can It Do? Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi Specifications CAN CONTROLLER:MCP2515 CAN TRANSCEIVER:SN65HVD230 CONTROL BUS:SPI POWER SUPPLY VOLTAGE:5V LOGIC LEVEL VOLTAGE:3.3V/5V DIMENSIONS:65 × 56.5(mm) Development Sesources www.waveshare.com/wiki/2_CH_CAN_HAT?Amazon Package Content 2-CH CAN HAT x1 Standoffs pack (2pcs) x1 2×20PIN female header x1 Note Please contact us via Amazon message if you have any problem The Raspberry Pi in the photos are not included in the product package .
