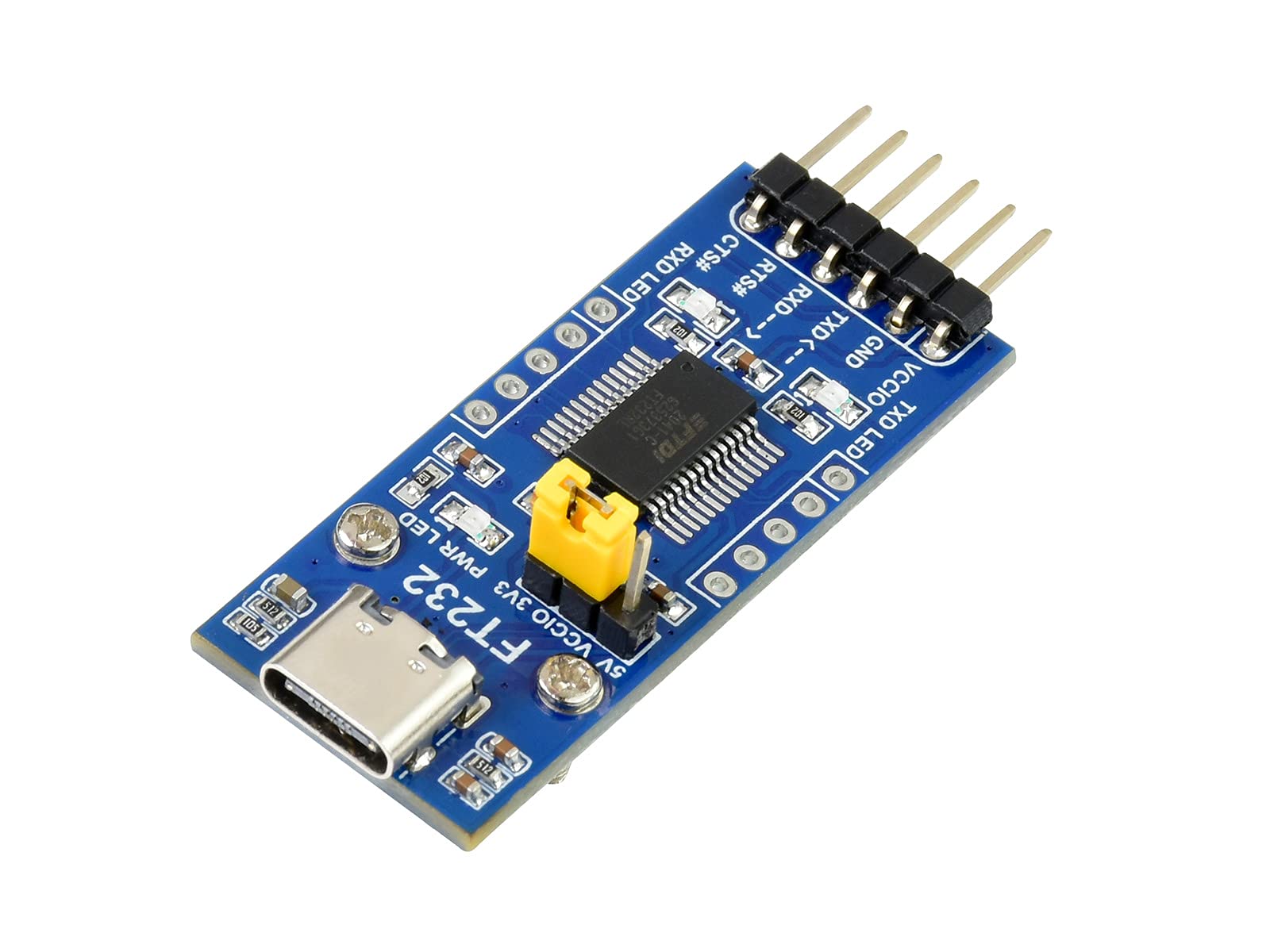

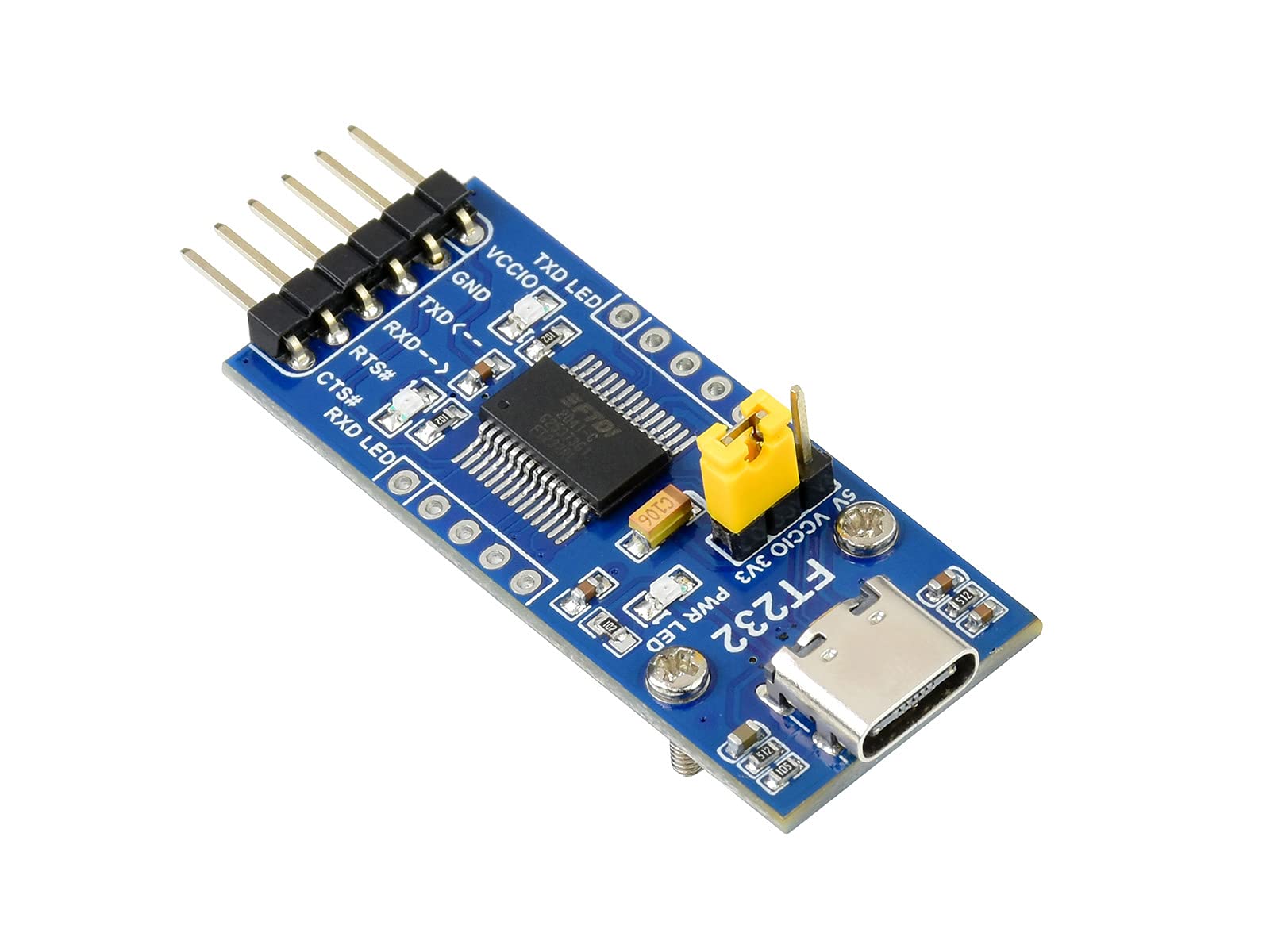

IBest 2pcs FT232 USB to TTL Serial Converter Adapter FT232RL USB UART Board (Type C) 3.3V 5V USB to TTL Adapter Compatible with Mac OS, Linux, Android, Windows 7/8 / 8.1/10/11

• Onboard Original FT232RL chip
• This USB to TTL Module supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11…
• 3x LED indicators: TXD, RXD, PWR.Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#
• 3x VCCIO power mode via jumper setting:1.VCCIO - 5V: 5V output;2.VCCIO - 3.3V: 3.3V output;3.open the jumper: powered from target board (3.3V-5V)

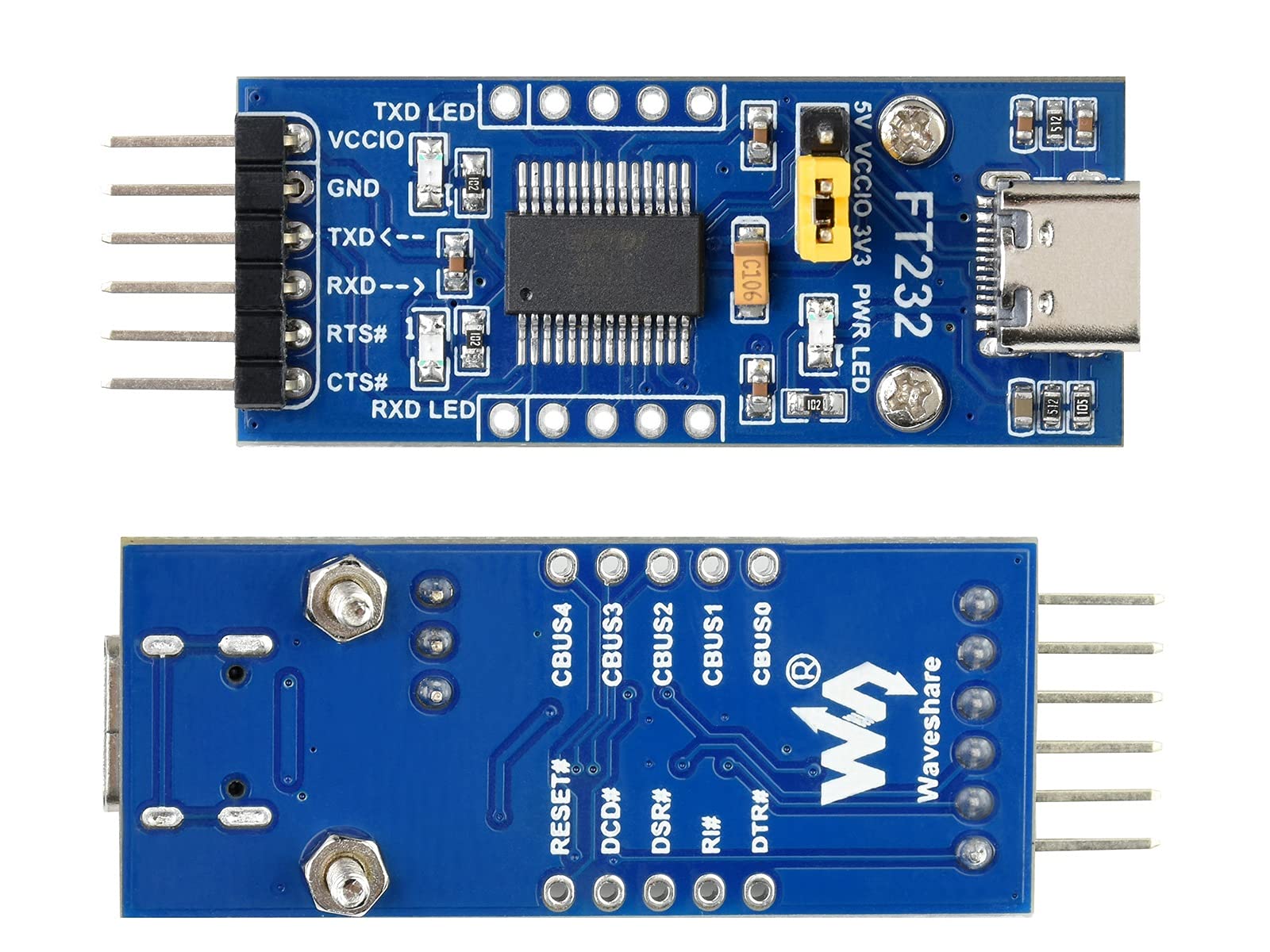

• Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)

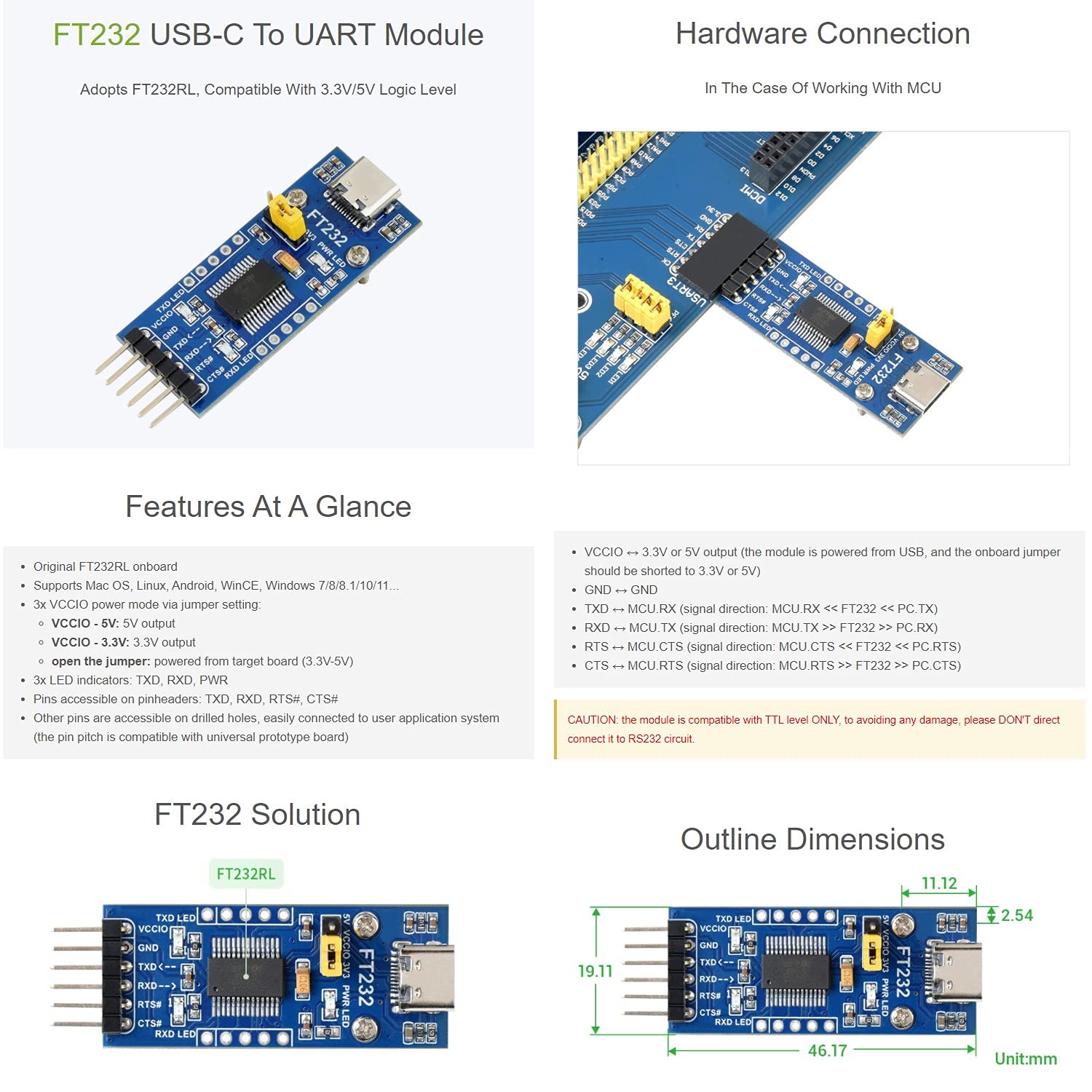

Overview FT232 USB-C to UART Module.Adopts FT232RL, Compatible with 3.3V/5V Logic Level Features At A Glance 1. Original FT232RL onboard 2. Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11... 3. 3 x VCCIO power mode via jumper setting: VCCIO - 5V: 5V output. VCCIO - 3.3 V: 3.3 V output. Open the jumper: powered from target board (3.3V-5V). 3. 3x LED indicators: TXD, RXD, PWR. 4. Pins accessible on pinheaders: TXD, RXD, RTS#, CTS# 5. Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board). Package Content FT232 USB UART Board (Type C) x2 6-pin custom connector jumper wire x2 5-pin male pinheader & 5-pin female pinheader x4 Development Sources https://www.waveshare.com/wiki/FT232_USB_UART_Board_(Type_C)?Amazon Note Development Resources is provided, please contact us if you have any problem.
