HUABAN TOF10120 Time-of-Flight Distance Laser Distance Measuring Sensor 5-180cm UART I2C Output

• 940mm laser classified as class 1 under operation condition
• Long Range absolute range measurement up to 1.8 meter within 5% accuracy at indoor
• Operates in high infrared ambient light levels
• High spped ranging MAX 30ms
• UART I2C interface for device control and data transfer

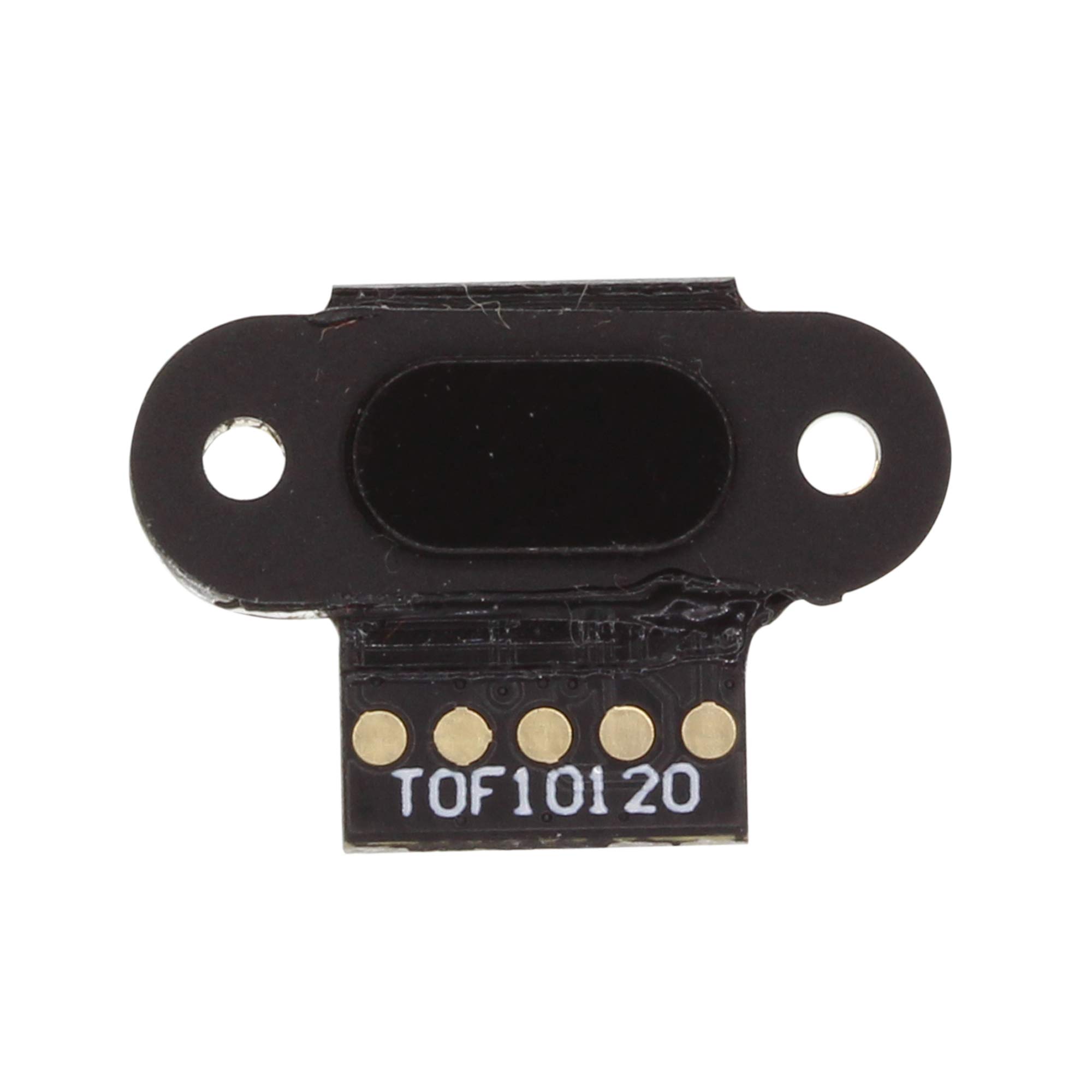

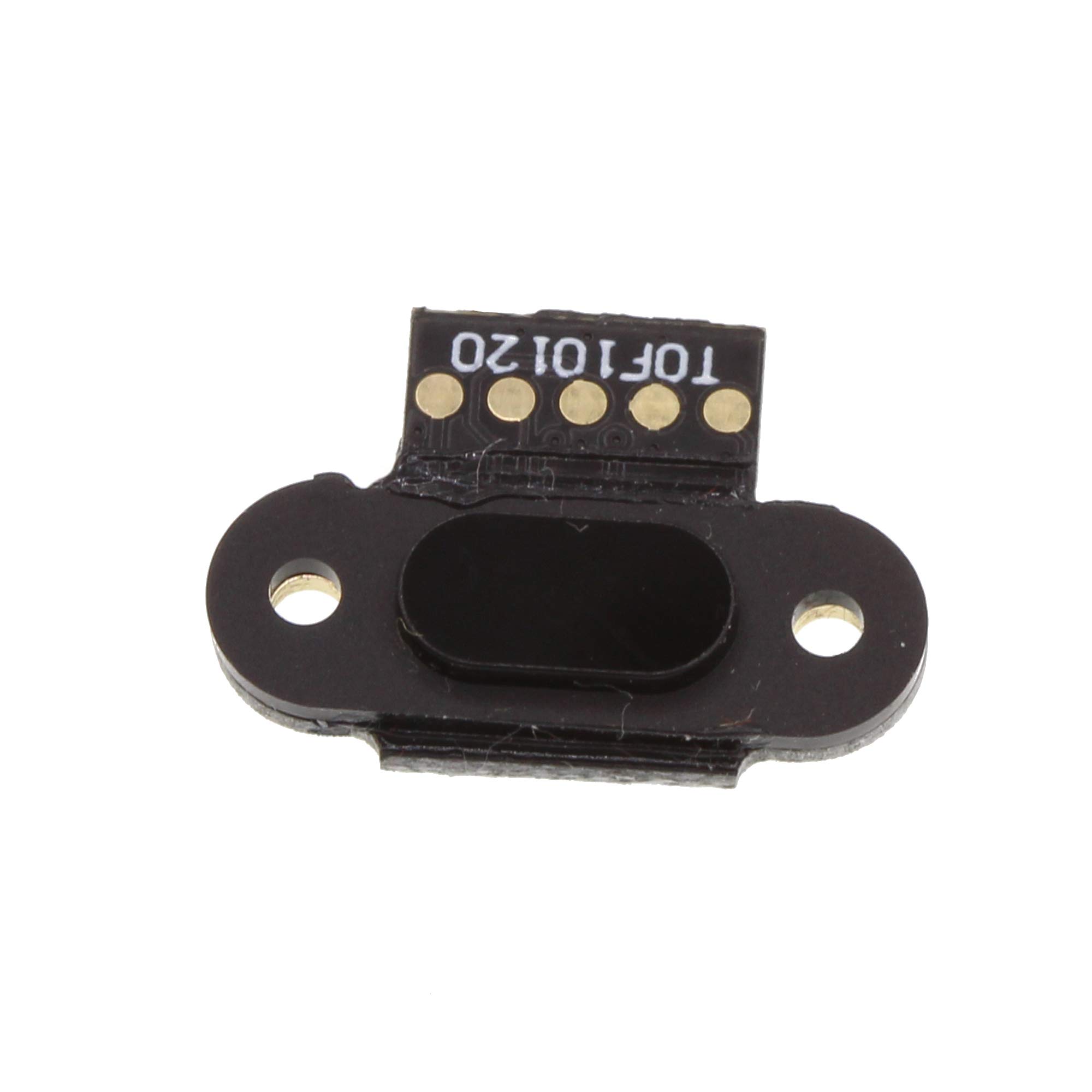

TOF10120 range sensor provides accurate and repcatable long range distance measurement for high speed antofocus(AF). The innovative time-of-flight technology allow performance independent of object reflectance. 940mm laser classified as class 1 under operation condition small ceramic package(20*13*2.0mm) Long Range absolute range measurement up to 1.8 meter within 5% accuracy at indoor reported range is independentof the target reflectance operates in high infrared ambient light levels advanced optical cross-tale compensation high spped ranging MAX 30ms standard solder reflow compatible no additional optics single power supply UART I2C interface for device control and data transfer Lead-free, RoHS compliant
