Hsthe Sea FM Radio Kit DIY Soldering Projects Radio FM 87-108MHz Soldering Practice Kit LCD1602 Display for Learning Teaching STEM Education DIY

• It is a RDA5807 87.0MHz-108.0MHz wireless FM radio receiver DIY kit with RGB spectrum indicator flashing automatically.
• It has a blue LCD1602 display that clearly shows the received frequency.
• DIY radio not only features the standard radio functions, but also comes equipped with 10 LED lights that add a unique twist to your listening experience.
• With a high-definition LCD1602 screen,radio allows you to adjust the frequency and volume to your liking once assembly is complete.

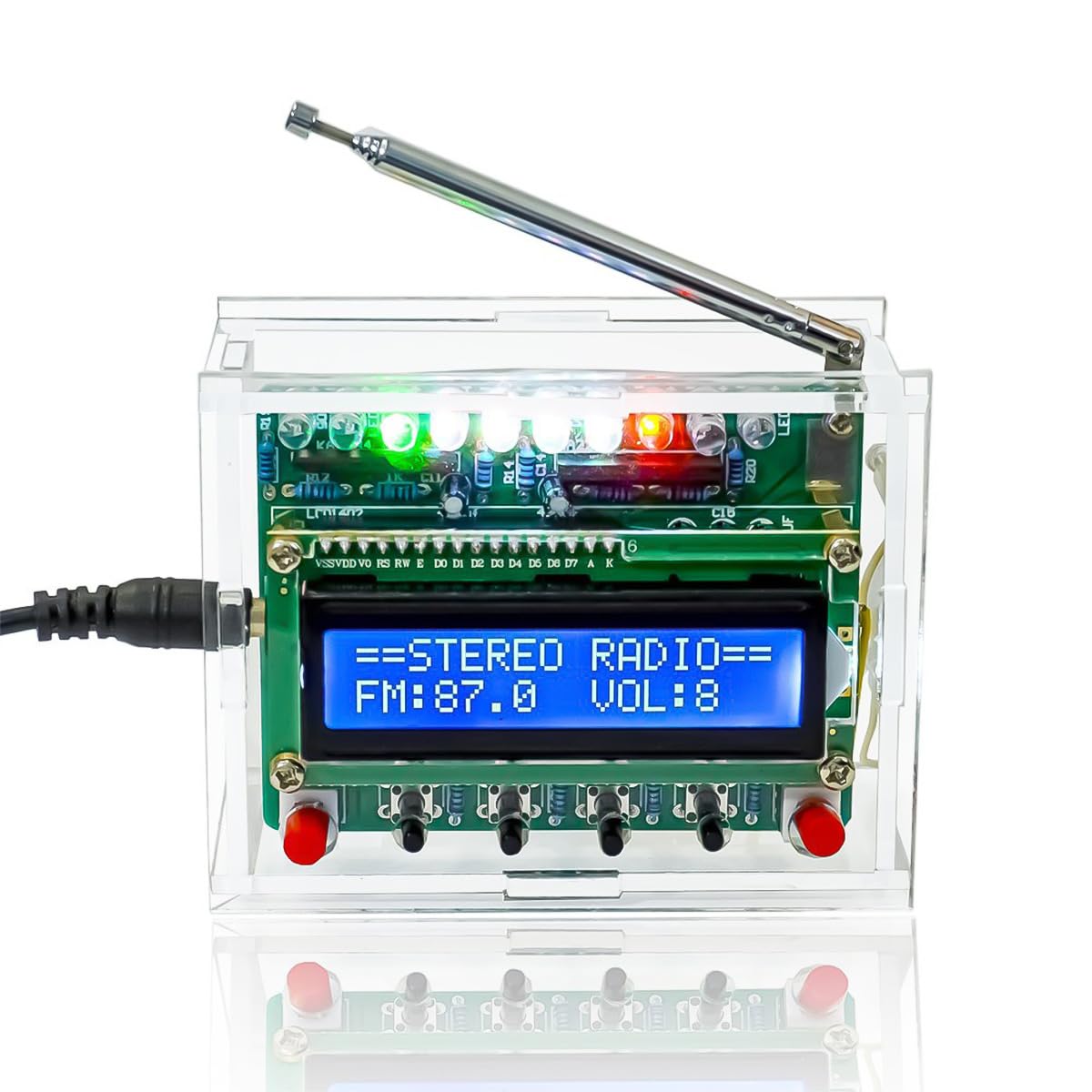

• It comes with an acrylic transparent case, which not only looks beautiful but also provides protection for the delicate components inside.

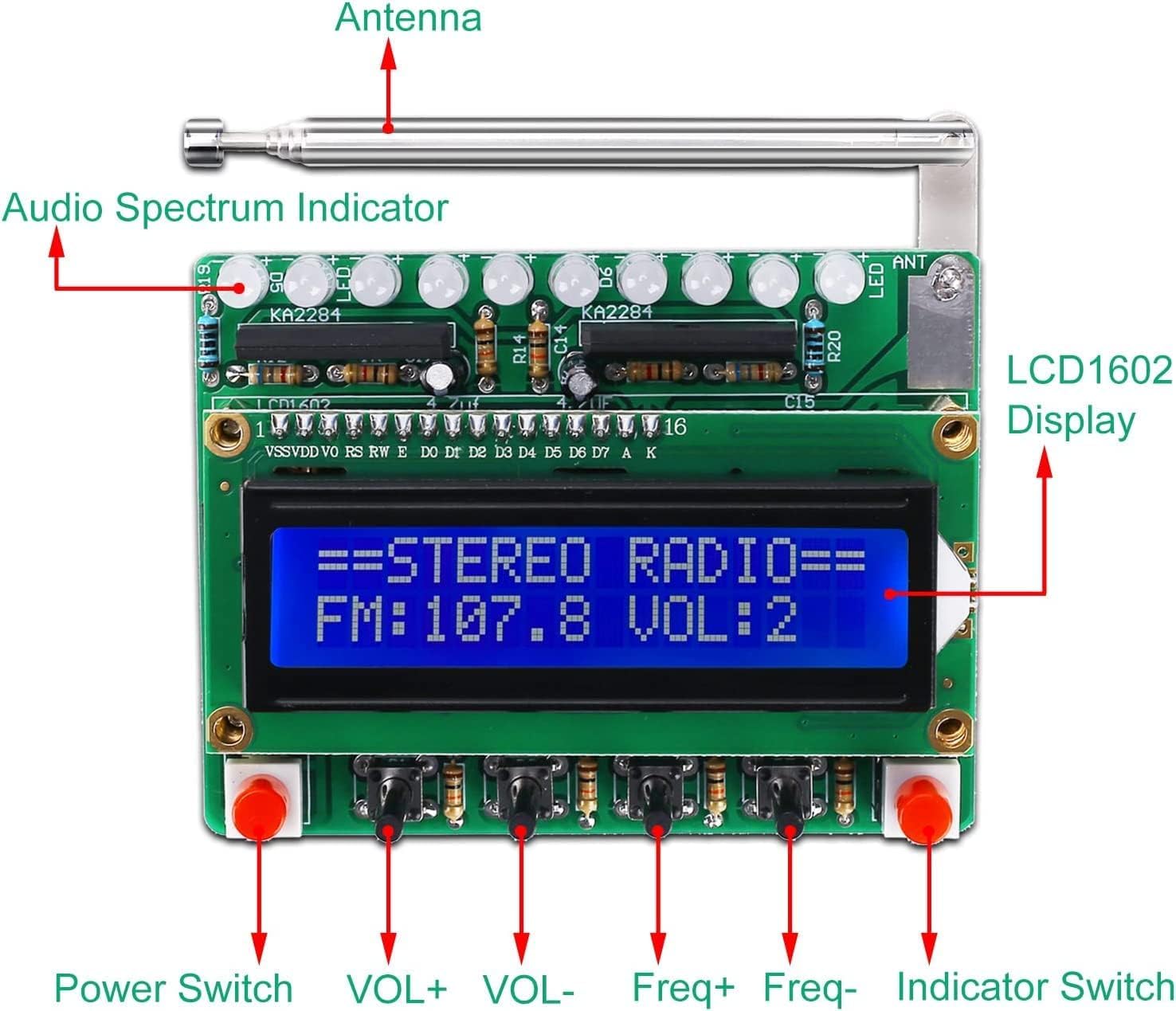

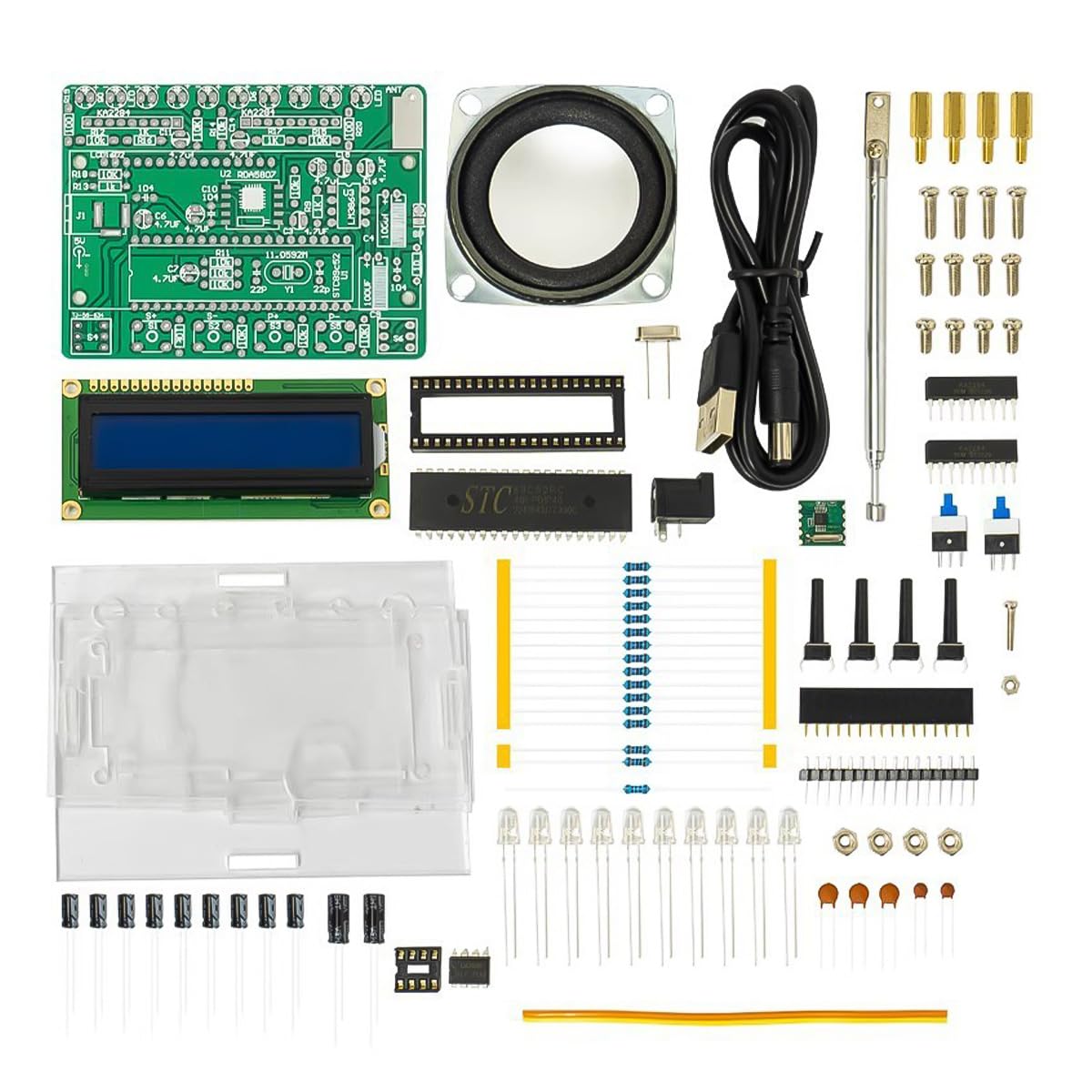

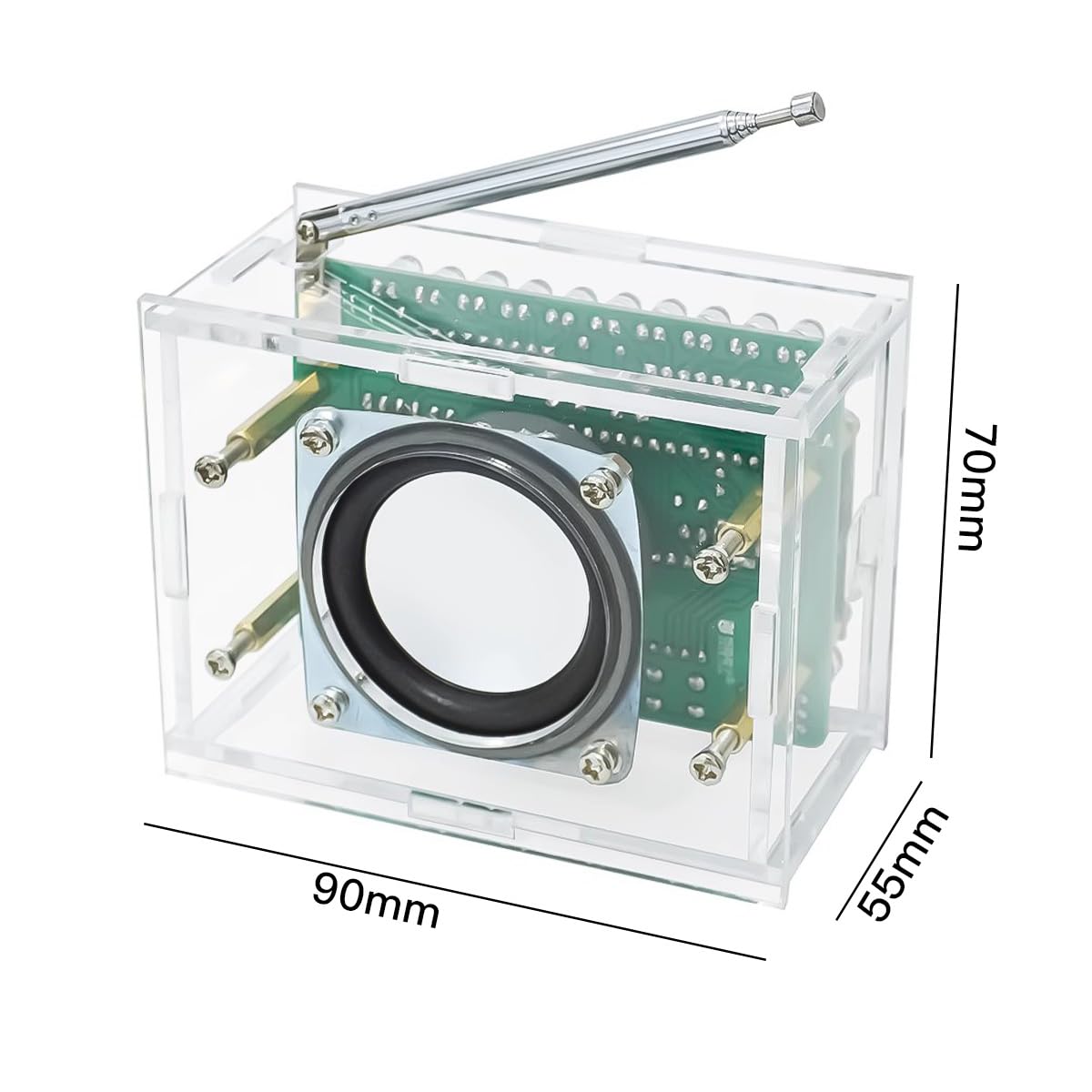

Product Description: Soldering kit is an ideal choice for electronics enthusiasts looking to enhance their soldering skills and build a functional radio. Usage. 1.Press the left button to turn on/off the power. 2.Press the right button to turn on/off the spectrum indicator. 3.Press S+ or S- to adjust the volume. 4.Press P+ or P- to adjust the receiving frequency and FM stations. Specification: Operating voltage:DC 4.5V-5.5V Output impedance:4 ohm Output power:5W Output Channel: Mono Receiving frequency: 87.0 MHz-108.0 MHz Frequency Accuracy:0.1 MHz Equivalent noise:Larger than=30dB Enclosure Size:90 x 70 x 55mm Packaging includes: As shown in the picture
